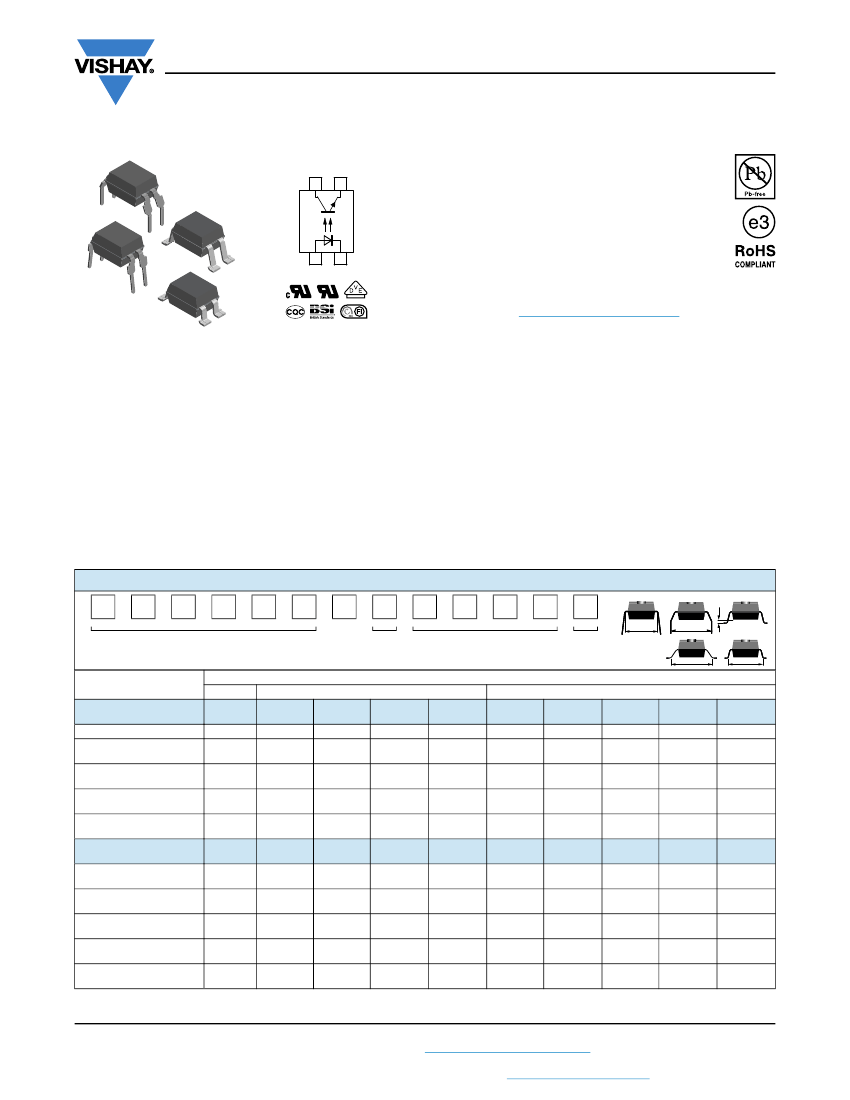

VO615A
www.vishay.com
Vishay Semiconductors
Optocoupler, Phototransistor Output, High Temperature
C
E
FEATURES
• Temperature range -55 °C to +110 °C
• Rated impulse voltage (transient overvoltage),
V
IOTM
= 6 kV
peak
• Isolation test voltage (partial discharge test
voltage), V
pd
= 1.6 kV
• Rated isolation voltage (RMS includes DC),
V
IOWM
= 600 V
RMS
• Rated recurring peak voltage (repetitive) V
IORM
= 850 V
peak
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
1
A
C
17918-23
DESCRIPTION
The VO615A consists of a phototransistor optically coupled
to a gallium arsenide infrared-emitting diode in a 4 pin
plastic dual inline package.
APPLICATIONS
Circuits for safe protective separation against electrical
shock according to safety class II (reinforced isolation):
• Application class I to IV at mains voltage
≤
300 V
• Application class I to IV at mains voltage
≤
600 V
according to table 1 of IEC 60664-1, suitable for:
- Switch-mode power supplies
- Line receiver
- Computer peripheral interface
- Microprocessor system interface
AGENCY APPROVALS
The safety application model number covering all products
in this datasheet is VO615A. This model number should be
used when consulting safety agency documents.
• BSI
• DIN EN 60747-5-5 (VDE 0884-5), available with option 1
• FIMKO
• UL 1577
• cUL 1577
• CQC
ORDERING INFORMATION
V
O
6
1
5
A
-
#
CTR
BIN
X
0
#
#
T
TAPE
AND
REEL
5 mA
DIP-#
Option 6
Option 7
7.62 mm
10.16 mm
> 0.6 mm
PART NUMBER
AGENCY CERTIFIED/
PACKAGE
PACKAGE OPTION
CTR (%)
Option 8
Option 9
9.27 mm
> 8 mm
5 mA
40 to 80
10 mA
UL, cUL, BSI, FIMKO, 50 to 600
CQC
DIP-4
VO615A
DIP-4, 400 mil,
VO615A-
option 6
X006
VO615A-
SMD-4, option 7
X007T
SMD-4, option 8
SMD-4, option 9
63 to 125 100 to 200 160 to 320 50 to 150 100 to 300 80 to 160 130 to 260 200 to 400
VO615A-4 VO615A-5 VO615A-6 VO615A-7 VO615A-8 VO615A-9
VO615A- VO615A- VO615A- VO615A- VO615A- VO615A-
4X006
5X006
6X006
7X006
8X006
9X006
VO615A- VO615A- VO615A- VO615A- VO615A- VO615A-
4X007T
5X007T
6X007T
7X007T
8X007T
9X007T
-
VO615A-
4X009T
-
VO615A-
5X009T
-
VO615A-
6X009T
-
VO615A-
7X009T
-
-
-
VO615A-
9X009T
VO615A-1 VO615A-2 VO615A-3
VO615A- VO615A- VO615A-
1X006
2X006
3X006
VO615A- VO615A- VO615A-
1X007T
2X007T
3X007T
VO615A-
-
-
-
3X008T
VO615A- VO615A- VO615A- VO615A-
X009T
1X009T
2X009T
3X009T
UL, cUL, BSI, FIMKO, 50 to 600 40 to 80 63 to 125 100 to 200
CQC, VDE (option 1)
VO615A- VO615A- VO615A- VO615A-
DIP-4
X001
1X001
2X001
3X001
VO615A- VO615A-
DIP-4, 400 mil,
-
-
2X016
3X016
option 6
VO615A-
VO615A- VO615A-
-
SMD-4, option 7
3X017T
X017T
1X017T
VO615A-
SMD-4, option 8
-
-
-
3X018T
VO615A- VO615A- VO615A-
SMD-4, option 9
-
1X019T
2X019T
3X019T
Note
• Additional options may be possible, please contact sales office
Rev. 2.3, 08-Feb-17
160 to 320 50 to 150 100 to 300 80 to 160 130 to 260 200 to 400
VO615A-
4X001
VO615A-
4X016
VO615A-
4X017T
VO615A-
4X018T
VO615A-
4X019T
-
VO615A-
5X016
-
-
-
VO615A-
6X001
-
VO615A-
6X017T
-
-
VO615A-
7X001
-
VO615A-
7X017T
-
-
VO615A-
8X001
VO615A-
8X016
VO615A-
8X017T
VO615A-
8X018T
-
-
VO615A-
9X016
VO615A-
9X017T
-
-
Document Number: 81753
1
For technical questions, contact:
optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VO615A
www.vishay.com
Vishay Semiconductors
TEST CONDITION
SYMBOL
V
R
I
F
t
p
≤
10 μs
at 25 °C
I
FSM
P
diss
V
CEO
V
ECO
I
C
I
CM
P
diss
T
amb
T
stg
T
sld
VALUE
6
60
1.5
100
70
7
50
100
150
-55 to +110
-55 to +125
260
UNIT
V
mA
A
mW
V
V
mA
mA
mW
°C
°C
°C
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
INPUT
Reverse voltage
Forward current
Forward surge current
LED power dissipation
OUTPUT
Collector emitter voltage
Emitter collector voltage
Collector current
Collector peak current
Output power dissipation
COUPLER
Operating ambient temperature range
Storage temperature range
Soldering temperature
(1)
t
p
/T = 0.5, t
p
≤
10 ms
at 25 °C
2 mm from case,
≤
10 s
Notes
• Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. Functional operation of the device is not
implied at these or any other conditions in excess of those given in the operational sections of this document. Exposure to absolute
maximum ratings for extended periods of the time can adversely affect reliability
(1)
Refer to reflow profile for soldering conditions for surface mounted devices (SMD), and wave profile for soldering conditions for through hole
devices (DIP), please go to “Assembly Instructions” (www.vishay.com/doc?80054)
200
P
tot
- Power Dissipation (mW)
150
Phototransistor
100
50
Diode
0
0
25
50
75
100
125
150
T
amb
- Ambient Temperature (°C)
Fig. 1 - Permissible Power Dissipation vs. Ambient Temperature
ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
INPUT
Forward voltage
Reverse current
Junction capacitance
OUTPUT
Collector emitter voltage
Emitter collector voltage
Collector emitter leakage current
COUPLER
Collector emitter saturation voltage
Cut-off frequency
Coupling capacitance
TEST CONDITION
I
F
= 50 mA
V
R
= 6 V
V
R
= 0, f = 1 MHz
I
C
= 1 mA
I
E
= 100 μA
V
CE
= 20 V, I
F
= 0
I
F
= 10 mA, I
C
= 1 mA
V
CE
= 5 V, I
F
= 10 mA, R
L
= 100
Ω
f = 1 MHz
SYMBOL
V
F
I
R
C
j
V
CEO
V
ECO
I
CEO
V
CEsat
f
c
C
k
MIN.
-
-
-
70
7
-
-
-
-
TYP.
1.43
-
50
-
-
10
-
110
0.6
MAX.
1.6
100
-
-
-
100
0.3
-
-
UNIT
V
μA
pF
V
V
nA
V
kHz
pF
Note
• Minimum and maximum values are testing requirements. Typical values are characteristics of the device and are the result of engineering
evaluation. Typical values are for information only and are not part of the testing requirements
Rev. 2.3, 08-Feb-17
Document Number: 81753
2
For technical questions, contact:
optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VO615A
www.vishay.com
Vishay Semiconductors
TEST CONDITION
PART
VO615A-1
VO615A-2
VO615A-3
VO615A-4
VO615A
VO615A-5
VO615A-6
VO615A-7
VO615A-8
VO615A-9
VO615A-1
VO615A-2
VO615A-3
VO615A-4
SYMBOL
CTR
CTR
CTR
CTR
CTR
CTR
CTR
CTR
CTR
CTR
CTR
CTR
CTR
CTR
MIN.
13
22
34
56
50
50
100
80
130
200
40
63
100
160
TYP.
30
45
70
90
-
-
-
-
-
-
-
-
-
-
MAX.
-
-
-
-
600
150
300
160
260
400
80
125
200
320
UNIT
%
%
%
%
%
%
%
%
%
%
%
%
%
%
CURRENT TRANSFER RATIO
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
V
CE
= 5 V, I
F
= 1 mA
I
C
/I
F
V
CE
= 5 V, I
F
= 5 mA
V
CE
= 5 V, I
F
= 10 mA
SAFETY AND INSULATION RATED PARAMETERS
PARAMETER
Climatic classification
Pollution degree
Comparative tracking index
Maximum rated withstanding
isolation voltage
Maximum transient isolation voltage
Maximum repetitive peak
isolation voltage
Isolation resistance
Output safety power
Input safety current
Input safety temperature
Creepage distance
Clearance distance
Creepage distance
Clearance distance
Insulation thickness
Input to output test voltage,
method B
Input to output test voltage,
method A
V
IORM
x 1.875 = V
PR
, 100 % production test
with t
M
= 1 s, partial discharge < 5 pC
V
IORM
x 1.6 = V
PR
, 100 % sample test
with t
M
= 10 s, partial discharge < 5 pC
DIP-4; SMD-4, option 7;
SMD-4, option 9
DIP-4, 400 mil, option 6;
SMD-4, option 8
DTI
V
PR
V
PR
TEST CONDITION
According to IEC 68 part 1
According to DIN VDE 0109
Insulation group IIIa
According to UL1577, t = 1 min
According to DIN EN 60747-5-5
According to DIN EN 60747-5-5
T
amb
= 25 °C, V
IO
= 500 V
T
amb
= 100 °C, V
IO
= 500 V
T
amb
= T
S
, V
IO
= 500 V
CTI
V
ISO
V
IOTM
V
IORM
R
IO
R
IO
R
IO
P
SO
I
SI
T
S
SYMBOL
VALUE
55 / 110 / 21
2
250
5000
6000
850
≥
10
12
≥
10
11
≥
10
9
265
130
150
≥
7.6
≥
7.6
≥
8.0
≥
8.0
≥
0.4
1600
1360
V
AC
V
peak
V
peak
Ω
Ω
Ω
mW
mA
°C
mm
mm
mm
mm
mm
V
peak
V
peak
UNIT
Note
• According to DIN EN 60747-5-5 (VDE 0884), § 7.4.3.8.2 (see Fig. 2). This optocoupler is suitable for safe electrical isolation only within the
safety ratings. Compliance with the safety ratings shall be ensured by means of suitable protective circuits
Rev. 2.3, 08-Feb-17
Document Number: 81753
3
For technical questions, contact:
optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VO615A
www.vishay.com
Vishay Semiconductors
V
IOTM
300
250
200
Phototransistor
P
SO
(mW)
t
1
, t
2
t
3
, t
4
t
test
t
stres
V
pd
= 1 s to 10 s
=1s
= 10 s
= 12 s
150
100
50
0
0
25
50
75
100
125
IR-diode
I
SI
(mA)
V
IOWM
V
IORM
0
150
13930
t
3
t
test
t
4
t
1
t
Tr
= 60 s
t
2
t
stres
t
T
SI
- Safety Temperature (°C)
Fig. 2 - Derating Diagram
Fig. 3 - Test Pulse Diagram for Sample Test According to
DIN EN 60747-5-2 (VDE 0884); IEC 60747-5-5
SWITCHING CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Delay time
Rise time
Fall time
Storage time
Turn-on time
Turn-off time
Turn-on time
Turn-off time
TEST CONDITION
V
S
= 5 V, I
C
= 2 mA, R
L
= 100
Ω
V
S
= 5 V, I
C
= 2 mA, R
L
= 100
Ω
V
S
= 5 V, I
C
= 2 mA, R
L
= 100
Ω
V
S
= 5 V, I
C
= 2 mA, R
L
= 100
Ω
V
S
= 5 V, I
C
= 2 mA, R
L
= 100
Ω
V
S
= 5 V, I
C
= 2 mA, R
L
= 100
Ω
V
S
= 5 V, I
F
= 10 mA, R
L
= 1 kΩ
V
S
= 5 V, I
F
= 10 mA, R
L
= 1 kΩ
V
CC
= 5 V
SYMBOL
t
d
t
r
t
f
t
s
t
on
t
off
t
on
t
off
MIN.
-
-
-
-
-
-
-
-
TYP.
3
3
4.7
0.3
6
5
3
10
MAX.
-
-
-
-
-
-
-
-
UNIT
μs
μs
μs
μs
μs
μs
μs
μs
Input pulse
Input
R
L
V
OUT
10 %
Output pulse
90 %
t
r
t
on
t
f
t
off
Fig. 4 - Test Circuit
Fig. 5 - Test Circuit and Waveforms
Rev. 2.3, 08-Feb-17
Document Number: 81753
4
For technical questions, contact:
optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VO615A
www.vishay.com
TYPICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
Vishay Semiconductors
100
30
I
C
- Collector Current (mA)
I
F
- Forward Current (mA)
T
amb
= 50 °C
25
I
F
= 25 mA
10
T
amb
= 75 °C
T
amb
= 110 °C
T
amb
= 25 °C
20
15
10
5
I
F
= 1 mA
I
F
= 10 mA
1
T
amb
= - 55 °C
T
amb
= 0 °C
I
F
= 5 mA
I
F
= 2 mA
0.1
0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6
0
0
22329
0.1
0.2
0.3
0.4
V
F
- Forward Voltage (V)

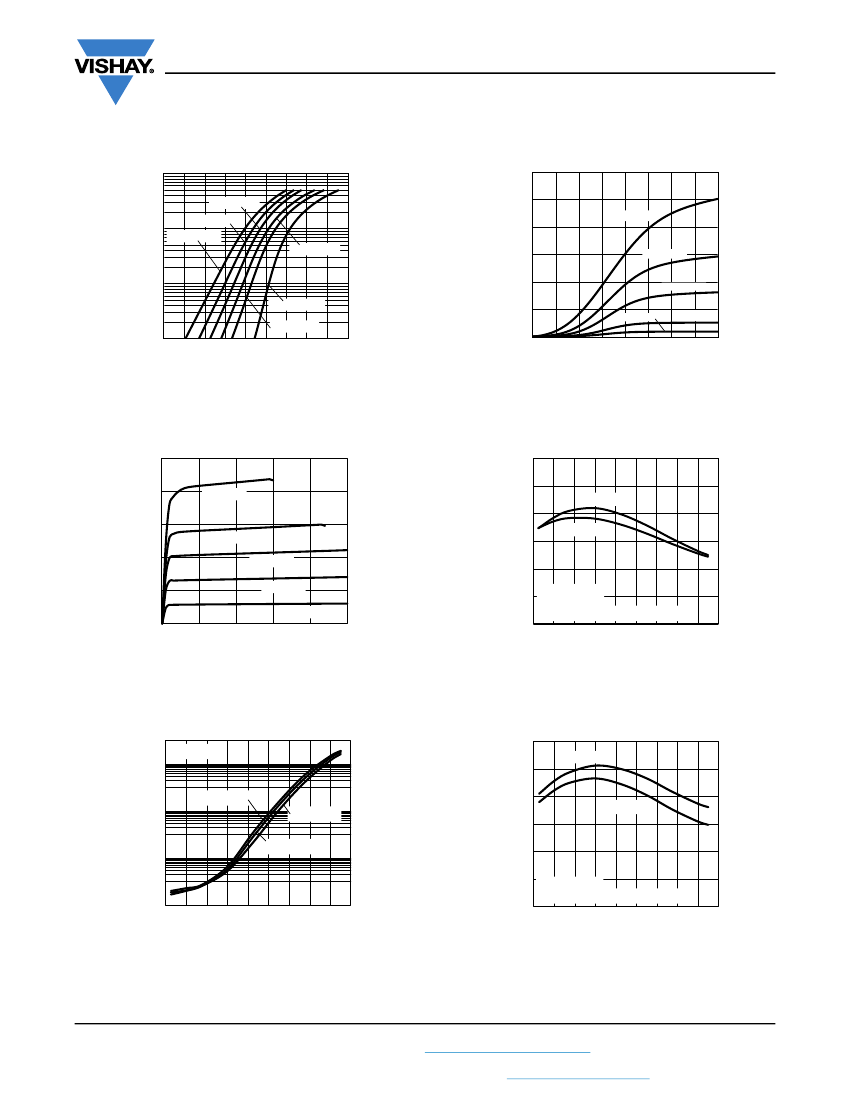

Fig. 6 - Forward Current vs. Forward Voltage
V
CE
- Collector Emitter Voltage (sat) (V)
Fig. 9 - Collector Current vs. Collector Emitter Voltage (saturated)
25
1.2
N
CTR
- Normalized CTR (sat)
I
C
- Collector Current (mA)
20
15
I
F
= 30 mA
1.0
I
F
= 5 mA
0.8
I
F
= 10 mA
0.6
0.4
0.2
0
I
F
= 20 mA
10
5
0
0
2
4
I
F
= 15 mA
I
F
= 10 mA
I
F
= 5 mA
V
CE
= 0.4 V
Normalized to:
I
F
= 10 mA, V
CE
= 5 V, T
amb
= 25 °C
-60 -40 -20
0
20
40
60
80 100 120
6
8
10
22327
V
CE
- Collector Emitter Voltage (NS) (V)
T
amb
- Ambient Temperature (°C)
Fig. 10 - Normalized CTR (saturated) vs. Ambient Temperature
Fig. 7 - Collector Current vs. Collector Emitter Voltage
(non-saturated)
I
CE0
- Leakage Current (nA)
1000
N
CTR
- Normalized CTR (NS)
I
F
= 0 mA
1.2
I
F
= 10 mA
1.0
0.8
I
F
= 5 mA
V
CE
= 40 V
10
V
CE
= 12 V
V
CE
= 24 V
0.1
0.6
0.4
0.2
Normalized to:
I
F
= 10 mA, V
CE
= 5 V, T
amb
= 25 °C
0
20
40
60
80 100 120
0.001
-60 -40 -20
22328
0
20
40
60
80 100 120
0
-60 -40 -20
T
amb
- Ambient Temperature (°C)
T
amb
- Ambient Temperature (°C)
Fig. 11 - Normalized CTR (non-saturated) vs. Ambient Temperature
Fig. 8 - Leakage Current vs. Ambient Temperature
Rev. 2.3, 08-Feb-17
Document Number: 81753
5
For technical questions, contact:
optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
