IRFP460BPBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> IRFP460BPBF

IRFP460BPBF: DescriptionDrain-source voltage (Vdss): 500V Continuous drain current (Id) (at 25°C): 20A Gate-source threshold voltage: 4V @ 250uA Drain-source on-resistance: 250mΩ @ 10A, 10V Maximum power dissipation (Ta= 25°C): 278W(Tc) Type: N channel N channel; CategoryDiscrete semiconductor The transistor; File Size189KB，8 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

IRFP460BPBF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IRFP460BPBF	-	-	View	Buy Now

IRFP460BPBF Overview

Drain-source voltage (Vdss): 500V Continuous drain current (Id) (at 25°C): 20A Gate-source threshold voltage: 4V @ 250uA Drain-source on-resistance: 250mΩ @ 10A, 10V Maximum power dissipation (Ta= 25°C): 278W(Tc) Type: N channel N channel

IRFP460BPBF Parametric

Parameter Name	Attribute value
Maker	Vishay
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
Samacsys Description	Vishay IRFP460BPBF N-channel MOSFET Transistor, 20 A, 500 V, 3-Pin TO-247AC
Avalanche Energy Efficiency Rating (Eas)	281 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	500 V
Maximum drain current (ID)	20 A
Maximum drain-source on-resistance	0.25 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-247AC
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT APPLICABLE
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	62 A
surface mount	NO
Terminal surface	MATTE TIN OVER NICKEL
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT APPLICABLE
transistor applications	SWITCHING
Transistor component materials	SILICON

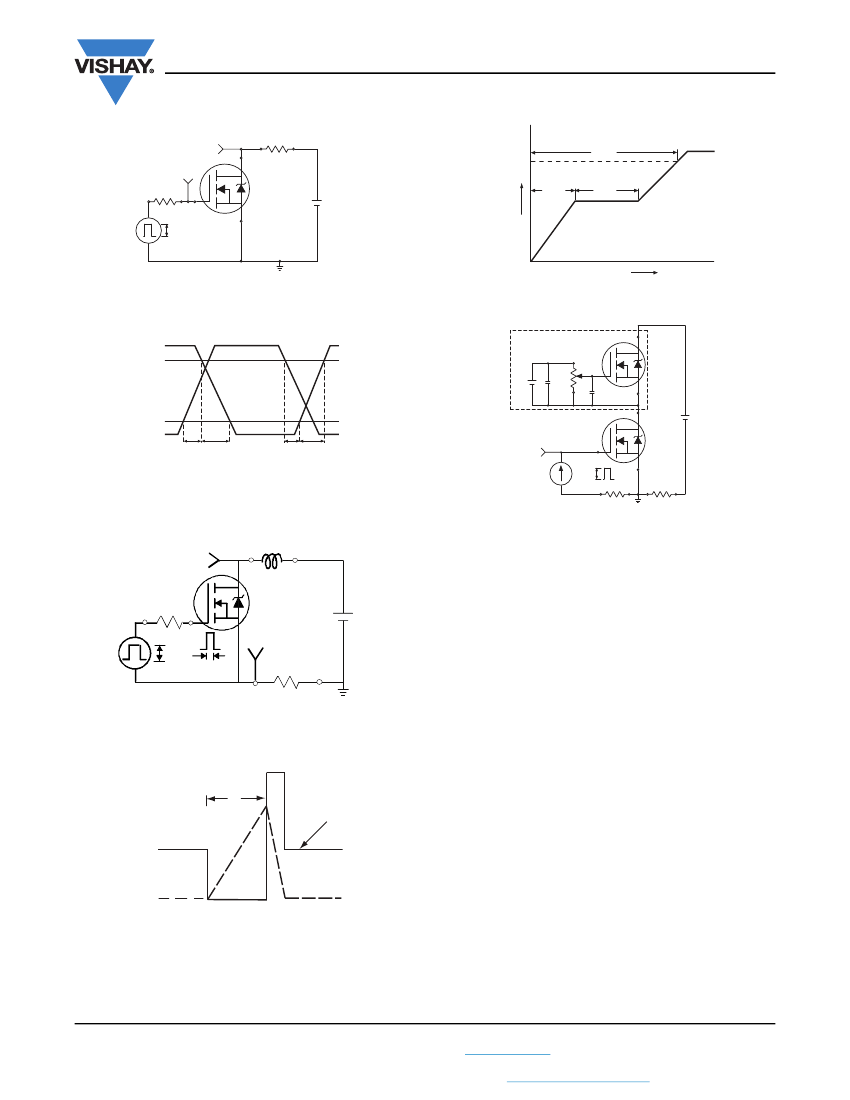

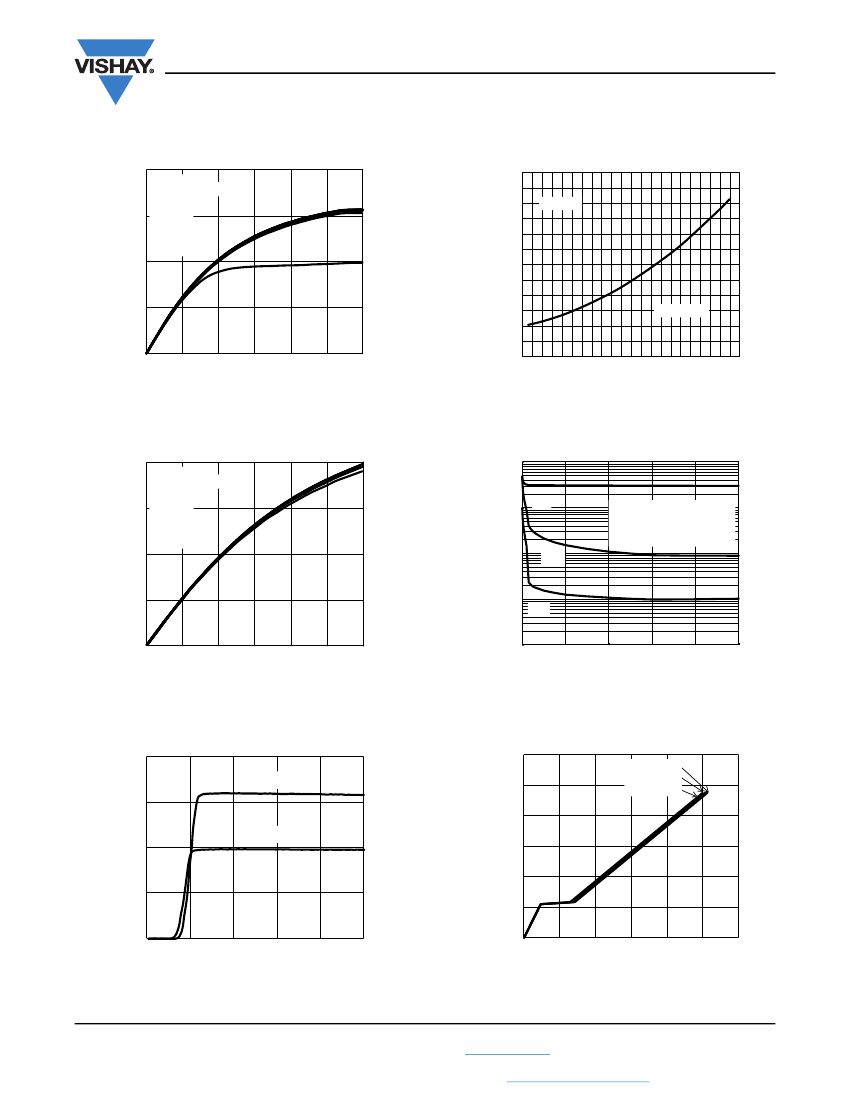

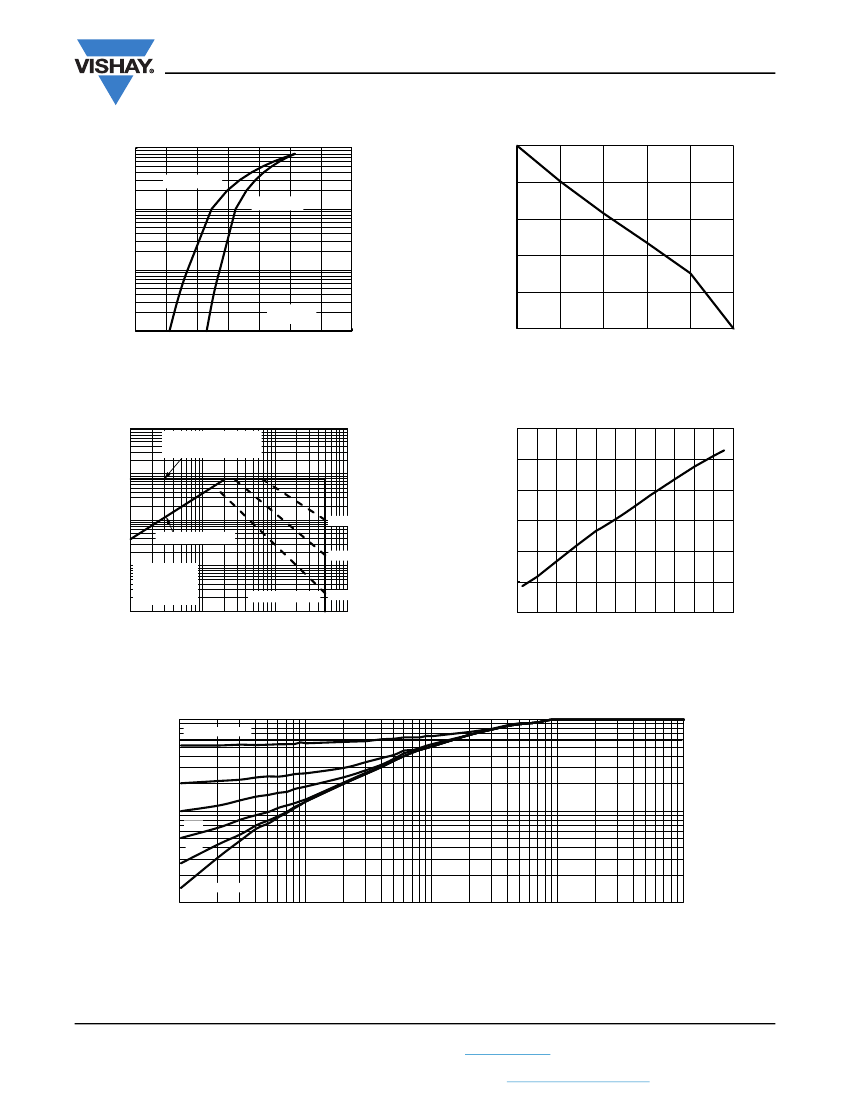

Preview

Download Datasheet

View All

IRFP460B, SiHG460B

www.vishay.com

Vishay Siliconix

D Series Power MOSFET

PRODUCT SUMMARY

(V) at T

max.

DS(on)

max. at 25 °C ()

max. (nC)

(nC)

Configuration

= 10 V

170

Single

FEATURES

• Optimal Design

550

0.25

- Low Area Specific On-Resistance

- Low Input Capacitance (C

iss

)

- Reduced Capacitive Switching Losses

- High Body Diode Ruggedness

- Avalanche Energy Rated (UIS)

• Optimal Efficiency and Operation

- Low Cost

- Simple Gate Drive Circuitry

- Low Figure-of-Merit (FOM): R

x Q

- Fast Switching

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

Note

Lead (Pb)-containing terminations are not RoHS-compliant.

Exemptions may apply.

TO-247AC

N-Channel MOSFET

APPLICATIONS

• Consumer Electronics

- Displays (LCD or Plasma TV)

• Server and Telecom Power Supplies

- SMPS

• Industrial

- Welding

- Induction Heating

- Motor Drives

• Battery Chargers

• SMPS

- Power Factor Correction (PFC)

ORDERING INFORMATION

Package

Lead (Pb)-free

Lead (Pb)-free and Halogen-free

TO-247AC

IRFP460BPbF

SiHG460B-GE3

ABSOLUTE MAXIMUM RATINGS

= 25 °C, unless otherwise noted)

PARAMETER

Drain-Source Voltage

Gate-Source Voltage

Gate-Source Voltage AC (f > 1 Hz)

Continuous Drain Current (T

= 150 °C)

Current

at 10 V

= 25 °C

= 100 °C

SYMBOL

, T

stg

dV/dt

LIMIT

500

± 20

2.2

281

278

- 55 to + 150

0.36

300

UNIT

W/°C

°C

V/ns

°C

Pulsed Drain

Linear Derating Factor

Single Pulse Avalanche Energy

Maximum Power Dissipation

Operating Junction and Storage Temperature Range

Drain-Source Voltage Slope

= 125 °C

Reverse Diode dV/dt

Soldering Recommendations (Peak Temperature)

for 10 s

Notes

a. Repetitive rating; pulse width limited by maximum junction temperature.

b. V

= 50 V, starting T

= 25 °C, L = 10 mH, R

= 25

,

= 7.5 A.

c. 1.6 mm from case.

d. I



, starting T

= 25 °C.

S12-0812-Rev. B, 16-Apr-12

Document Number: 91502

For technical questions, contact:

hvm@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
