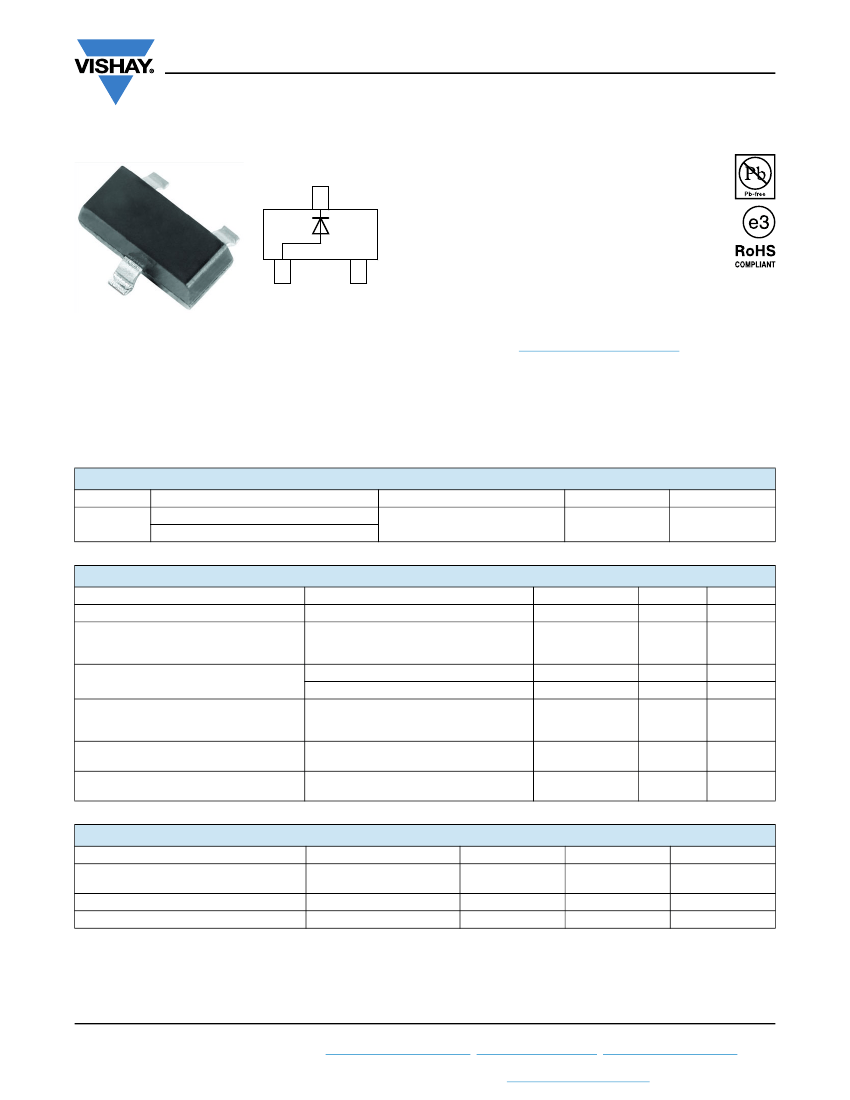

BAS16
www.vishay.com
Vishay Semiconductors
Small Signal Fast Switching Diode
FEATURES
• Silicon epitaxial planar diode
3
• Ultra fast switching speed
• Surface mount package ideally suited for
automatic insertion
• High conductance
1
2
• AEC-Q101 qualified available
• Base P/N-E3 - RoHS-compliant, commercial grade
• Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
MECHANICAL DATA
Case:
SOT-23
Weight:
approx. 8.8 mg
Packaging codes/options:
18/10K per 13" reel (8 mm tape), 10K/box
08/3K per 7" reel (8 mm tape), 15K/box
PARTS TABLE
PART
BAS16
ORDERING CODE
BAS16-E3-08 or BAS16-E3-18
BAS16-HE3-08 or BAS16-HE3-18
INTERNAL CONSTRUCTION
Single diode
TYPE MARKING
A6
REMARKS
Tape and reel
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Non repetitive peak reverse voltage
Repetitive peak reverse voltage
= working peak reverse voltage
= DC blocking voltage
Peak forward surge current
t
p
= 1 s
t
p
= 1 μs
Half wave rectification with resistive load and
f
50 MHz, on ceramic substrate
8 mm x 10 mm x 0.7 mm
On ceramic substrate
8 mm x 10 mm x 0.7 mm
On ceramic substrate
8 mm x 10 mm x 0.7 mm
TEST CONDITION
SYMBOL
V
RM
V
RRM
= V
RWM
= V
R
I
FSM
I
FSM
I
F(AV)
I
F
P
tot
VALUE
100
75
1
2
150
300
350
UNIT
V
V
A
A
mA
mA
mW
Average forward current
Forward current
Power dissipation
THERMAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Junction ambient
Junction and storage temperature range
Operating temperature range
TEST CONDITION
On ceramic substrate
8 mm x 10 mm x 0.7 mm
SYMBOL
R
thJA
T
j
= T
stg
T
op
VALUE
357
-55 to +150
-55 to +150
UNIT
K/W
°C
°C
Rev. 1.8, 22-Nov-13
Document Number: 85539
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BAS16
www.vishay.com
Vishay Semiconductors
TEST CONDITION
I
F
= 1 mA
I
F
= 10 mA
I
F
= 50 mA
I
F
= 150 mA
V
R
= 75 V
SYMBOL
V
F
V
F
V
F
V
F
I
R
I
R
I
R
C
D
t
rr
MIN.
TYP.
MAX.
0.715
855
1
1.25
1
50
30
4
6
UNIT
V
mV
V
V
μA
μA
μA
pF
ns
ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Forward voltage
Reverse current
Diode capacitance
Reverse recovery time
V
R
= 75 V, T
j
= 150 °C
V
R
= 25 V, T
j
= 150 °C
V
R
= 0, f = 1 MHz
I
F
= 10 mA to i
R
= 1 mA,
V
R
= 6 V, R
L
= 100
TYPICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
1000
10000
I
R
– Reverse Current (nA)
V
R
= 20
V
1000
I
F
- Forward Current (mA)
100
T
j
= 100 °C
10
25 °C
1
100
0.1
10
0.01
0
14356
1
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
0
14357
25
50
75
100 125 150 175 200
V
F
- Forward
Voltage
(V)
T
j
– Junction Temperature (°C)
Fig. 1 -
Forward Current vs. Forward Voltage
Fig. 2 -
Reverse Current vs. Junction Temperature
Rev. 1.8, 22-Nov-13
Document Number: 85539
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BAS16
www.vishay.com
PACKAGE DIMENSIONS
in millimeters (inches):
SOT-23
1.15 (0.045)
2.6 (0.102)
2.35 (0.093)
0.45 (0.018)
1.43 (0.056)
1.20 (0.047)
0.35 (0.014)
0.7 (0.028)
0.95 (0.037)
0.9 (0.035)
0.9 (0.035)
3.1 (0.122)
2.8 (0.110)
0.550 ref. (0.022 ref.)
0.1 (0.004) max.
0.175 (0.007)
0.098 (0.004)
Vishay Semiconductors
0.2 (0.008)
0.45 (0.018)
0.35 (0.014)
0.45 (0.018)
0.35 (0.014)
0.3 (0.012)
Foot print recommendation:
1 (0.039)
0.9 (0.035)
1 (0.039)
0.9 (0.035)
Document no.: 6.541-5014.01-4
Rev. 8 - Date: 23.Sept.2009
17418
Rev. 1.8, 22-Nov-13
Document Number: 85539
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
2 (0.079)
0.95 (0.037)
0° t
0.5 (0.020)
o8
°
