LH1500AAB, LH1500AABTR, LH1500AT
www.vishay.com
Vishay Semiconductors
1 Form A Solid-State Relay
SMD

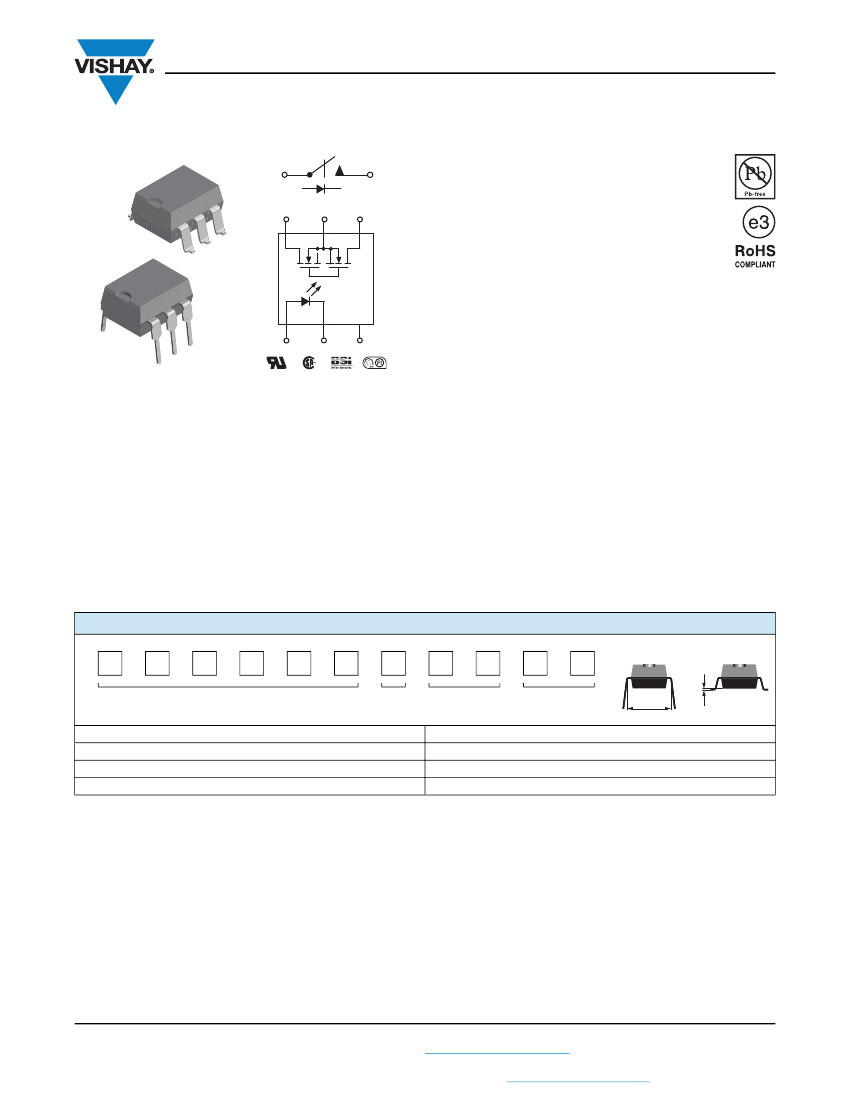

FEATURES
S
S'
• Current limit protection
• Isolation test voltage 5300 V
RMS
• Typical R
ON
20
• Load voltage 350 V
• Load current 150 mA
• High surge capability
• Clean bounce free switching
• Low power consumption
S
6
DC
5
S'
4
DIP
1
i179041-2
2
3
• SMD lead available on tape and reel
• Compliant to RoHS Directive 2002/95/EC and in
accordance to WEEE 2002/96/EC
DESCRIPTION
The LH1500 is robust, ideal for telecom and ground fault
applications. It is an SPST normally open switch (1 form A)
that replaces electromechanical relays in many applications.
It is constructed using a GaAIAs LED for actuation control
and an integrated monolithic die for the switch output. The
die, fabricated in a high-voltage dielectrically isolated
technology, is comprised of a photodiode array, switch
control circuitry and MOSFET switches. In addition, it
employs current-limiting circuitry which meets lightning
surge testing as per ANSI/TIA-968-B and other regulatory
voltage surge requirements when overvoltage protection is
provided.
APPLICATIONS
• General telecom switching
• Instrumentation
• Industrial controls
AGENCY APPROVALS
UL1577:
CSA:
BSI:
FIMKO:
file no. E52744 system code H, double protection
certification 093751
no. 7979 and 7980
25419
ORDERING INFORMATION
L
H
1
5
0
0
#
ELECTR.
VARIATION
#
#
T
R
DIP
SMD
PART NUMBER
PACKAGE
CONFIG.
TAPE AND
REEL
7.62 mm
> 0.1 mm
PACKAGE
SMD-6
SMD-6, tape and reel
DIP-6, thru hole
UL, CSA, BSI, FIMKO
LH1500AAB
LH1500AABTR
LH1500AT
Rev. 2.0, 25-Jul-11
1
For technical questions, contact:
optocoupleranswers@vishay.com
Document Number: 83804
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
LH1500AAB, LH1500AABTR, LH1500AT
www.vishay.com
Vishay Semiconductors
TEST CONDITION
SYMBOL
P
diss
I
R
10 mA
V
R
I
F
I
L
50 mA
T
amb
= 25 °C
T
amb
= 25 °C
V
L
I
L
I
L
T
amb
T
stg
t = 10 s maximum
V
IO
= 500 V, T
amb
= 25 °C
V
IO
= 500 V, T
amb
= 100 °C
T
sld
V
ISO
R
IO
R
IO
VALUE
550
8
50
350
150
250
- 40 to + 85
- 40 to + 150
260
5300
10
12
10
11
UNIT
mW
V
mA
V
mA
mA
°C
°C
°C
V
RMS
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
INPUT
SSR output power dissipation (continuous)
LED reverse voltage
LED continuous forward current
OUTPUT
DC or peak AC load voltage
Continuous DC load current - bidirectional
Continuous DC load current - unidirectional
SSR
Ambient temperature range
Storage temperature range
Soldering temperature
(1)
Isolation test voltage (for 1 s)
Isolation resistance
Notes
• Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. Functional operation of the device is not
implied at these or any other conditions in excess of those given in the operational sections of this document. Exposure to absolute
maximum ratings for extended periods of the time can adversely affect reliability.
(1)
Refer to reflow profile for soldering conditions for surface mounted devices (SMD). Refer to wave profile for soldering conditions for through
hole devices (DIP).
ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
INPUT
LED forward current, switch turn-on
LED forward current, switch turn-off
LED forward voltage
OUTPUT
On-resistance, AC/DC: pin 4 (±) to 6 (±)
On-resistance, DC: pin 4, 6 (+) to 5 (-)
Off-resistance
Current limit AC
(1)
: pin 4 (±) to 6 (±)
Off-state leakage current
Output capacitance, pin 4 to 6
Switch offset
TRANSFER
Capacitance (input to output)
V
ISO
= 1 V
C
IO
0.71
pF
Notes
• Minimum and maximum values are testing requirements. Typical values are characteristics of the device and are the result of engineering
evaluations. Typical values are for information only and are not part of the testing requirements.
(1)
No DC mode current limit available.
I
F
= 5 mA, I
L
= 50 mA
I
F
= 5 mA, I
L
= 100 mA
I
F
= 0 mA, V
L
= ± 100 V
I
F
= 5 mA, t = 5 ms, V
L
= ± 6 V
I
F
= 0 mA, V
L
= ± 100 V
I
F
= 0 mA, V
L
= ± 350 V
I
F
= 0 mA, V
L
= 1 V
I
F
= 0 mA, V
L
= 50 V
I
F
= 5 mA
R
ON
R
ON
R
OFF
I
LMT
I
O
I
O
C
O
C
O
V
OS
33
10
0.2
3
0.5
230
20
4.6
300
255
0.32
370
200
1
25
6.25
G
mA
nA
μA
pF
pF
μV
I
L
= 100 mA, t = 10 ms
V
L
= ± 300 V
I
F
= 10 mA
I
Fon
I
Foff
V
F
0.2
1.15
0.9
0.8
1.25
1.45
2
mA
mA
V
TEST CONDITION
SYMBOL
MIN.
TYP.
MAX.
UNIT
SWITCHING CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Turn-on time
Turn-off time
TEST CONDITION
I
F
= 5 mA, I
L
= 50 mA
I
F
= 5 mA, I
L
= 50 mA
SYMBOL
t
on
t
off
MIN.
TYP.
0.3
0.6
MAX.
2
2
UNIT
ms
ms
Rev. 2.0, 25-Jul-11
2
For technical questions, contact:
optocoupleranswers@vishay.com
Document Number: 83804
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
LH1500AAB, LH1500AABTR, LH1500AT
www.vishay.com

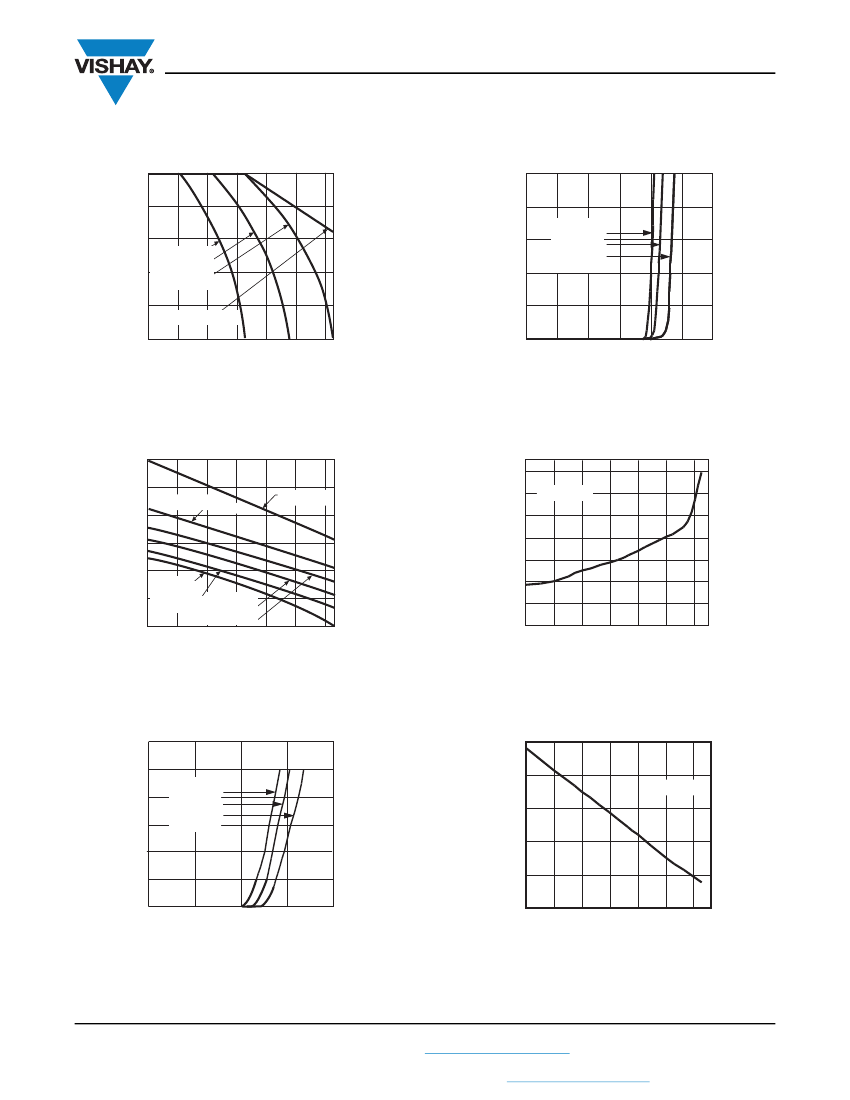

TYPICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
Vishay Semiconductors
150
120
Load Current (mA)
90
I
Fon
= 2.0 mA
I
= 3.0 mA
60
Fon
I
Fon
= 4.0 mA
30
I
Fon
= 5.0 to 20 mA
0
- 40
ilh1500at_00
10
LED Reverse Current (µA)
8
6
T = - 40 °C
T = 25 °C
T = 85 °C
4
2
0
- 20
0
20
40
60
Ambient Temperature (°C)
80
0
8
16
24
32
40
48
ilh1500at_03
LED Reverse Voltage (V)
Fig. 1 - Recommended Operating Conditions
Fig. 4 - LED Reverse Current vs. LED Reverse Voltage
1.6
LED Forward Voltage (V)
1.5
I
F
= 20 mA
1.4
1.3
1.2
I
F
= 1.0 mA
1.1
1.0
I
F
= 2.0 mA I
F
= 5.0 mA
I
F
= 10 mA
80
I
F
= 50 mA
LED Current for Switch Turn-on (%)
Norm. at 25 °C
80
60
40
20
0
- 20
- 40
- 60
- 40 - 20
0
20
40
60
80
I
L
= 100 mA
- 40 - 20
0
20
40
60
Ambient Temperature (°C)
ilh1500at_01
ilh1500at_04
Temperature (°C)
Fig. 2 - LED Voltage vs. Temperature
Fig. 5 - LED Current for Switch Turn-on vs. Temperature
120
LED Forward Current (mA)
LED Forward Voltage (V)
1.25
1.2
I
L
= 100 mA
1.15
1.1
1.05
1
0
0.5
1
1.5
2
- 40 - 20
ilh1500at_05
100
80
60
40
20
0
T = 85 °C
T = 25 °C
T = - 40 °C
0
20
40
60
80
ilh1500at_02
LED Forward Voltage (V)
Temperature (°C)
Fig. 3 - LED Forward Current vs. Forward Voltage
Fig. 6 - LED Dropout Voltage vs. Temperature
Rev. 2.0, 25-Jul-11
3
For technical questions, contact:
optocoupleranswers@vishay.com
Document Number: 83804
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
LH1500AAB, LH1500AABTR, LH1500AT
www.vishay.com
Vishay Semiconductors
40
Change in Current Limit (%)
Normalized to 25 °C
On-resistance Variation (%)
Norm. at I
F
= 5 mA
4
I
F
= 5.0 mA
t = 5.0 ms
V
L
= see elec. char.
I
L
= 50 mA
3
2
30
20
10
0
- 10
- 20
- 30
- 40
- 40 - 20
0
20
40
60
80
1
0
-1
0
4
8
12
16
20
ilh1500at_06
Ambient Temperature (°C)
ilh1500at_09
LED Forward Current (mA)
Fig. 7 - Current Limit vs. Temperature
Fig. 10 - Variation in On-Resistance vs. LED Current
400
50
I
F
= 0 mA
40
Load Current (mA)
T = - 40 °C
T = 25 °C
T = 85 °C
Capacitance (pF)
I
F
= 5 mA
4
5
300
30
20
10
0
200
100
0
0
1
ilh1500at_07
2
3
Load Voltage (V)
0 10 20 30 40 50 60 70 80 90 100
ilh1500at_10
Applied Voltage (V)
Fig. 8 - Load Current vs. Load Voltage
Fig. 11 - Switch Capacitance vs. Applied Voltage
40
Change in R
on
(%) Norm. to 25 °C
30
I
F
= 5 mA
I
L
= 50 mA
Insertion Loss (dB)
20
10
0
-1
- 20
- 30
- 40
- 40 - 20
0
20
40
Temperature (°C)
60
80
0.14
0.12
0.1
0.08
0.06
0.04
R
L
= 600
Ω
0.02
0
10
2
ilh1500at_11
ilh1500at_08
10
3
10
4
Frequence (Hz)
10
5
Fig. 9 - On-Resistance vs. Temperature
Fig. 12 - Insertion Loss vs. Frequency
Rev. 2.0, 25-Jul-11
4
For technical questions, contact:
optocoupleranswers@vishay.com
Document Number: 83804
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
LH1500AAB, LH1500AABTR, LH1500AT
www.vishay.com
Vishay Semiconductors
8
Change in Breakdown Voltage (%)
Normalized to 25 °C
6
4
2
0
-2
-4
-6
-8
- 40 - 20
ilh1500at_15
1000
Off-State Leakage Current (nA)
100
10
T = 85 °C
T = 70 °C
T = 50 °C
T = 25 °C
I
F
= 0 mA
0.01
0
100
200
300
400
Load Voltage (V)
500
1
0.1
0
20
40
60
80
ilh1500at_12
Ambient Temperature (°C)
Fig. 13 - Leakage Current vs. Applied Voltage
Fig. 16 - Switch Breakdown Voltage vs. Temperature
120
Switch Offset Voltage (µV)
100
Isolation (dB)
80
60
40
20
0
10
2
ilh1500at_13
10
3
10
4
10
5
Frequency (Hz)
10
6
V
P
= 10 V
R
L
= 50
Ω
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
20
ilh1500at_16
I
F
= 5 mA
30
40
50
60
70
80
90
Ambient Temperature (°C)
Fig. 14 - Output Isolation
Fig. 17 - Switch Offset Voltage vs. Temperature
50
40
Load Current (µA)
30
T = - 40 °C
T = 25 °C
T = 85 °C
0.6
0.5
Switch Offset Voltage (µV)
400
500
0.4
0.3
0.2
0.1
0
0
100
200
300
Load Voltage (V)
0
ilh1500at_17
20
10
0
I
F
= 0 mA
I
L
< 50 µA
5
10
15
20
25
ilh1500at_14
LED Forward Current (mA)
Fig. 15 - Switch Breakdown Voltage vs. Load Current
Fig. 18 - Switch Offset Voltage vs. LED Current
Rev. 2.0, 25-Jul-11
5
For technical questions, contact:
optocoupleranswers@vishay.com
Document Number: 83804
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
