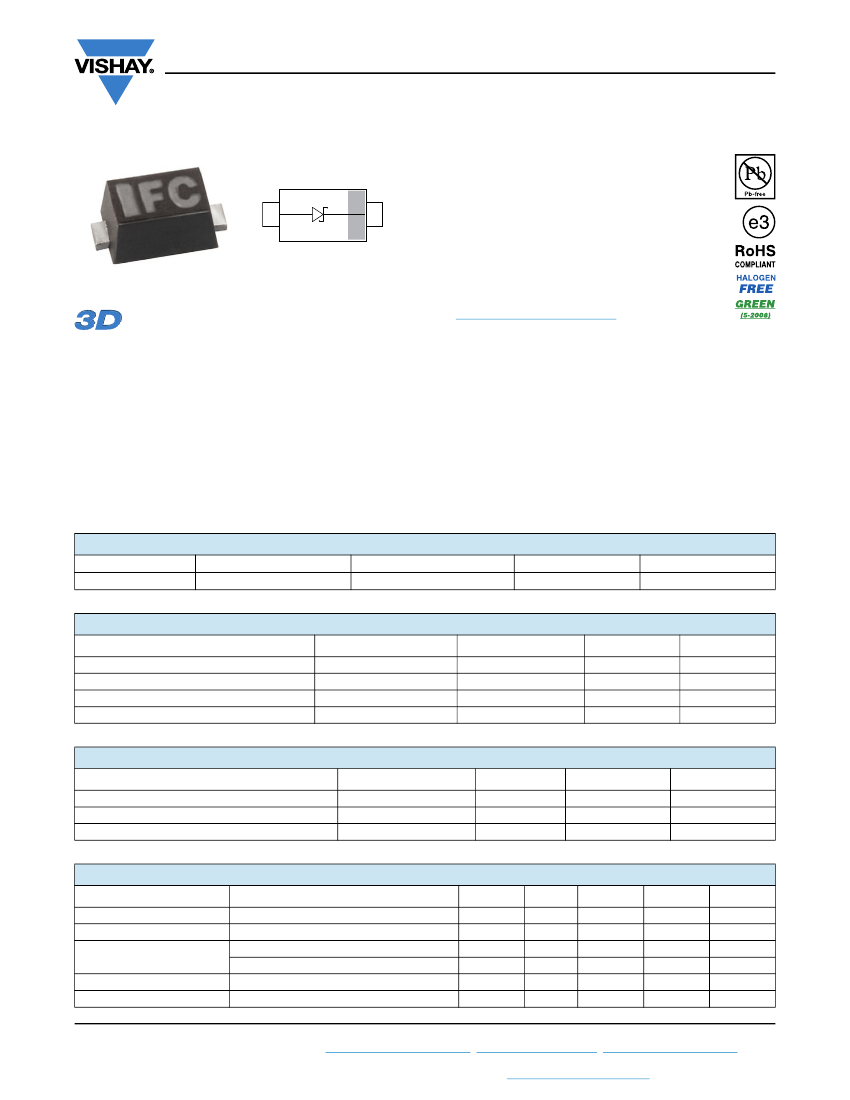

BAS40-02V-V-G
www.vishay.com
Vishay Semiconductors
Small Signal Schottky Diode
FEATURES
• This diode features very low turn-on voltage
and fast switching
1
2
22321
• This device is protected by a PN junction guard
ring against excessive voltage, such as
electrostatic discharges
• Space saving SOD-523 package
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
DESIGN SUPPORT TOOLS
click logo to get started
Models
Available
MECHANICAL DATA
Case:
SOD-523
Weight:
approx. 1.4 mg
Molding compound flammability rating:
UL 94 V-0
Terminals:
high temperature soldering guaranteed:
260 °C/10 s at terminals
Packaging codes/options:
08/3K per 7" reel (8 mm tape), 15K/box
PARTS TABLE
PART
BAS40-02V-V-G
ORDERING CODE
BAS40-02V-V-G-08
CIRCUIT CONFIGURATION
Single
TYPE MARKING
.W
REMARKS
Tape and reel
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Repetitive peak reverse voltage
Forward continuous current
Surge forward current
Power dissipation
TEST CONDITION
SYMBOL
V
RRM
I
F
I
FSM
Pt
ot
VALUE
40
120
600
150
UNIT
V
mA
mA
mW
THERMAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Thermal resistance junction to ambient air
Junction temperature
Storage temperature range
TEST CONDITION
SYMBOL
R
thJA
T
j
T
stg
VALUE
680
125
-55 to +150
UNIT
K/W
°C
°C
ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Reverse breakdown voltage
Leakage current
Forward voltage
Diode capacitance
Reverse recovery time
TEST CONDITION
I
R
= 10 μA (pulsed)
Pulse test V
R
= 30 V, t
p
< 300 μs
Pulse test t
p
< 300 μs, I
F
= 1 mA
Pulse test t
p
< 300 μs, I
F
= 40 mA
V
R
= 0 V, f = 1 MHz
I
F
= 10 mA, I
R
= 10 mA, I
rr
= 1 mA, R
L
= 100
Ω
SYMBOL
V
(BR)
I
R
V
F
V
F
C
D
t
rr
4
MIN.
40
20
100
380
1000
5
5
TYP.
MAX.
UNIT
V
nA
mV
mV
pF
ns
Rev. 1.2, 01-Jun-17
Document Number: 82391
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BAS40-02V-V-G
www.vishay.com
PACKAGE DIMENSIONS
in millimeters (inches):
SOD-523
0.7 (0.028)
0.5 (0.020)
Vishay Semiconductors
0.1 (0.004) max.
0.20 (0.008)
0.08 (0.003)
1.7 (0.067)
1.5 (0.059)
0.9 (0.035)
0.7 (0.028)
foot print recommendation:
0.35 (0.014)
0.18 (0.007)
1.3 (0.051)
1.1 (0.043)
Document no.:
S8-V-3880.02-001
(4)
Rev. h - Date: 13. Oct. 2010
16864
0.4 (0.016)
1.45 (0.057)
0.35 (0.014)
Rev. 1.2, 01-Jun-17
Document Number: 82391
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
