VS-30ETH06S-M3, VS-30ETH06-1-M3
www.vishay.com
Vishay Semiconductors
Hyperfast Rectifier, 30 A FRED Pt
®

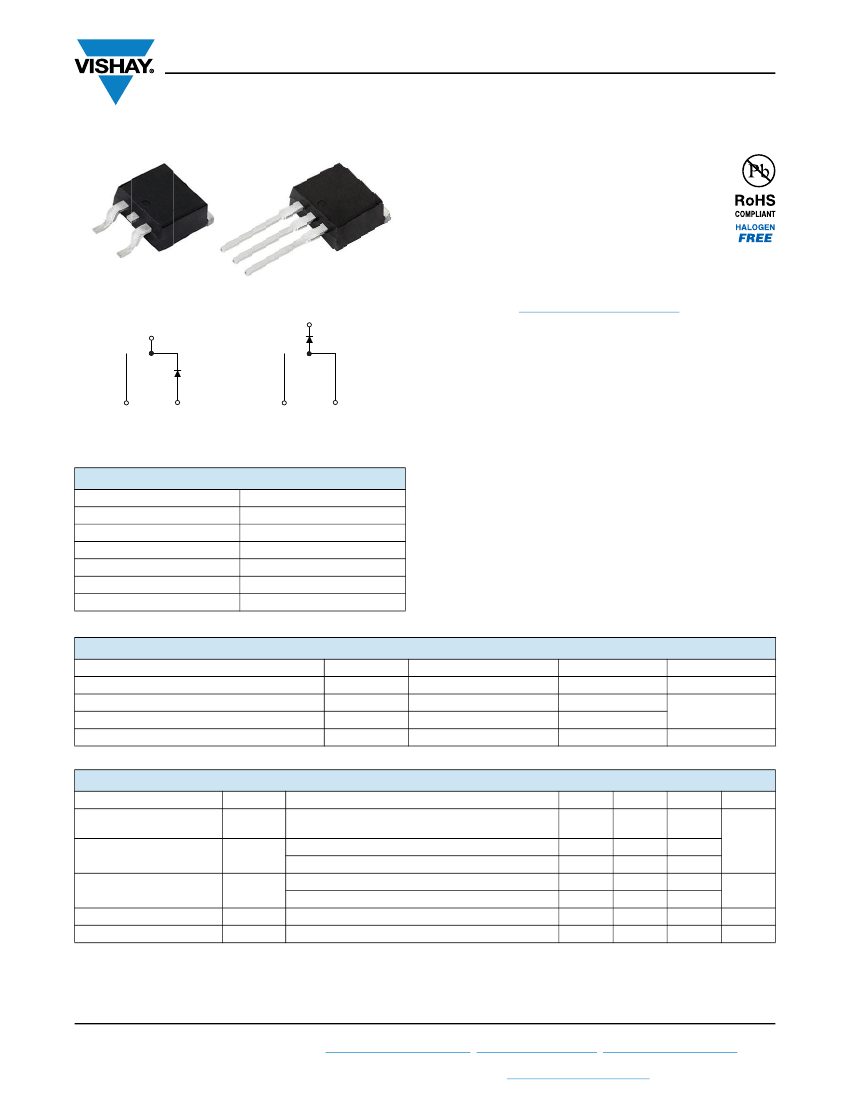

FEATURES
• Hyperfast recovery time
• Low forward voltage drop
2
1
3
1
2
3
• Low leakage current
• 125 °C operating junction temperature
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 245 °C
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
2
D
2
PAK (TO-263AB)
Base
cathode
2
TO-262AA
DESCRIPTION / APPLICATIONS
State of the art hyperfast recovery rectifiers designed with
optimized performance of forward voltage drop, hyperfast
recovery time and soft recovery.
The planar structure and the platinum doped life time
control guarantee the best overall performance, ruggedness
and reliability characteristics.
These devices are intended for use in PFC boost stage in the
AC/DC section of SMPS, inverters or as freewheeling
diodes.
Their extremely optimized stored charge and low recovery
current minimize the switching losses and reduce over
dissipation in the switching element and snubbers.
1
N/C
3
Anode
1
N/C
3
Anode
VS-30ETH06S-M3
VS-30ETH06-1-M3
PRIMARY CHARACTERISTICS
I
F(AV)
V
R
V
F
at I
F
t
rr
typ.
T
J
max.
Package
Circuit configuration
30 A
600 V
1.34 V
28 ns
175 °C
D
2
PAK (TO-263AB), TO-262AA
Single
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Peak repetitive reverse voltage
Average rectified forward current
Non-repetitive peak surge current
Operating junction and storage temperatures
SYMBOL
V
RRM
I
F(AV)
I
FSM
T
J
, T
Stg
T
C
= 103 °C
T
J
= 25 °C
TEST CONDITIONS
MAX.
600
30
200
-65 to +175
UNITS
V
A
°C
ELECTRICAL SPECIFICATIONS
(T
J
= 25 °C unless otherwise specified)
PARAMETER
Breakdown voltage,
blocking voltage
Forward voltage
Reverse leakage current
Junction capacitance
Series inductance
SYMBOL
V
BR
,
V
R
V
F
I
R
C
T
L
S
I
R
= 100 μA
I
F
= 30 A
I
F
= 30 A, T
J
= 150 °C
V
R
= V
R
rated
T
J
= 150 °C, V
R
= V
R
rated
V
R
= 600 V
Measured lead to lead 5 mm from package body
TEST CONDITIONS
MIN.
600
-
-
-
-
-
-
TYP.
-
2.0
1.34
0.3
60
33
8.0
MAX.
-
2.6
1.75
50
500
-
-
μA
pF
nH
V
UNITS
Revision: 24-Oct-17
Document Number: 96236
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30ETH06S-M3, VS-30ETH06-1-M3
www.vishay.com
Vishay Semiconductors
SYMBOL
t
rr
T
J
= 25 °C
T
J
= 125 °C
T
J
= 25 °C
T
J
= 125 °C
T
J
= 25 °C
T
J
= 125 °C
I
F
= 30 A
dI
F
/dt = 200 A/μs
V
R
= 200 V
TEST CONDITIONS
I
F
= 1.0 A, dI
F
/dt = 50 A/μs, V
R
= 30 V
MIN.
-
-
-
-
-
-
-
TYP.
28
31
77
3.5
7.7
65
345
MAX.
35
-
-
-
-
-
-
A
nC
ns
UNITS
DYNAMIC RECOVERY CHARACTERISTICS
(T
J
= 25 °C unless otherwise specified)
PARAMETER
Reverse recovery time
Peak recovery current
Reverse recovery charge
I
RRM
Q
rr
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and storage
temperature range
Thermal resistance,
junction to case per leg
Thermal resistance,
junction to ambient per leg
Thermal resistance,
case to heatsink
Weight
Mounting torque
Marking device
Case style D
2
PAK (TO-263AB)
Case style TO-262AA
SYMBOL
T
J
, T
Stg
R
thJC
R
thJA
R
thCS
Typical socket mount
Mounting surface, flat, smooth, and greased
TEST CONDITIONS
MIN.
-65
-
-
-
-
-
6.0
(5.0)
TYP.
-
0.7
-
0.2
2.0
0.07
-
MAX.
175
1.1
70
-
-
-
12
(10)
g
oz.
kgf · cm
(lbf · in)
°C/W
UNITS
°C
30ETH06S
30ETH06-1
I
F
- Instantaneous Forward Current (A)
1000
1000
I
R
- Reverse Current (µA)
100
10
1
0.1
T
J
= 175 °C
T
J
= 150 °C
T
J
= 125 °C
T
J
= 100 °C
100
10
T
J
= 175 °C
T
J
= 150 °C
T
J
= 25 °C
T
J
= 25 °C
0.01
0.001
0.0001
1
0
0.5
1
1.5
2
2.5
3
3.5
0
100
200
300
400
500
600
V
F
- Forward Voltage Drop (V)

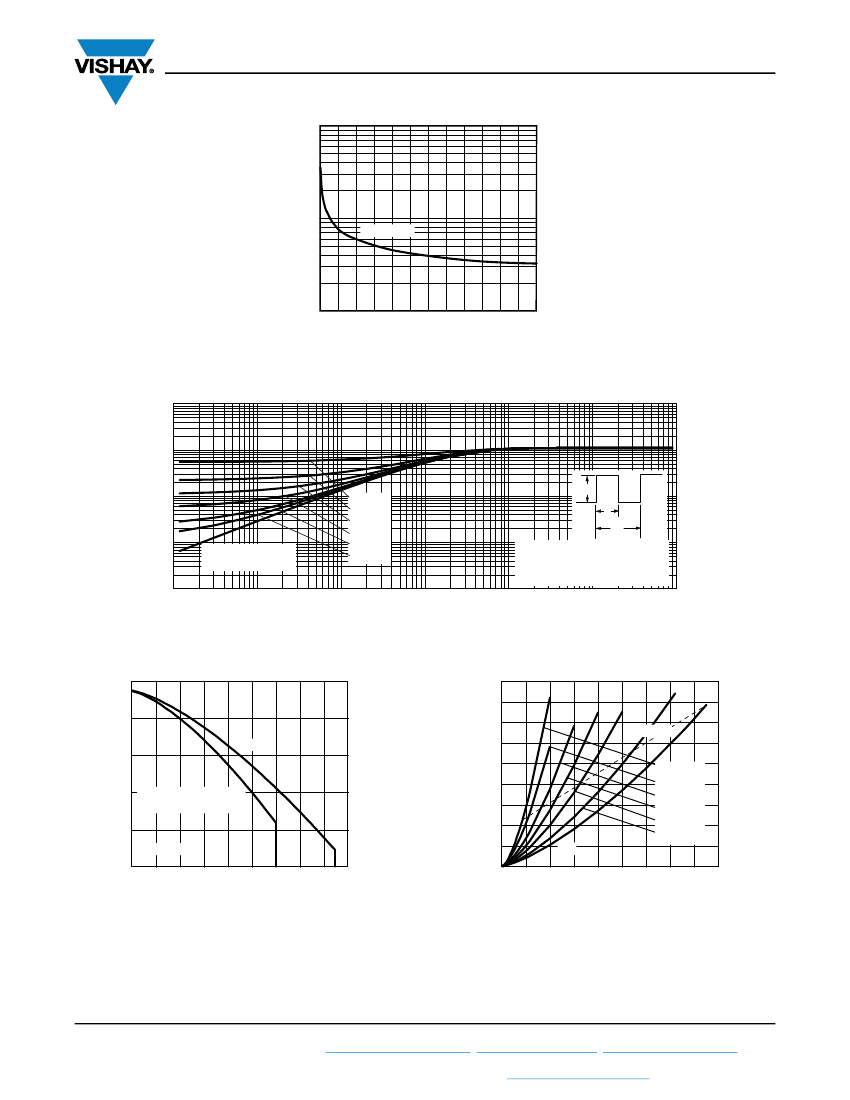

Fig. 1 - Typical Forward Voltage Drop Characteristics
V
R
- Reverse Voltage (V)
Fig. 2 - Typical Values of Reverse Current vs. Reverse Voltage
Revision: 24-Oct-17
Document Number: 96236
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30ETH06S-M3, VS-30ETH06-1-M3
www.vishay.com
1000
Vishay Semiconductors
C
T
- Junction Capacitance (pF)
100
T
J
= 25 °C
10
0
100
200
300
400
500
600
V
R
- Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
10
Z
thJC
- Thermal Impedance (°C/W)
1
0.1
0.01
Single pulse
(thermal resistance)
D = 0.50
D = 0.20
D = 0.10
D = 0.05
D = 0.02
D = 0.01
P
DM
t
1
t
2
Notes:
1. Duty factor D = t
1
/t
2
.
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.01
0.1
1
0.001
0.00001
.
10
0.0001
0.001
t
1
- Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics
180
90
80
Allowable Case Temperature (°C)
160
DC
140
Average Power Loss (W)
70
60
50
40
30
20
10
0
DC
0
5
10
15
20
25
RMS limit
120
Square wave (D = 0.50)
Rated V
R
applied
100
See note (1)
80
0
5
10
15
20
25
30
35
40
45
D = 0.01
D = 0.02
D = 0.05
D = 0.10
D = 0.20
D = 0.50
30
35
40
45
I
F(AV)
- Average Forward Current (A)
Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
I
F(AV)
- Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics
Revision: 24-Oct-17
Document Number: 96236
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30ETH06S-M3, VS-30ETH06-1-M3
www.vishay.com
90
80
70
60
50
40
30
20
10
0
100
V
R
= 200 V
T
J
= 125 °C
T
J
= 25 °C
1000
800
I
F
= 30 A
I
F
= 15 A
1200
1000
V
R
= 200 V
T
J
= 125 °C
T
J
= 25 °C
Vishay Semiconductors
Q
rr
(nC)
t
rr
(ns)
600
400
200
0
100
I
F
= 30 A
I
F
= 15 A
1000
dI
F
/dt (A/µs)
Fig. 7 - Typical Reverse Recovery Time vs. dI
F
/dt
dI
F
/dt (A/µs)
Fig. 8 - Typical Stored Charge vs. dI
F
/dt
(1)
Note
Formula used: T
C
= T
J
- (Pd + Pd
REV
) x R
thJC
;
Pd = forward power loss = I
F(AV)
x V
FM
at (I
F(AV)
/D) (see fig. 6);
Pd
REV
= inverse power loss = V
R1
x I
R
(1 - D); I
R
at V
R1
= rated V
R
(3)
I
F
0
t
rr
t
a
t
b
Q
rr
(2)
(4)
I
RRM
0.5 I
RRM
di
(rec)M
/dt
(5)
0.75 I
RRM
(1)
di
F
/dt
(1) di
F
/dt - rate of change of current
through zero crossing
(2) I
RRM
- peak reverse recovery current
(3) t
rr
- reverse recovery time measured
from zero crossing point of negative
going I
F
to point where a line passing
through 0.75 I
RRM
and 0.50 I
RRM
extrapolated to zero current.
(4)
Q
rr
- area under curve defined by t
rr
and I
RRM
Q
rr
=
t
rr
x I
RRM
2
(5) di
(rec)M
/dt - peak rate of change of
current during t
b
portion of t
rr
Fig. 9 - Reverse Recovery Waveform and Definitions
Revision: 24-Oct-17
Document Number: 96236
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-30ETH06S-M3, VS-30ETH06-1-M3
www.vishay.com
ORDERING INFORMATION TABLE
Vishay Semiconductors
Device code
VS-
1
1
2
3
4
5
6
7
8
-
-
-
-
-
-
-
-
30
2
E
3
T
4
H
5
06
6
S
7
TRL -M3
8
9
Vishay Semiconductors product
Current rating (30 = 30 A)
E = single
T = TO-220, D
2
PAK (TO-263AB)
H = hyperfast recovery
Voltage rating (06 = 600 V)
S = D
2
PAK (TO-263AB)
-1 = TO-26 2AA
None = tube (50 pieces)
TRL = tape and reel (left oriented, for D
2
PAK (TO-263AB) package)
TRR = tape and reel (right oriented, for D
2
PAK (TO-263AB) package)
9
-
Environmental digit:
-M3 = halogen-free, RoHS-compliant, and terminations lead (Pb)-free
LINKS TO RELATED DOCUMENTS
Dimensions
Part marking information
Packaging information
D
2
PAK
(TO-263AB)
www.vishay.com/doc?96164
www.vishay.com/doc?96165
www.vishay.com/doc?95444
www.vishay.com/doc?95443
www.vishay.com/doc?96424
TO-262AA
D
2
PAK (TO-263AB)
TO-262AA
Revision: 24-Oct-17
Document Number: 96236
5
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
