DTC143ZM-T2L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The transistor> DTC143ZM-T2L

DTC143ZM-T2L: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, VMT3, 3 PIN; CategoryThe transistor; File Size1MB，11 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DTC143ZM-T2L Overview

Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, VMT3, 3 PIN

DTC143ZM-T2L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-F3
Reach Compliance Code	compliant
Is Samacsys	N
Other features	BUILT-IN BIAS RESISTOR RATIO IS 10
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	80
JESD-30 code	R-PDSO-F3
JESD-609 code	e2
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.15 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	10
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

DTC143Z series

NPN 100mA 50V Digital Transistors (Bias Resistor Built-in Transistors)

Datasheet

Outline

Parameter

C(MAX.)

Value

50V

100mA

4.7kΩ

47kΩ

VMT3

EMT3F

DTC143ZM

(SC-105AA)

EMT3

DTC143ZEB

(SC-89)

UMT3F

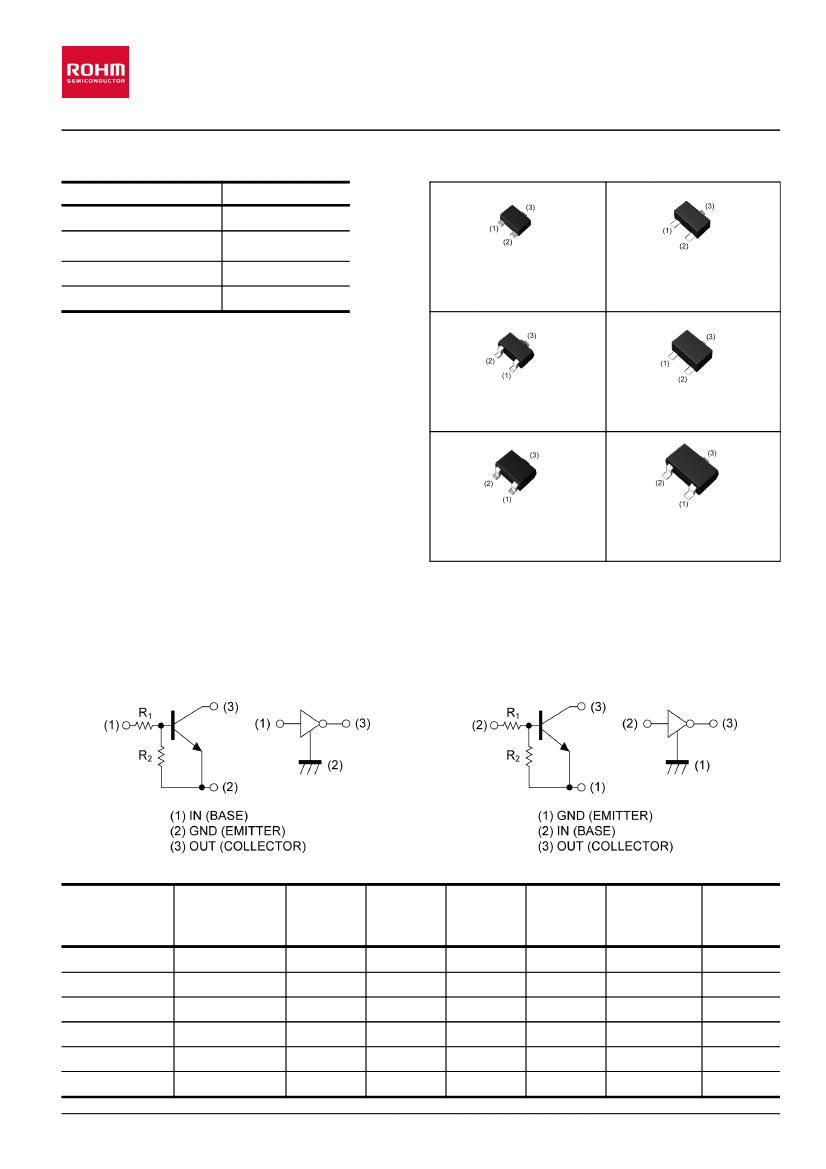

Features

1) Built-in bias resistors .R

= 4.7kΩ, R

= 47kΩ.

2) Built-in bias resistors enable the configuration of

an inverter circuit without connecting external

input resistors (see inner circuit) .

3) Only the on/off conditions need to be set

for operation, making the circuit design easy.

4) Complementary PNP Types: DTA143Z series

DTC143ZE

SOT-416(SC-75A)

UMT3

DTC143ZUB

(SC-85)

SMT3

DTC143ZUA

SOT-323(SC-70)

DTC143ZKA

SOT-346(SC-59)

Application

INVERTER, INTERFACE, DRIVER

Inner circuit

DTC143ZM/ DTC143ZEB/ DTC143ZUB

DTC143ZE/ DTC143ZUA/ DTC143ZKA

Packaging specifications

Part No.

DTC143ZM

DTC143ZEB

DTC143ZE

DTC143ZUB

DTC143ZUA

DTC143ZKA

Package

VMT3

EMT3F

EMT3

UMT3F

UMT3

SMT3

Package

size

1212

1616

2021

2928

Taping

code

T2L

T106

T146

1/10

Reel size Tape width

(mm)

180

Basic

ordering

unit.(pcs)

8000

3000

Marking

E23

123

E23

www.rohm.com

20150527 - Rev.003
