CERAMIC SMD ULTRA MINIATURE QUARTZ CRYSTAL
ABM10
FEATURES:
• Suitable for RoHS reflow profile
• Tight stability available ±10ppm over -10 to +60ºC
• Seam sealed ceramic package assures high precision and reliability
Moisture Sensitivity Level (MSL) – This product is Hermetically
Sealed and not Moisture Sensitive - MSL = N/A: Not Applicable
Pb
RoHS
Compliant
2.5 x 2.0 x 0.5 mm
| | | | | | | | | | | | | |
|
APPLICATIONS:
• Blue-tooth,
Wireless applications
• High density applications
• Computers, Modems, Microprocessors • PCMCIA
• Portable radios and MP3 players
• Communication, Test equipment
STANDARD SPECIFICATIONS:
Parameters
Frequency
Range
Operation Mode
Operating
Temperature
Storage
Temperature
Frequency Tolerance
@+25°C
Frequency
Stability over the Operating
Temperature
( ref. to
+25°C)
Equivalent
series resistance (R1)
Shunt
capacitance (C0)
Load
capacitance (CL)
Drive
Level
Aging@25°C±3°C
Insulation
Resistance
Table 1 – standard ESR
Frequency (MHz)
ESR(Ω) max.
12.000 – 15.999
250
16.000 – 19.999
150
20.000 – 29.999
100
30.000 – 55.000
70
500
Minimum
12.000
-10
-40
Typical
-----
Fundamental
-----
-----
Maximum
55.000
+60
+125
±20
±30
See table
1 below
7
10
10
100
±5
Units
MHz
ºC
ºC
ppm
ppm
Ω
pF
pF
µW
ppm
MΩ
Standard
(See options
if other than STD)
Notes
Fundamental
See options
See options
See options
First year
@ 100Vdc
±
15V
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ABM10 -
Frequency in MHz
Please
specify the frequency
in MHz.
e.g. 16.000MHz
Load Capacitance (pF)
Please
specify CL in pF
or S for series (8pF
min.)
Freq. Tolerance
1:
±
10 ppm
7:
±
15 ppm
3:
±
25 ppm
4:
±
30 ppm
± 20 ppm
I20
A20
E20
C20
N20
D20
X
X
± 30 ppm
I30
STD*
E30
C30
N30
D30
X
X
± 50 ppm
I50
A50
E50
C50
N50
D50
J50
K50
± 100 ppm
I100
A100
E100
C100
N100
D100
J100
K100
MHz -
-
-
-
-
Packaging
Blank: Bulk
T:
1000pcs/reel
T3:
3000pcs/reel
Custom ESR if other
than standard
R□
□: Specify
a
value
in
Ω
(e.g.:
R40)
± 10 ppm
I10
A10
X
X
X
X
X
X
± 15 ppm
I15
A15
E15
C15
N15
X
X
X
* Please leave blank, as this is the standard/default spec.
Contact
Abracon for tighter frequency stability
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
Operating Temp.
0°C ~
+50°C
-10°C ~
+60°C
-20°C ~
+70°C
-30°C ~
+70°C
-30°C ~
+85°C
-40°C ~
+85°C
-40°C ~
+105°C
-40°C ~
+125°C
Revised: 01.16.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
|
www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
CERAMIC SMD ULTRA MINIATURE QUARTZ CRYSTAL
ABM10

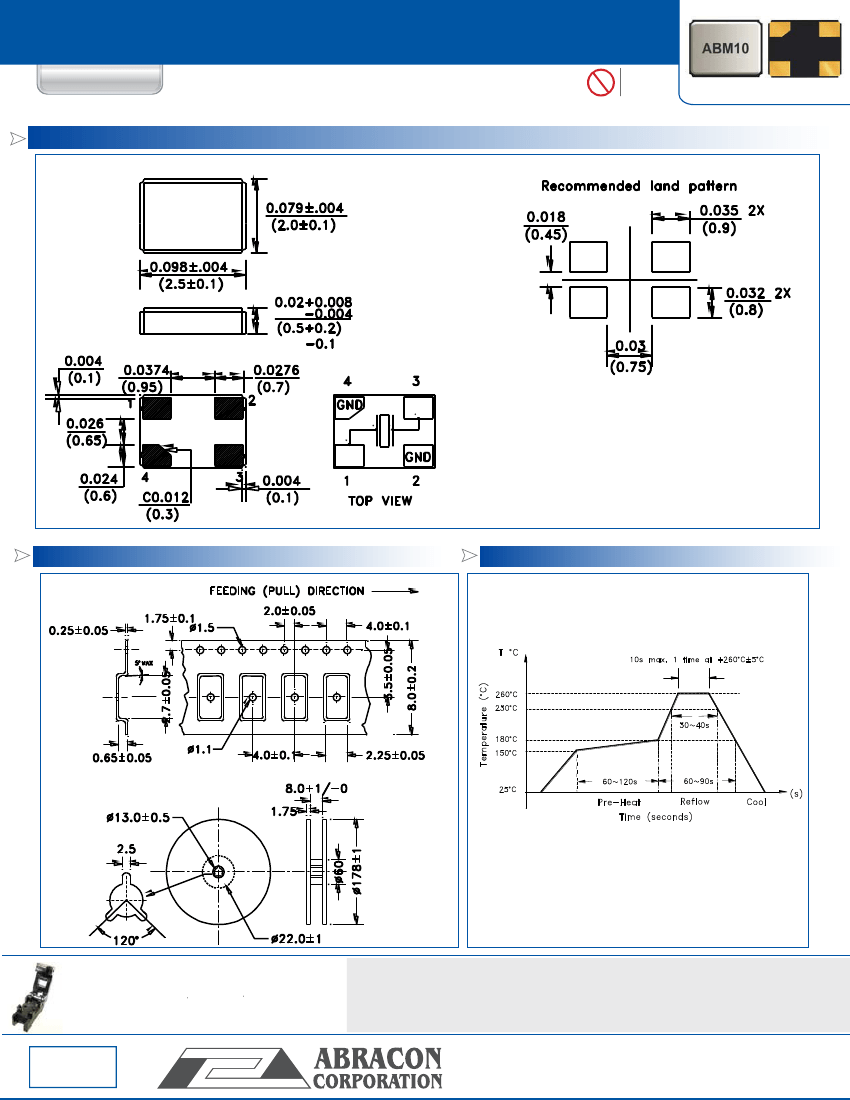

OUTLINE DRAWING:
Pb
RoHS
Compliant
2.5 x 2.0 x 0.5 mm
| | | | | | | | | | | | | |
|
Note:
Due to the availability of raw materials, the
chamfer location may vary (Pin 1, 2 or 4). Be advised
that this does not affect the electrical characteristics of
the crystal in any way.
Dimensions: inches (mm)
TAPE & REEL:
T: 1000pcs/reel
T3: 3000pcs/reel
REFLOW PROFILE:
Dimensions: mm
Need a test socket for the ABM10 Series? To view
compatible
PRECISION TEST & BURN-IN SOCKETS
for these parts,
click here. P/N: AXS-2520-04-10
