MOC3062T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MOC3062T

MOC3062T: DescriptionTriac Output Optocoupler With Zero CRSVR, 1-Element, 7500V Isolation, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size164KB，7 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

MOC3062T Overview

Triac Output Optocoupler With Zero CRSVR, 1-Element, 7500V Isolation, DIP-6

MOC3062T Parametric

Parameter Name	Attribute value
Maker	Fairchild
package instruction	DIP-6
Reach Compliance Code	unknown
Is Samacsys	N
Configuration	SINGLE
Maximum forward current	0.06 A
Nominal input trigger current	10 mA
Maximum insulation voltage	7500 V
Number of components	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR
Minimum off-state peak voltage	600 V
Base Number Matches	1

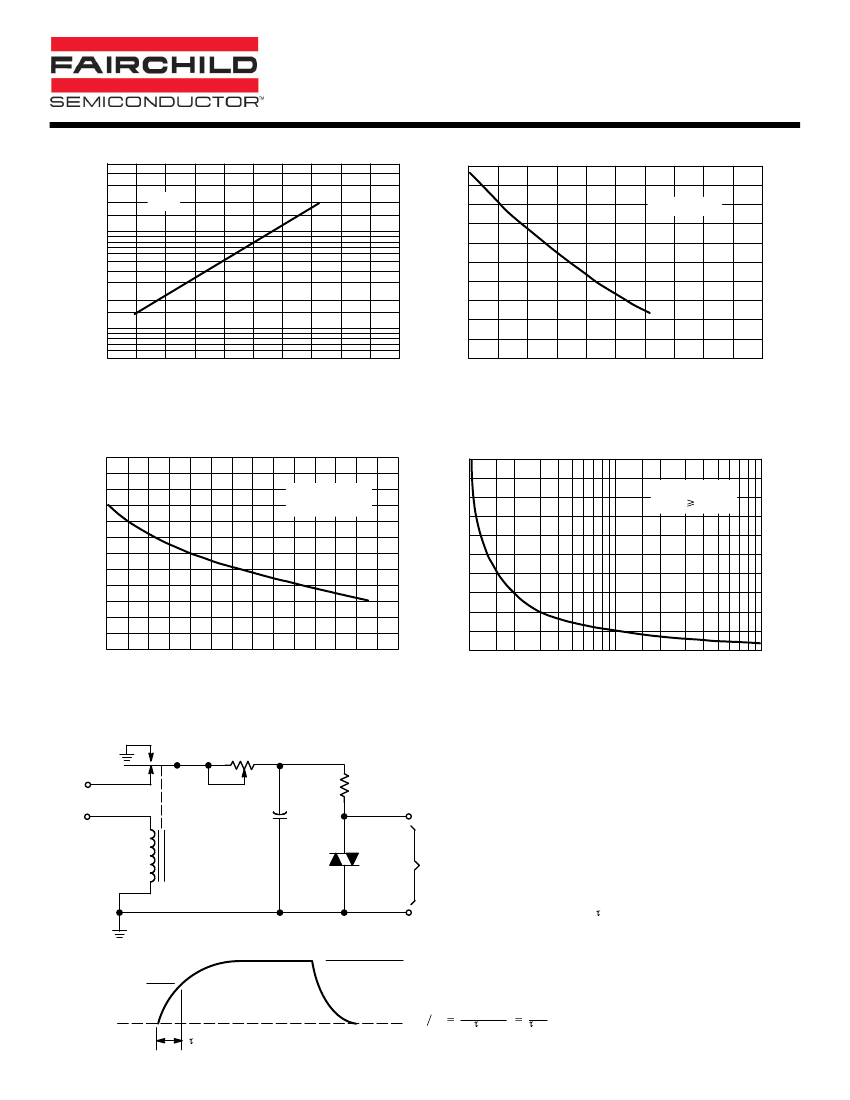

Preview

Download Datasheet

View All

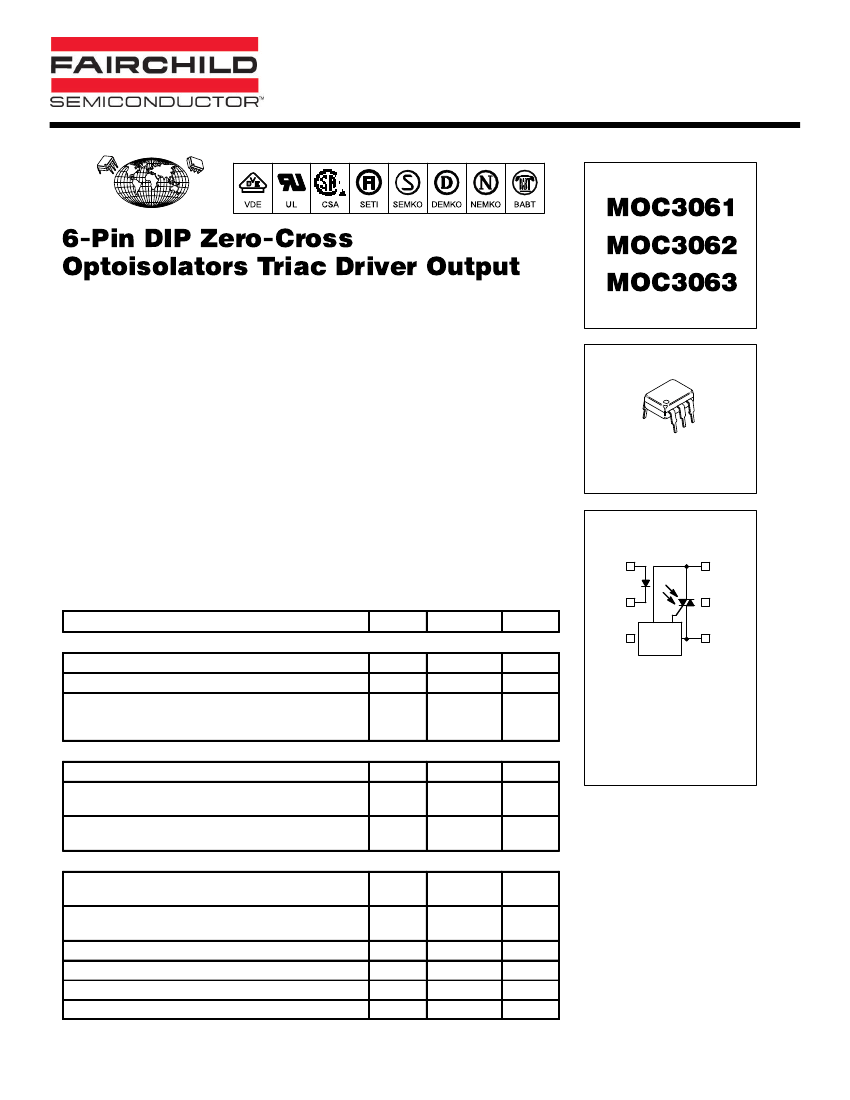

GlobalOptoisolator™

6-Pin DIP Zero-Cross

Optoisolators Triac Driver Output

(600 Volts Peak)

The MOC3061, MOC3062 and MOC3063 devices consist of gallium arsenide

infrared emitting diodes optically coupled to monolithic silicon detectors

performing the functions of Zero Voltage Crossing bilateral triac drivers.

They are designed for use with a triac in the interface of logic systems to

equipment powered from 115/240 Vac lines, such as solid–state relays,

industrial controls, motors, solenoids and consumer appliances, etc.

•

Simplifies Logic Control of 115/240 Vac Power

Zero Voltage Crossing

dv/dt of 1500 V/µs Typical, 600 V/µs Guaranteed

To order devices that are tested and marked per VDE 0884 requirements, the

suffix ”V” must be included at end of part number. VDE 0884 is a test option.

Recommended for 115/240 Vac(rms) Applications:

•

Solenoid/Valve Controls

•

Lighting Controls

•

Static Power Switches

•

AC Motor Drives

MAXIMUM RATINGS

Rating

INFRARED EMITTING DIODE

Reverse Voltage

Forward Current — Continuous

Total Power Dissipation @ TA = 25°C

Negligible Power in Output Driver

Derate above 25°C

OUTPUT DRIVER

Off–State Output Terminal Voltage

Peak Repetitive Surge Current

(PW = 100

µs,

120 pps)

Total Power Dissipation @ TA = 25°C

Derate above 25°C

TOTAL DEVICE

Isolation Surge Voltage(1)

(Peak ac Voltage, 60 Hz, 1 Second Duration)

Total Power Dissipation @ TA = 25°C

Derate above 25°C

Junction Temperature Range

Ambient Operating Temperature Range

Storage Temperature Range

Soldering Temperature (10 s)

VISO

Tstg

7500

250

2.94

– 40 to +100

– 40 to +85

– 40 to +150

260

Vac(pk)

mW/°C

°C

VDRM

ITSM

600

150

1.76

Volts

mW/°C

120

1.41

Volts

mW/°C

Symbol

Value

Unit

MOC3061

MOC3062

MOC3063

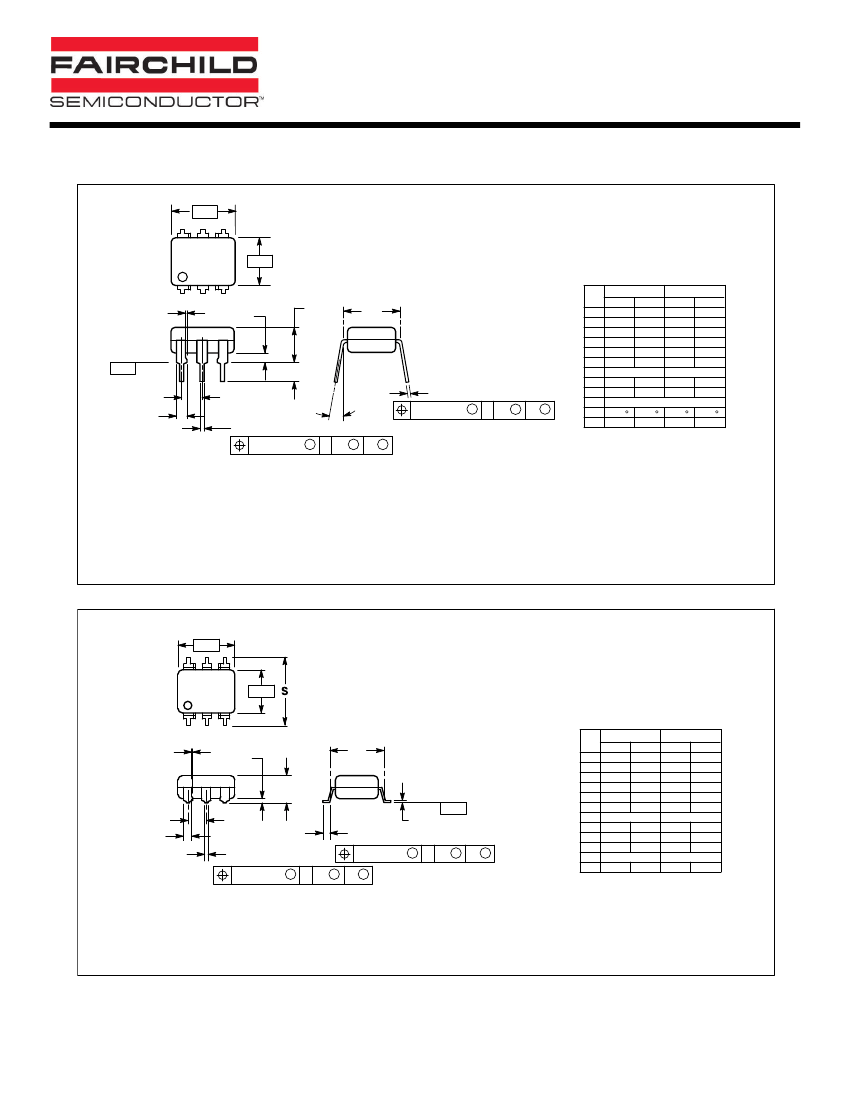

STANDARD THRU HOLE

•

Temperature Controls

E.M. Contactors

AC Motor Starters

Solid State Relays

COUPLER SCHEMATIC

ZERO

CROSSING

CIRCUIT

ANODE

CATHODE

MAIN TERMINAL

SUBSTRATE

DO NOT CONNECT

6. MAIN TERMINAL

1. Isolation surge voltage, VISO, is an internal device dielectric breakdown rating.

For this test, Pins 1 and 2 are common, and Pins 4, 5 and 6 are common.

MOC3062T Related Products

	MOC3062T	MOC3062S	MOC3061S	MOC3063S
Description	Triac Output Optocoupler With Zero CRSVR, 1-Element, 7500V Isolation, DIP-6	Triac Output Optocoupler With Zero CRSVR, 1-Element, 7500V Isolation, DIP-6	Triac Output Optocoupler With Zero CRSVR, 1-Element, 7500V Isolation, DIP-6	Triac Output Optocoupler With Zero CRSVR, 1-Element, 7500V Isolation, DIP-6
Maker	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DIP-6	DIP-6	DIP-6	DIP-6
Reach Compliance Code	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.06 A	0.06 A	0.06 A	0.06 A
Nominal input trigger current	10 mA	10 mA	15 mA	5 mA
Maximum insulation voltage	7500 V	7500 V	7500 V	7500 V
Number of components	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR	TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR
Minimum off-state peak voltage	600 V	600 V	600 V	600 V
Base Number Matches	1	1	1	-
