ICA-632-ZEGG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> ICA-632-ZEGG

ICA-632-ZEGG: DescriptionIC Socket, DIP32, 32 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder, ROHS COMPLIANT; CategoryThe connector socket; File Size588KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

ICA-632-ZEGG Overview

IC Socket, DIP32, 32 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder, ROHS COMPLIANT

ICA-632-ZEGG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: UL 94V-0
body width	0.695 inch
subject depth	0.1 inch
body length	1.6 inch
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER ALLOY
Contact style	MACHINE SCREW
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP32
Dielectric withstand voltage	1000VAC V
Shell material	POLYESTER
Insulation resistance	5000000000 Ω
JESD-609 code	e4
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	32
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.6 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

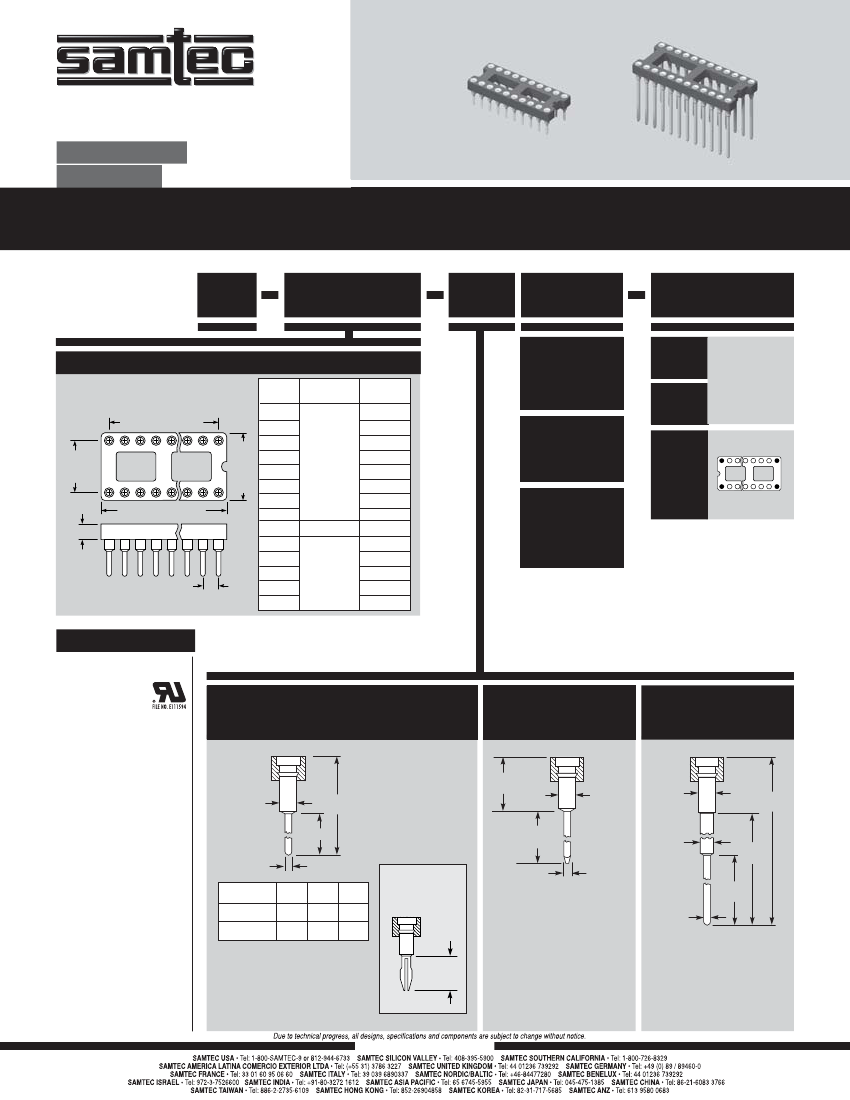

F-211-1 SUPPLEMENT

ICA–320–SGT

(2,54mm) .100"

ICA SERIES

ICA–624–ZEGG

AUTOMATED INSERTION DIP SOCKETS

Mates with:

APA

ICA

ROW SPACING &

NO. OF CONTACTS

STYLE

OPTION

PLATING

OPTION

(Leave Blank for

Standard Version)

OPTION

Specify from chart below

• Side & end stackable

• Great for auto insertion

• Open body design

(2,54) .100 X No. of Spaces

Row

Spacing

+(2,41)

.095

except

–H is

+ (2,54)

.100

(2,54) .100 X No. of Positions

(2,54)

.100

No. of

Contacts

= 30µ" (0,76µm)

Gold contact,

10µ" (0,25µm)

Gold Shell

Row

Space

(7,64) .300

(10,16) .400

(15,24) .600

*–322

has no cross bar on one end.

(2,54)

.100

–308

–314

–316

–318

–320

.300 (7,62)

–322

–324

–328

–422

.400 (10,16)

–624

–628

–632

.600 (15,24)

–640

–648

= .360 (9,14)

Option

Tail

Requires Style

–W or –ZW

Specify desired

= .260 (6,60)

sufﬁx for shorter

Wire-Wrap tail.

Tail

–2

Wire-Wrap

–3

= 30µ" (0,76µm)

Gold contact,

Tin Shell

Requires Style

–S or –ZS

–L

= Locking

Socket

Requires GT

Plating Option

= 10µ" (0,25µm)

Gold contact,

Tin shell (Styles –S

& –ZS only)

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?ICA

Insulator Material:

Black Glass Filled

Polyester

except -328 is LCP

Contact:

BeCu

Shell:

Brass

Plating:

Au or Sn over 50µ" Ni

Flammability Rating:

UL 94V-O

Insulation Resistance:

5000 MΩ min

Temperature Range:

-55°C to +105°C with Tin

-55°C to +125°C with Gold.

Withstanding Voltage:

1000 VRMS

Current Rating:

Contact Resistance:

10mΩ max

Lead Size Range:

.015" (0,38mm) to .022"

(0,56mm) DIA and most IC leads

Insertion Force:

(Single contact only)

Standard = 9 oz avg, 16 oz max;

Low Insertion Force =

2.5 oz avg, 5.5 oz max

Withdrawal Force:

(Single contact only)

Standard = 2.5 oz avg, 1.5 oz

min; Low Insertion Force =

2.0 oz avg, 0.35 oz min

Lead-Free Solderable:

Wave only

RoHS Compliant:

Yes

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

–S, –ZS, –ZA

= Printed Circuit

-ZS & -ZA = Low Insertion Force

–W, –ZW

= Wire-Wrap

ZW = Low Insertion Force

–ZE

= Elevated

Low Insertion Force

(1,32)

.052

DIA

(4,90)

.193

(12,95)

.510

(1,32)

.052

DIA

(1,32)

.052

DIA

(0,89)

.035

DIA

(13,77)

.542

LEAD STYLE

DIA

(0,51)

.020

(0,51)

.020

TAIL

(3,18)

.125

(4,57)

.180

(7,62)

.300

(8,89)

.350

–S or –ZS

–ZA

Locking lead

available with –S

and –ZS.

See OPTION.

(0,64)

.025

(8,86)

.349

(4,32)

.170

Shorter wire-wrap tail

lengths available.

See OPTION.

(3,43)

.136

(0,51)

.020

Insertion Depth = .095" (2,41) to .145" (3,68):

Style S Component Part No. = SC-1P1

Style ZS Component Part No. = EZ-1P1

Style ZA Component Part No. = EZ-6P1

Option L Component Part No. = SC-1L1 or EZ-1L1

–L Option

Insertion Depth = .125" (3,18) to .157" (3,99)

Style W Component Part No. = SC-1W1(1)

Style ZW Component Part No. = EZ-1W1(1)

Style W-2 Component Part No. = SC-1W1(2)

Style ZW-2 Component Part No. = EZ-1W1(2)

Style W-3 Component Part No. = SC-1W1(3)

Style ZW-3 Component Part No. = EZ-1W1(3)

Insertion Depth = .125" (3,18) to .170" (4,32)

Style ZE Component Part No. = EZ-2P3
