MCL2BJTTE18RJ

Description
General Purpose Inductor, 18uH, 5%, 1 Element, Ferrite-Core, SMD
Categoryinductor    Fixed inductance
File Size100KB,2 Pages
ManufacturerKOA Speer
Websitehttp://www.koaspeer.com/
Environmental Compliance
Download Datasheet Parametric View All

MCL2BJTTE18RJ Overview

General Purpose Inductor, 18uH, 5%, 1 Element, Ferrite-Core, SMD

MCL2BJTTE18RJ Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerKOA Speer
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
core materialFERRITE
DC Resistance0.7 Ω
Nominal inductance(L)18 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Manufacturer's serial numberMCL
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Minimum quality factor (at nominal inductance)35
Maximum rated current0.005 A
self resonant frequency18 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal surfaceMatte Tin (Sn)
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency1 MHz
Tolerance5%
Base Number Matches1
TECHNOLOGY OF TOMORROW
INDUCTORS
MULTILAYER
FERRITE INDUCTORS

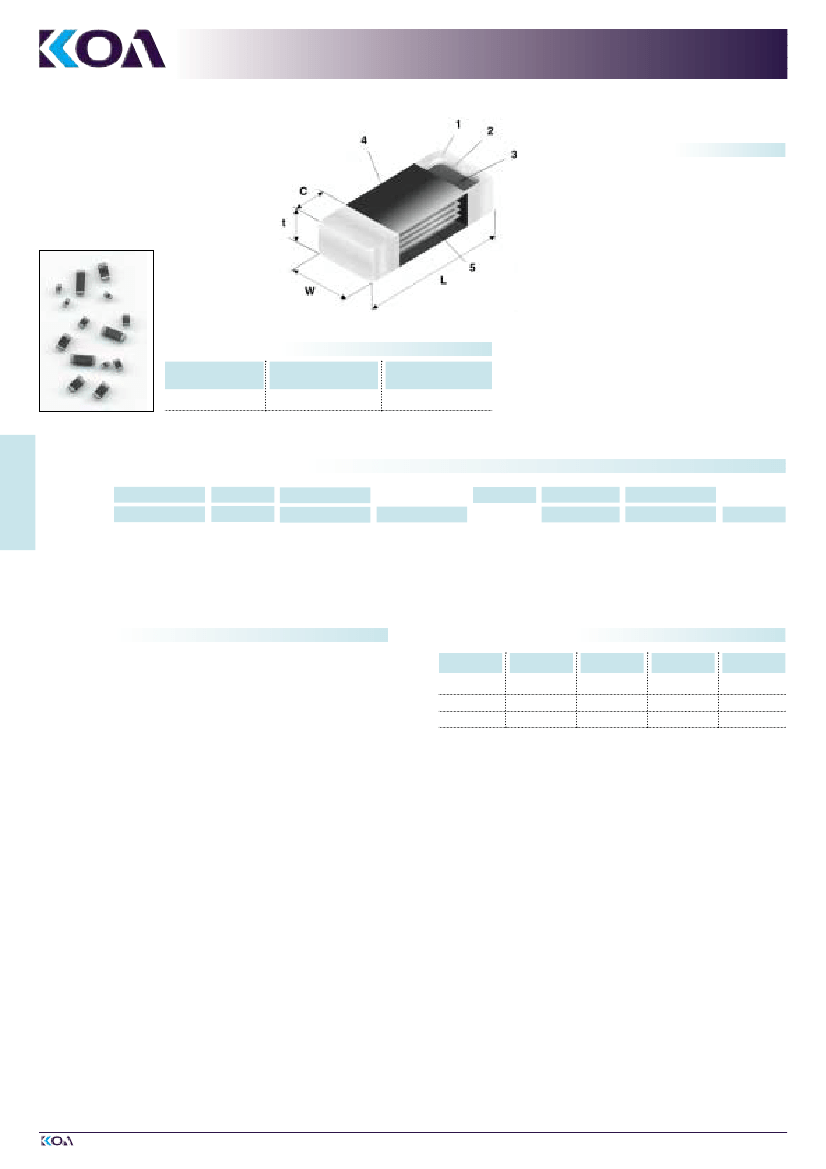

MCL (MCI)
STRUCTURE
1
2
3
4
5
Solder plating
Diffusion barrier
Silver metallisation
Ferrite
Electrodes
IDENTIFICATION
TYPE
MCL
COATING COLOR
Black
MARKING
None
INDUCTORS
Old Part No.
New Part No.
MCI
MCL
PRODUCT CODE
0805
2A
SIZE
1J = 0603
2A = 0805
2B = 1206
H
H
PERMEABILITY
CODE
H, J
K
L
TERMINATION
SURFACE
MATERIAL
L: Sn/Pb
T: Sn
TE
TE
TAPING*
821
821
NOMINAL
INDUCTANCE
3 digits
K
INDUCTANCE
TOLERANCE
M(±20%),
K(+10%), J(±5%)
INDUCTANCE
TOLERANCE
*Please see “PACKAGING”
FEATURES
s
Monolithic structure for closed magnetic path eliminates crosstalk and
provides high reliability in wide temperature and humidity range
s
Anti-leaching nickel barrier terminations
s
Magnetically shielded
s
90/10 solder plated terminations
s
Wide range of electrical properties
s
Suitable for prevention of electromagnetic interference to signal
for high density circuits in disk drives, personal computers, measuring and
telephone equipment
s
Operating temperature range: –25° C … +85° C
s
Suitable for reflow and wave soldering
s
Lab kit available
DIMENSIONS (mm)
SIZE
0603 (1J)
0805 (2A)
1206 (2B)
L
1.60 ± 0.15
2.00 ± 0.20
3.20 ± 0.20
W
0.80 ± 0.15
1.25 ± 0.20
1.60 ± 0.20
t
0.80 ± 0.15
0.90 ± 0.20
1.10 ± 0.20
c
0.36 ± 0.15
0.51 ± 0.25
0.51 ± 0.25
