8066A datasheet, PDF - EEWORLD Datasheet

8066A: DescriptionInside DC Block, 0.007MHz Min, 26500MHz Max, 0.75dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE; CategoryRadio frequency and microwave; File Size187KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

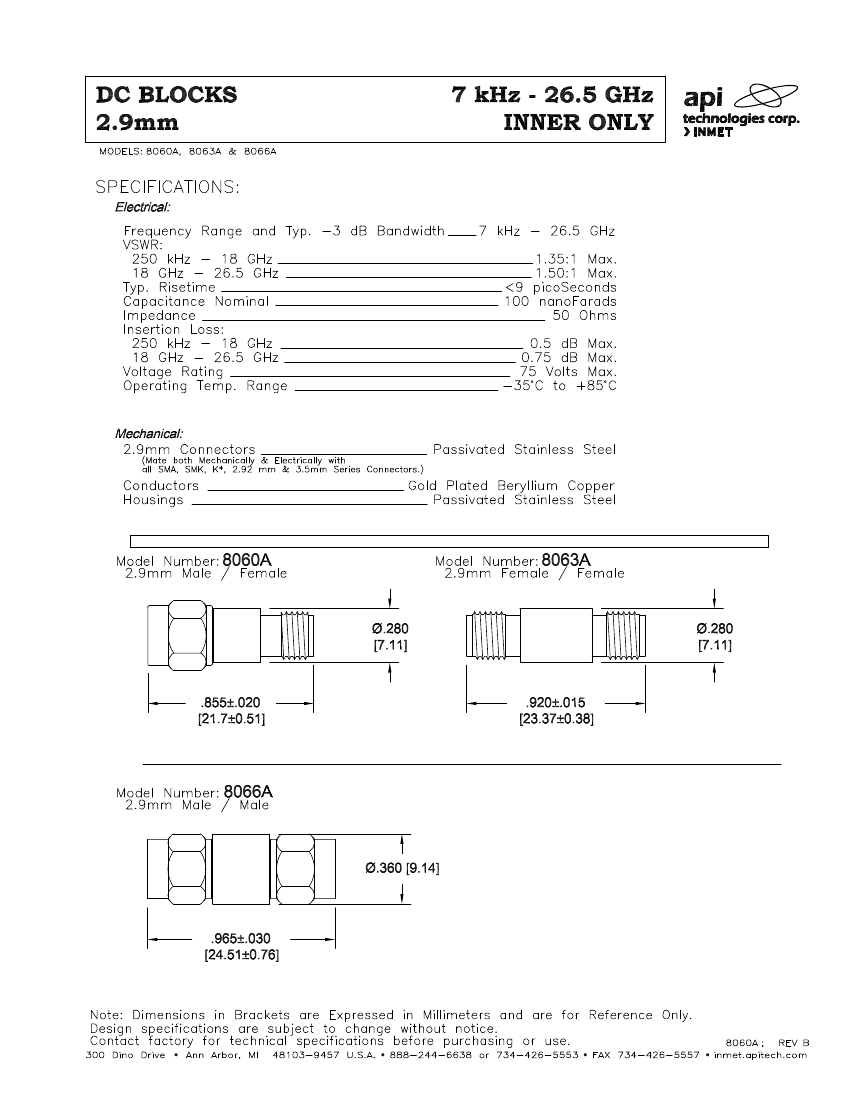

8066A Overview

Inside DC Block, 0.007MHz Min, 26500MHz Max, 0.75dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Is Samacsys	N
Other features	2.9 MM-M
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	75 V
Maximum insertion loss	0.75 dB
JESD-609 code	e4
Maximum operating frequency	26500 MHz
Minimum operating frequency	0.007 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
RF/Microwave Device Types	INSIDE DC BLOCK
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

	8066A	8060A	8063A
Description	Inside DC Block, 0.007MHz Min, 26500MHz Max, 0.75dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE	Inside DC Block, 0.007MHz Min, 26500MHz Max, 0.75dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE	Inside DC Block, 0.007MHz Min, 26500MHz Max, 0.75dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE
Maker	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compliant	compliant	compliant
Other features	2.9 MM-M	2.9 MM-F; 2.9 MM-M	2.9 MM-F
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL
Maximum DC voltage	75 V	75 V	75 V
Maximum insertion loss	0.75 dB	0.75 dB	0.75 dB
JESD-609 code	e4	e4	e4
Maximum operating frequency	26500 MHz	26500 MHz	26500 MHz
Minimum operating frequency	0.007 MHz	0.007 MHz	0.007 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-35 °C	-35 °C	-35 °C
RF/Microwave Device Types	INSIDE DC BLOCK	INSIDE DC BLOCK	INSIDE DC BLOCK
Terminal surface	GOLD	GOLD	GOLD
Maximum voltage standing wave ratio	1.5	1.5	1.5
Base Number Matches	1	1	-
