8529AH: DescriptionInside DC Block, 10MHz Min, 4000MHz Max, 0.75dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE; CategoryRadio frequency and microwave; File Size37KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

8529AH Overview

Inside DC Block, 10MHz Min, 4000MHz Max, 0.75dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE

8529AH Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Is Samacsys	N
Other features	SMA
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	900 V
Maximum insertion loss	0.75 dB
JESD-609 code	e4
Maximum operating frequency	4000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	INSIDE DC BLOCK
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

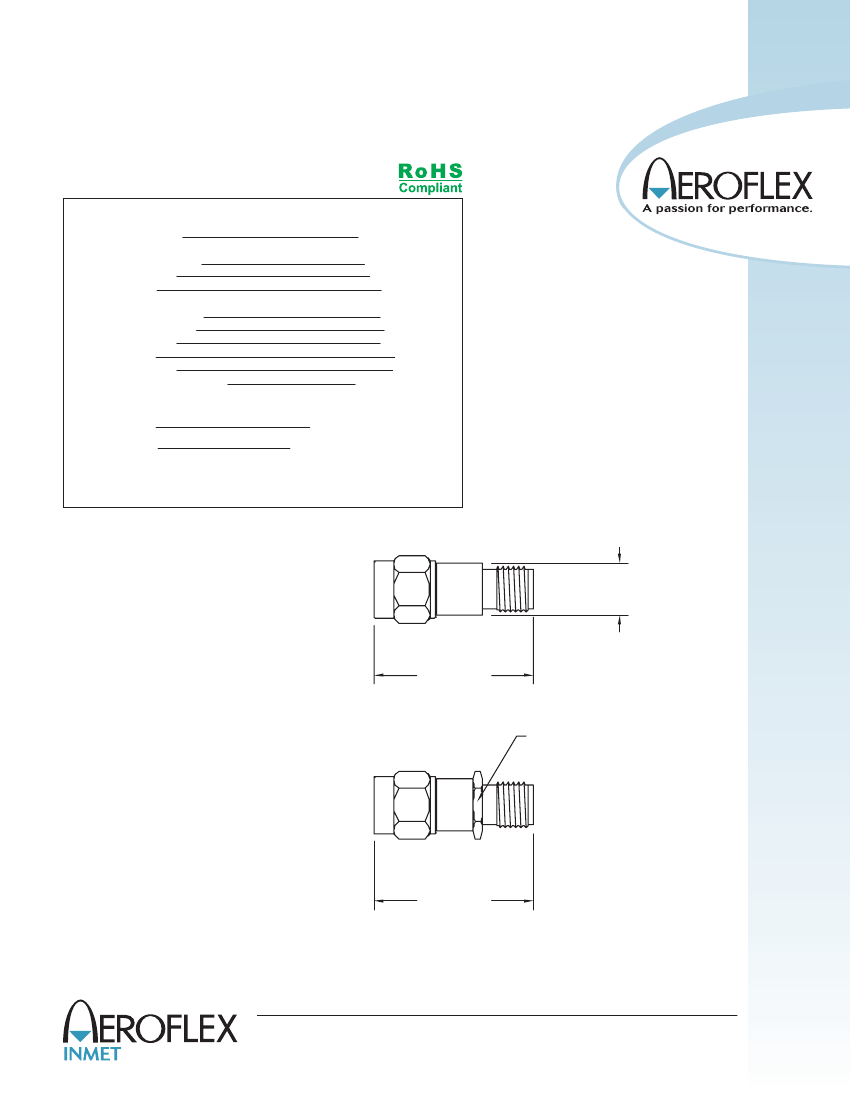

DC BLOCKS

SMA, 10 MHz - 4 GHz, 900 Volts

SPECIFICATIONS:

Models: 8529A & 8529AH

Electrical:

Frequency Range

Insertion Loss

10 MHz - 2.5 GHz

2.5 - 4.0 GHz

Block Type

VSWR

10 MHz - 50 MHz

50 MHz - 1.0 GHz

1.0 - 4.0 GHz

Impedance

Voltage Rating

Operating Temp. Range

10 MHz - 4 GHz

0.50 dB Max.*

0.75 dB Max.

Inner Only

1.35:1 Max.

1.10:1 Max.

1.25:1 Max.

50 Ohms

900 Volts

-65°C to +125°C

Mechanical:

Connectors

Mates with MIL-STD-348

Passivated Stainless Steel

Gold Plated Beryllium Copper

Conductors

* Typical Insertion Loss from 10 MHz to 1.0 GHz is 0.15 dB

Typical Insertion Loss from 1.0 to 2.5 GHz is 0.40 dB

Model Number:

8529A

Ø.28 [7.11]

.860±.015

[21.84±0.38]

5/16 Hex

Model Number:

8529AH

.860±.015

[21.84±0.38]

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design, specifications are subject to change without notice. Contact factory for technical

specifications before purchasing or use.

8529A: REV H

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmetcorp.com • sales@aeroflex-inmetcorp.com

8529AH Related Products

	8529AH
Description	Inside DC Block, 10MHz Min, 4000MHz Max, 0.75dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE
Maker	API Technologies
Reach Compliance Code	compliant
Is Samacsys	N
Other features	SMA
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	900 V
Maximum insertion loss	0.75 dB
JESD-609 code	e4
Maximum operating frequency	4000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	INSIDE DC BLOCK
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.35
Base Number Matches	1
