8810SMF3-26 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Radio frequency and microwave> 8810SMF3-26

8810SMF3-26: DescriptionMonitor TEE DC Block, 0.05MHz Min, 26500MHz Max, 3dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE; CategoryRadio frequency and microwave; File Size45KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

8810SMF3-26 Overview

Monitor TEE DC Block, 0.05MHz Min, 26500MHz Max, 3dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE

8810SMF3-26 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Is Samacsys	N
Other features	BNC-F; SMA-F; SMA-M
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	25 V
Maximum insertion loss	3 dB
JESD-609 code	e4
Maximum operating frequency	26500 MHz
Minimum operating frequency	0.05 MHz
RF/Microwave Device Types	MONITOR TEE DC BLOCK
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.8
Base Number Matches	1

Preview

Download Datasheet

View All

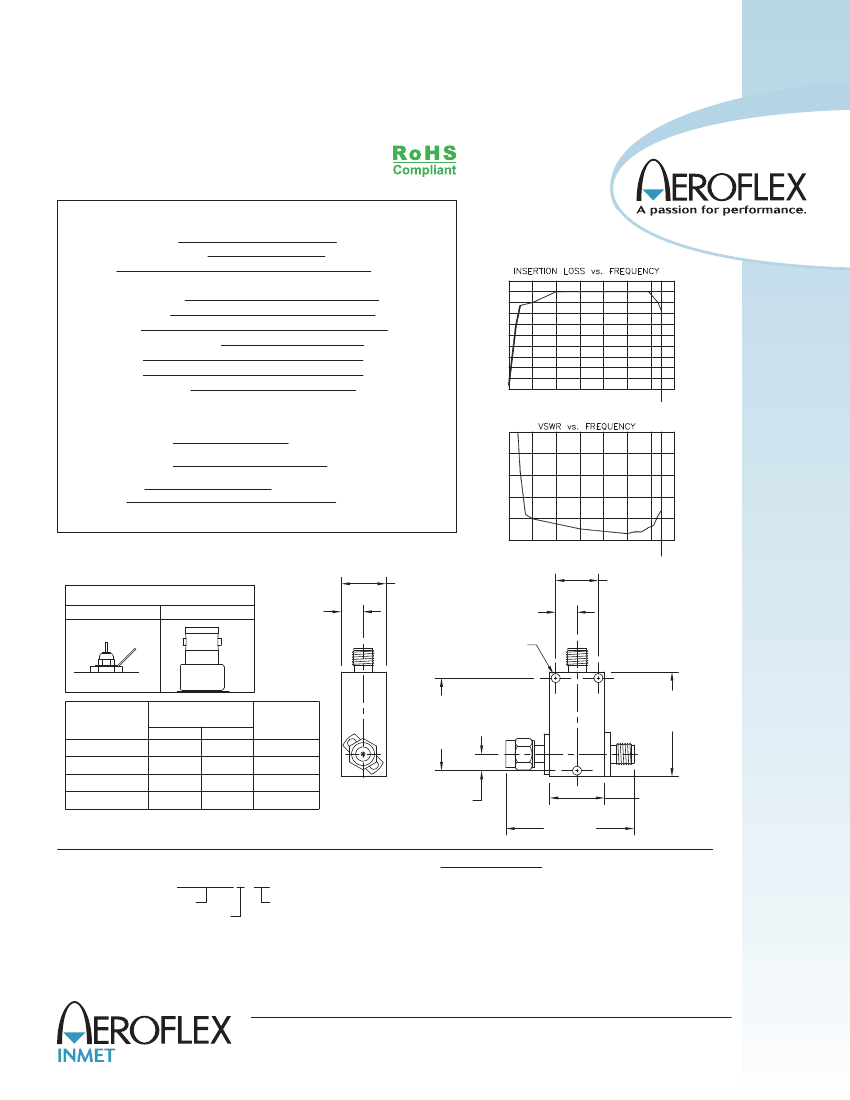

BIAS TEES

SMA, up to 26.5 GHz, 25 Volts / 750 mA

SPECIFICATIONS:

Models: 8810SMFX-YY, 8810SFFX-YY, 8810SMMX-YY, 8810SFMX-YY

Electrical:

Frequency Range

Standard Freq. Values

VSWR

Insertion Loss

50 kHz - 18 GHz

18 - 26.5 GHz

Impedance

Isolation (RF to Bias Port)

DC Voltage

DC Current

Rise Time (10-90%)

50 kHz - 26.5 GHz

12.4, 18 & 26.5 GHz

1.80:1 MAX.

1.5dB Max.

3.0dB Max.

50 Ohms

30dB Typical

25 VDC Max.

750 mA Max.

< 9 pS Typical

Insertion Loss (dB)

Typical performance from 100 kHz - 26.5 GHz

-1.0

-2.0

-3.0

-4.0

-5.0

.00001 .0001

.001

.01

FREQ (GHz)

100

26.5

Mechanical:

SMA Connectors

Mates with MIL-STD-348

Passivated Stainless Steel

Nickel Plated Brass

Gold Plated Beryllium Copper

Gold Plated Brass

VSWR

3.50

3.00

2.50

2.00

1.50

1.00

.00001 .0001

.001

.01

BNC Connectors

Mates with MIL-STD-348

Conductors

Housing

2.00

1.50

1.00

100

FREQ (GHz)

26.5

DC Input Connector Options

Solder Post, X=1

BNC Female, X=3

.515±.030

[13.08±0.76]

.25 [6.35]

.244

[6.20]

3X Ø.102 [Ø2.59]

THRU

.489 [12.42]

Centered

DC Input

(SMA Female

Connector)

Option X = 2

Connector

Overall

Configuration Port

Length

AC + DC

Max.

Male

Female 1.55 [39.37]

8810SMFX-YY

Model

Numbers

1.060

[26.92]

Cent.

AC + DC

Port

1.20

[30.48]

AC Port

8810SFFX-YY

8810SMMX-YY

8810SFMX-YY

Female

Male

Female

Female 1.45 [36.83]

Male 1.70 [43.18]

Male

1.55 [39.37]

.19 [4.83]

Overall

Length

.63 [16.00]

HOW TO ORDER:

Model Number:

8810SZZX-YY

Base Number

DC Connector Type

1 = Solder Post

2 = SMA Female Conn.

3 = BNC Female Conn.

Freq. Range

12 = 50 kHz - 12.4 GHz

18 = 50 kHz = 18 GHz

26 = 50 kHz = 26.5 GHz

Ordering Examples:

Model Number:

8810SFF2-12

50 kHz - 12.4 GHz, SMA Fem/Fem

SMA Female DC Connector Type

Model Number:

8810SMF1-18

50 kHz - 18 GHz, SMA Male/Fem

Solder Post DC Connector Type

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

8810S: REV G

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com
