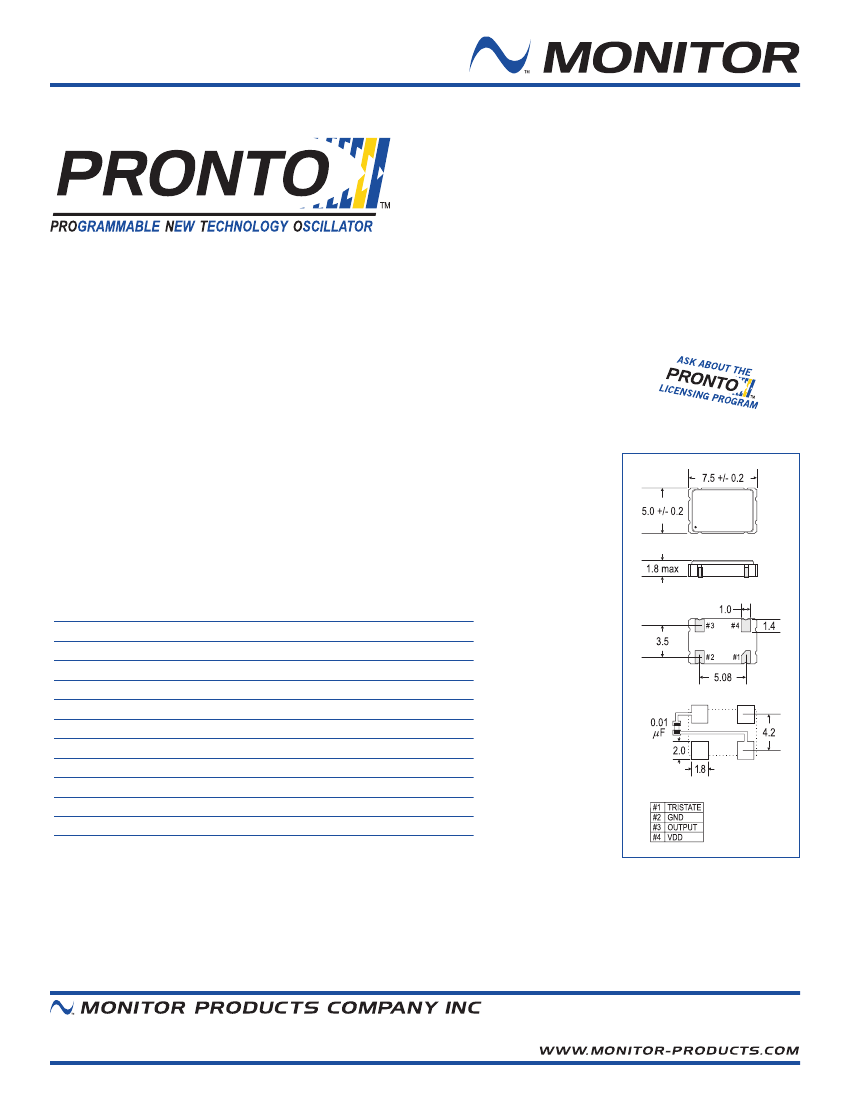

Designing and manufacturing innovative frequency control devices since 1927
INTRODUCING MONITOR’S
NEW
SM750 SERIES
OF
PROGRAMMABLE OSCILLATORS
SM753:
3.3V, 15pF
SM755:
5.0V, 50pF
Monitor’s
PRONTO
series of oscillators brings new meaning to the term “fast turn-around”. No more waiting
weeks for your particular frequency to be developed - tell us the frequency you need and you’ll have your
oscillators within 24 hours.
APPLICATIONS
M
M
M
M
M
M
M
M
M
PDAs
ATM
PCMCIA
Laptops
Controller Boards
Networking
Disk & Tape Drives
Cameras
Rapid Prototyping
FEATURES
M
M
M
M
M
M
M
M
5mm x 7mm industry standard compatibility
Oscillator output utilizes PLL technology
Wide frequency options
Excellent shock and vibration reliability
Tristate function
Jitter: 50 pS (1 sigma)
Low jitter option under development
24-HOUR DELIVERY
ELECTRICAL
SPECIFICATIONS
Frequency Range
Supply Voltage
Load Capacitance
Input Current
Rise and Fall Time
Symmetry
Frequency Stability
Oper Temp Range
Start Up Time
Logic 0 Level
Logic 1 Level
E/D Phase Delay
Phase Jitter RMS
SM753
6.0 ~ 100.0 MHz
3.3 VDC
!
0.5 V
15 pF
20 mA
6 nS max
SM755
6.0 ~ 160.0 MHz
5.0 VDC
!
0.5 V
50 pF
30 mA
3 nS (15 pF)
50/50
!
10% standard (50/50
!
5% optional)
!
100 ppm standard (! 50 ppm avail)
-201C ~ 701C (-401C ~ 851C avail)
10 mS max
Vcc X 0.1V max
Vcc X 0.9V min
100 nS max
50 pS max*
*lower phase noise parts under development
Units : mm
SM753
SM755
Monitor Products has a proven track record as a pioneer manufacturer in the frequency control market. If our extensive selection of standard and engineered crystals
and oscillators does not meet your spec, we will work with you towards a customized solution.
Monitor Products Company Inc reserves the right to make changes to its products and product specifications without notice. No liability is assumed as a result of their use or application.
03-05-01
502 VIA DEL MONTE, OCEANSIDE, CA 92054
TEL:
760.433.4510
FAX:
760.434.0255
SM753
M
SM755

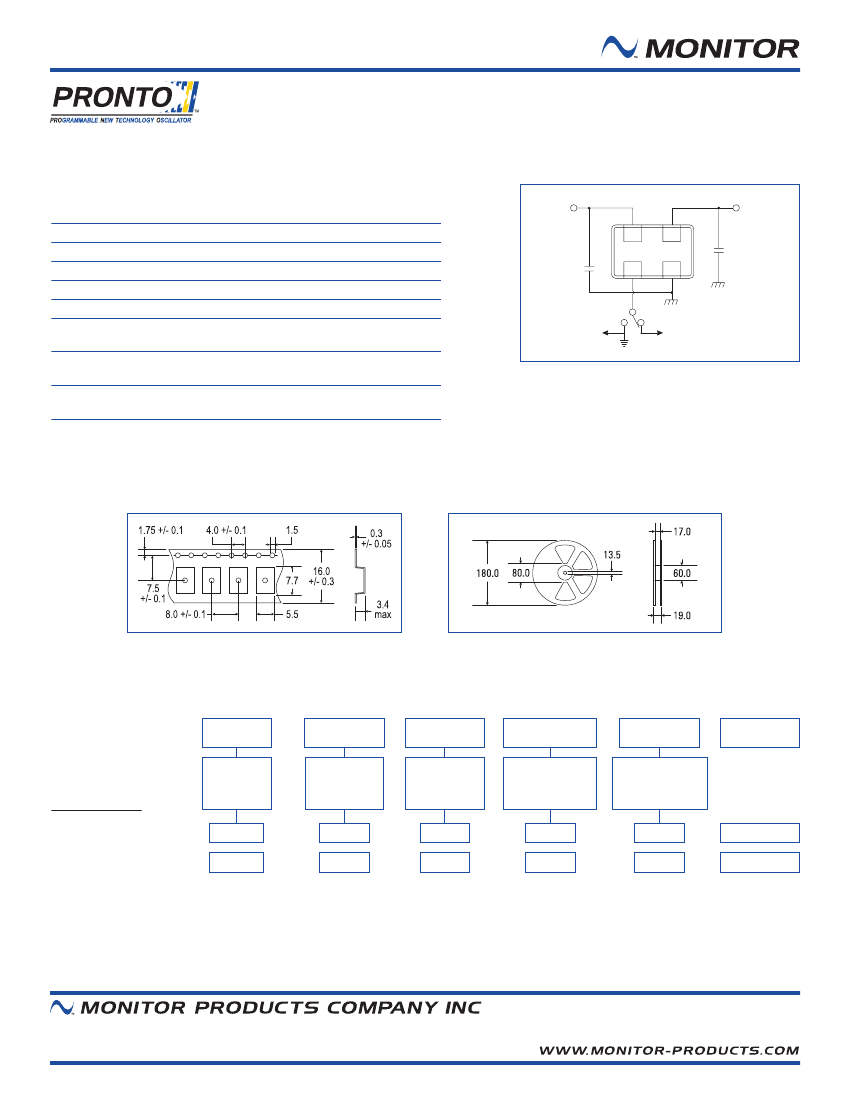

ENVIRONMENTAL PERFORMANCE SPECIFICATIONS
Operating Temp Range
Storage Temp Range
Humidity
Hermetic Seal
Solderability
Reflow Solderability
Vibration
Shock
MIL-0-55310
Packaging
-201C ~ 701C (-401C ~ 851C available)
-551C ~ 1251C
85% RH, 851C, 48 Hours
Leak Rate 2 x 10
-8
ATM-cm
3
/sec max
MIL-STD-202F Method 208E
2601C for 10 seconds
MIL-STD-202F Method 204,
35G, 50 to 2000 Hz
MIL-STD-202F Method 213B
Test Cond E, 1000G, 1/2 Sine Wave
Exceeds environmental and electrical
specifications of equivalent MIL-0-55310
16mm Tape & Reel (500pcs/reel)
or Bulk (<500pcs )
Terminal 3 goes to
High Impedance
Output Disabled
Open or Logic “1”
Output Enabled
(Internal 10K
W
pull-up resistor)
0.01
l
F
+ VCC
OUT
#4
#3
C
L
SM753
= 15 pF
SM755
= 50 pF
#1
#2
TEST CIRCUIT
Units : mm
TAPE DIMENSIONS
REEL DIMENSIONS (500pcs/reel std)
PART
NUMBERING
KEY
Sample Part Numbers
SERIES
SM753
(3.3V, 15pF)
SYMMETRY
FREQUENCY
STABILITY
B = 100 ppm*
C = 50 ppm
TEMPERATURE
RANGE
3 = -201C ~ 701C*
5 = -401C ~ 851C
PACKAGING
A = Bulk (< 500pcs)
E = Tape & Reel*
(500pcs /reel)
FREQUENCY
21 = 55/45 %
22 = 60/40 %*
SM755
(5.0V, 50pF)
SM75322B3E
=
@ 14.31818 MHz
SM75521C3A
=
@ 128.0 MHz
* Standard
SM753
SM755
22
21
B
C
3
3
E
A
14 .31818
128.0
Call factory for additional options. Use full descriptive part number when ordering. Parts will be marked with series and frequency only.
Monitor Products Company Inc reserves the right to make changes to its products and product specifications without notice. No liability is assumed as a result of their use or application.
03-05-01
502 VIA DEL MONTE, OCEANSIDE, CA 92054
TEL:
760.433.4510
FAX:
760.434.0255
