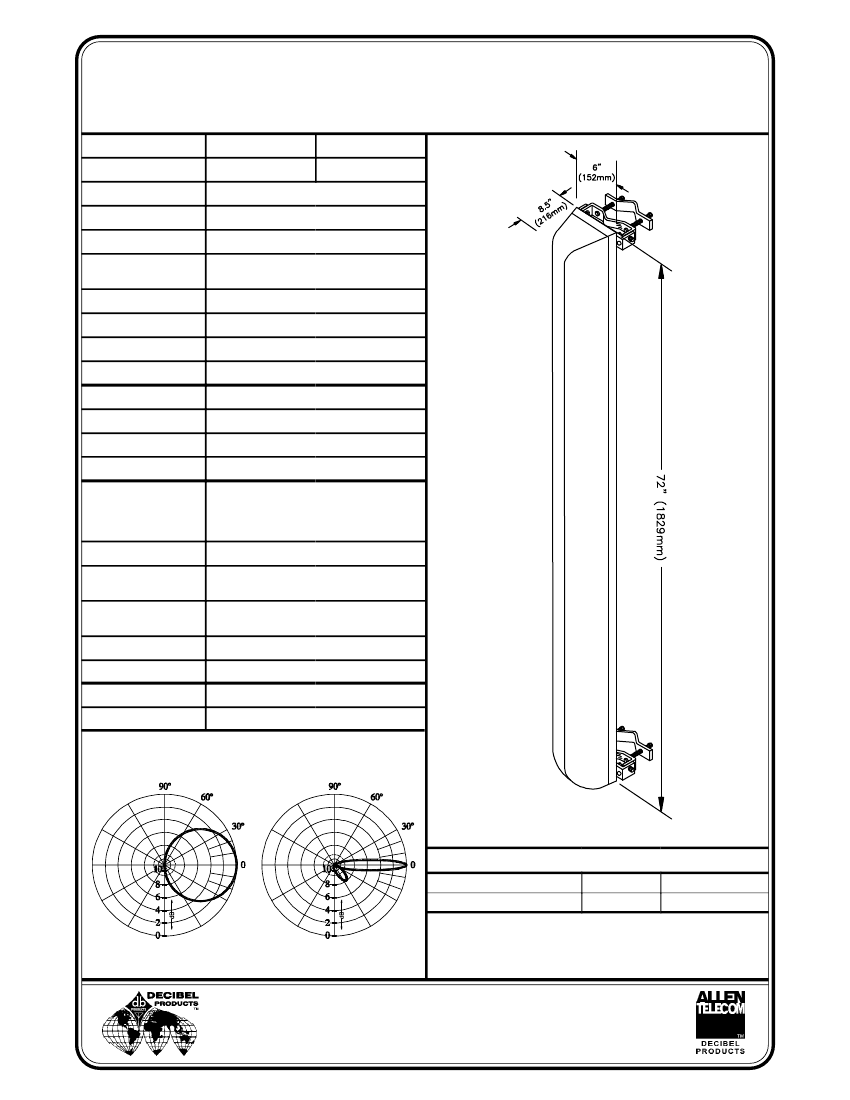

DB846H80(E)-SX

dB Director®

14 dBd, 80°, Directional Log Periodic Antenna, 806-896 MHz

Model Number

Termination

Frequency Range

Gain

VSWR

Beamwidth

(3dB from max)

Front to Back Ratio

Polarization

Max. Input Power

Application

Weight

Wind Area

Wind Load

Max. Wind Speed

Material

DB846H80-SX

Type N-Female

806-896 MHz

14 dBd (16.1 dBi)

< 1.5:1

Horizontal:

Vertical:

80° ± 5°

11° ± 1°

DB846H80E-SX

7/16 DIN

> 40 dB

Vertical

500 Watts

Amps Cellular and Trunking

15 lbs (6.8 kg)

3 ft² (0.28 m²)

120 lbf (534N) 53.9 kp (at 100 mph)

125 mph (201 km/h)

Radiators:

Back Panel:

Radome:

Mounting Hdw:

Brass

Pass. Aluminum

ABS

Galvanized Steel

Color

Mounting

Downtilt Brackets

(Optional)

Weather Protection

Lightning Protection

Normal: Gray

DB380 pipe mount kit (max. 3.5" OD),

included.

DB5083

Fully protected by metal and ABS.

All metal parts grounded.

85" x 10" x 15" (216 x 25 x 38 cm)

43.5 lbs (19.7 kg)

Packing Size

Shipping Weight

Antenna Patterns

Electrical Downtilt (T) Option

Model Number

846H80T5E-SX

Downtilt

5°

Gain

13.7 dBd (15.8 dBi)

Horizontal

Vertical

Specifications are for reference only.

099214-001D 05/00

DECIBEL

Allen Telecom Inc.

PRODUCTS

A Division of

8635 Stemmons Freeway • P. O. Box 569610 • Dallas, Texas 75356-9610

214 / 631-0310 • Fax: 214 / 631-4706
