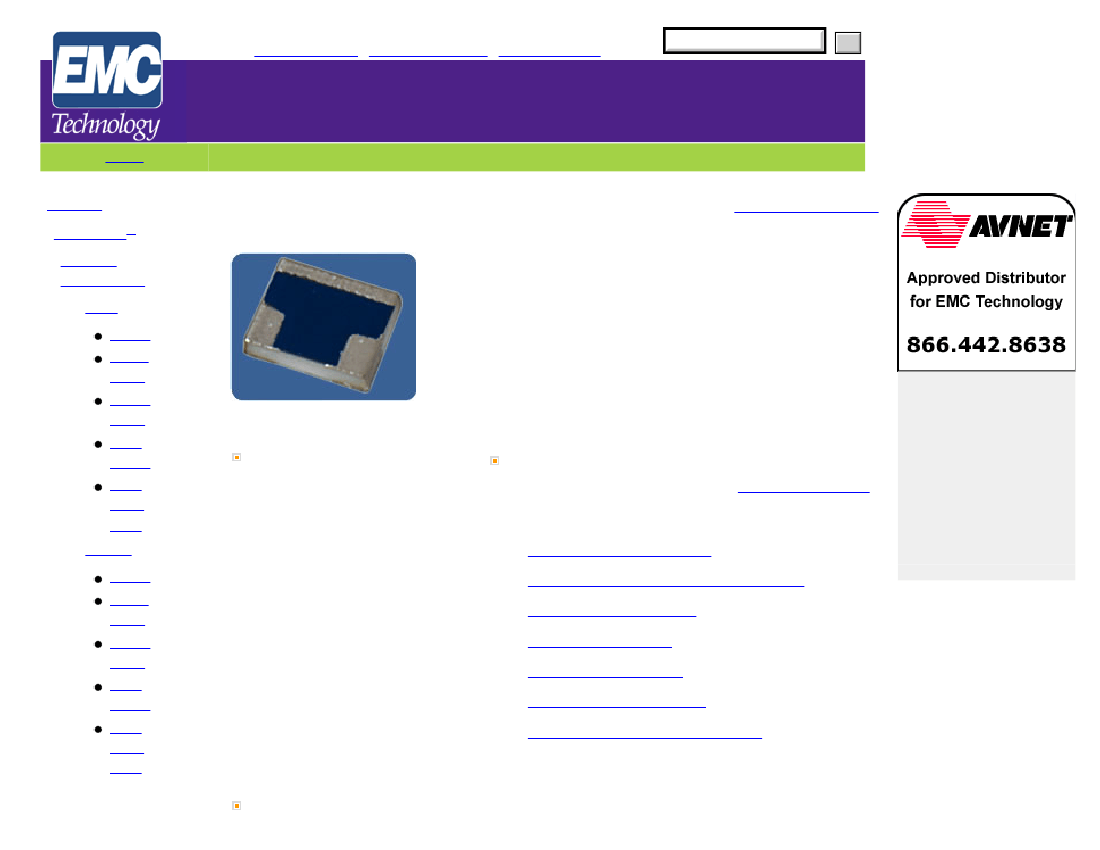

EMC Technologys MTVA Thermopads are microwave absorbtive
attenuators which offer a smaller physical size with increased
frequency range. The series operates DC to 18 GHz. The MTVA
version of the Thermopad also offers wire bondable terminals for use
with alternative high frequency attachment methods and space
applications. This product is available with various metallization
styles and plating options including RoHS compliant lead free silver
over nickel plating, 60/40 low temperature solder plating or 60/40
solder fused finish for easy reflow processing.
General Specification
0.060 x 0.075
Size
(1.52mm x
1.91mm)
Impedance
50 Ohms
Frequency Range DC to 18 GHz
Attenuation
+/-0.5 dB
Accuracy
TCA Tolerance
+/-0.001
VSWR (Typical) 1.30 @ 1 GHz
Power Rating
200 mWatts
Power derating
100% to 125 °C
derates to
0% @ 150 °C
Operating
-55 °C to 150 °C
Temperature
Material Specification
http://www.emct.com/microwavepassivecomponents-s17.html (1 of 6) [21/12/2004 02:41:38 ?]
MTVA
Standard Thermopad®
Product Options
VIEW ALL MTVAs
Quick Help:
q
Do you need a higher frequency Thermopad?
q
Avnet Electronics
Avnet Electronics is an
approved EMC Technology
distributor for North
America. Avnet stocks the
entire line of EMC
Technology components
allowing for reduced
minimum order quantities,
quick delivery and value
added services.
Select a lower frequency Thermopad made for telecom applications.
Do you need a higher power Thermopad?
Do you need a coaxial Thermopad?
Do you require a 75 ohm Thermopad?
Select a high reliability MTVA Thermopad.
Do you need a fixed attenuator in this same package size?
q
q
q
q
q
EMC Technology - MTVA - EMC Technologys MTVA Thermopads are microwave absorbtive atte...ow temperature solder plating or 60/40 solder fused finish for easy reflow processing.
CTVA
Planar
Triple
Wrap
HTVA
Gold
Planar
KTVA
Coax TVA
High Reliability
Thermopad®
HRTVA
Planar
Triple
Wrap
Single
Wrap
Gold
Planar
Wire Bond
Gold
HRMTVA
Planar
Triple
Wrap
Single
Wrap
Gold
Planar
Wire Bond
Gold
Substrate
Resistive
material
Terminal
material
Aluminia
Thick film
Thick film,
Nickel Barrier
with Solder Plate
or no lead Silver
Finish
Ordering Information
MTVA
Series
MTVA
03
Nominal
Atten.
1=1dB
2=2dB
3=3dB
4=4dB
5=5dB
6=6dB
7=7dB
8=8dB
00
Test Code
00=Standard
N
TCA Slope
N=Neg.
07
TCA
dB/dB/°C
W3
Metallization
Blank=Planar
W3=Triple Wrap
W1=Single Wrap
G=Planar Gold
WB1=Wire Bond
S
Plating
Blank=60/40
(Solder Plated)
03=.003
04=.004
05=.005
06=.006
07=.007
08=.008
09=.009
S=60/40
(Solder Fused)
F=Silver
(Lead Free)
(S or F not
available on
WB1 or G)
Metallization and Plating Options
Planar (Blank or No Code):
means topside tin/lead metallization on the input/output & ground pads.
This chip device should be mounted in a flip chip style and is pick & place compatible. Planar offers
the best RF performance and lowest cost.
Single Wrap (W1):
indicates tin/lead metallization is used on the input/output pads and wraps around
the ground pad with full backside metallization.
Triple Wrap (W3):
indicates tin/lead metallization wraps around on the input/output and ground pads.
Triple wrap metallization permits inspectable solder fillets. This chip device should be mounted in a
flip chip method and is well suited for hand soldering.
Planar Gold (G):
means topside wire bond thick film gold is used on the input/output & ground pads.
This chip device should be mounted film side up and wire or ribbon bonds used to make contact to the
input/output & ground pads.
Wire Bond Gold (WB1):
indicates wire bond gold metallization is used on the input/output pads and
wraps around the ground pad with full backside gold metallization.
http://www.emct.com/microwavepassivecomponents-s17.html (2 of 6) [21/12/2004 02:41:38 ?]
EMC Technology - MTVA - EMC Technologys MTVA Thermopads are microwave absorbtive atte...ow temperature solder plating or 60/40 solder fused finish for easy reflow processing.
Attenuators
Standard
Attenuators
TS03
Planar
Triple
Wrap
Single
Wrap
TS04
Planar
TS05
Planar
Triple
Wrap
Single
Wrap
Gold
Planar
Wire Bond
Gold
TS93
Triple Tab
TS95
Triple Tab
TT3
Planar
Triple
Wrap
Gold
Planar
Plating Option (Blank or No Code):
60/40 Solder Plated (60% Sn/40% Pb) low temperature tin/lead
is used.
Plating Option (S):
60/40 Solder Fused (60% Sn / 40% Pb) low temperature tin/lead solder fused. No
additional solder is required when using solder reflow methods.
Plating Option (F):
No lead silver (Pure Ag) is used. Components meet RoHS compliance.
