BYM26C: DescriptionRectifier Diode, Avalanche, 1 Phase, 1 Element, 2.3A, 600V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2; Categorydiode Rectifier diode; File Size38KB，2 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

BYM26C Overview

Rectifier Diode, Avalanche, 1 Phase, 1 Element, 2.3A, 600V V(RRM), Silicon, DO-201AD, PLASTIC PACKAGE-2

BYM26C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
Parts packaging code	DO-201AD
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
application	VERY FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	2.65 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	45 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	2.3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	0.075 µs
surface mount	NO
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

BYM26A ....... BYM26E

2.3 Amp. Very Fast Soft Recovery Glass Passivated Avalanche Diode

Dimensions in mm.

DO-201AD

(Plastic)

Voltage

200 to 1000 V.

Current

2.3 A at 55 ºC.

®

9.1

± 0.3

62.5

± 0.5

Mounting instructions

1. Min. distance from body to soldering point,

4 mm.

2. Max. solder temperature, 350 °C.

3. Max. soldering time, 3.5 sec.

4. Do not bend lead at a point closer than

3 mm. to the body.

•

Glass Passivated Junction

•

High current capability

•

The plastic material carries

U/L recognition 94 V-0

•

Terminals: Axial Leads

•

Polarity: Color band denotes cathode

Maximum Ratings, according to IEC publication No. 134

BYM26A

BYM26B

BYM26C

BYM26D

BYM26E

V

RRM

V

RMS

V

DC

I

F(AV)

I

FRM

I

FSM

t

rr

V

BR

T

j

T

stg

E

RSM

Peak Recurrent reverse voltage (V)

Maximum RMS voltage

Maximum DC blocking voltage

Forward current at Tamb = 55 °C

Recurrent peak forward current

10 ms. peak forward surge current

Max. reverse recovery time from

I

F

= 0.5 A ; I

R

= 1 A ; I

RR

= 0.25 A

Avalanche breakdown voltage

at 100 µ A (V)

Operating temperature range

Storage temperature range

Maximum non repetitive peak

reverse avalanche energy.

I

R

= 1A ; T

J

= 25 ºC

at 25 ºC

at 175 ºC

at 25 ºC

Max. reverse current at V

RRM

at 165 ºC

Max. thermal resistance ( l = 10 mm.)

Max. forward voltage drop at I

F

= 2 A

200

140

200

400

280

400

600

420

600

2.3 A

19 A

45 A

800

560

800

1000

700

1000

30 ns

>300

>500

>700

75 ns

>900

>1100

– 65 to + 175 °C

20 mJ

Electrical Characteristics at Tamb = 25 °C

V

F

I

R

thj-a

2.65 V

1.34 V

5µA

150 µ A

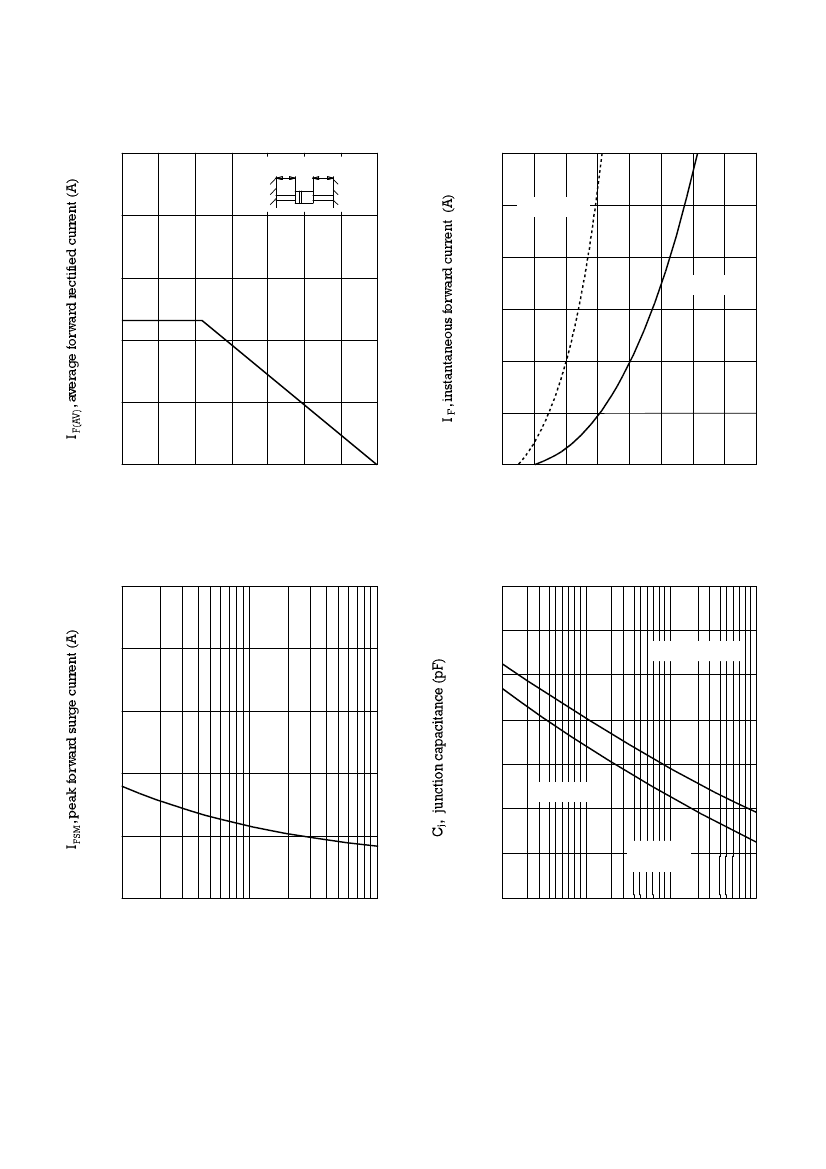

30 °C/W
