51787R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > transformer> 51787R

51787R: DescriptionTelecom Transformer; Categorytransformer; File Size150KB，1 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric Compare View All

51787R Overview

Telecom Transformer

51787R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Wurth Elektronik
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	LENGTH AND HEIGHT DIMENSION INCLUDES TERMINALS ALSO, COMPATIBLE WITH MTS141; MTS142
Certification	IEC; UL
high	12.7 mm
length	17.75 mm
Manufacturer's serial number	51787R
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L17.75XB13.46XH12.7 (mm)
main impedance	135 OHMS
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	13.46 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Digital

Telecom

Metalink HDSL recommendations

EP13-SMD

Features

•

RoHS compatible versions available

•

Compatible with Metalink chipsets

•

Designed to meet IEC950

requirements

•

Good total harmonic distortion

characteristics

•

Optimized for size and performance

•

135 ohm line impedance

•

Customization available

•

For IC approval status, contact

Midcom

EP13-TH

Part

Turns Ratio

Number

IC Number

Application

PRI:SEC

50693R MtH2445, Mtxx40B series

Multi Rate

2.3:1

50681 MtH2445, Mtxx40B series

Multi Rate

2.3:1

50787R

MtH1243

Multi Rate

2:1

50688

MtH1243

Multi Rate

2:1

51259R

MtS140 AFE

External Line Driver

3:1

51258

MtS140 AFE

External Line Driver

3:1

51256

MtS140 AFE

Direct to AFE

3.7:1

51257R

MtS140 AFE

Direct to AFE

3.7:1

51966

MtS141, MtS142

All Rates

1.8:1

51787R

MtS141, MtS142

All Rates

1.8:1

IEC950

Mechanical

Supplementary EP13-SMD

Supplementary

EP13-TH

Supplementary EP13-SMD

Supplementary

EP13-TH

Supplementary EP13-SMD

Supplementary

EP13-TH

Supplementary

EP13-TH

Supplementary EP13-SMD

Supplementary

EP13-TH

Supplementary EP13-SMD

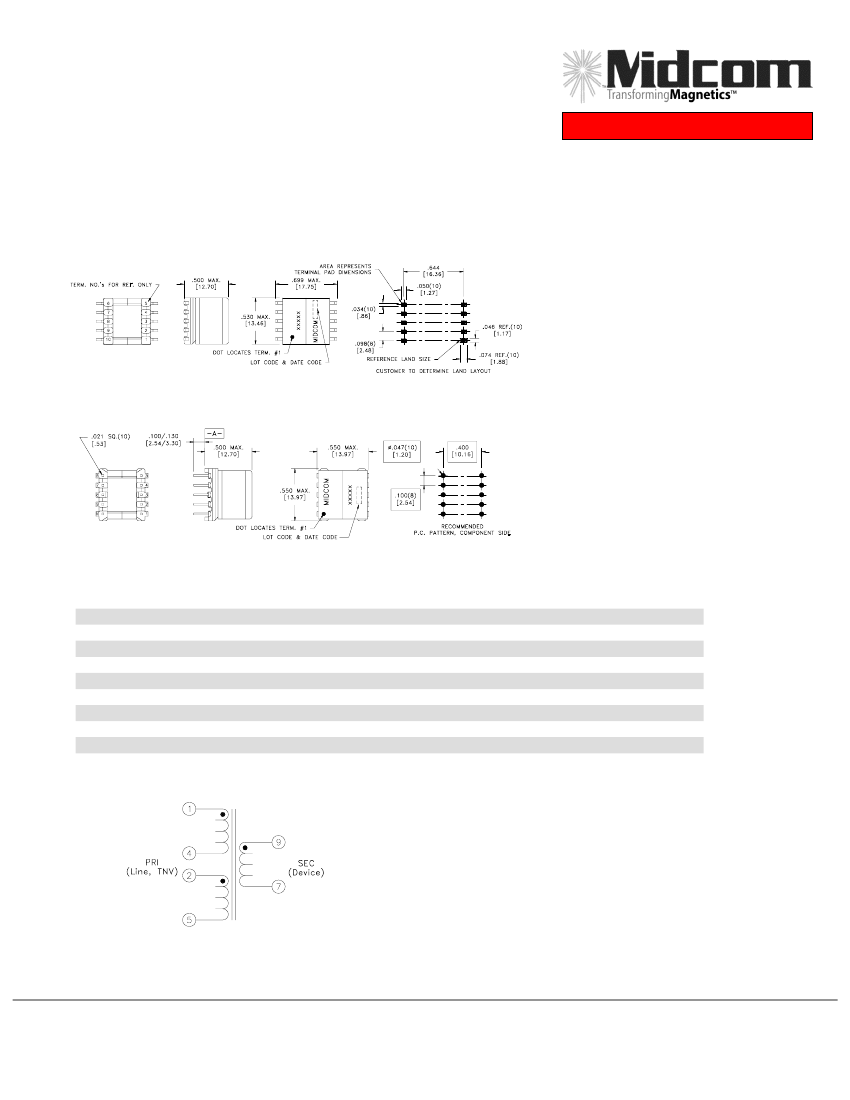

Schematic

Schematic 1

Details subject to change. Contact your Midcom sales representative for additional information. Dimensions: in/mm. All tolerances are

±.010/0,25

and electrical specifications are @25°C unless otherwise specified.

Midcom, Inc. USA

121 Airport Drive – PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ F: 605.886.4486

www.midcom-inc.com ~ email:sales@midcom-inc.com

Midcom, Inc. China

10/F Spectrum Tower 53 Hung to Road

Kwun Tong, Kowloon, HK

T: 852.2320.4221 ~ F: 852.2352.3272

email: asiasales@midcom-inc.com

10/19/2006

1/1
