51772R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > transformer> 51772R

51772R: DescriptionTelecom Transformer, PDSO-G24; Categorytransformer; File Size155KB，1 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric View All

51772R Overview

Telecom Transformer, PDSO-G24

51772R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Wurth Elektronik
package instruction	PDSO-G24
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	TURNS RATIO: 1:1
high	5.85 mm
length	13.89 mm
Manufacturer's serial number	51772R
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L13.89XB9.91XH5.85 (mm)
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	9.91 mm
Base Number Matches	1

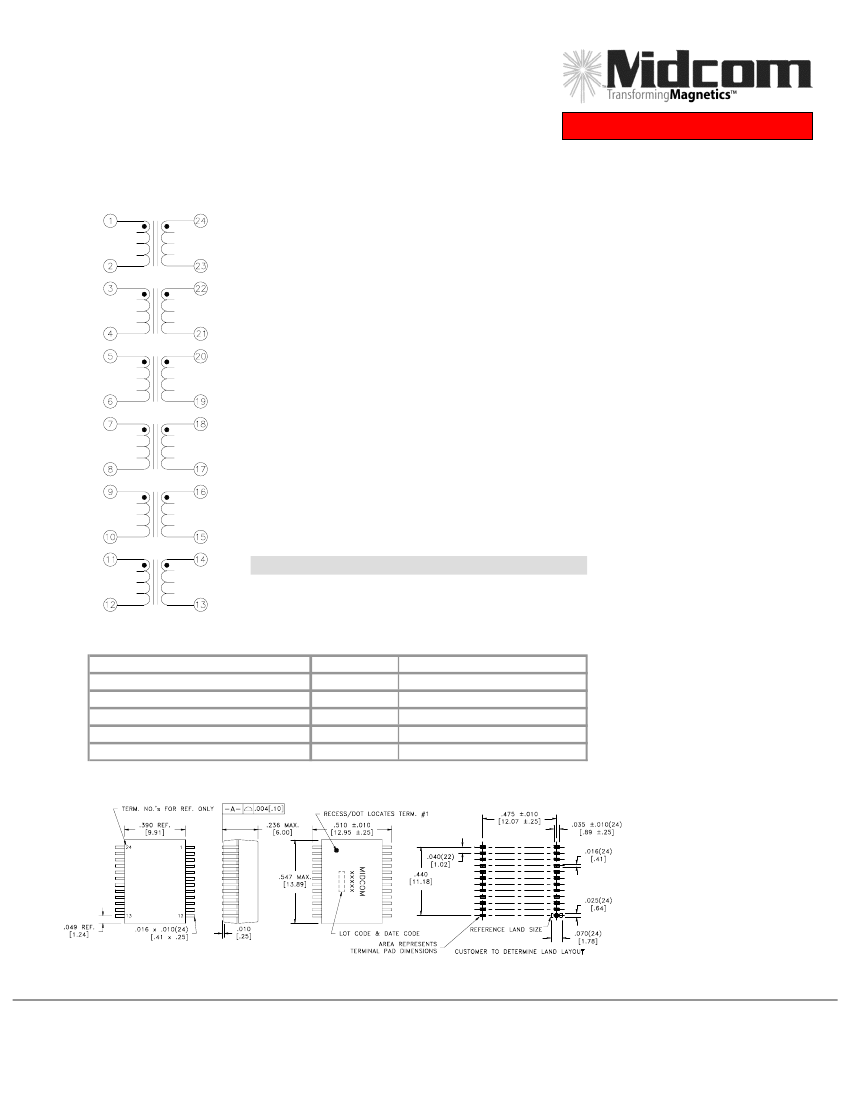

Preview

Download Datasheet

View All

Digital

Telecom

Three Port DS3 PDSO-G24

Features

•

Designed for DS3 applications

Optimized for size and performance

Surface mount

Transfer mold package

Optional pin-outs

Industry standard connector footprint

Optimum performance

Cost Effective

Both RoHS compliant and lead-

terminal parts available

Part Number

51772R

Turns Ratio

1:1

Operating Temp.

Range

-40°C to +85°C

Electrical Characteristics

Inductance at 25°C

100uH Min.

Inductance at -40°C

40uH Min.

Leakage Inductance

110nH max.

Interwinding Capacitance

10pF max.

DC Resistance

0.31Ω max.

Dielectic Rating

1500VAC

0.1Vrms, 100kHz

Any Winding

for 1 minute

Details subject to change. Contact your Midcom sales representative for additional information. Dimensions: in/mm. All tolerances are

±.010/0,25

and electrical specifications are @25°C unless otherwise specified.

Midcom, Inc. USA

121 Airport Drive – PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ F: 605.886.4486

www.midcom-inc.com ~ email:sales@midcom-inc.com

Midcom, Inc. China

10/F Spectrum Tower 53 Hung to Road

Kwun Tong, Kowloon, HK

T: 852.2320.4221 ~ F: 852.2352.3272

email: asiasales@midcom-inc.com

10/19/2006

1/1
