CSE2450F-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > photoelectric> Solid state relay> CSE2450F-10

CSE2450F-10: DescriptionTrigger Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT, PLASTIC PACKAGE-4; Categoryphotoelectric Solid state relay; File Size41KB，3 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric View All

CSE2450F-10 Overview

Trigger Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT, PLASTIC PACKAGE-4

CSE2450F-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Crydom
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-4
Reach Compliance Code	compliant
Is Samacsys	N
Other features	UL RECOGNIZED, VDE APPROVED
Maximum insulation voltage	4000 V
Number of components	1
Maximum on-state current	50 A
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRIGGER OUTPUT SSR
Base Number Matches	1

Preview

Download Datasheet

View All

Series CS

10-90Amp • 120/240 Vac • AC OUTPUT

•

Low Leakage

•

SCR Output

•

Panel Mount

• Zer

Voltage Switching

Zero

The Series CS has an SCR AC switch

output featuring low off-state leakage

(1mA, snubberless), zero-voltage

switching and a broadened operating

range (24-280Vac). This wide range

permits optimum performance at both

120Vac and 240Vac line voltages.

Manufactured in Crydom’s ISO 9001

Certified facility for optimum product

performance and reliability.

MODEL NUMBERS

CSD2410

CSE2410

CSD2425

CSE2425

CSD2450

CSE2450

CSD2475

CSE2475

CSD2490

CSE2490

OUTPUT SPECIFICATIONS

➀

Operating Voltage (47-63 Hz) [Vrms]

Load Current Range

24-280

0.15-10

600

120

1.6

1.48

1.0

500

1/2 Cycle

0.5

24-280

0.15-25

600

250

1.6

1.02

260

1.0

500

1/2 Cycle

0.5

24-280

0.15-50

600

625

1.6

0.63

1620

1.0

500

1/2 Cycle

0.5

24-280

0.25-75

600

1000

1.6

0.31

4150

1.0

500

1/2 Cycle

0.5

24-280

0.25-90

600

1200

1.6

0.28

6000

1.0

500

1/2 Cycle

0.5

➂

[Arms]

Transient Overvoltage [Vpk]

Max. Surge Current, (16.6ms) [Apk]

Max. On-State Voltage Drop @ Rated Current [Vpk]

Thermal Resistance Junction to Case (R

θJC

) [˚C/W]

Maximum I 2 t for Fusing, (8.3 msec.) [A 2sec]

Max. Off-State Leakage Current @ Rated Voltage [mA]

Min. Off-State dv/dt @ Max. Rated Voltage [V/µsec]

Max. Turn-On Time

Max. Turn-Off Time

Power Factor (Min.) with Max. Load

➁

INPUT SPECIFICATIONS

➀

Control Voltage Range

Max. Turn-On Voltage

Min. Turn-Off Voltage

Nominal Input Impedence

Typical Input Current

DC CONTROL

(CSD PREFIX)

DC CONTROL

(CSE PREFIX)

3.5-15 Vdc

3.5 Vdc

1.0 Vdc

300 Ohm

15 mA @ 5 Vdc

15-32 Vdc

15.0 Vdc

1.0 Vdc

2k Ohm

7mA @ 15 V

GENERAL NOTES

➀

➁

➂

All parameters at 25ºC unless otherwise specified.

Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1

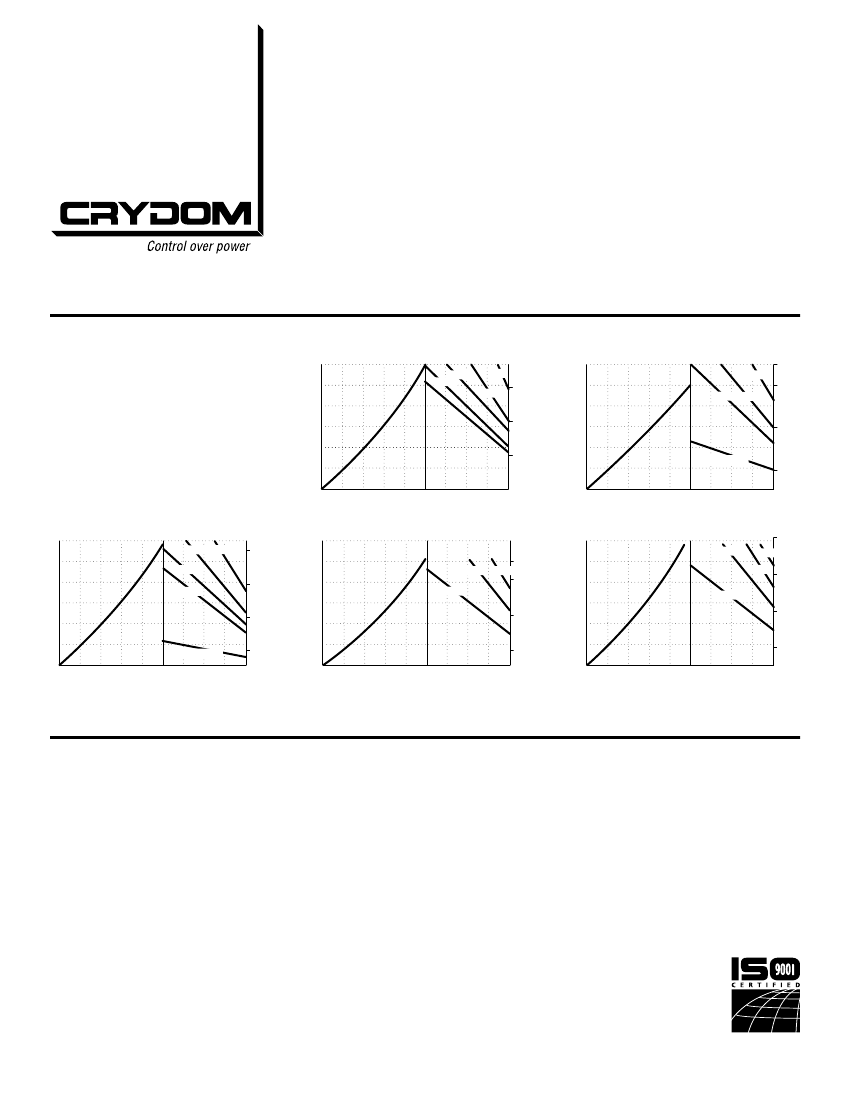

Heat sinking required, for derating curves see page 2.

FastFax Document No.162

SERIES CS.

Rev. 012402

PAGE 1 OF 3

For recommended applications and more information contact:

USA: Sales Support

(877) 502-5500

Tech Support

(877) 702-7700

FAX

(619) 710-8540

Crydom Corp, 2320 Paseo de las Americas, Ste. 201, San Diego, CA 92154

Email:

sales@crydom.com

WEB SITE:

http://www.crydom.com

UK:

+44 (0)1202 365070 •

FAX

+44 (0)1202 365090 Crydom International Ltd., 7 Cobham

Road, Ferndown Industrial Estate, Ferndown, Dorset BH21 7PE,

Email:

intsales@crydom.com.

GERMANY:

+49 (0)180 3000 506
