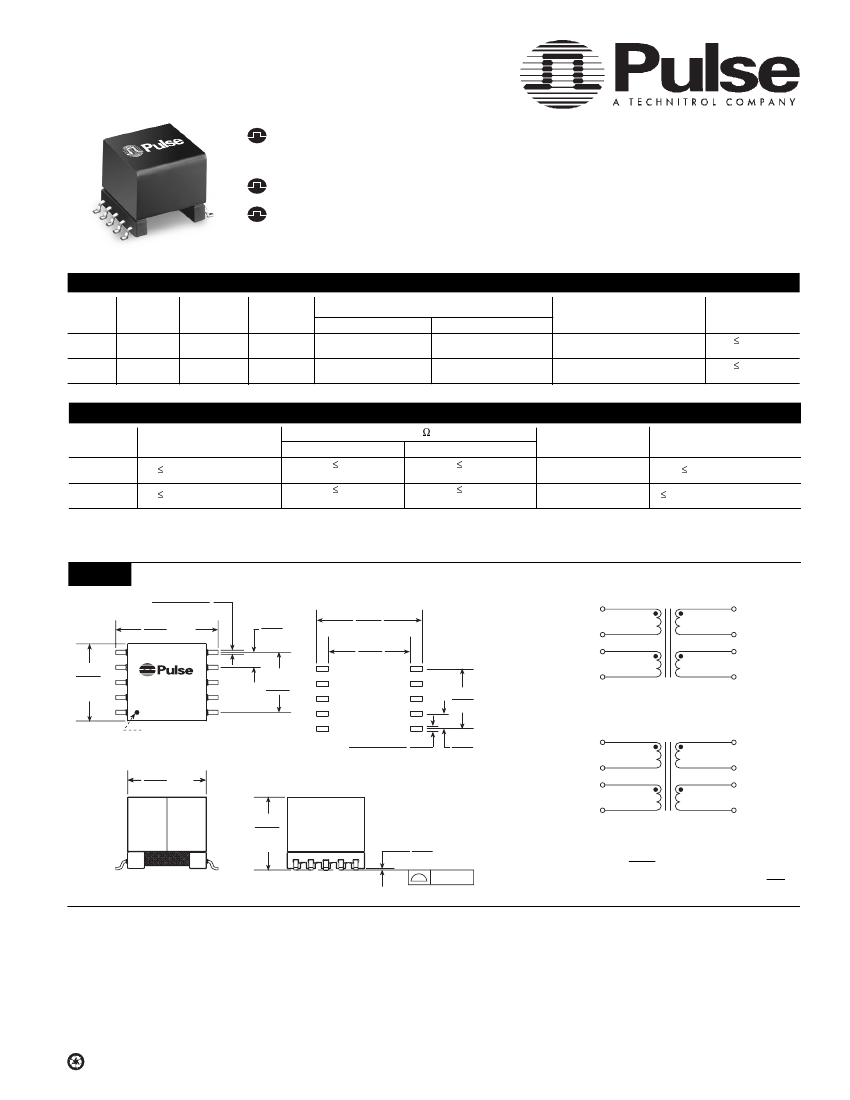

ADSL LINE TRANSFORMER

For Globespan G7000 ADSL Chipset

Designed for Central Office (CO) and Customer Premise

(CPE) applications

Excellent THD performance in a small footprint

Designed to meet UL1950 and EN60950 supplementary

insulation requirements for working voltages up to 250 Vrms

Electrical Specifications @ 25°C — Operating Temperature -40°C to 85°C

Part

Number

B2088

B2201

Mounting

SMT

Application

CPE

CO

Turns Ratio

(± 2%)

1:1

1:1.42

OCL

@ 10 kHz, 0.1 V

(1-5) with (2-4) shorted (10-6) with (7-9) shorted

430 µH ±10%

237 µH ±10%

430 µH ±10%

474 µH ±10%

Leakage Inductance

@ 100 KHz, 0.1 V (MAX)

Longitudinal

Balance

10 µH

-40 dB

(1-5) with 2-4, 7-9, 10-6 shorted (25 KHz - 1.1 MHz)

15 µH

-60 dB

(10-6) with 7-9, 1-4, 2-5 shorted (20 KHz - 1 MHz)

Additional Specifications

Part

Number

THD Typical

(Linearity)

80 dB @ 100 kHz

70 dB @ 200 kHz

DC Resistance

( - MAX)

Line Side

.45

(1-4) = (2-5)

2.0

(1-5) with 2-4 shorted

Chip Side

.35

(10-7) = (9-6)

2.0

(10-6) with 7-9 shorted

Isolation Voltage

(Vrms)

Insertion Loss

(MAX)

0.50 dB @ 772 kHz

NOTE:

Transformers are shipped in trays, unless Tape & Reel packaging is specified by adding the suffix

“T”

to this part number (B2088T)

Mechanicals

B2XXX

10 X .028

± .005

0,71

± 0,13

.695

17,65 MAX

.525

13,34

MAX

.098

2,50

.715

18,16

.526

13,36

.394

10,00

10 X .048

± .005

1,22

± 0,13

.098

2,50

Schematic

1

4

2

5

B2088

1:1.42

1:1

10

7

9

6

Date Code

Country of Origin

B2XXX

.394

10,00

Note:

Pin 1 is as marked. Pin numbers increment

sequentially clockwise around the part.

1

Pri

4

2

5

.555

14,10MAX

.485

12,32

MAX

Weight

. . . . . . . . . . . . . .6.2 grams

Tray

. . . . . . . . . . . . . . . . . .60/tray

B2201

.004 MIN

0,10

.005/0,13

10 SURFACES

For More Information :

UNITED STATES

(Worldwide)

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

http://www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

Dimensions:

Inches

mm

Unless otherwise specified, all tolerances are ± .010

0,25

UNITED KINGDOM

(Northern Europe)

1 & 2 Huxley Road

The Surrey Research Park

Guildford, Surrey GU2 5RE

United Kingdom

TEL: 44 1483 401700

FAX: 44 1483 401701

FRANCE

(Southern Europe)

Zone Industrielle

F-39270

Orgelet

France

TEL: 33 3 84 35 04 04

FAX: 33 3 84 25 46 41

SINGAPORE

(Southern Asia)

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

TEL: 65 287 8998

FAX:65 280 0080

TAIWAN, R.O.C.

(Northern Asia)

3F-4, No. 81, Sec. 1

HsinTai Wu Road

Hsi-Chih, Taipei Hsien

Taiwan, R.O.C.

Tel: 886 2 2698 0228

FAX: 886 2 2698 0948

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

PRELIMINARY B929.P (8/01)

£

B2201

2000

1.00 dB @150 kHz - 1.5 MHz

£

B2088

1875

DISTRIBUTOR

£

W

£

10

7

Sec

9

6
