B6014T datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > transformer> B6014T

Preview

B6014T: DescriptionTelecom Transformer; Categorytransformer; File Size51KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

B6014T Overview

Telecom Transformer

B6014T Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	DESIGNED FOR USE WITH CLARES JACKRABBIT CHIPSET; TURNS RATIO: 1:1
application	SIGNAL
high	6.35 mm
Insulation voltage	1500 V
length	7.62 mm
Load Resistance	0.2 Ω
Manufacturer's serial number	B6014
Installation features	SURFACE MOUNT
Number of primary windings	1
Number of secondary windings	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TUBE
physical size	L7.62XB7xH6.35 (mm)
Primary inductance	40 µH
surface mount	YES
Transformer type	TELECOM TRANSFORMER
Turns ratio (Np:Ns)	1:1
width	7 mm
Base Number Matches	1

Preview

Download Datasheet

View All

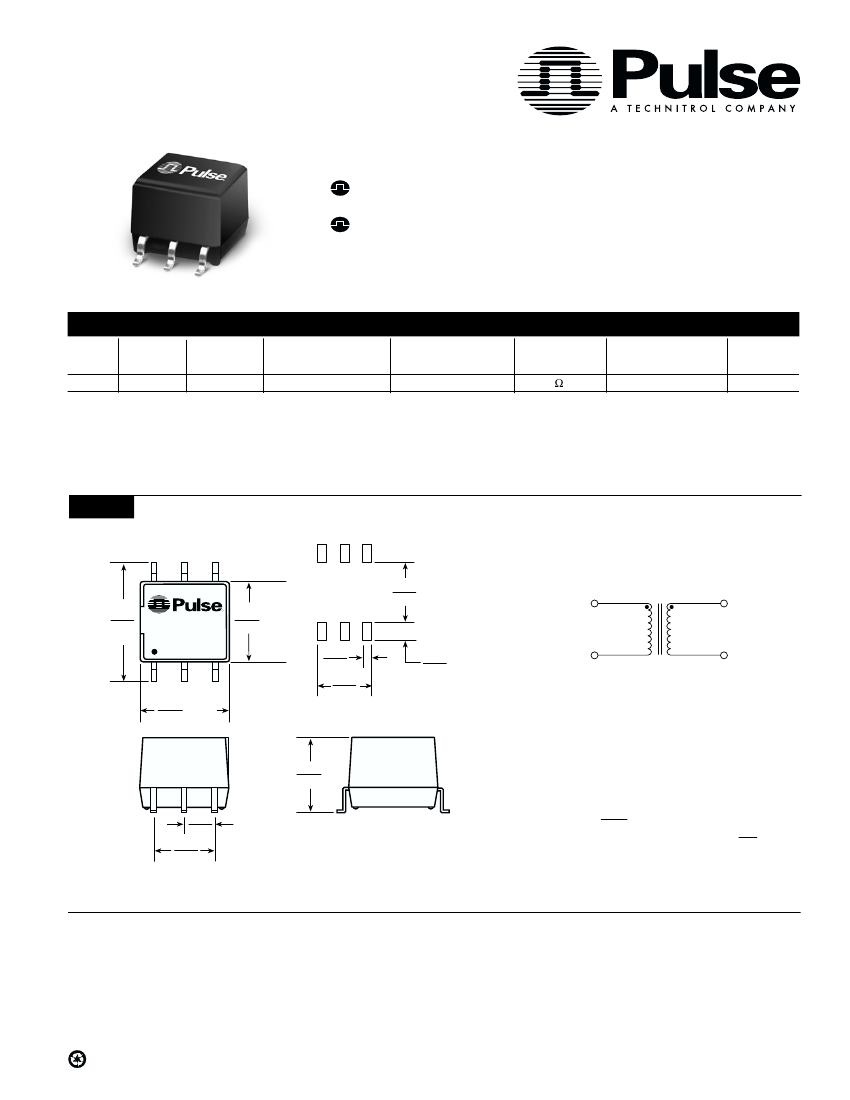

HOME PHONE NETWORKING

TRANSFORMER

For use with Clare's JackRabbit

™

chipset

Small form factor

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

Part

Number

B6014

Mounting

SMT

Turns Ratio

(±2%)

(3-1):(4-6)

1:1

Inductance

(@ 100 kHz, 0.01 Vrms)

40 µH MIN

Leakage Inductance

(@ 100 kHz, 0.01 Vrms)

(4-6) with (1-3) shorted

0.25 µH MAX

DC Resistance

(1-3) = (4-6)

Interwinding

Capacitance

(@ 100 kHz, 0.01 Vrms)

10 pF MAX

Isolation

Voltage

(Vrms)

1500

NOTE:

Transformers are shipped in tubes, unless Tape & Reel packaging is specified by adding a “T” suffix to the part number (ex: B6014T).

Mechanical

B6014

1

2

3

.258

6,55

.390

9,91

B6014

DATE CODE

.275 MAX

7,00

.040

1,02

.240

6,10

.075

1,91

6

5

4

.300 MAX

7,62

SUGGESTED PAD LAYOUT

.250

6,35

.100

2,54

.200

5,08

Weight

. . . . . . . . . . . . . .0.6 grams

Tape & Reel

. . . . . . . . . . . .500/reel

Tube

. . . . . . . . . . . . . . . . . .70/tube

Dimensions:

Inches

mm

Unless otherwise specified, all tolerances are ± .010

0,25

For More Information :

UNITED STATES

(Worldwide)

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

http://www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

UNITED KINGDOM

(Northern Europe)

1 & 2 Huxley Road

The Surrey Research Park

Guildford, Surrey GU2 5RE

United Kingdom

TEL: 44 1483 401700

FAX: 44 1483 401701

FRANCE

(Southern Europe)

Zone Industrielle

F-39270

Orgelet

France

TEL: 33 3 84 35 04 04

FAX: 33 3 84 25 46 41

SINGAPORE

(Southern Asia)

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

TEL: 65 287 8998

FAX: 65 280 0080

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

9

0.20

MAX

Schematic

4

3

6

1

TAIWAN, R.O.C.

(Northern Asia)

3F-4, No. 81, Sec. 1

HsinTai Wu Road

Hsi-Chih, Taipei Hsien

Taiwan, R.O.C.

Tel: 886 2 2698 0228

FAX: 886 2 2698 0948

DISTRIBUTOR

PRELIMINARY B971.P (9/00)

B6014T Related Products

	B6014T	B6014
Description	Telecom Transformer	Telecom Transformer
Maker	Pulse Electronics	Pulse Electronics
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	DESIGNED FOR USE WITH CLARES JACKRABBIT CHIPSET; TURNS RATIO: 1:1	DESIGNED FOR USE WITH CLARES JACKRABBIT CHIPSET; TURNS RATIO: 1:1
application	SIGNAL	SIGNAL
high	6.35 mm	6.35 mm
Insulation voltage	1500 V	1500 V
length	7.62 mm	7.62 mm
Load Resistance	0.2 Ω	0.2 Ω
Manufacturer's serial number	B6014	B6014
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of primary windings	1	1
Number of secondary windings	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
method of packing	TUBE	TUBE
physical size	L7.62XB7xH6.35 (mm)	L7.62XB7xH6.35 (mm)
Primary inductance	40 µH	40 µH
surface mount	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER
Turns ratio (Np:Ns)	1:1	1:1
width	7 mm	7 mm
