B2132T datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > transformer> B2132T

Preview

B2132T: DescriptionTelecom Transformer; Categorytransformer; File Size68KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

B2132T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B2132T	-	-	View	Buy Now

B2132T Overview

Telecom Transformer

B2132T Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	DESIGNED FOR USE WITH TI TNET D 4000 C/P CHIPSET; TURNS RATIO: 1:1.95
high	12.32 mm
length	13.46 mm
Manufacturer's serial number	B2132
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TRAY
physical size	13.46mm X 13.11mm X 12.32mm
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	13.11 mm
Base Number Matches	1

Preview

Download Datasheet

View All

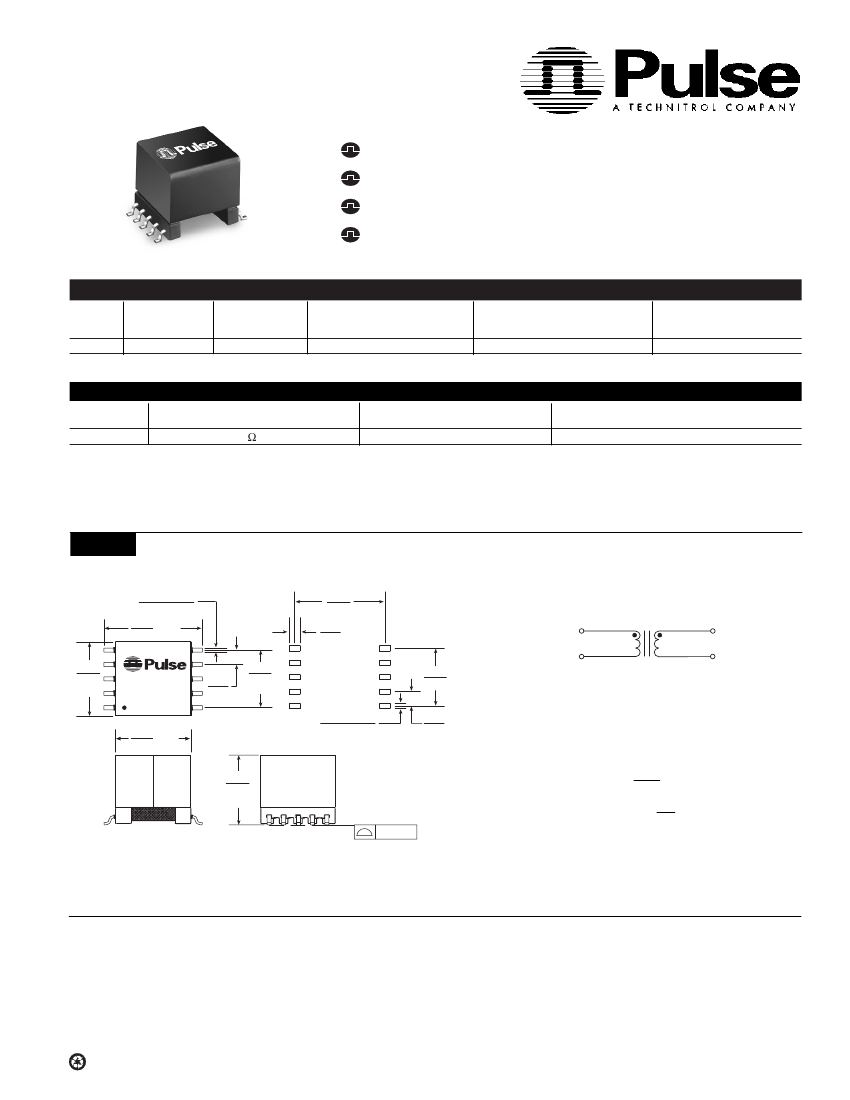

ADSL LINE TRANSFORMER

For use with TI’s TNET D 4000 C/P chipset

Excellent THD performance

Small footprint

Designed to meet UL 1950

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

Part

Number

B2132

Application

CO

Mounting

SMT

Turns Ratio

(± 2%)

(10-7):(1-4)

1:1.95 (Chip to Line)

OCL @ 10 KHz, 0.1 V

(1-4) with (2-3) shorted

1.5 mH (± 10%)

Leakage Inductance

@ 10 KHz, 0.1 V (1-4)

with (10-7), shorted

12.0 µH MAX

Additional Specifications

Part

Number

B2132

DC Resistance

(1-4)(w/2-3 shorted)

Isolation Voltage

(Vrms)

1500

Interwinding Capacitance

@ 10 KHz, 0.1 V (1-10)

35 pF MAX

NOTE:

Transformers are shipped in trays unless tape and reel is specified. Please add the suffix

“T”

(i.e. B2132T) for tape and reel orders.

Mechanical

B2132

10 X .028

± .002

0,71

± 0,05

.695

17,65 MAX

.530

13,46

MAX

.394

10,00

MAX

B2132

Date Code

Country of Mfg.

.098

2,50

.516

13,11MAX

.485

12,32

MAX

For More Information :

UNITED STATES

(Worldwide)

12220 World Trade Drive

San Diego, CA 92128

Quick-Facts: 858 674 9672

http://www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

UNITED KINGDOM

(Northern Europe)

1 & 2 Huxley Road

The Surrey Research Park

Guildford, Surrey GU2 5RE

United Kingdom

TEL: 44 1483 401700

FAX: 44 1483 401701

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

9

2.0

MAX

Schematic

.605

15,37

.100

2,54

.394

10,00

10 X .051

± .002

1,30

± 0,05

.098

2,50

1:1.95

10

Chip

7

1

Line

4

Weight

. . . . . . . . . . . . . .6.2 grams

Tray

. . . . . . . . . . . . . . . . . .60/tray

Dimensions:

Inches

mm

Unless otherwise specified,

all tolerances are ± .010

0,25

.005/0,13

10 SURFACES

FRANCE

(Southern Europe)

Zone Industrielle

F-39270

Orgelet

France

TEL: 33 3 84 35 04 04

FAX: 33 3 84 25 46 41

SINGAPORE

(Southern Asia)

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

TEL: 65 287 8998

FAX:65 280 0080

TAIWAN, R.O.C.

(Northern Asia)

3F-4, No. 81, Sec. 1

HsinTai Wu Road

Hsi-Chih, Taipei Hsien

Taiwan, R.O.C.

Tel: 886 2 2698 0228

FAX: 886 2 2698 0948

DISTRIBUTOR

PRELIMINARY B954.P (1/00)

B2132T Related Products

	B2132T	B2132
Description	Telecom Transformer	Telecom Transformer
Maker	Pulse Electronics	Pulse Electronics
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Is Samacsys	N	N
Other features	DESIGNED FOR USE WITH TI TNET D 4000 C/P CHIPSET; TURNS RATIO: 1:1.95	DESIGNED FOR USE WITH TI TNET D 4000 C/P CHIPSET; TURNS RATIO: 1:1.95
high	12.32 mm	12.32 mm
length	13.46 mm	13.46 mm
Manufacturer's serial number	B2132	B2132
Installation features	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
method of packing	TRAY	TRAY
physical size	13.46mm X 13.11mm X 12.32mm	13.46mm X 13.11mm X 12.32mm
surface mount	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	13.11 mm	13.11 mm
Base Number Matches	1	1
