PPR40: Description2 A, 400 V, SILICON, BRIDGE RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size51KB，2 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

PPR40 Overview

2 A, 400 V, SILICON, BRIDGE RECTIFIER DIODE

PPR40 Parametric

Parameter Name	Attribute value
Maker	EDI [Electronic devices inc.]
package instruction	S-PUFM-W4
Reach Compliance Code	unknow
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	S-PUFM-W4
Maximum non-repetitive peak forward current	100 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.2 µs
surface mount	NO
Terminal form	WIRE
Terminal location	UPPER

Preview

Download Datasheet

View All

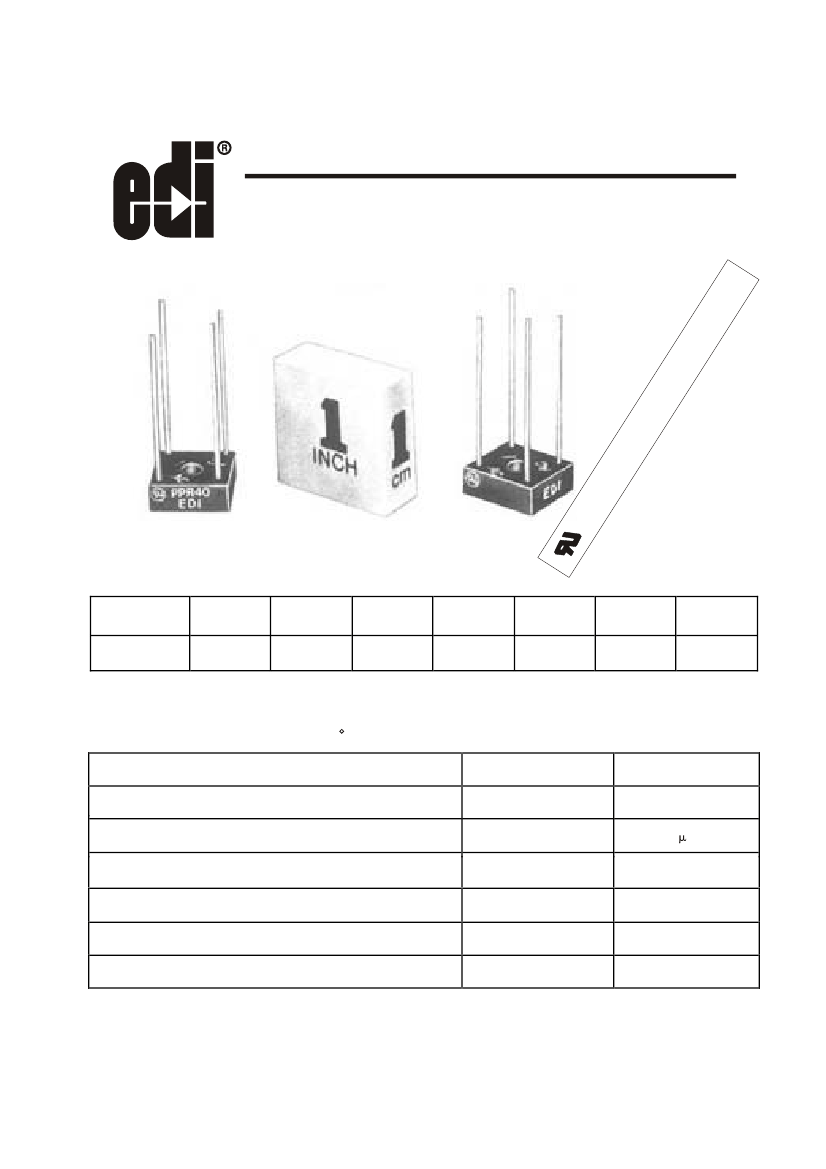

PPR

FAST RECOVERY

SINGLE-PHASE FULL WAVE BRIDGE

5.0 AMPERES HEAT SINK MOUNTING

2.0 AMPERES FOR P.C. BOARD MOUNTING

Th

pro is m

gra ark

m ind

of

Un icate

de s r

r w ec

rite og

rs niti

La on

bo un

rat de

ori r t

es he

, in co

c. mp

o

ne

nt

PPR SERIES

PRV/ l eg

Type No.

50V

PPR05

100V

PPR10

200V

PPR20

400V

PPR40

600V

PPR60

800V

PPR80

1000V

PPR100

ELECTRICAL CHARACTERISTICS PER LEG

(at T

A

=25 C Unl es s Oth erw ise Spe ci fie d)

Max. Reverse Recovery , T

rr

(Fig.4)

Max. Forward Voltage Drop, V

F

=1.3 V @ I

F

=

Max. DC Reverse Current @ PRV and 25 C, I

R

o

200

2.0

1.0

100

-55 to +150

7.0typ.

Nano Sec.

Amp

A

Max. Peak Surge Current,

I

FSM

(8.3

ms)

Amp

o

Ambient Operating Temperature Range,T

A

Storage Temperature Range, T

STG

-

Thermal Resistance (Total Bridge), R0 j-c

C

C/ W

NOTE:

Maximum lead and terminal temperature for soldering, 3/8 inch from case,5 seconds at 250

O

C.

EDI reserves the right to change these specifications at any time without notice.

PPR40 Related Products

	PPR40	PPR	PPR05	PPR10	PPR20	PPR60	PPR80	PPR100
Description	2 A, 400 V, SILICON, BRIDGE RECTIFIER DIODE	2 A, SILICON, BRIDGE RECTIFIER DIODE	2 A, SILICON, BRIDGE RECTIFIER DIODE	2 A, 100 V, SILICON, BRIDGE RECTIFIER DIODE	2 A, 200 V, SILICON, BRIDGE RECTIFIER DIODE	2 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE	2 A, 800 V, SILICON, BRIDGE RECTIFIER DIODE	2 A, 1000 V, SILICON, BRIDGE RECTIFIER DIODE
Maker	EDI [Electronic devices inc.]	-	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]
package instruction	S-PUFM-W4	-	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4
Reach Compliance Code	unknow	-	unknow	unknow	unknow	unknow	unknow	unknow
Other features	UL RECOGNIZED	-	-	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	ISOLATED	-	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	-	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	-	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	-	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V
JESD-30 code	S-PUFM-W4	-	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4
Maximum non-repetitive peak forward current	100 A	-	100 A	100 A	100 A	100 A	100 A	100 A
Number of components	4	-	4	4	4	4	4	4
Phase	1	-	1	1	1	1	1	1
Number of terminals	4	-	4	4	4	4	4	4
Maximum operating temperature	150 °C	-	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	2 A	-	2 A	2 A	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	-	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	-	50 V	100 V	200 V	600 V	800 V	1000 V
Maximum reverse recovery time	0.2 µs	-	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs
surface mount	NO	-	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	-	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	UPPER	-	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
