BD896A, BD898A, BD900A
PNP SILICON POWER DARLINGTONS
Copyright © 1997, Power Innovations Limited, UK
AUGUST 1993 - REVISED MARCH 1997
q
Designed for Complementary Use with
BD895A, BD897A and BD899A
70 W at 25°C Case Temperature
8 A Continuous Collector Current
Minimum h
FE
of 750 at 3V, 3A
B
C
E
q
q
q
TO-220 PACKAGE
(TOP VIEW)
1
2
3
Pin 2 is in electrical contact with the mounting base.
MDTRACA
absolute maximum ratings
at 25°C case temperature (unless otherwise noted)
RATING
BD896A
Collector-base voltage (I
E
= 0)
BD898A
BD900A
BD896A
Collector-emitter voltage (I
B
= 0)
Emitter-base voltage
Continuous collector current
Continuous base current
Continuous device dissipation at (or below) 25°C case temperature (see Note 1)
Continuous device dissipation at (or below) 25°C free air temperature (see Note 2)
Operating free-air temperature range
Operating junction temperature range
Storage temperature range
NOTES: 1. Derate linearly to 150°C case temperature at the rate of 0.56 W/°C.
2. Derate linearly to 150°C free air temperature at the rate of 16 mW/°C.
BD898A
BD900A
V
EBO
I
C
I
B
P
tot
P
tot
T
A
T
j
T
stg
V
CEO
V
CBO
SYMBOL
VALUE
-45
-60
-80
-45
-60
-80
-5
-8
-0.3
70
2
-65 to +150
-65 to +150
-65 to +150
V
A
A
W
W
°C
°C
°C
V
V
UNIT
PRODUCT
INFORMATION
Information is current as of publication date. Products conform to specifications in accordance
with the terms of Power Innovations standard warranty. Production processing does not
necessarily include testing of all parameters.
1
BD896A, BD898A, BD900A
PNP SILICON POWER DARLINGTONS
AUGUST 1993 - REVISED MARCH 1997
electrical characteristics at 25°C case temperature (unless otherwise noted)
PARAMETER
V
(BR)CEO
Collector-emitter
breakdown voltage
Collector-emitter
cut-off current
I
C
= -100 mA
V
CE
= -30 V
V
CE
= -30 V
V
CE
= -40 V
V
CB
= -45 V
V
CB
= -60 V
I
CBO
Collector cut-off
current
V
CB
= -80 V
V
CB
= -45 V
V
CB
= -60 V
V
CB
= -80 V
I
EBO
h
FE
V
CE(sat)
V
BE(on)
V
EC
Emitter cut-off
current
Forward current
transfer ratio
Collector-emitter
saturation voltage
Base-emitter
voltage
Parallel diode
forward voltage
V
EB
=
V
CE
=
I
B
=
V
CE
=
I
E
=
-5 V
-3 V
-16 mA
-3 V
-8 A
I
B
= 0
I
B
= 0
I
B
= 0
I
B
= 0
I
E
= 0
I
E
= 0
I
E
= 0
I
E
= 0
I
E
= 0
I
E
= 0
I
C
= 0
I
C
= -4 A
I
C
= -4 A
I
C
= -4 A
I
B
= 0
T
C
= 100°C
T
C
= 100°C
T
C
= 100°C
(see Notes 3 and 4)
(see Notes 3 and 4)
(see Notes 3 and 4)
(see Notes 3 and 4)
750
-2.8
-2.5
-3.5
V
V
V
TEST CONDITIONS
BD896A
(see Note 3)
BD898A
BD900A
BD896A
BD898A
BD900A
BD896A
BD898A
BD900A
BD896A
BD898A
BD900A
MIN
-45
-60
-80
-0.5
-0.5
-0.5
-0.2
-0.2
-0.2
-2
-2
-2
-2
mA
mA
mA
V
TYP
MAX
UNIT
I
CEO
NOTES: 3. These parameters must be measured using pulse techniques, t
p
= 300 µs, duty cycle
≤
2%.
4. These parameters must be measured using voltage-sensing contacts, separate from the current carrying contacts.
thermal characteristics
PARAMETER
R
θ
JC
R
θ
JA
Junction to case thermal resistance
Junction to free air thermal resistance
MIN
TYP
MAX
1.79
62.5
UNIT
°C/W
°C/W
resistive-load-switching characteristics at 25°C case temperature
PARAMETER
t
on
t
off
†
TEST CONDITIONS
I
C
= -3 A
V
BE(off)
= 3.5 V
I
B(on)
= -12 mA
R
L
= 10
Ω
†
MIN
I
B(off)
= 12 mA
t
p
= 20
µs,
dc
≤
2%
TYP
1
5
MAX
UNIT
µs
µs
Turn-on time
Turn-off time
Voltage and current values shown are nominal; exact values vary slightly with transistor parameters.
PRODUCT
INFORMATION
2
BD896A, BD898A, BD900A
PNP SILICON POWER DARLINGTONS
AUGUST 1993 - REVISED MARCH 1997

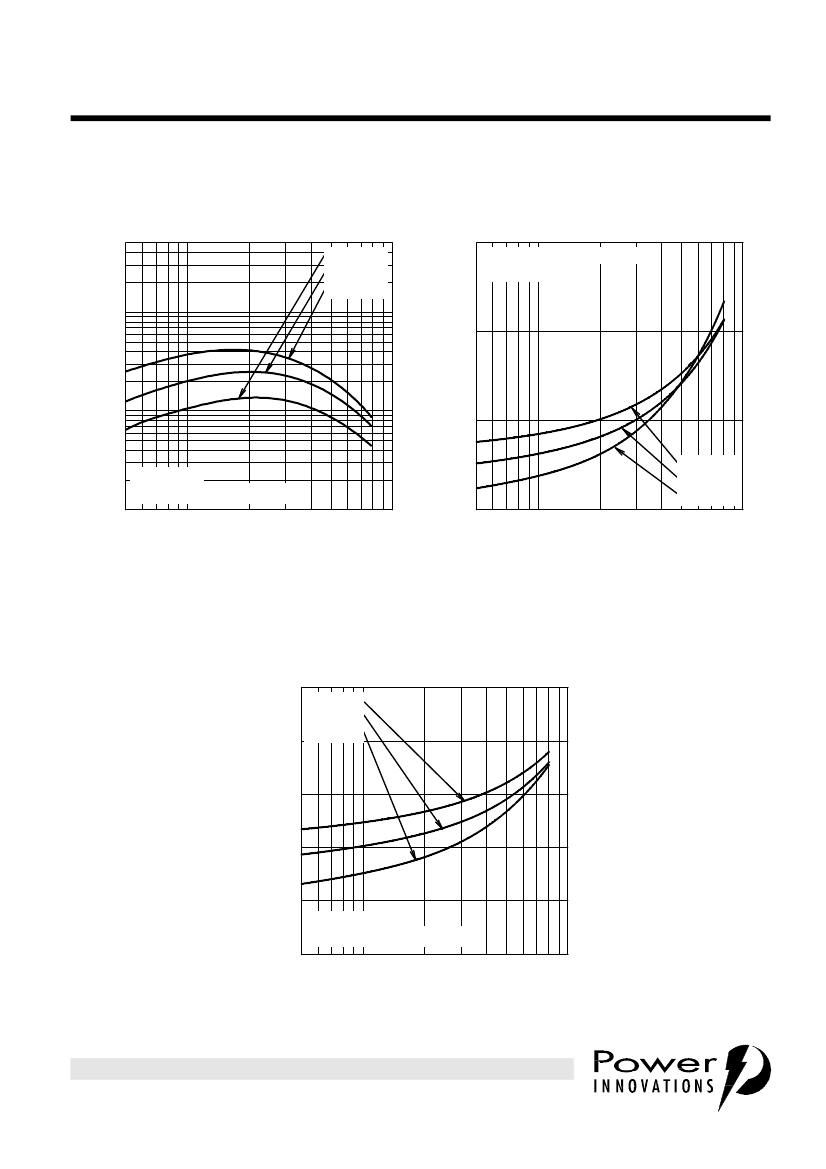

TYPICAL CHARACTERISTICS
TYPICAL DC CURRENT GAIN
vs
COLLECTOR CURRENT
V
CE(sat)
- Collector-Emitter Saturation Voltage - V
50000
TCS135AD
COLLECTOR-EMITTER SATURATION VOLTAGE
vs
COLLECTOR CURRENT
-2·0
t
p
= 300 µs, duty cycle < 2%
I
B
= I
C
/ 100
TCS135AB
h
FE
- Typical DC Current Gain
T
C
= -40°C
T
C
= 25°C
T
C
= 100°C
10000
-1·5
1000
-1·0
V
CE
= -3 V
t
p
= 300 µs, duty cycle < 2%
100
-0·5
-1·0
I
C
- Collector Current - A
-10
T
C
= -40°C
T
C
= 25°C
T
C
= 100°C
-0·5
-0·5
-1·0
I
C
- Collector Current - A
-10
Figure 1.
Figure 2.
BASE-EMITTER SATURATION VOLTAGE
vs
COLLECTOR CURRENT
-3·0
V
BE(sat)
- Base-Emitter Saturation Voltage - V
T
C
= -40°C
T
C
= 25°C
T
C
= 100°C
TCS135AC
-2·5
-2·0
-1·5
-1·0
I
B
= I
C
/ 100
t
p
= 300 µs, duty cycle < 2%
-0·5
-0·5
-1·0
I
C
- Collector Current - A
-10
Figure 3.
PRODUCT
INFORMATION
3
BD896A, BD898A, BD900A
PNP SILICON POWER DARLINGTONS
AUGUST 1993 - REVISED MARCH 1997
MAXIMUM SAFE OPERATING REGIONS
MAXIMUM FORWARD-BIAS
SAFE OPERATING AREA
-10
SAS135AE
I
C
- Collector Current - A
-1·0
-0·1
-0.01
-1·0
BD896A
BD898A
BD900A
-10
-100
-1000
V
CE
- Collector-Emitter Voltage - V
Figure 4.
THERMAL INFORMATION
MAXIMUM POWER DISSIPATION
vs
CASE TEMPERATURE
80
P
tot
- Maximum Power Dissipation - W
70
60
50
40
30
20
10
0
0
25
50
75
100
125
150
T
C
- Case Temperature - °C
TIS130AB
Figure 5.
PRODUCT
INFORMATION
4
BD896A, BD898A, BD900A
PNP SILICON POWER DARLINGTONS
AUGUST 1993 - REVISED MARCH 1997
MECHANICAL DATA
TO-220
3-pin plastic flange-mount package
This single-in-line package consists of a circuit mounted on a lead frame and encapsulated within a plastic
compound. The compound will withstand soldering temperature with no deformation, and circuit performance
characteristics will remain stable when operated in high humidity conditions. Leads require no additional
cleaning or processing when used in soldered assembly.
TO220
4,70
4,20
ø
3,96
3,71
10,4
10,0
2,95
2,54
6,6
6,0
15,90
14,55
1,32
1,23
see Note B
see Note C
6,1
3,5
0,97
0,61
1
2
3
1,70
1,07
14,1
12,7
2,74
2,34
5,28
4,88
2,90
2,40
0,64
0,41
VERSION 1
VERSION 2
ALL LINEAR DIMENSIONS IN MILLIMETERS
NOTES: A. The centre pin is in electrical contact with the mounting tab.
B. Mounting tab corner profile according to package version.
C. Typical fixing hole centre stand off height according to package version.
Version 1, 18.0 mm. Version 2, 17.6 mm.
MDXXBE
PRODUCT
INFORMATION
5
