73112 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > inductor> Fixed inductance> 73112

73112: DescriptionGeneral Purpose Inductor, 10uH, 1 Element, SMD, 5555,; Categoryinductor Fixed inductance; File Size269KB，7 Pages; ManufacturerPico Electronics Inc.

Download Datasheet Parametric View All

73112 Overview

General Purpose Inductor, 10uH, 1 Element, SMD, 5555,

73112 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Pico Electronics Inc.
package instruction	5555
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	5555
structure	Rectangular
DC Resistance	0.008 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Number of functions	1
Number of terminals	4
Package height	9.14 mm
Package length	14 mm
Package form	SMT
Package width	14 mm
Maximum rated current	7.42 A
self resonant frequency	7.07 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL IN-LINE
Terminal shape	L BEND
Base Number Matches	1

Preview

Download Datasheet

View All

Low Profile Power Inductors

These inductors utilize special techniques to minimize cross coupling and give

the utmost in shielding efficiency. They are ideal for Noise, Spike and Power

Filtering Applications in Power Supplies, DC-DC Converters and Switching

Regulators.

PICO surface mount units utilize materials and methods to withstand extreme

temperature of vapor phase, I.R., and other reflow procedures without

degradation of electrical or mechanical characteristics.

HANDLE LARGE TRANSIENT DC CURRENTS

MINIMUM POSSIBLE SIZE

MANUFACTURED TO MIL-PRF-27, Grade 5, Class S

LARGE SELECTION OF SIZES AVAILABLE

SPECIAL HIGH FREQUENCY CORE MATERIAL TO INSURE LOW

LOSSES

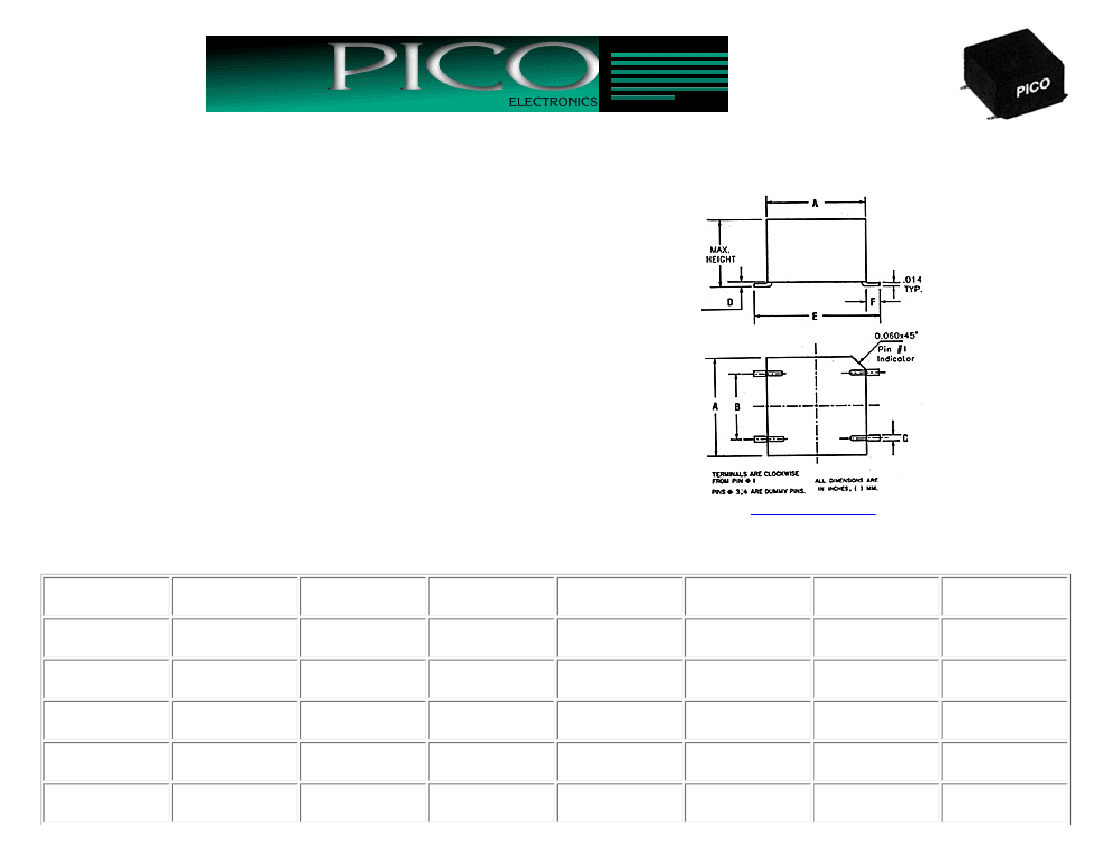

Larger size drawing

Size

Max.

Height

.180

(4.57)

.210

(4.83)

.305

(7.75)

.360

(9.14)

.360

(9.14)

.380

(9.65)

.450

(11.43)

.450

(11.43)

.550

(14.00)

.650

(16.51)

.280

(7.11)

.300

(7.62)

.300

(7.62)

.400

(10.16)

.500

(12.70)

.025

(.64)

.025

(.64)

.025

(.64)

.030

(.76)

.030

(.76)

.015

(.38)

.020

(.51)

.020

(.51)

.025

(.64)

.025

(.64)

.500

(12.70)

.570

(14.48)

.570

(14.48)

.670

(17.02)

.770

(19.56)

.060

(1.52)

.060

(1.52)

.060

(1.52)

.060

(1.52)

.060

(1.52)

http://www.picoelectronics.com/surface/pe024_25.htm (1 of 7)6/28/2005 1:37:57 PM
