D965-T-AP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The transistor> D965-T-AP

D965-T-AP: DescriptionSmall Signal Bipolar Transistor, 5A I(C), 22V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, ROHS COMPLIANT, PLASTIC PACKAGE-3; CategoryThe transistor; File Size282KB，2 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric Compare View All

D965-T-AP Overview

Small Signal Bipolar Transistor, 5A I(C), 22V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, ROHS COMPLIANT, PLASTIC PACKAGE-3

D965-T-AP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
Parts packaging code	TO-92
package instruction	CYLINDRICAL, O-PBCY-T3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	22 V
Configuration	SINGLE
Minimum DC current gain (hFE)	560
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

D965-T

D965-R

•

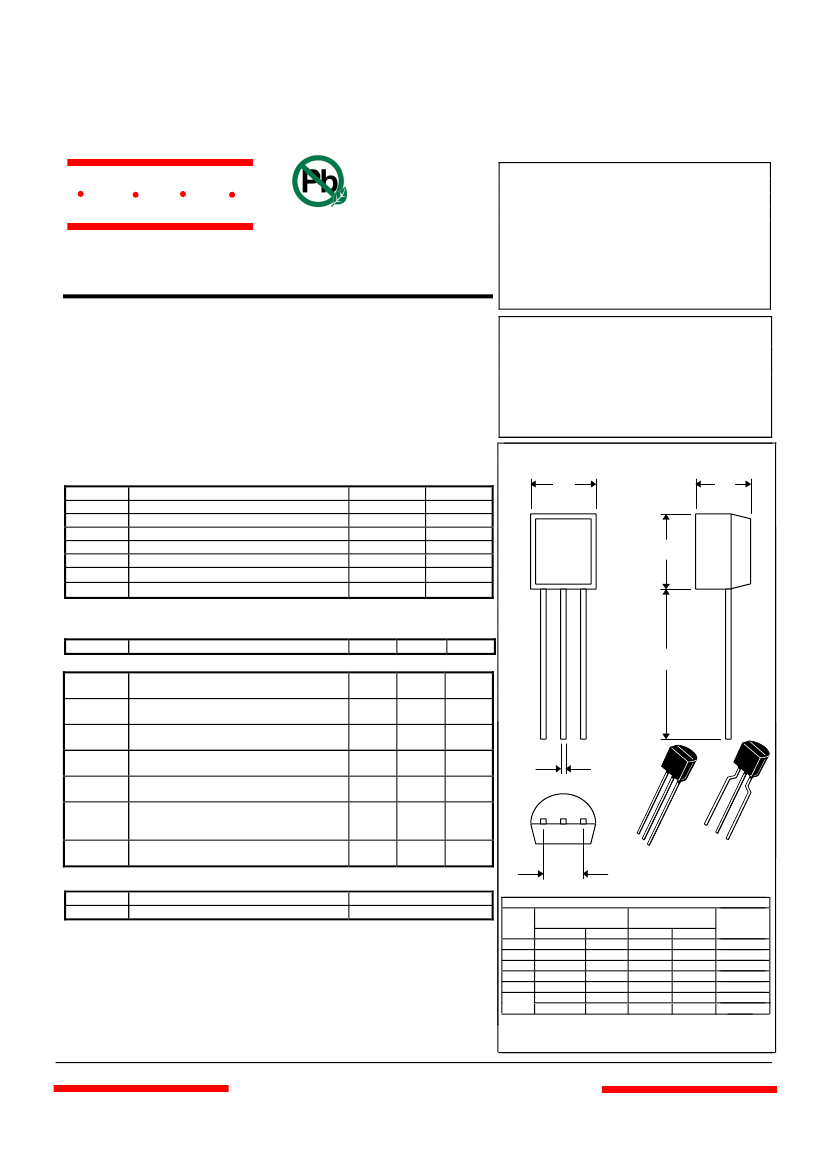

Features

Halogen

free available upon request by adding suffix "-HF"

Power Dissipation: P

=0.75W @ T

amb

=25

Collector Current: I

=5A

Epoxy meets UL 94 V-0 flammability rating

Moisure Sensitivity Level 1

NPN

Plastic-Encapsulate

Transistors

TO-92

Unit

Marking: D965T/R

Lead Free Finish/Rohs Compliant ("P"Suffix designates

Compliant. See ordering information)

Maximum Ratings

Symbol

CEO

CBO

EBO

STG

Rating

Collector-Emitter Voltage

Collector-Base Voltage

Emitter-Base Voltage

Collector Current, Continuous

Total Device Dissipation

Operating Junction Temperature

Storage Temperature

Rating

6.0

750

-55 to +150

Electrical Characteristics @ 25

C Unless Otherwise Specified

Symbol

Parameter

Collector-Emitter Breakdown Voltage*

=10mAdc, I

=0)

Collector-Base Breakdown Voltage

=100µAdc, I

=0)

Emitter-Base Breakdown Voltage

=100µAdc, I

=0)

Collector Cutoff Current

=20Vdc, I

=0)

Base Cutoff Current

=3.0Vdc, I

=0)

DC Current Gain ( V

=2V, I

=0.15mA)

( V

=2V, I

=500mA)

( V

=2V, I

=2000mA)

Collector-emitter Saturation Voltage

=3000mA, I

=100mA)

Min

Max

Units

OFF CHARACTERISTICS

(BR)CEO

(BR)CBO

(BR)EBO

CBO

EBO

6.0

---

150

340

150

---

100

---

950

---

0.35

Vdc

nAdc

CE(sat)

Classification of H

@ ( V

=2V, I

=500mA)

Rank

Range

340-600

560-950

DIM

STRAIGHT LEAD BENT LEAD

BULK PACK

AMMO PACK

DIMENSIONS

INCHES

MIN

.175

.500

.016

.135

.095

.173

MAX

.185

---

.020

.145

.105

.220

MIN

4.45

12.70

0.41

3.43

2.42

4.40

MAX

4.70

---

0.63

3.68

2.67

5.60

NOTE

Straight Lead

Bent Lead

* For ammo packing detailed specification, click here to visit our website

of product packaging for details.

www.mccsemi.com

Revision:

1 of 2

2013/01/01

MCC

Micro Commercial Components

Ordering Information :

Device

Part Number-AP

Part Number-BP

Note : Adding "-HF" suffix for halogen free, eg. Part Number-AP-HF

Packing

Ammo Packing:

20Kpcs/Carton

Bulk:

100Kpcs/Carton

***IMPORTANT NOTICE***

Micro Commercial Components Corp.

reserves the right to make changes without further notice to any product herein to

make corrections, modifications , enhancements , improvements , or other changes .

Micro Commercial Components

Corp .

does not assume any liability arising out of the application or use of any product described herein; neither does it

convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all

risks of such use and will agree to hold

Micro Commercial Components Corp .

and all the companies whose products are

represented on our website, harmless against all damages.

***LIFE SUPPORT***

MCC's products are not authorized for use as critical components in life support devices or systems without the express written

approval of Micro Commercial Components Corporation.

***CUSTOMER AWARENESS***

Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking

strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages

customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on

our web page cited

below.

Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine

parts, have full traceability, meet MCC's quality standards for handling and storage.

MCC will not provide any warranty

coverage or other assistance for parts bought from Unauthorized Sources.

MCC is committed to combat this global

problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized

distributors.

www.mccsemi.com

Revision:

2 of 2

2013/01/01

D965-T-AP Related Products

	D965-T-AP	D965-T-AP-HF	D965R-BP	D965-R-BP-HF	D965-R-AP-HF	D965-R-BP	D965-R-AP	D965-T-BP	D965-T-BP-HF	D965T-BP
Description	Small Signal Bipolar Transistor, 5A I(C), 22V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, ROHS COMPLIANT, PLASTIC PACKAGE-3	Small Signal Bipolar Transistor,	5000mA, 22V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, ROHS COMPLIANT, PLASTIC PACKAGE-3	Small Signal Bipolar Transistor,	Small Signal Bipolar Transistor,	Small Signal Bipolar Transistor, 5A I(C), 22V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, ROHS COMPLIANT, PLASTIC PACKAGE-3	Small Signal Bipolar Transistor, 5A I(C), 22V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, ROHS COMPLIANT, PLASTIC PACKAGE-3	Small Signal Bipolar Transistor, 5A I(C), 22V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, ROHS COMPLIANT, PLASTIC PACKAGE-3	Small Signal Bipolar Transistor,	5000mA, 22V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, ROHS COMPLIANT, PLASTIC PACKAGE-3
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)
package instruction	CYLINDRICAL, O-PBCY-T3	,	CYLINDRICAL, O-PBCY-T3	,	,	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	,	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Humidity sensitivity level	1	1	1	1	1	1	1	1	1	1
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Is it lead-free?	Lead free	-	Lead free	-	-	Lead free	Lead free	Lead free	-	Lead free
Parts packaging code	TO-92	-	TO-92	-	-	TO-92	TO-92	TO-92	-	TO-92
Contacts	3	-	3	-	-	3	3	3	-	3
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Maximum collector current (IC)	5 A	-	5 A	-	-	5 A	5 A	5 A	-	5 A
Collector-emitter maximum voltage	22 V	-	22 V	-	-	22 V	22 V	22 V	-	22 V
Configuration	SINGLE	-	SINGLE	-	-	SINGLE	SINGLE	SINGLE	-	SINGLE
Minimum DC current gain (hFE)	560	-	340	-	-	340	340	560	-	560
JEDEC-95 code	TO-92	-	TO-92	-	-	TO-92	TO-92	TO-92	-	TO-92
JESD-30 code	O-PBCY-T3	-	O-PBCY-T3	-	-	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	-	O-PBCY-T3
JESD-609 code	e3	-	e3	-	-	e3	e3	e3	-	e3
Number of components	1	-	1	-	-	1	1	1	-	1
Number of terminals	3	-	3	-	-	3	3	3	-	3
Maximum operating temperature	150 °C	-	150 °C	-	-	150 °C	150 °C	150 °C	-	150 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Package shape	ROUND	-	ROUND	-	-	ROUND	ROUND	ROUND	-	ROUND
Package form	CYLINDRICAL	-	CYLINDRICAL	-	-	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	-	CYLINDRICAL
Polarity/channel type	NPN	-	NPN	-	-	NPN	NPN	NPN	-	NPN
Certification status	Not Qualified	-	Not Qualified	-	-	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
surface mount	NO	-	NO	-	-	NO	NO	NO	-	NO
Terminal surface	Matte Tin (Sn)	-	MATTE TIN	-	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	-	MATTE TIN
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	-	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE
Terminal location	BOTTOM	-	BOTTOM	-	-	BOTTOM	BOTTOM	BOTTOM	-	BOTTOM
Transistor component materials	SILICON	-	SILICON	-	-	SILICON	SILICON	SILICON	-	SILICON
