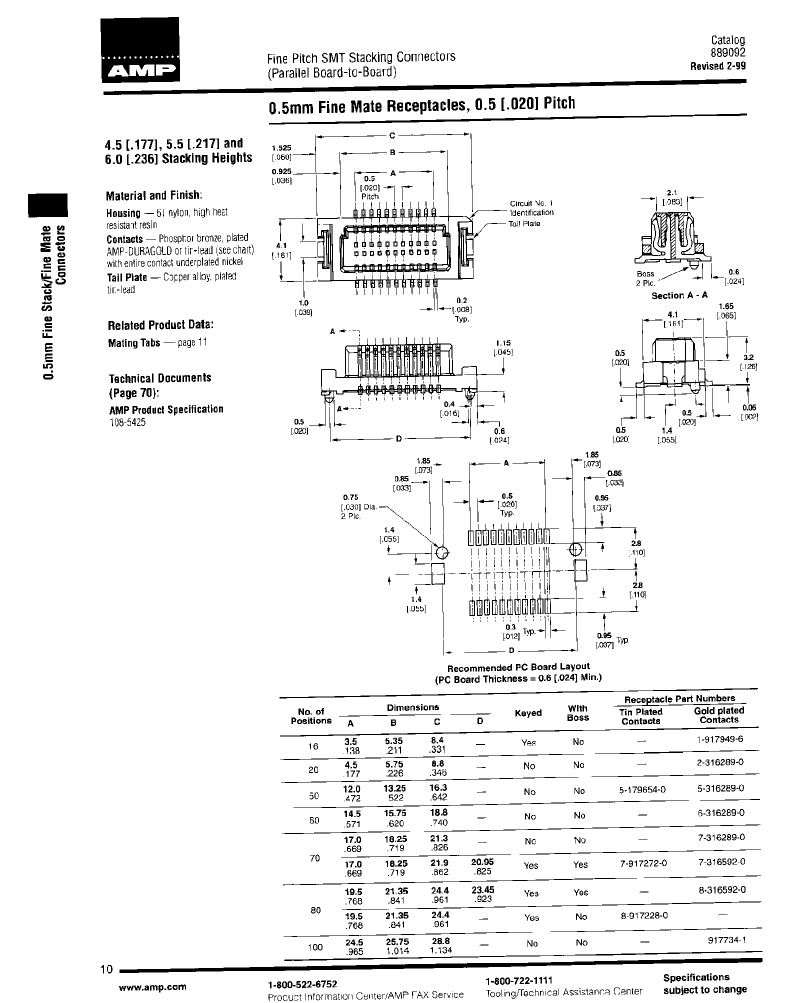

HEADER CONNECTOR,PCB MNT,PLUG,80 CONTACTS,SKT,0.02 PITCH
| Parameter Name | Attribute value |
| Maker | TE Connectivity |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Other features | WITH TAPE AND REEL PACKAGING |
| Board mount options | LOCATING POSTS |
| body width | 0.161 inch |
| subject depth | 0.126 inch |
| body length | 0.961 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN-PB ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | BELLOWED TYPE |
| insulator material | NYLON |
| Manufacturer's serial number | 917228 |
| Plug contact pitch | 0.02 inch |
| Installation method | STRAIGHT |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 4.6482 mm |
| polarization key | POLARIZED HOUSING |
| reliability | COMMERCIAL |
| Terminal pitch | 0.508 mm |
| Total number of contacts | 80 |
| Base Number Matches | 1 |
| 8-917228-0 | 5-179654-0 | 7-917272-0 | 1-917949-6 | |
|---|---|---|---|---|
| Description | HEADER CONNECTOR,PCB MNT,PLUG,80 CONTACTS,SKT,0.02 PITCH | HEADER CONNECTOR,PCB MNT,PLUG,50 CONTACTS,SKT,0.02 PITCH | HEADER CONNECTOR,PCB MNT,PLUG,70 CONTACTS,SKT,0.02 PITCH | HEADER CONNECTOR,PCB MNT,PLUG,16 CONTACTS,SKT,0.02 PITCH |
| Reach Compliance Code | unknown | unknown | unknown | compliant |
| Other features | WITH TAPE AND REEL PACKAGING | WITH TAPE AND REEL PACKAGING | WITH TAPE AND REEL PACKAGING | WITH TAPE AND REEL PACKAGING |
| Board mount options | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS |
| body width | 0.161 inch | 0.161 inch | 0.161 inch | 0.161 inch |
| subject depth | 0.126 inch | 0.126 inch | 0.126 inch | 0.126 inch |
| body length | 0.961 inch | 0.642 inch | 0.862 inch | 0.331 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | SN-PB ON NI | SN-PB ON NI | SN-PB ON NI | AU ON NI |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE |
| insulator material | NYLON | NYLON | NYLON | NYLON |
| Manufacturer's serial number | 917228 | 179654 | 917272 | 917949 |
| Plug contact pitch | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Number of connectors | ONE | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 4.6482 mm | 4.6482 mm | 4.6482 mm | 4.6482 mm |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 0.508 mm | 0.508 mm | 0.508 mm | 0.508 mm |
| Total number of contacts | 80 | 50 | 70 | 16 |
| Contact completed and terminated | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL | - |
