BB644E6433 Overview

Variable Capacitance Diode, Very High Frequency, 41.8pF C(T), 30V, Silicon, SOD-323, 2 PIN

BB644E6433 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Infineon
Parts packaging code	SOD
package instruction	R-PDSO-G2
Contacts	2
Manufacturer packaging code	SOD-323
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Minimum breakdown voltage	30 V
Configuration	SINGLE
Diode Capacitance Tolerance	6.59%
Minimum diode capacitance ratio	11
Nominal diode capacitance	41.8 pF
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
frequency band	VERY HIGH FREQUENCY
JESD-30 code	R-PDSO-G2
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	35 V
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

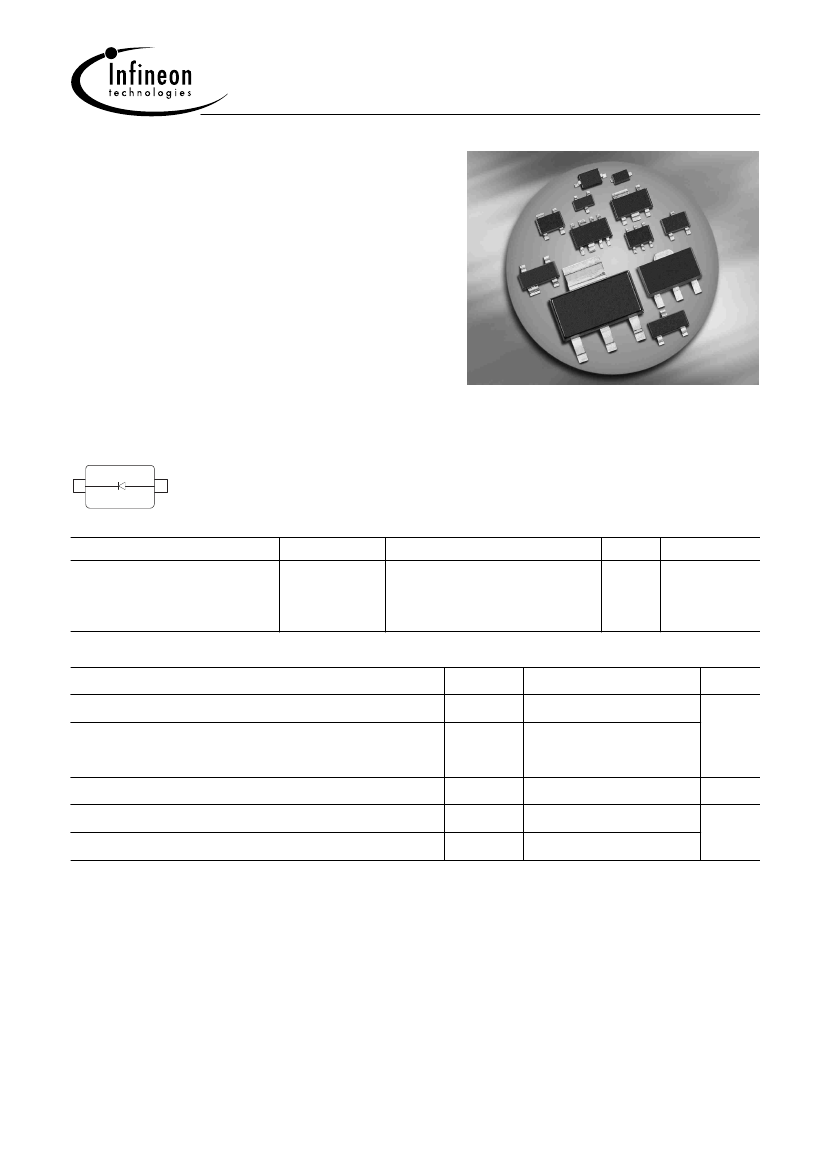

BB644 /BB664...

Silicon Variable Capacitance Diodes

•

For VHF TV-tuners

•

High capacitance ratio

•

Low series inductance

•

Low series resistance

•

Excellent uniformity and matching due to

"in-line" matching assembly procedure

BB644

BB664/-02V

Type

BB644

BB664

BB664-02V

Package

SOD323

SCD80

SC79

Configuration

single

(nH)

1.8

0.6

Marking

yellow 4

Maximum Ratings

= 25°C, unless otherwise specified

Parameter

Diode reverse voltage

Peak reverse voltage

≥

5kΩ

Forward current

Operating temperature range

Storage temperature

stg

-55 ... 150

°C

Symbol

Value

Unit

Jun-01-2004

BB644E6433 Related Products

	BB644E6433	BB644E6327	BB664E6433	BB664E6327	BB664-02VE6327	BB664-02VE6433
Description	Variable Capacitance Diode, Very High Frequency, 41.8pF C(T), 30V, Silicon, SOD-323, 2 PIN	Variable Capacitance Diode, Very High Frequency, 41.8pF C(T), 30V, Silicon, SOD-323, 2 PIN	Variable Capacitance Diode, Very High Frequency, 41.8pF C(T), 30V, Silicon, SCD80, 2 PIN	Variable Capacitance Diode, Very High Frequency, 41.8pF C(T), 30V, Silicon, SCD-80, 2 PIN	Variable Capacitance Diode, Very High Frequency, 41.8pF C(T), 30V, Silicon, SC-79, 2 PIN	Variable Capacitance Diode, Very High Frequency, 41.8pF C(T), 30V, Silicon, SC-79, 2 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon
package instruction	R-PDSO-G2	R-PDSO-G2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2
Contacts	2	2	2	2	2	2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	N	N	N
Minimum breakdown voltage	30 V	30 V	30 V	30 V	30 V	30 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode Capacitance Tolerance	6.59%	6.59%	6.59%	6.59%	6.59%	6.59%
Minimum diode capacitance ratio	11	11	11	11	11	11
Nominal diode capacitance	41.8 pF	41.8 pF	41.8 pF	41.8 pF	41.8 pF	41.8 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE
frequency band	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY
JESD-30 code	R-PDSO-G2	R-PDSO-G2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	35 V	35 V	35 V	35 V	35 V	35 V
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	FLAT	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1	1	1
Parts packaging code	SOD	SOD	-	-	SC-79	SC-79
