BBY55-02VE6433 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > diode> varactor> BBY55-02VE6433

BBY55-02VE6433: DescriptionVariable Capacitance Diode, 18.6pF C(T), 16V, Silicon, Hyperabrupt, SC-79, 2 PIN; Categorydiode varactor; File Size564KB，9 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BBY55-02VE6433 Overview

Variable Capacitance Diode, 18.6pF C(T), 16V, Silicon, Hyperabrupt, SC-79, 2 PIN

BBY55-02VE6433 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Infineon
Parts packaging code	SC-79
package instruction	R-PDSO-F2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Minimum breakdown voltage	16 V
Configuration	SINGLE
Diode Capacitance Tolerance	5.66%
Minimum diode capacitance ratio	2
Nominal diode capacitance	18.6 pF
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
JESD-30 code	R-PDSO-F2
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	16 V
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Varactor Diode Classification	HYPERABRUPT
Base Number Matches	1

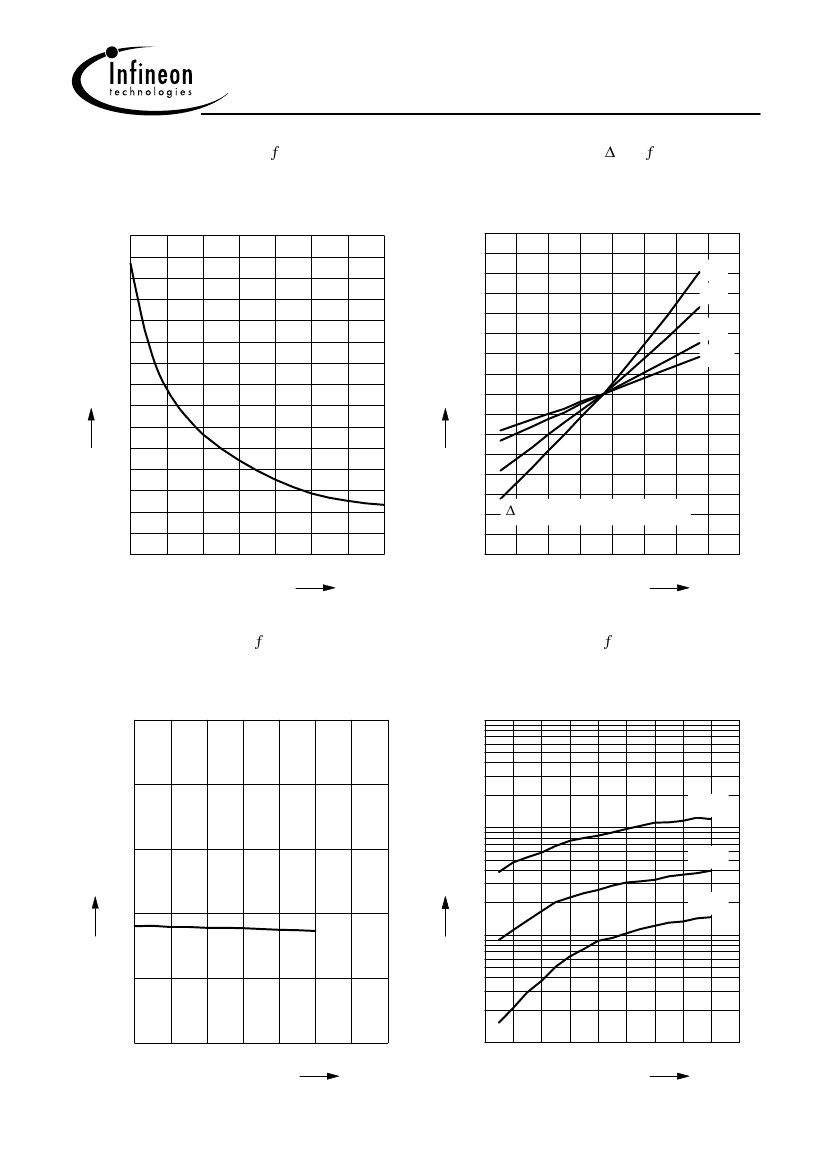

Preview

Download Datasheet

View All

BBY55...

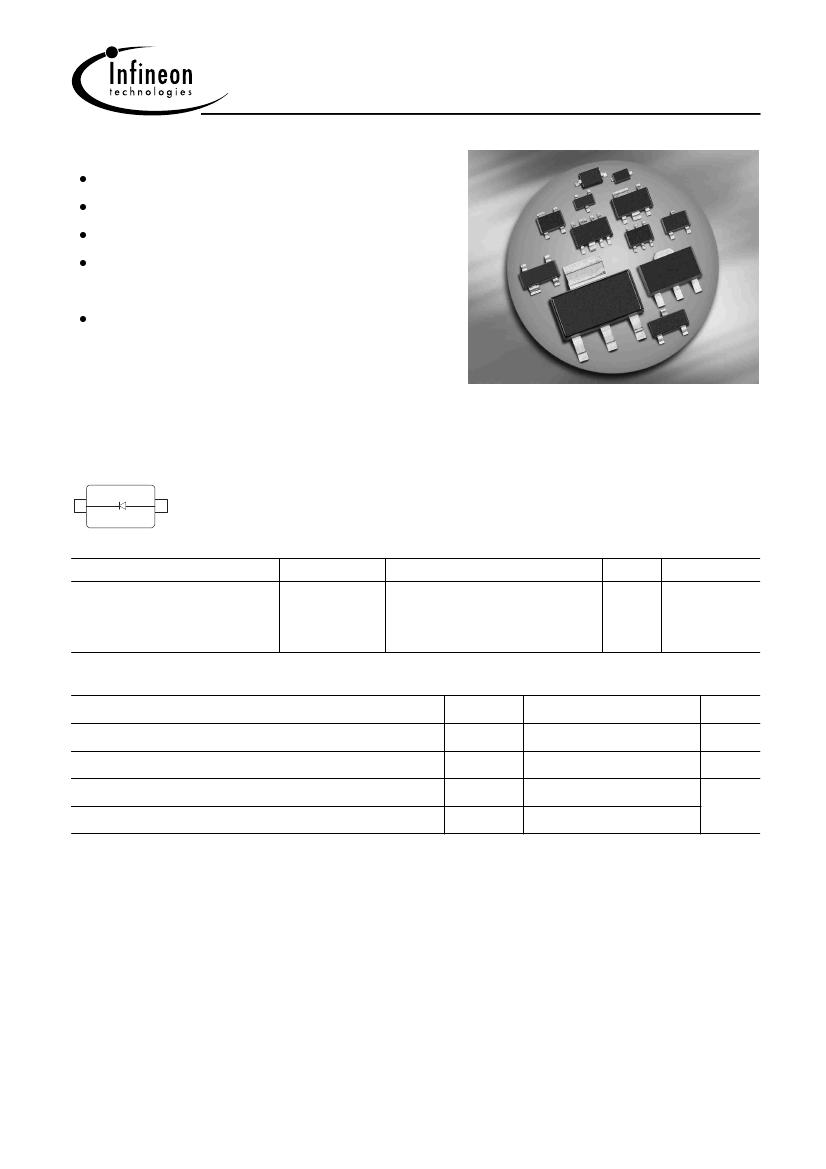

Silicon Tuning Diodes

Excellent linearity

High Q hyperabrupt tuning diode

Low series resistance

Designed for low tuning voltage operation

for VCO's in mobile communications equipment

Very low capacitance spread

Parameter

Diode reverse voltage

Forward current

Operating temperature range

Storage temperature

BBY55-02V

BBY55-02W

BBY55-03W

Type

BBY55-02V

BBY55-02W

BBY55-03W

Package

SC79

SCD80

SOD323

Configuration

single

(nH)

0.6

1.8

Marking

7 white

Maximum Ratings

= 25°C, unless otherwise specified

Symbol

stg

Value

-55 ... 150

Unit

°C

Nov-14-2002
