BTA06-200S datasheet, PDF - EEWORLD Datasheet

BTA06-200S: DescriptionTRIAC,200V V(DRM),6A I(T)RMS,TO-220; CategoryTrigger device; File Size181KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

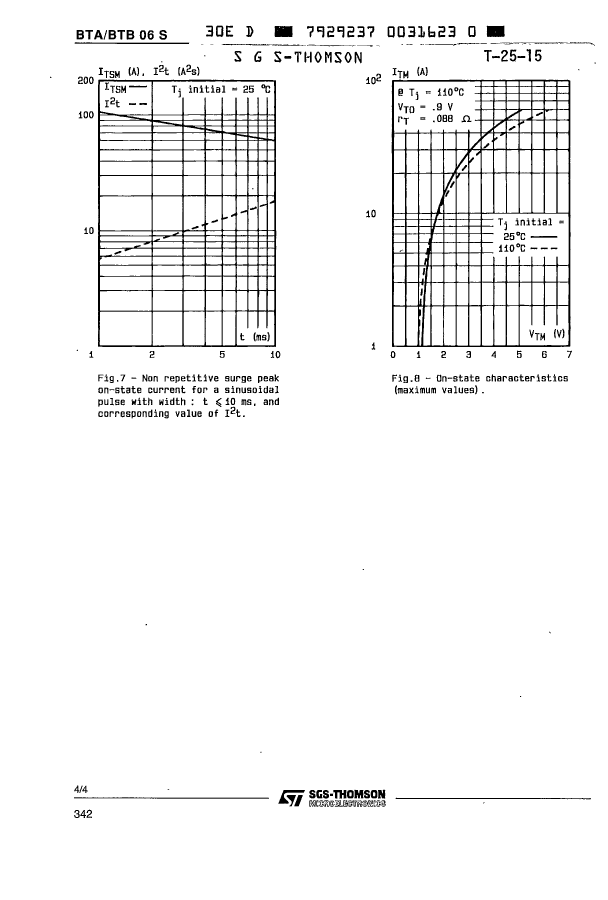

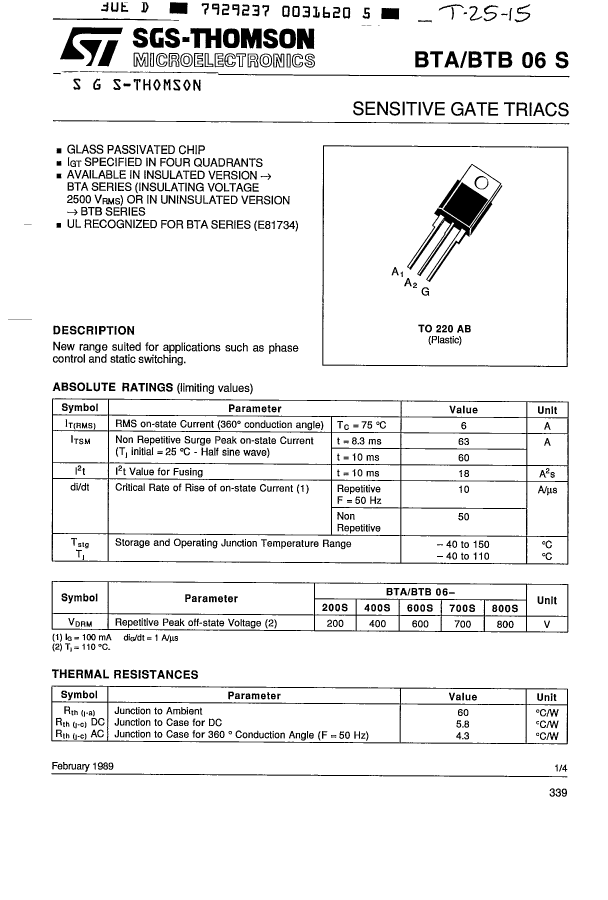

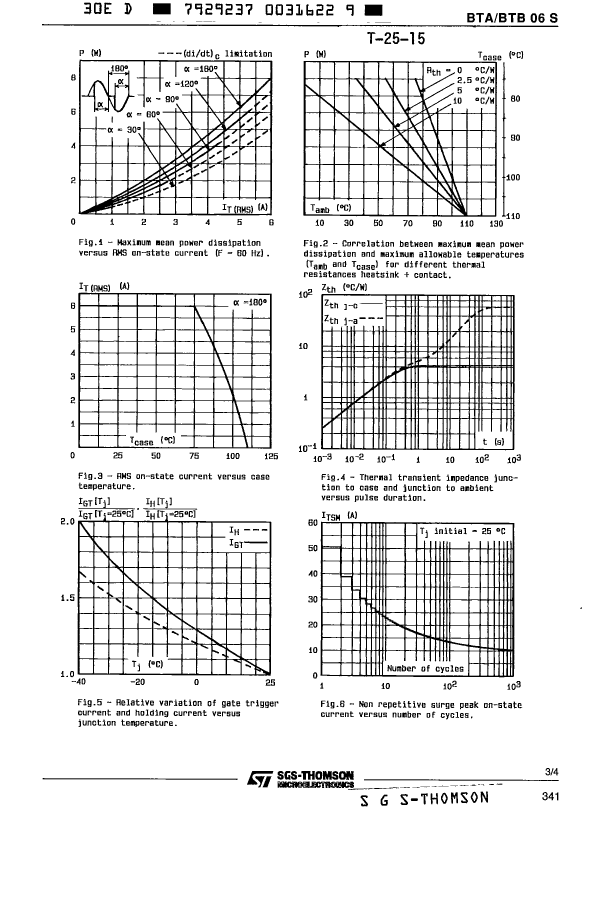

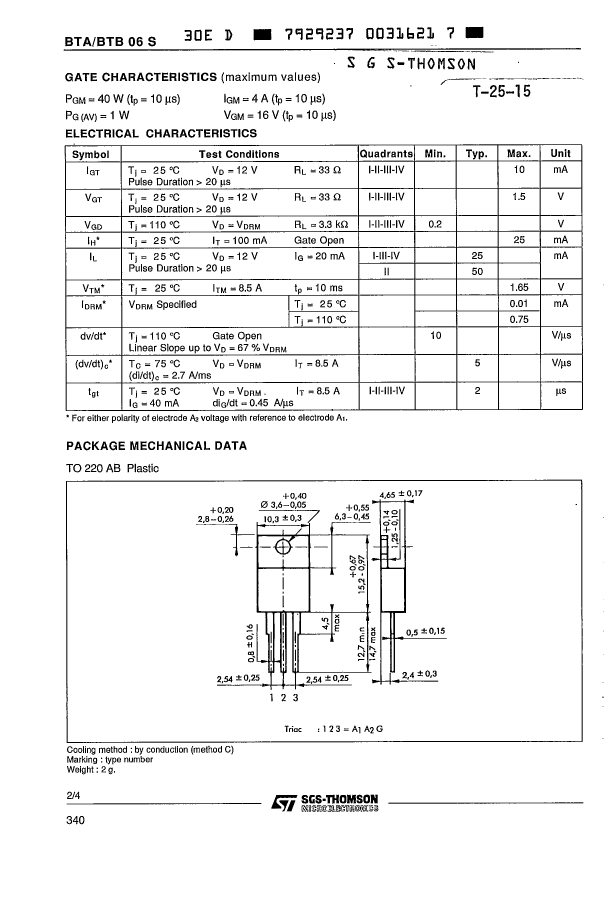

BTA06-200S Overview

TRIAC,200V V(DRM),6A I(T)RMS,TO-220

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
package instruction	,
Reach Compliance Code	not_compliant
Is Samacsys	N
Critical rise rate of commutation voltage - minimum value	1 V/us
Critical rise rate of minimum off-state voltage	10 V/us
Maximum DC gate trigger current	10 mA
Maximum DC gate trigger voltage	2.5 V
Maximum holding current	25 mA
JESD-609 code	e0
Maximum leakage current	0.75 mA
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Maximum rms on-state current	6 A
Off-state repetitive peak voltage	200 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC
Base Number Matches	1

	BTA06-200S	BTB06-200S	BTB06-800S	BTA06-800S
Description	TRIAC,200V V(DRM),6A I(T)RMS,TO-220	TRIAC,200V V(DRM),6A I(T)RMS,TO-220	TRIAC,700V V(DRM),6A I(T)RMS,TO-220	TRIAC,800V V(DRM),6A I(T)RMS,TO-220
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
Critical rise rate of minimum off-state voltage	10 V/us	10 V/us	10 V/us	10 V/us
Maximum DC gate trigger current	10 mA	10 mA	10 mA	10 mA
Maximum DC gate trigger voltage	2.5 V	2.5 V	1.5 V	2.5 V
Maximum holding current	25 mA	25 mA	25 mA	25 mA
JESD-609 code	e0	e0	e0	e0
Maximum operating temperature	110 °C	110 °C	110 °C	110 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rms on-state current	6 A	6 A	6 A	6 A
Off-state repetitive peak voltage	200 V	200 V	700 V	800 V
surface mount	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC
Critical rise rate of commutation voltage - minimum value	1 V/us	1 V/us	-	1 V/us
Maximum leakage current	0.75 mA	0.75 mA	-	0.75 mA
