AD7521UD/883B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > converter> AD7521UD/883B

AD7521UD/883B: DescriptionD/A Converter, 12-Bit, 1 Func, CMOS, CDIP18; Categoryconverter; File Size417KB，7 Pages; ManufacturerGeneral Electric Solid State

Download Datasheet Parametric Compare View All

AD7521UD/883B Overview

D/A Converter, 12-Bit, 1 Func, CMOS, CDIP18

AD7521UD/883B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	General Electric Solid State
package instruction	DIP, DIP18,.3
Reach Compliance Code	unknown
Is Samacsys	N
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
JESD-30 code	R-XDIP-T18
JESD-609 code	e0
Maximum linear error (EL)	0.05%
Number of digits	12
Number of functions	1
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage	15 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

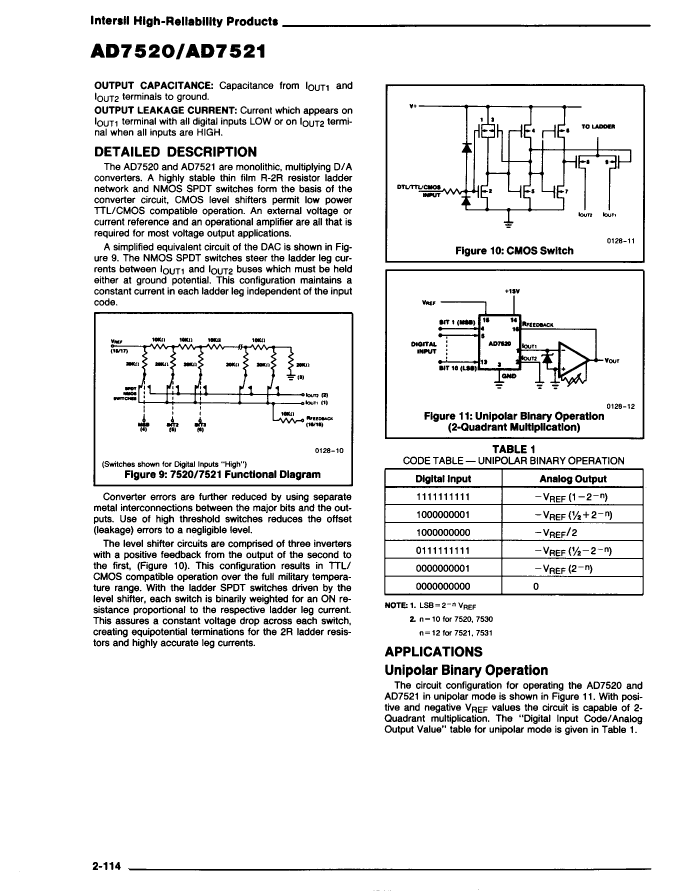

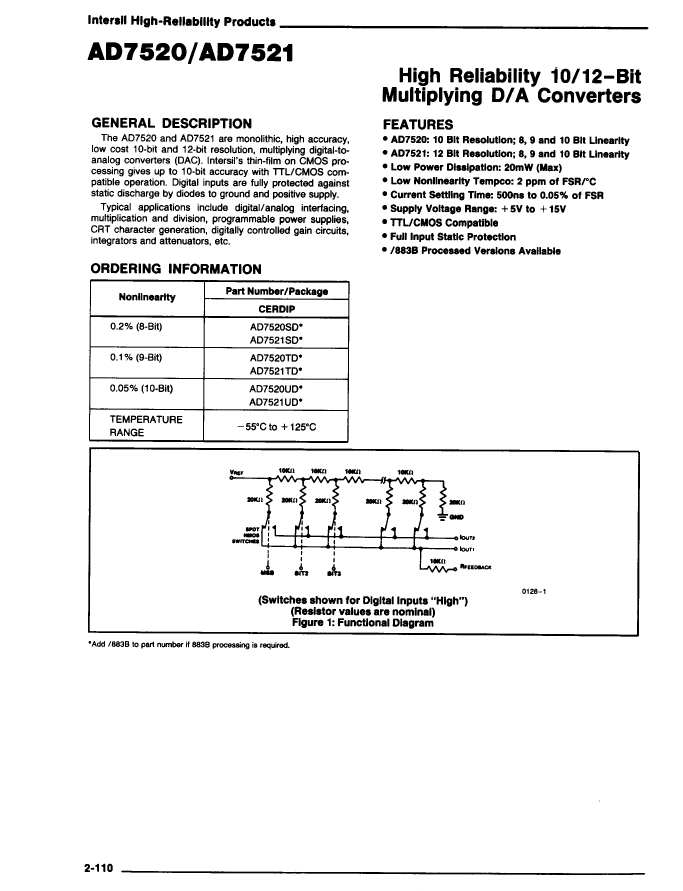

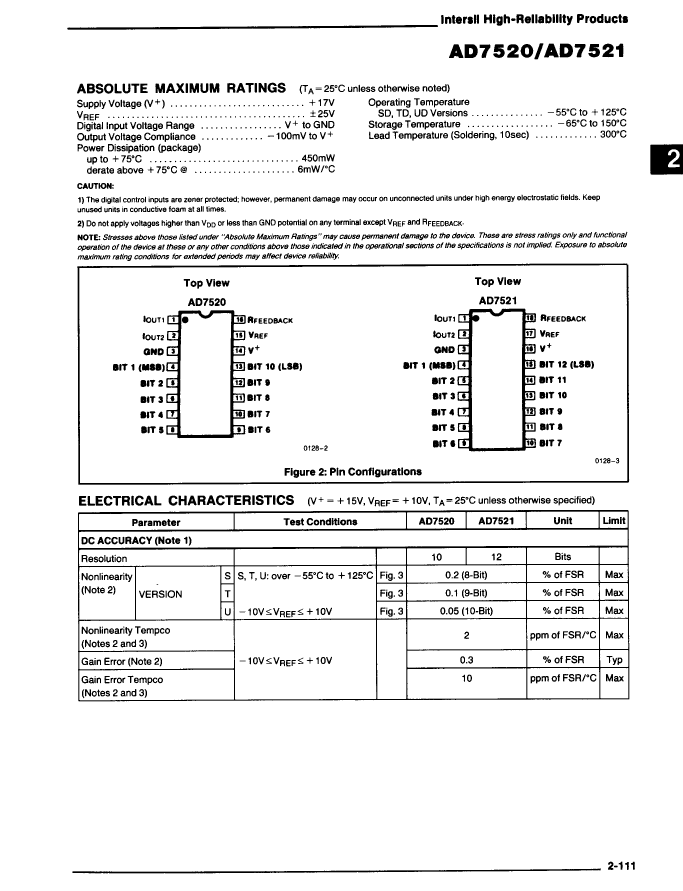

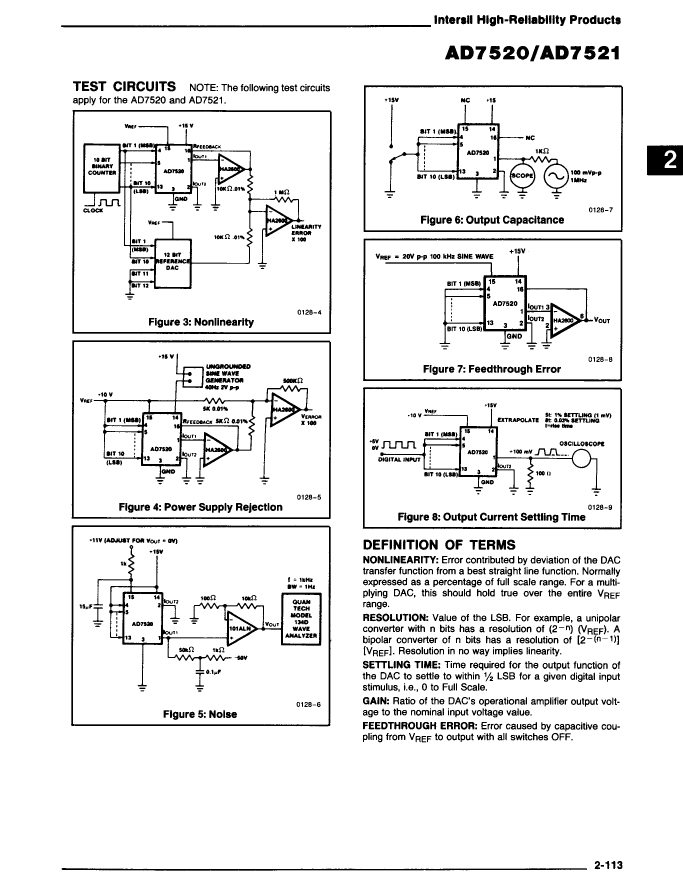

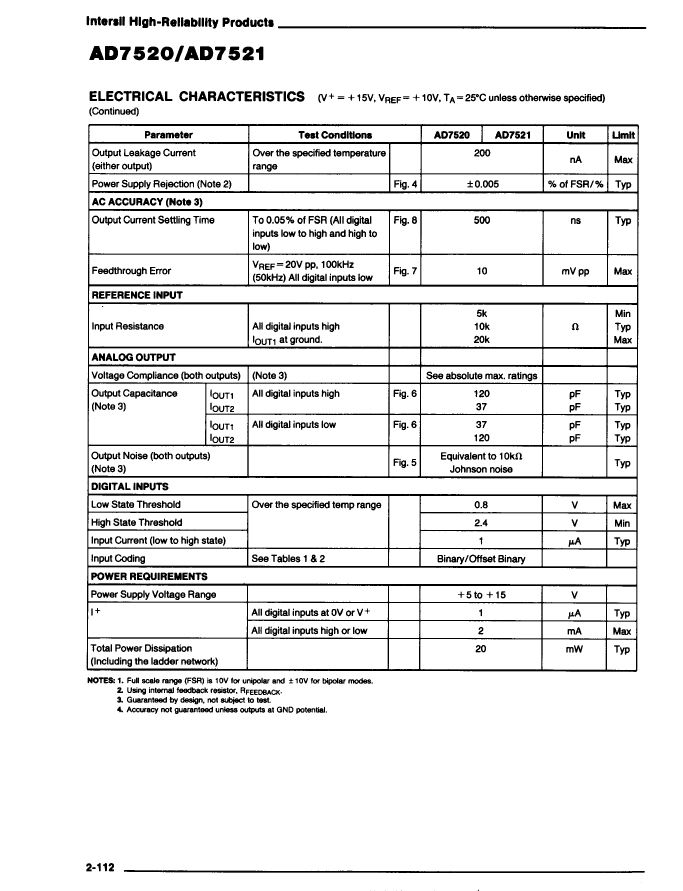

Preview

Download Datasheet

View All

AD7521UD/883B Related Products

	AD7521UD/883B	AD7521UD/883C	AD7520UD/883C	AD7520UD/HR
Description	D/A Converter, 12-Bit, 1 Func, CMOS, CDIP18	D/A Converter, 12-Bit, 1 Func, CMOS, CDIP18	D/A Converter, 10-Bit, 1 Func, CMOS, CDIP16	D/A Converter, 10-Bit, 1 Func, CMOS, CDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	General Electric Solid State	General Electric Solid State	General Electric Solid State	General Electric Solid State
package instruction	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
JESD-30 code	R-XDIP-T18	R-XDIP-T18	R-XDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0
Maximum linear error (EL)	0.05%	0.05%	0.05%	0.05%
Number of digits	12	12	10	10
Number of functions	1	1	1	1
Number of terminals	18	18	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP18,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	15 V	15 V	15 V	15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	MIL-STD-883 Class C	MIL-STD-883 Class C	MIL-STD-883 Class B (Modified)
Nominal supply voltage	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
