BTA10-800C/F5

Description
800V, 10A, TRIAC, TO-220AB, TO-220, 3 PIN
CategoryTrigger device
File Size111KB,5 Pages
ManufacturerSTMicroelectronics
Websitehttp://www.st.com/
Environmental Compliance

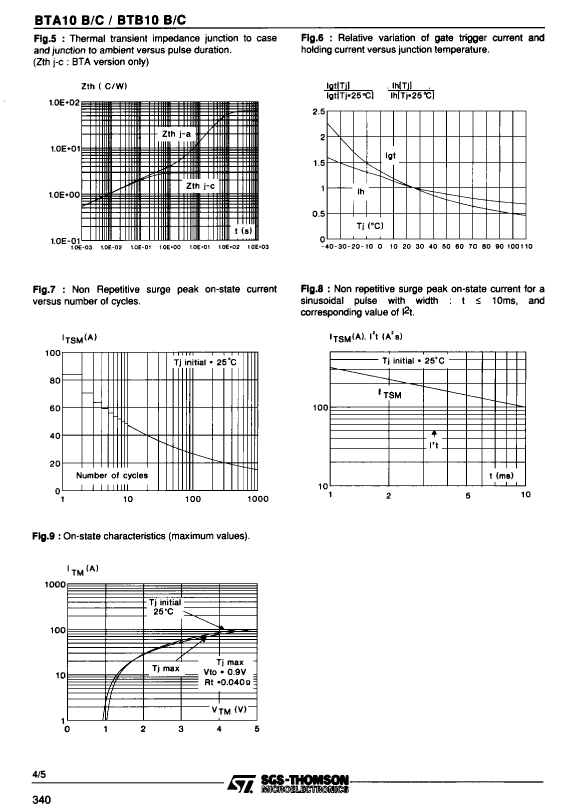

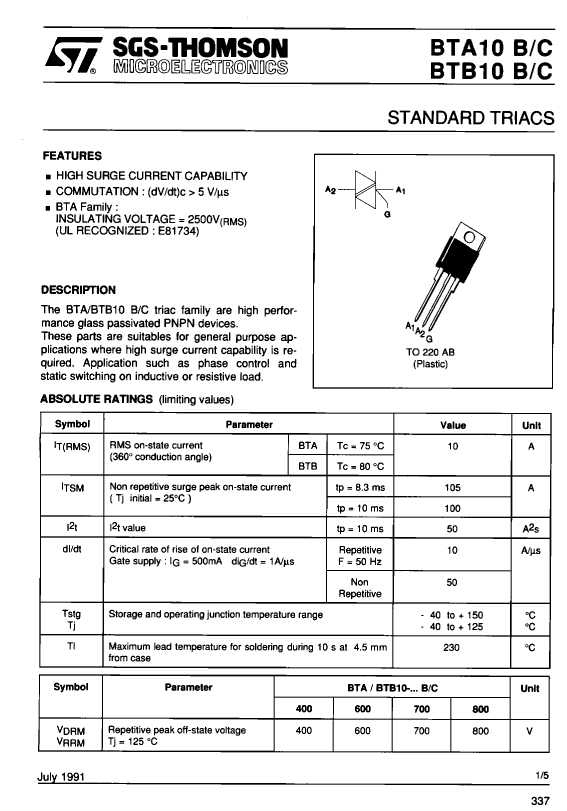

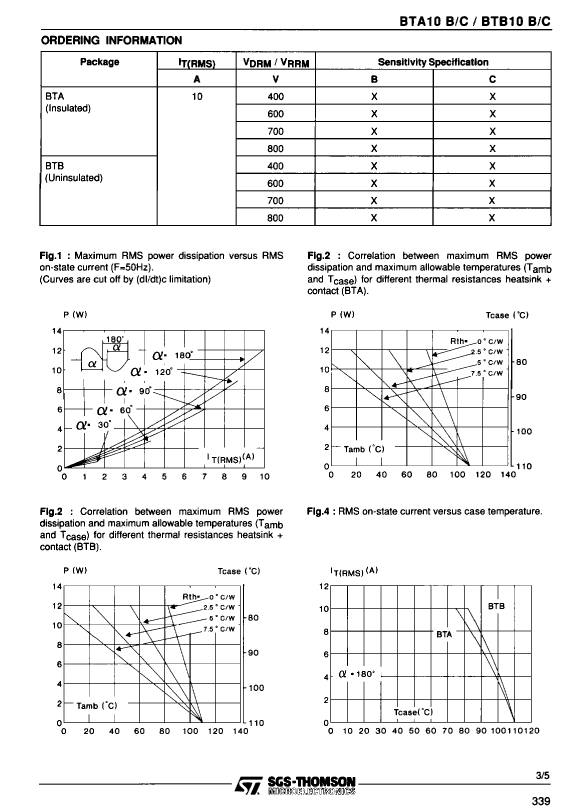

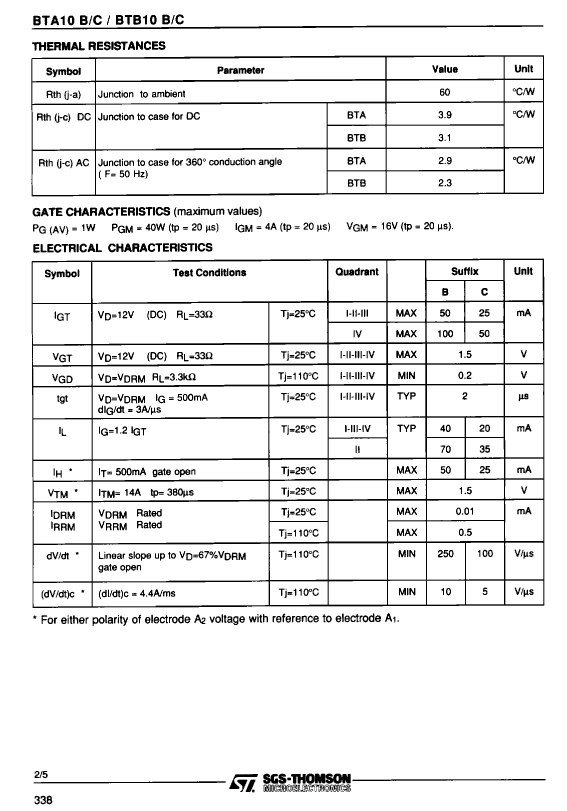

Download Datasheet Parametric View All

BTA10-800C/F5 Overview

800V, 10A, TRIAC, TO-220AB, TO-220, 3 PIN

BTA10-800C/F5 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSTMicroelectronics
Parts packaging codeTO-220AB
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codecompliant
Is SamacsysN
Shell connectionISOLATED
ConfigurationSINGLE
Critical rise rate of commutation voltage - minimum value5 V/us
Critical rise rate of minimum off-state voltage100 V/us
Maximum DC gate trigger current25 mA
Maximum DC gate trigger voltage1.5 V
Maximum holding current25 mA
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
JESD-609 codee3
Number of components1
Number of terminals3
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum rms on-state current10 A
Maximum repetitive peak off-state leakage current10 µA
Off-state repetitive peak voltage800 V
surface mountNO
Terminal surfaceTin (Sn)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeTRIAC
Base Number Matches1
