PN4143
Discrete POWER & Signal
Technologies
PN4143
C
BE
TO-92
PNP General Purpose Amplifier
This device is designed for use as general purpose amplifiers
and switches requiring collector currents to 500 mA. Sourced
from Process 63. See PN2907A for characteristics.
Absolute Maximum Ratings*
Symbol
V
CEO
V
CBO
V
EBO
I
C
T
J
, T
stg
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector Current - Continuous
TA = 25°C unless otherwise noted
Parameter
Value
40
60
5.0
800
-55 to +150
Units
V
V
V
mA
°C
Operating and Storage Junction Temperature Range
*
These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1)
These ratings are based on a maximum junction temperature of 150 degrees C.
2)
These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
Symbol
P
D
R
θJC
R
θJA
TA = 25°C unless otherwise noted
Characteristic
Total Device Dissipation
Derate above 25°C
Thermal Resistance, Junction to Case
Thermal Resistance, Junction to Ambient
Max
PN4143
625
5.0
83.3
200
Units
mW
mW/°C
°C/W
°C/W
©
1997 Fairchild Semiconductor Corporation
PN4143
PNP General Purpose Amplifier
(continued)
Electrical Characteristics
Symbol
Parameter
TA = 25°C unless otherwise noted
Test Conditions
Min
Max
Units
OFF CHARACTERISTICS
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
I
CEX
I
BL
Collector-Emitter Breakdown Voltage*
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Base Cutoff Current
I
C
= 10 mA, I
B
= 0
I
C
= 10
µA,
I
E
= 0
I
E
= 10
µA,
I
C
= 0
V
CE
= 30 V, V
OB
= 0.5 V
V
CE
= 30 V, V
OB
= 0.5 V
40
60
5.0
50
50
V
V
V
nA
nA
ON CHARACTERISTICS*
h
FE
DC Current Gain
V
CE
= 10 V, I
C
= 100
µA
V
CE
= 10 V, I
C
= 1.0 mA
V
CE
= 10 V, I
C
= 10 mA
V
CE
= 10 V, I
C
= 150 mA
V
CE
= 10 V, I
C
= 500 mA
V
CE
= 1.0 V, I
C
= 150 mA
I
C
= 150 mA, I
B
= 15 mA
I
C
= 500 mA, I
B
= 50 mA
I
C
= 150 mA, I
B
= 15 mA
I
C
= 500 mA, I
B
= 50 mA
35
50
75
100
30
50
300
V
CE(
sat
)
V
BE(
sat
)
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
0.4
1.6
1.3
2.6
V
V
V
V
SMALL SIGNAL CHARACTERISTICS
C
ob
C
ib
h
fe
Output Capacitance
Input Capacitance
Small-Signal Current Gain
V
CB
= 10 V, f = 100 kHz
V
EB
= 2.0 V, f = 100 kHz
I
C
= 50 mA, V
CE
= 20 V,
f = 100 MHz
2.0
8.0
30
pF
pF
SWITCHING CHARACTERISTICS
t
on
t
d
t
r
t
off
t
s
t
f
Turn-on Time
Delay Time
Rise Time
Turn-off Time
Storage Time
Fall Time
V
CC
= 30 V, I
C
= 150 mA
I
B1
= I
B2
= 15 mA
V
CC
= 30 V, I
C
= 150 mA,
I
B1
= 15 mA
45
10
40
100
80
30
ns
ns
ns
ns
ns
ns
*
Pulse Test: Pulse Width
≤
300
µs,
Duty Cycle
≤
2.0%

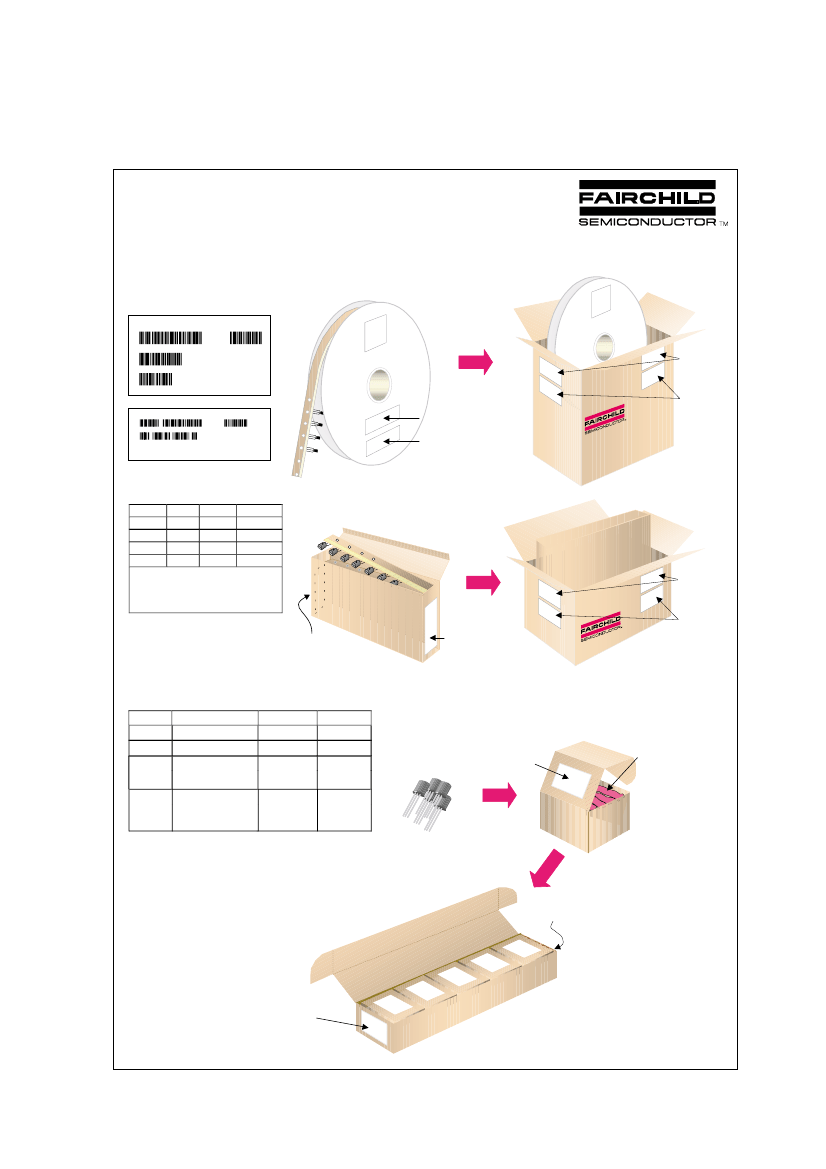

TO-92 Tape and Reel Data
TO-92 Packaging
Configuration:
Figure 1.0
TAPE and REEL OPTION
FSCINT Label sample
FAIRCHILD SEMICONDUCTOR CORPORATION
LOT:
CBVK741B019
HTB:B
QTY:
10000
See Fig 2.0 for various
Reeling Styles
NSID:
PN2222N
SPEC:
D/C1:
D9842
SPEC REV:
QA REV:
B2
FSCINT
Label
(FSCINT)
5 Reels per
Intermediate Box
F63TNR
Label
Customized
Label
375mm x 267mm x 375mm
Intermediate Box
F63TNR Label sample
LOT: CBVK741B019
FSID: PN222N
D/C1: D9842
D/C2:
QTY1:
QTY2:
QTY: 2000
SPEC:
SPEC REV:
CPN:
N/F: F
Customized
Label
(F63TNR)3
TO-92 TNR/AMMO PACKING INFROMATION
Packing
Reel
Style
A
E
Ammo
M
P
Quantity
2,000
2,000
2,000
2,000
EOL code
D26Z
D27Z
D74Z
D75Z
AMMO PACK OPTION
See Fig 3.0 for 2 Ammo
Pack Options
Unit weight
= 0.22 gm
Reel weight with components
= 1.04 kg
Ammo weight with components = 1.02 kg
Max quantity per intermediate box = 10,000 units
FSCINT
Label
327mm x 158mm x 135mm
Immediate Box
Customized
Label
5 Ammo boxes per
Intermediate Box
F63TNR
Label
333mm x 231mm x 183mm
Intermediate Box
Customized
Label
(TO-92) BULK PACKING INFORMATION
EOL
CODE
J18Z
J05Z
NO EOL
CODE
DESCRIPTION
TO-18 OPTION STD
TO-5 OPTION STD
TO-92 STANDARD
STRAIGHT FOR: PKG 92,
94 (NON PROELECTRON
SERIES), 96
TO-92 STANDARD
STRAIGHT FOR: PKG 94
(PROELECTRON SERIES
BCXXX, BFXXX, BSRXXX),
97, 98
LEADCLIP
DIMENSION
NO LEAD CLIP
NO LEAD CLIP
NO LEADCLIP
QUANTITY
2.0 K / BOX
1.5 K / BOX
2.0 K / BOX
BULK OPTION
See Bulk Packing
Information table
Anti-static
Bubble Sheets
FSCINT Label
L34Z
NO LEADCLIP
2.0 K / BOX
2000 units per
EO70 box for
std option
114mm x 102mm x 51mm
Immediate Box
5 EO70 boxes per
intermediate Box
530mm x 130mm x 83mm
Intermediate box
Customized
Label
FSCINT Label
10,000 units maximum
per intermediate box
for std option
©2001 Fairchild Semiconductor Corporation
March 2001, Rev. B1
TO-92 Tape and Reel Data, continued

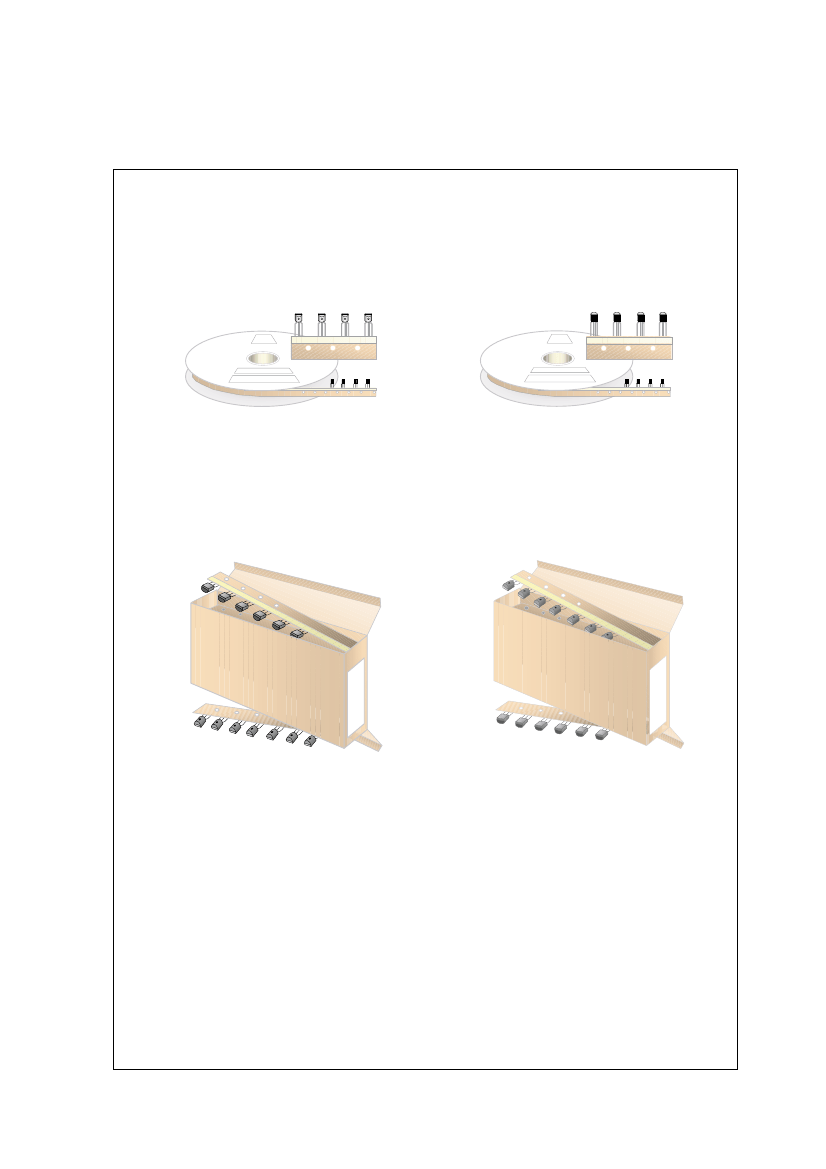

TO-92 Reeling Style
Configuration:
Figure 2.0
Machine Option “A” (H)
Machine Option “E” (J)
Style “A”, D26Z, D70Z (s/h)
Style “E”, D27Z, D71Z (s/h)
TO-92 Radial Ammo Packaging
Configuration:
Figure 3.0
FIRST WIRE OFF IS COLLECTOR
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON TOP
FIRST WIRE OFF IS EMITTER
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON BOTTOM
ORDER STYLE
D74Z (M)
ORDER STYLE
D75Z (P)
FIRST WIRE OFF IS EMITTER (ON PKG. 92)
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON BOTTOM
FIRST WIRE OFF IS COLLECTOR (ON PKG. 92)
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON TOP
September 1999, Rev. B
TO-92 Tape and Reel Data, continued

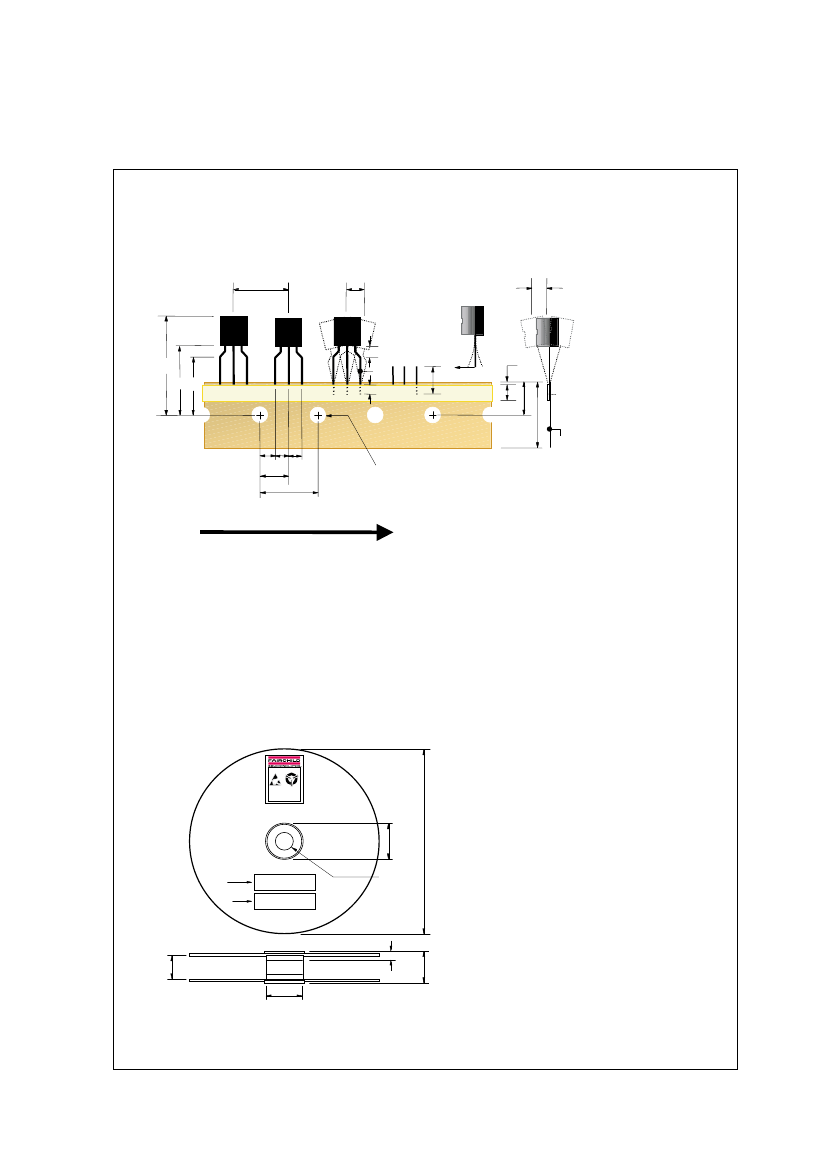

TO-92 Tape and Reel Taping
Dimension Configuration:
Figure 4.0
Hd
P
Pd
b
Ha
H1 HO
d
L
L1
W1
S
WO
W2
W
t
t1
P1 F1
P2
DO
ITEM DESCRIPTION
PO
Base of Package to Lead Bend
Component Height
Lead Clinch Height
Component Base Height
Component Alignment ( side/side )
Component Alignment ( front/back )
Component Pitch
Feed Hole Pitch
Hole Center to First Lead
Hole Center to Component Center
Lead Spread
Lead Thickness
Cut Lead Length
Taped Lead Length
Taped Lead Thickness
Carrier Tape Thickness
SYMBOL
b
Ha
HO
H1
Pd
Hd
P
PO
P1
P2
F1/F2
d
L
L1
t
t1
W
WO
W1
W2
DO
S
DIMENSION
0.098 (max)
0.928 (+/- 0.025)
0.630 (+/- 0.020)
0.748 (+/- 0.020)
0.040 (max)
0.031 (max)
0.500 (+/- 0.020)
0.500 (+/- 0.008)
0.150 (+0.009, -0.010)
0.247 (+/- 0.007)
0.104 (+/- 0 .010)
0.018 (+0.002, -0.003)
0.429 (max)
0.209 (+0.051, -0.052)
0.032 (+/- 0.006)
0.021 (+/- 0.006)
0.708 (+0.020, -0.019)
0.236 (+/- 0.012)
0.035 (max)
0.360 (+/- 0.025)
0.157 (+0.008, -0.007)
0.004 (max)
User Direction of Feed
TO-92 Reel
Configuration:
Figure 5.0
Carrier Tape Width
Hold - down Tape Width
Hold - down Tape position
Feed Hole Position
Sprocket Hole Diameter
Lead Spring Out
Note : All dimensions are in inches.
ELECT ROSTATIC
SEN SITIVE D EVICES
D4
D1
ITEM DESCRIPTION
SYSMBOL
MINIMUM
MAXIMUM
F63TNR Label
Customized Label
D2
Reel Diameter
Arbor Hole Diameter (Standard)
(Small Hole)
Core Diameter
Hub Recess Inner Diameter
Hub Recess Depth
Flange to Flange Inner Width
W1
Hub to Hub Center Width
W3
Note: All dimensions are inches
D1
D2
D2
D3
D4
W1
W2
W3
13.975
1.160
0.650
3.100
2.700
0.370
1.630
14.025
1.200
0.700
3.300
3.100
0.570
1.690
2.090
W2
D3
July 1999, Rev. A
