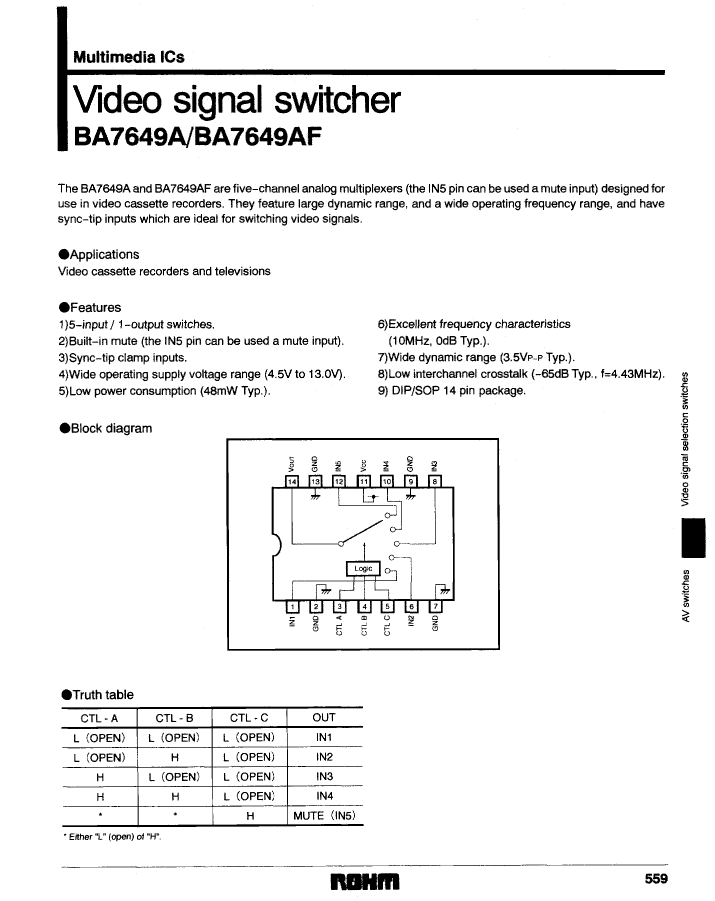

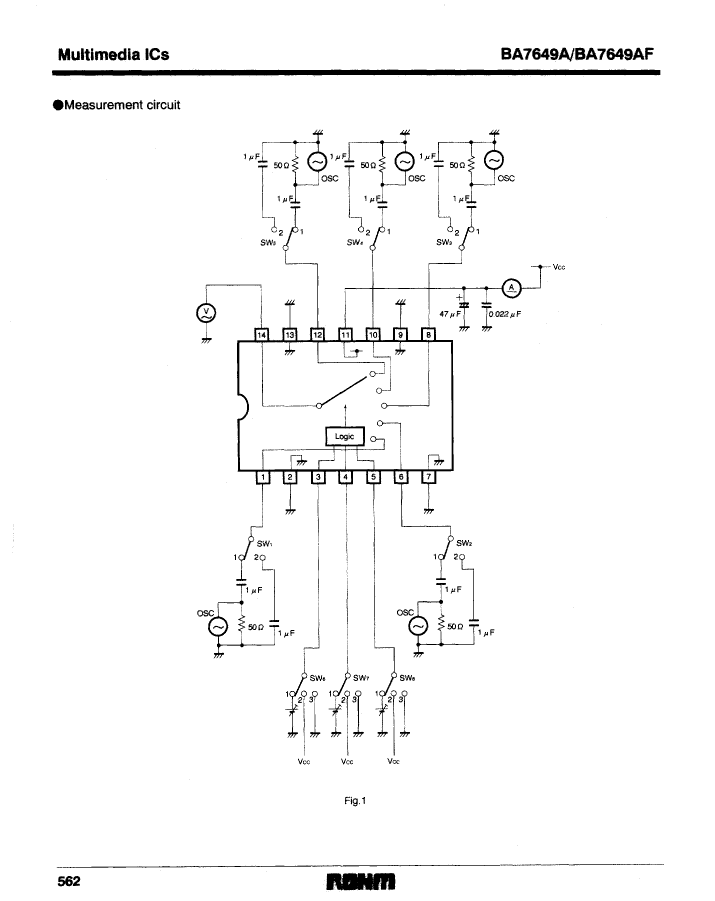

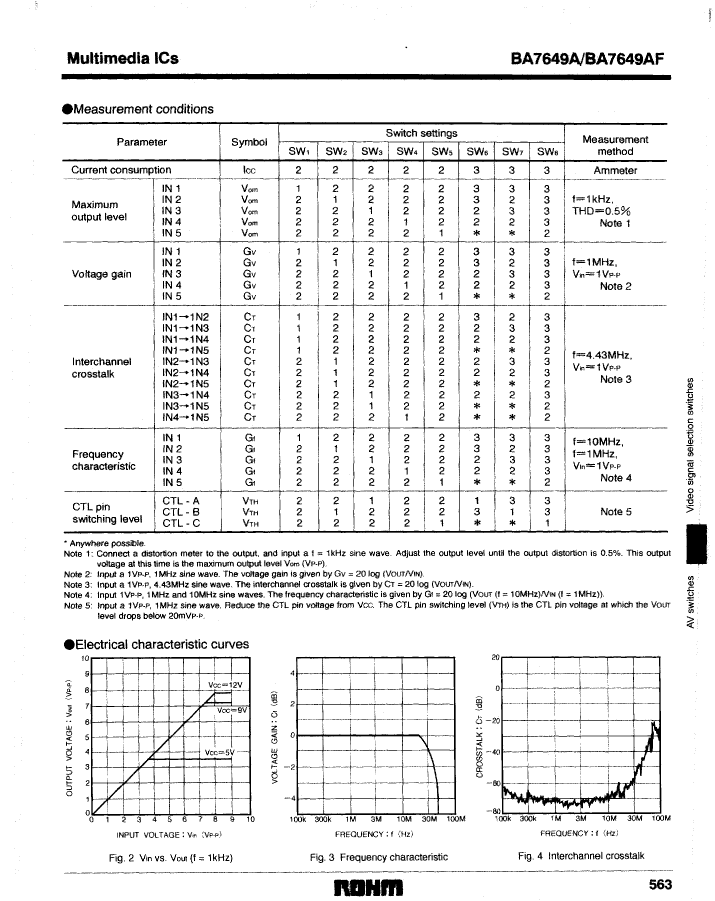

Video Multiplexer, 1 Func, 5 Channel, BIPolar, PDSO14, SOP-14

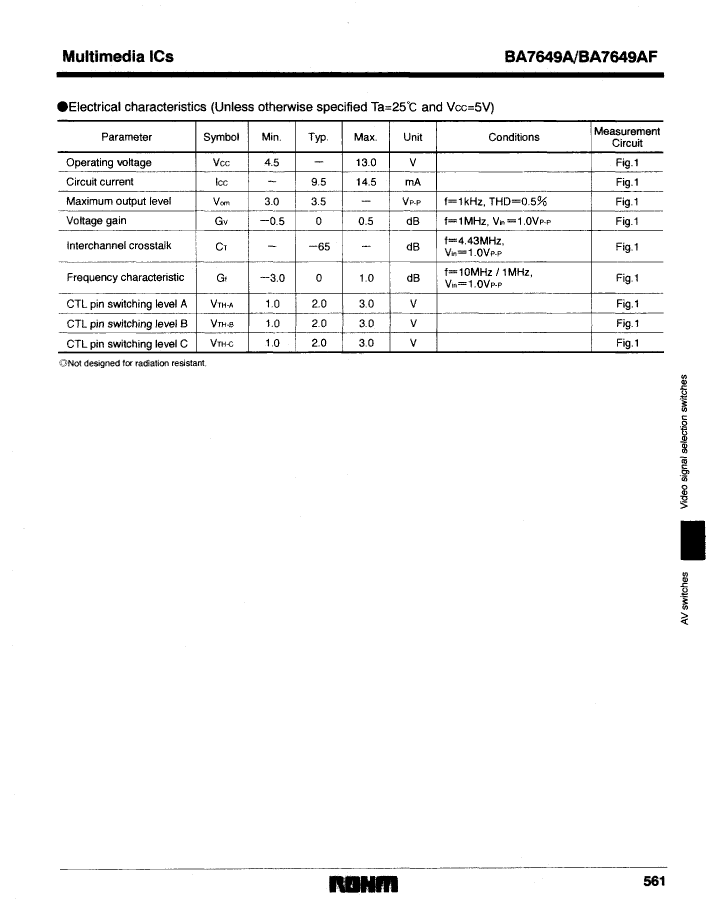

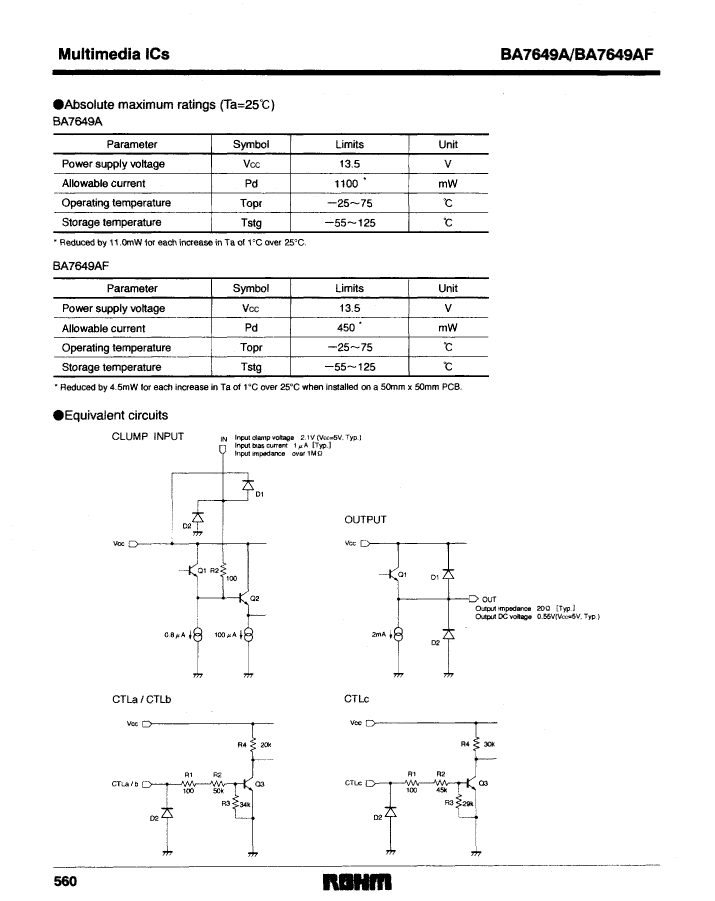

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | ROHM Semiconductor |
| Parts packaging code | SOIC |
| package instruction | LSOP, SOP14,.25 |
| Contacts | 14 |
| Reach Compliance Code | compliant |
| Is Samacsys | N |
| Analog Integrated Circuits - Other Types | VIDEO MULTIPLEXER |
| JESD-30 code | R-PDSO-G14 |
| JESD-609 code | e3/e2 |
| length | 8.7 mm |
| Number of channels | 5 |
| Number of functions | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | -25 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | LSOP |
| Encapsulate equivalent code | SOP14,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, LOW PROFILE |
| Peak Reflow Temperature (Celsius) | 260 |
| power supply | 5 V |
| Certification status | Not Qualified |
| Maximum seat height | 1.7 mm |
| Maximum supply current (Isup) | 14.5 mA |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL EXTENDED |
| Terminal surface | TIN/TIN COPPER |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 10 |
| width | 4.4 mm |
| Base Number Matches | 1 |
| BA7649AF-E1 | BA7649AF-T1 | BA7649AFT1 | BA7649AFE1 | |
|---|---|---|---|---|
| Description | Video Multiplexer, 1 Func, 5 Channel, BIPolar, PDSO14, SOP-14 | Video Multiplexer, 1 Func, 5 Channel, PDSO14, SOP-14 | 5-CHANNEL, AUDIO/VIDEO SWITCH, PDSO14, SOP-14 | 5-CHANNEL, AUDIO/VIDEO SWITCH, PDSO14, SOP-14 |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to |
| Maker | ROHM Semiconductor | ROHM Semiconductor | ROHM Semiconductor | ROHM Semiconductor |
| Parts packaging code | SOIC | SOIC | SOIC | SOIC |
| package instruction | LSOP, SOP14,.25 | SOP-14 | LSOP, | SOP-14 |
| Contacts | 14 | 14 | 14 | 14 |
| Reach Compliance Code | compliant | compliant | unknown | unknown |
| Is Samacsys | N | N | N | N |
| Analog Integrated Circuits - Other Types | VIDEO MULTIPLEXER | VIDEO MULTIPLEXER | AUDIO/VIDEO SWITCH | AUDIO/VIDEO SWITCH |
| JESD-30 code | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 |
| JESD-609 code | e3/e2 | e3/e2 | e3/e2 | e3/e2 |
| length | 8.7 mm | 8.7 mm | 8.7 mm | 8.7 mm |
| Number of channels | 5 | 5 | 5 | 5 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 14 | 14 | 14 | 14 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | LSOP | LSOP | LSOP | LSOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, LOW PROFILE | SMALL OUTLINE, LOW PROFILE | SMALL OUTLINE, LOW PROFILE | SMALL OUTLINE, LOW PROFILE |
| Peak Reflow Temperature (Celsius) | 260 | 260 | 260 | 260 |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.7 mm | 1.7 mm | 1.7 mm | 1.7 mm |
| surface mount | YES | YES | YES | YES |
| Terminal surface | TIN/TIN COPPER | TIN/TIN COPPER | TIN/TIN COPPER | TIN/TIN COPPER |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | 10 | 10 | 10 | 10 |
| width | 4.4 mm | 4.4 mm | 4.4 mm | 4.4 mm |
| Base Number Matches | 1 | 1 | 1 | 1 |
