CONFIDENTIAL
Customer Name
System
Customer No.
Qualcomm
WCDMA-Rx
FUJITSU MEDIA DEVICES LIMITED
DATE
Version3.0c
Reference No.
Sep. 21, 2005
FMD Part Number
FAR-F6KA-2G1400-D4CGQ
Preliminary
Table 1.Electrical specification
Pass Band (2110-2170MHz)
Item
Condition
Min.
Insertion Loss
Ripple
Absolute attenuation
VSWR(S11)
VSWR(S22)
Input Power
In/Output impedance
Operating temperature
Device size (L x W x H)
2110-2170 MHz
2110-2170 MHz
1920-1980 MHz
4220-4340 MHz
2110-2170 MHz
2110-2170 MHz
-
-
-
-
32
20
-
-
Value
Typ.
2.1
1.0
36
28
2.3
2.3
TBD
50/50
-30 to +85
1.4typ.x1.0typ.x0.5max.
Max.
3.0
1.8
-
-
2.7
2.7
dB
dB
dB
dB
-
-
dBm
ohm
°C
mm
SMD
Pass Band
Unit
Remarks
CONFIDENTIAL
Customer Name
System
Customer No.
Qualcomm
WCDMA-Rx
FUJITSU MEDIA DEVICES LIMITED
DATE
Version3.0c
Reference No.
Sep. 21, 2005
FMD Part Number
FAR-F6KA-2G1400-D4CGQ
Preliminary
Dimensions
Device size: 1.4typ. x 1.0typ. x 0.5max.
1.40
<5>
<4>
0.50
<4>
<5>
0.50
0.50
0.325
<1>
1.00
0.55
0.575
0.25
0.325
0.25 0.25 0.25 0.25 0.25
<3>
<2>
<1>
0.325
IN X
DE
<2>
<3>
Pin Configuration
Pin No.
1
2
3
4
5
Symbol
IN
GND
GND
OUT
GND
Function
Unbalanced pin
Ground
Ground
Unbalanced pin
Ground
Evaluation Circuit
1
Unbalanced
Input
(50ohm)
2,3,5
4
Unbalanced
Output
(50ohm)
CONFIDENTIAL
Customer Name
System
Customer No.
Qualcomm
WCDMA-Rx
FUJITSU MEDIA DEVICES LIMITED
DATE
Version3.0c
Reference No.
Sep. 21, 2005
FMD Part Number
FAR-F6KA-2G1400-D4CGQ
Preliminary

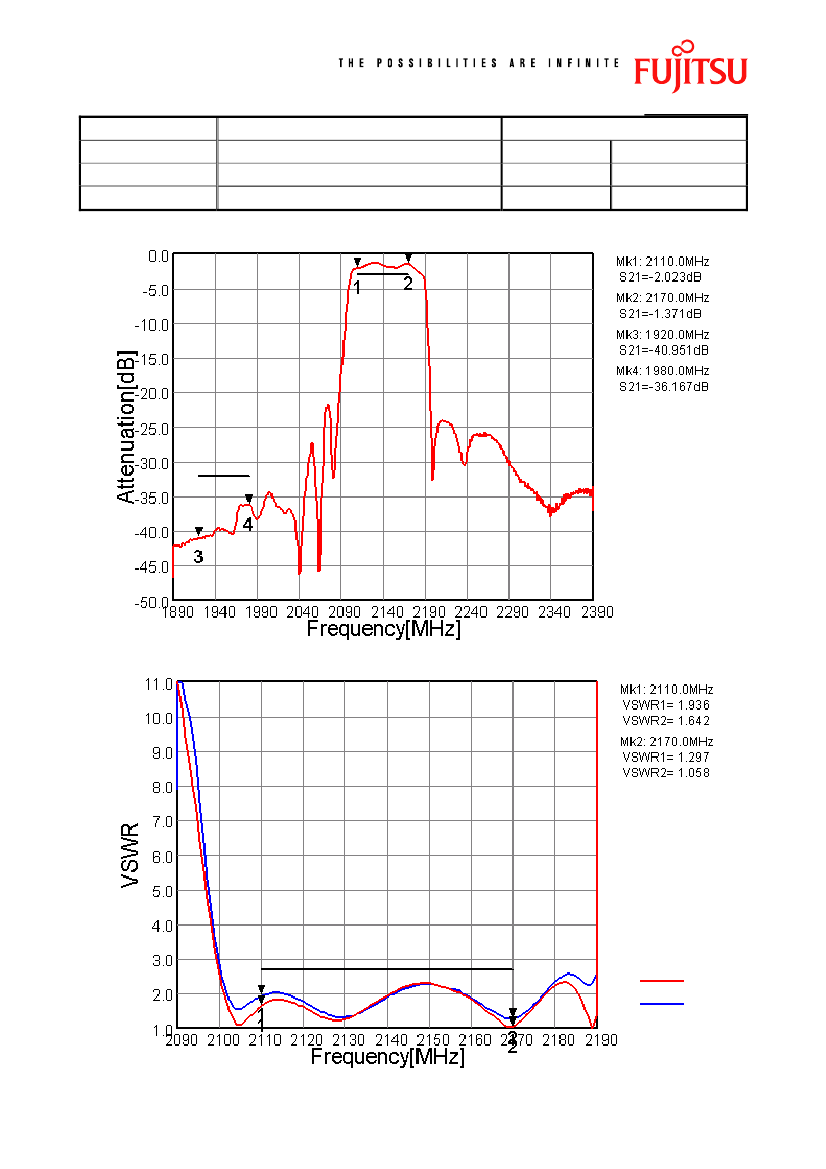

Fig.1 Pass-band Characteristic
Input
Output
Fig.2 VSWR
CONFIDENTIAL
Customer Name
System
Customer No.
Qualcomm
WCDMA-Rx
FUJITSU MEDIA DEVICES LIMITED
DATE
Version3.0c
Reference No.
Sep. 21, 2005
FMD Part Number
FAR-F6KA-2G1400-D4CGQ
Preliminary
Fig.3 In-band Characteristic
Fig.4 Wide-band Characteristic
CONFIDENTIAL
Customer Name
System
Customer No.
Qualcomm
WCDMA-Rx
FUJITSU MEDIA DEVICES LIMITED
DATE
Version3.0c
Reference No.
Sep. 21, 2005
FMD Part Number
FAR-F6KA-2G1400-D4CGQ
Preliminary
1890 - 2390MHz

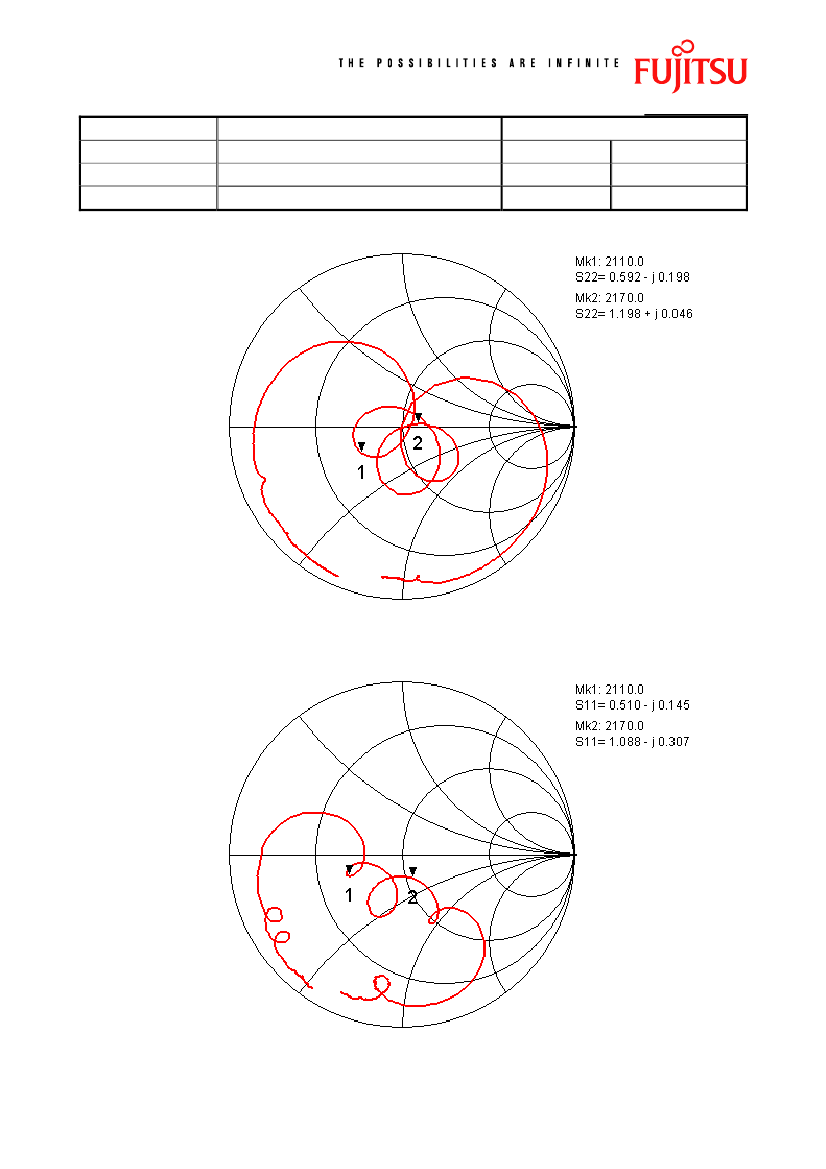

Fig.5 Impedance (S11)
1890 - 2390MHz
Fig.6 Impedance (S22)
