MP402: DescriptionBridge Rectifier Diode, 1 Phase, 40A, 200V V(RRM), Silicon, PLASTIC, MP-50, 4 PIN; Categorydiode; File Size128KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

MP402 Overview

Bridge Rectifier Diode, 1 Phase, 40A, 200V V(RRM), Silicon, PLASTIC, MP-50, 4 PIN

MP402 Parametric

Parameter Name	Attribute value
Maker	Microsemi
package instruction	S-PUFM-D4
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JESD-30 code	S-PUFM-D4
JESD-609 code	e0
Maximum non-repetitive peak forward current	400 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	40 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

21201 Itasca St.

Chatsworth, CA 91311

Phone: (818) 701-4933

Fax: (818) 701-4939

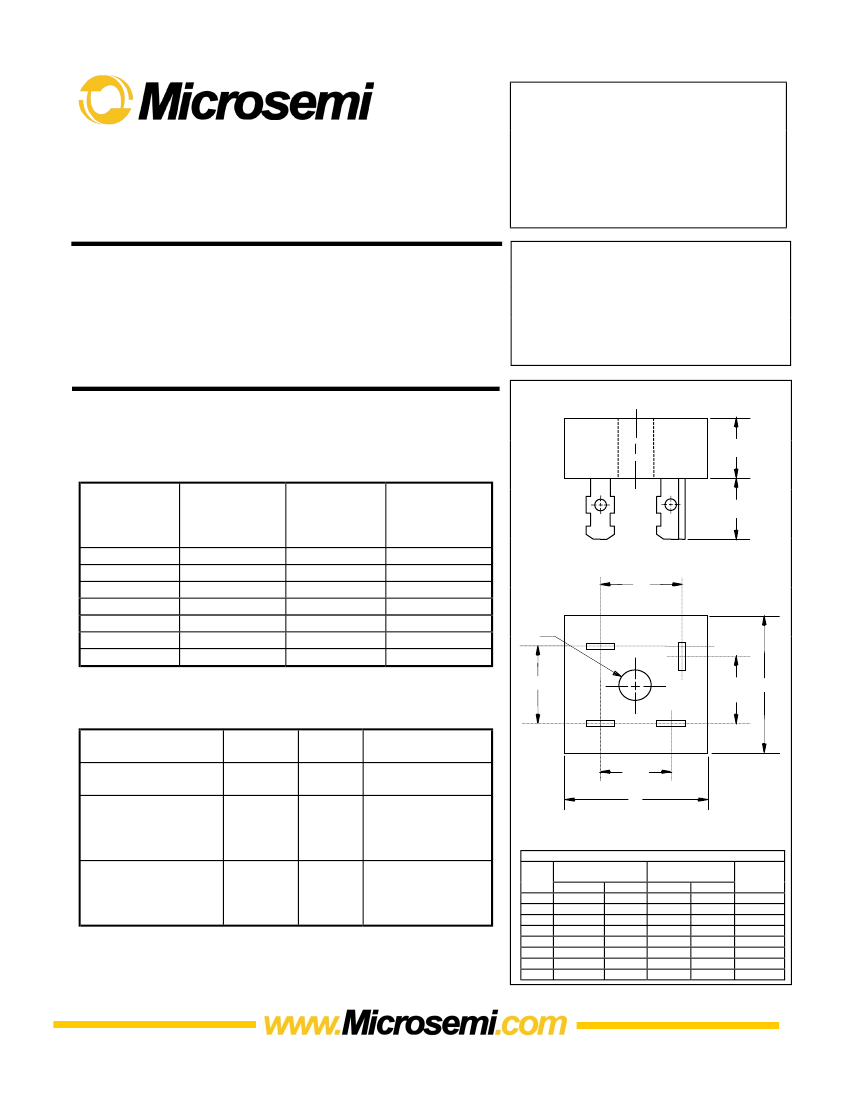

MP4005

THRU

MP4010

40 Amp Single Phase

Bridge Rectifier

50 to 1000 Volts

MP-50

B

Features

•

Mounting Hole For #8 Screw

Plastic Case With Metal Bottom

Any Mounting Position

Surge Rating Of 400 Amps

Maximum Ratings

•

Operating Temperature: -50°C to +150°C

Storage Temperature: -50°C to +150°C

Maximum

Recurrent

Peak Reverse

Voltage

50V

100V

200V

400V

600V

800V

1000v

Maximum DC

Blocking

Voltage

50V

100V

200V

400V

600V

800V

1000v

Microsemi

Part Number

MP4005

MP401

MP402

MP404

MP406

MP408

MP4010

Maximum

RMS Voltage

35V

70V

140V

280V

420V

560V

700V

C

E

G

AC

D

+

H

-

AC

A

Electrical Characteristics @ 25°C Unless Otherwise Specified

Average Forward

Current

Peak Forward Surge

Current

Maximum Forward

Voltage Drop Per

Element

I

F(AV)

I

FSM

40.0A

400A

T

J

= 55°C

8.3ms, half sine

J

A

V

F

1.2V

I

FM

= 20A per

element;

T

J

= 25°C*

DIM

A

B

C

D

E

G

H

J

INCHES

MIN

---

.425

.693

.637

.188

.633

.543

DIMENSIONS

MM

MIN

---

10.80

17.54

16.20

4.77

16.10

13.80

Maximum DC

Reverse Current At

I

R

10µA

T

J

= 25°C

Rated DC Blocking

0.5mA T

J

= 100°C

Voltage

*Pulse test: Pulse width 300

µsec,

Duty cycle 1%

MAX

1.140

.452

.480

.732

.677

---

.673

.582

MAX

29.00

11.50

12.20

18.6

17.20

---

17.10

14.80

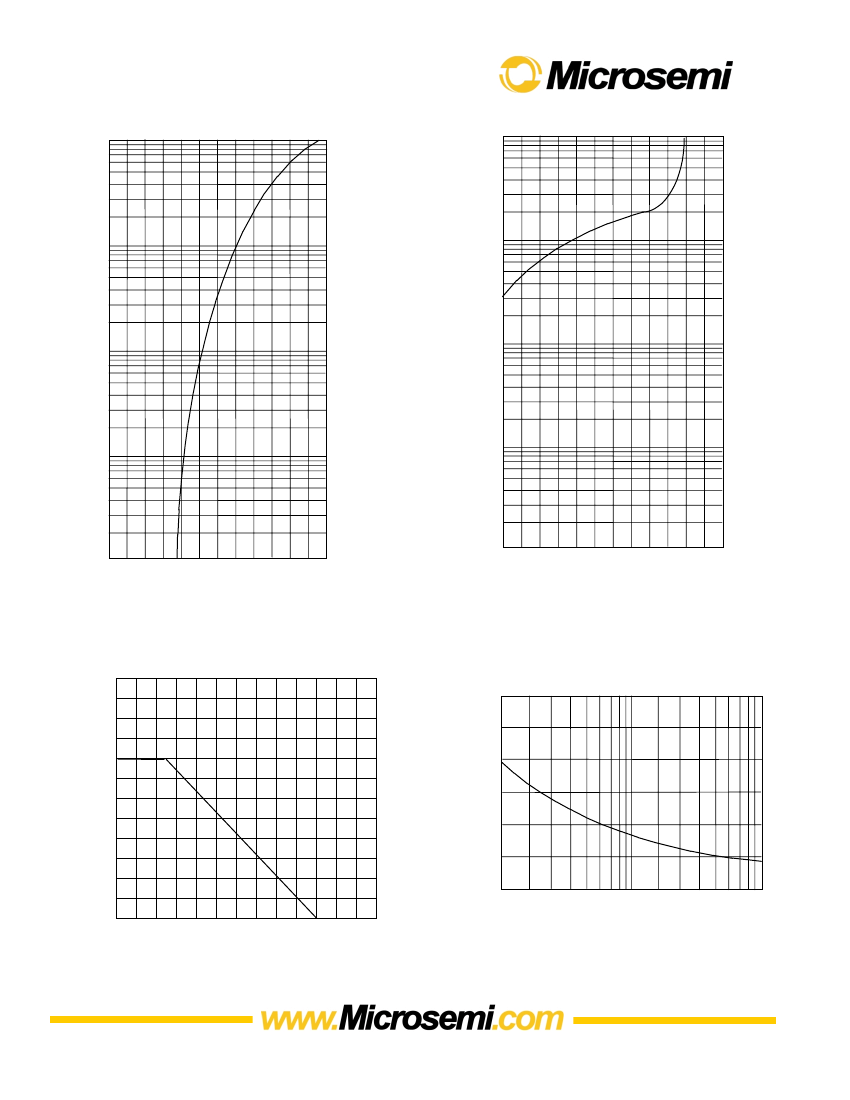

NOTE

∅

MP402 Related Products

	MP402	MP4005	MP4010	MP404
Description	Bridge Rectifier Diode, 1 Phase, 40A, 200V V(RRM), Silicon, PLASTIC, MP-50, 4 PIN	Bridge Rectifier Diode, 1 Phase, 40A, 50V V(RRM), Silicon, PLASTIC, MP-50, 4 PIN	Bridge Rectifier Diode, 1 Phase, 40A, 1000V V(RRM), Silicon, PLASTIC, MP-50, 4 PIN	Bridge Rectifier Diode, 1 Phase, 40A, 400V V(RRM), Silicon, PLASTIC, MP-50, 4 PIN
Maker	Microsemi	Microsemi	Microsemi	Microsemi
package instruction	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4
Contacts	4	4	4	4
Reach Compliance Code	compliant	compliant	compliant	compliant
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	1.2 V	1.2 V	1.2 V
JESD-30 code	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4
JESD-609 code	e0	e0	e0	e0
Maximum non-repetitive peak forward current	400 A	400 A	400 A	400 A
Number of components	4	4	4	4
Phase	1	1	1	1
Number of terminals	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	40 A	40 A	40 A	40 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	50 V	1000 V	400 V
surface mount	NO	NO	NO	NO
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER
