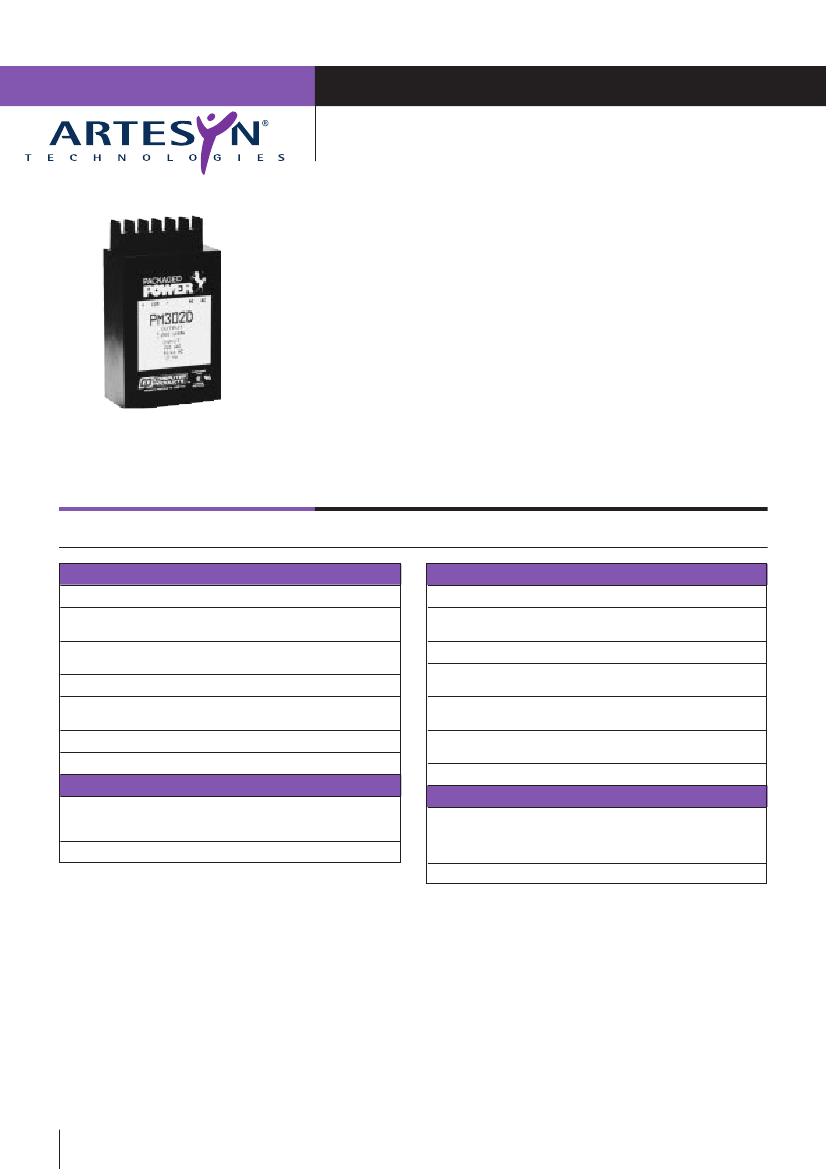

PM300 SERIES
Single, dual and triple output
Recommended for new design-ins
•
•
•
•
•
•
Terminal strip connections
Chassis mounted
Split bobbin wound
UL and CSA approved
115, 220 or 240VAC input
Short circuit protection
[ 2 YEAR WARRANTY ]
These popular chassis-mountable linear power modules feature 13 single, 17
dual and 10 triple output models. This series is designed for special applications
where mounting on a housing or metal chassis is required. Input/output
connections are made to screw terminals on a barrier terminal strip and
mounting is made convenient by means of four threaded inserts in the bottom
of each module. For maximum safety, all power transformers are split bobbin
wound, rather than layer wound, to give total isolation between primary and
secondary. Overvoltage crowbar protection is standard on all 5V outputs for
protection of logic circuitry. Standard input voltage is 115VAC at 47 to 400Hz;
other optional inputs are 220, and 240VAC. Input/output isolation voltage is
2500VAC. Output current limiting and short circuit protection are standard.
SPECIFICATION
OUTPUT SPECIFICATIONS
Voltage accuracy
Line regulation
Load regulation
Temperature coefficient
Overvoltage protection
Output power limit
Short circuit protection
INPUT SPECIFICATIONS
All specifications are typical at nominal input, full load at 25°C unless otherwise stated
GENERAL SPECIFICATIONS
±1.0%, max.
See table on
facing page
See table on
facing page
±0.02%/°C
Efficiency
Isolation voltage
Isolation capacitance
Approvals and
standards
Case material
Weight
MTBF
ENVIRONMENTAL SPECIFICATIONS
Case C1
Case C2
Safety
Input/output, no suffix
Suffix "-D" and "-K"
40% typical
700VAC
2500VAC
50pF
UL478
CSA22.2-143 and -154
Non-conductive
black plastic
567g (20.02oz)
816g (28.80oz)
710,000 hours
See table for relevant
models
6.2V typ.
130% to 200% FL typ.
100% to 200% FL
Input voltage range
No suffix
Suffix "-D"
Suffix "-K"
See Note 1
115V±10VAC
220V±20VAC
240V±20VAC
47Hz to 400Hz
Temperature
Input frequency range
Operating ambient
–25°C to +71°C
Non-operating amb. –25°C to +85°C
Derating, 50°C to 71°C
2.5%/°C
Cooling
Free-air convection
Non-condensing
20% to 95% RH
Relative Humidity
PAGE 1
AC/DC ENCAPSULATED MODULES
|
2.5-15W AC
2.5 to 15 Watt
AC/DC encapsulated modules
OUTPUT
VOLTAGE
OUTPUT
CURRENT
OVP
REGULATION
LINE
LOAD
RIPPLE AND
NOISE
CASE
AVAILABLE MODELS
SINGLE OUTPUT
5VDC
5VDC
5VDC
12VDC
24VDC
24VDC
500mA
1000mA
2000mA
600mA
200mA
400mA
Yes
Yes
Yes
No
No
No
±.05%
±.05%
±.05%
±.05%
±.05%
±.05%
±0.10%
±0.15%
±0.15%
±0.05%
±0.05%
±0.05%
2mV rms
2mV rms
2mV rms
1mV rms
1mV rms
1mV rms
C1
C1
C2
C2
C1
C2
PM342
PM345
PM317
PM334D
PM342D
PM345D
PM317D
PM367D
PM368D
PM368K
PM342K
PM345K
PM317K
DUAL OUTPUT
±12VDC
±12VDC
±15VDC
±15VDC
±15VDC
±15VDC
±240mA
±400mA
±100mA
±200mA
±350mA
±500mA
No
No
No
No
No
No
±0.05%
±0.05%
±0.05%
±0.05%
±0.05%
±0.05%
±0.05%
±0.05%
±0.05%
±0.05%
±0.05%
±0.05%
1mV rms
1mV rms
1mV rms
1mV rms
1mV rms
1mV rms
C1
C2
C1
C1
C2
C2
PM337
PM397
PM302
PM365
PM301
PM396
PM337D
PM397D
PM302D
PM365D
PM301D
PM396D
PM365K
PM301K
PM396K
PM337K
PM397K
TRIPLE OUTPUT
5V/±12VDC
5V/±12VDC
5V/±12VDC
5V/±15VDC
5V/±15VDC
5V/±15VDC
300/±180mA
500/±120mA
1000/±150mA
300/±150mA
500/±100mA
1000/±150mA
Yes
Yes
Yes
Yes
Yes
Yes
±0.05%
±0.05%
±0.20%
±0.05%
±0.05%
±0.20%
±0.1%/±0.05%
±0.1%/±0.05%
±0.1%/±0.02%
±0.1%/±0.05%
±0.1%/±0.05%
±0.1%/±0.02%
1mV rms
1mV rms
1.0/0.5mV rms
1mV rms
1mV rms
1.0/0.5mV rms
C1
C1
C2
C1
C1
C2
PM390
PM393
PM393D
PM395
PM391
PM392D
PM394D
PM390K
PM395D
PM391K
CASE C
0.75
(19.1)
0.75
(19.1)
5.40 BH
Screws
Single
Output
Models
Dual
Output
Models
Triple
Output
Models
AC
AC
AC
NC
AC
AC
NC
– OUT
COM
+ OUT
COM
+ 12V OUT
+ 15V OUT
AC
– 5V OUT
+ 5V OUT
– 12V OUT
– 15V OUT
INSERTS
4.40 THREAD
0.125 (3.2) DEEP
2.50
(63.5)
4.00
(101.6)
NC
COM
+ OUT
C1 C2
1.45
(36.8)
2.00
(50.8)
2.00
(50.8)
2.70
(68.6)
0.35
(8.9)
ALL DIMENSIONS IN INCHES (mm)
International Safety Standard Approvals
UL478 File No. E131987
CSA22.2-143 and -154 File No. LR59996C
Note
1
Some units should be derated for operation at 400Hz. Please contact
factory for details.
http://www.artesyn.com
PAGE 2
