MXC63TCFFREQ datasheet, PDF - EEWORLD Datasheet

MXC63TCFFREQ: DescriptionHCMOS Output Clock Oscillator, 0.75MHz Min, 160MHz Max,; Categoryoscillator; File Size79KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MXC63TCFFREQ Overview

HCMOS Output Clock Oscillator, 0.75MHz Min, 160MHz Max,

Parameter Name	Attribute value
Maker	MtronPTI
Reach Compliance Code	unknown
Is Samacsys	N
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Maximum operating frequency	160 MHz
Minimum operating frequency	0.75 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	5 TTL, 50 PF
physical size	14.48mm x 9.27mm x 6.6mm
longest rise time	10 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

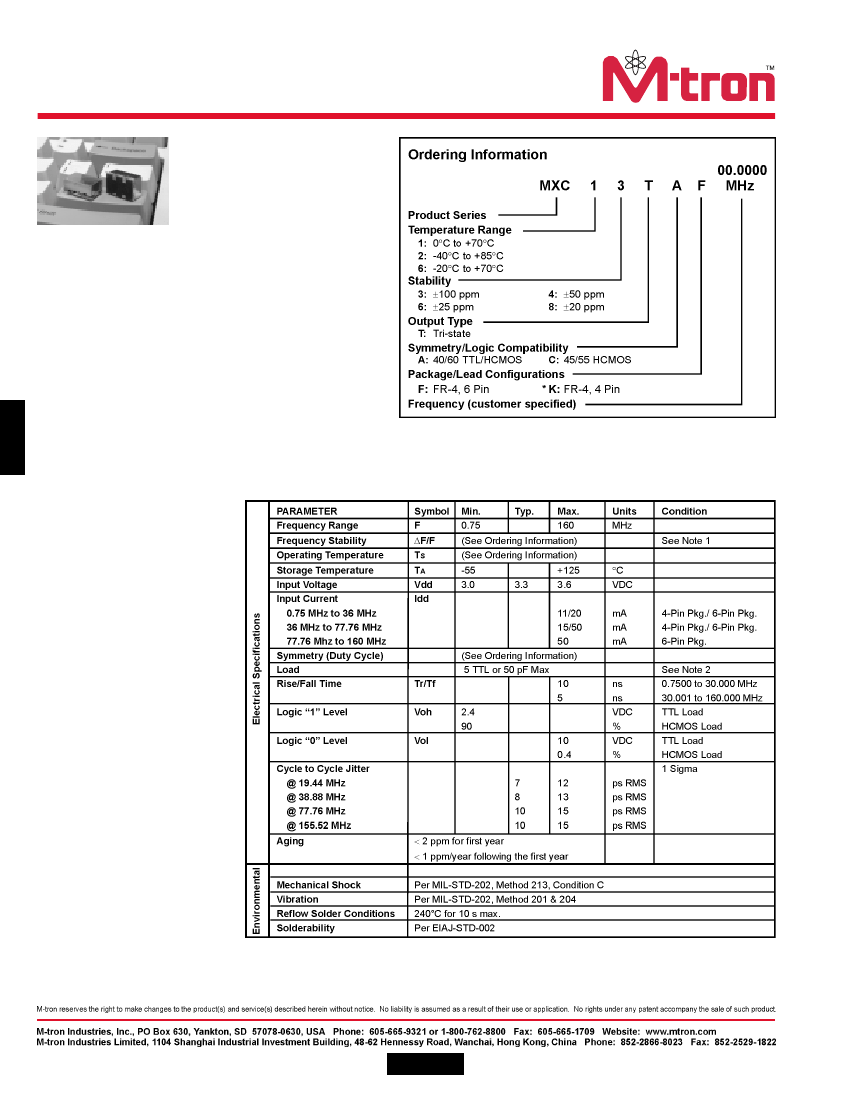

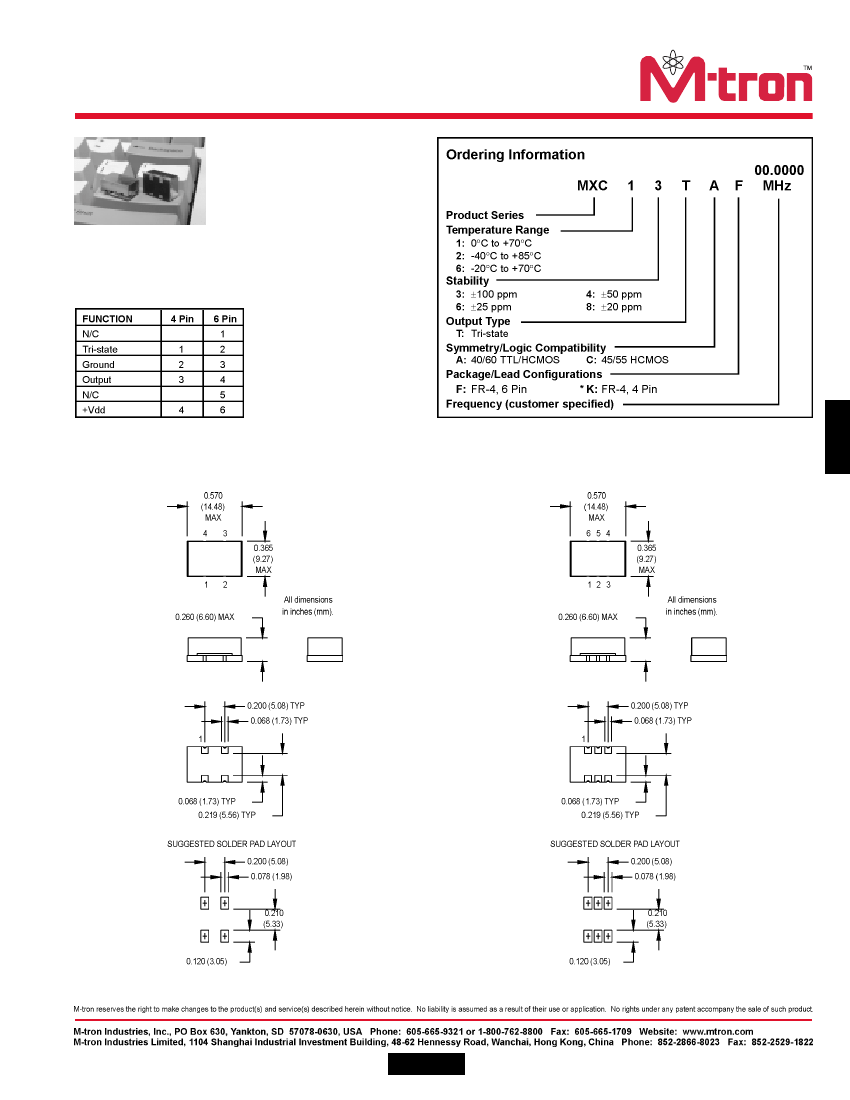

MXC Series 3.3 Volt FR-4 Based HCMOS/TTL

Compatible Surface Mount Oscillators

* 4 Pin available to 77.760 MHz only.

1. Calibration, deviation over temperature, shock, vibration, and aging.

2. See load circuit diagram #2 on page 92.

46
