1 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE

Preview

Download Datasheet

View All

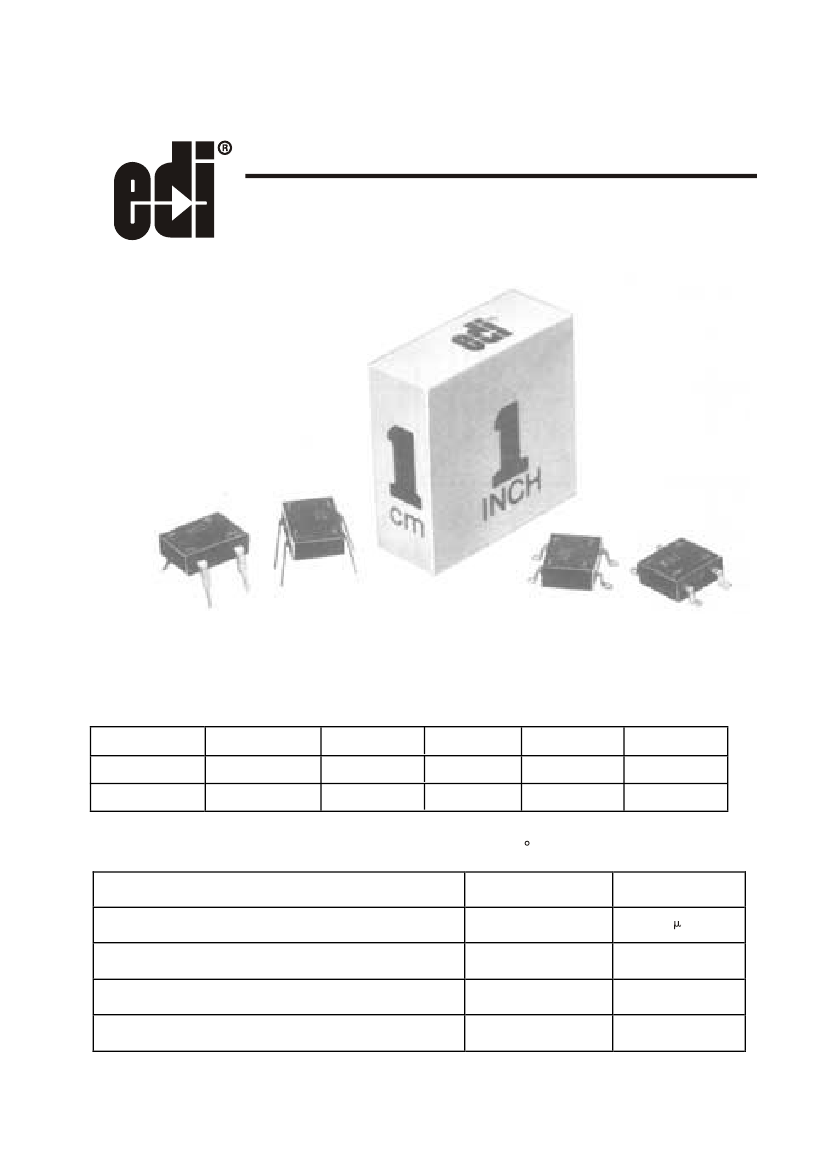

PL

PLS

SINGLE-PHASE FULL WAVE BRIDGE

1.0 AMPERES

FOR P.C. BOARD AND SURFACE MOUNTING

PL SERIES

Dual DIP Package

PRV/Leg

Type No.

50V

PL05

PL05S

200V

PL20

PL20S

400V

PL40

PL40S

PLS SERIES

Surface Mount Type

600V

PL60

PL60S

800V

PL80

PL80S

ELECTRICAL CHARACTERISTICS PER LEG (at T =25 C Unless Otherwise Specified)

A

Max.Forward Voltage Drop, V

F

=1.2 V @ I

F

=

Max. DC Reverse Current @ PRV and 25 C, I

R

Max. Peak Surge Current,I

FSM

(8.3

ms)

Ambient Operating Temperature Range, T

A

Storage Temperature Range, T

STG

o

1.0

5.0

50

-55 to +150

Amp

A

Amp

o

C

o

EDI reserves the right to change these specifications at any time without notice.

PL60 Related Products

	PL60	PL05	PL05S	PL20	PLS	PL80S	PL80	PL40	PL20S
Description	1 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE	1 A, 50 V, SILICON, BRIDGE RECTIFIER DIODE	1 A, 50 V, SILICON, BRIDGE RECTIFIER DIODE	CABLE TERMINATED, MALE, BNC CONNECTOR, PLUG	MALE, RIGHT ANGLE; STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	1 A, 800 V, SILICON, BRIDGE RECTIFIER DIODE	1 A, 800 V, SILICON, BRIDGE RECTIFIER DIODE	1 A, 400 V, SILICON, BRIDGE RECTIFIER DIODE	1 A, 200 V, SILICON, BRIDGE RECTIFIER DIODE
Maker	-	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	-	-	-	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]
package instruction	-	DIP-4	R-PDSO-G4	R-PDIP-T4	-	-	-	R-PDIP-T4	R-PDSO-G4
Reach Compliance Code	-	unknow	unknow	unknow	-	-	-	unknown	unknow
ECCN code	-	EAR99	EAR99	EAR99	-	-	-	EAR99	EAR99
Configuration	-	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	-	-	-	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	-	SILICON	SILICON	SILICON	-	-	-	SILICON	SILICON
Diode type	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	-	-	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	-	1.2 V	1.2 V	1.2 V	-	-	-	1.2 V	1.2 V
JESD-30 code	-	R-PDIP-T4	R-PDSO-G4	R-PDIP-T4	-	-	-	R-PDIP-T4	R-PDSO-G4
Maximum non-repetitive peak forward current	-	50 A	50 A	50 A	-	-	-	50 A	50 A
Number of components	-	4	4	4	-	-	-	4	4
Phase	-	1	1	1	-	-	-	1	1
Number of terminals	-	4	4	4	-	-	-	4	4
Maximum operating temperature	-	150 °C	150 °C	150 °C	-	-	-	150 °C	150 °C
Maximum output current	-	1 A	1 A	1 A	-	-	-	1 A	1 A
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	-	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	SMALL OUTLINE	IN-LINE	-	-	-	IN-LINE	SMALL OUTLINE
Certification status	-	Not Qualified	Not Qualified	Not Qualified	-	-	-	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	-	50 V	50 V	200 V	-	-	-	400 V	200 V
surface mount	-	NO	YES	NO	-	-	-	NO	YES
Terminal form	-	THROUGH-HOLE	GULL WING	THROUGH-HOLE	-	-	-	THROUGH-HOLE	GULL WING
Terminal location	-	DUAL	DUAL	DUAL	-	-	-	DUAL	DUAL
