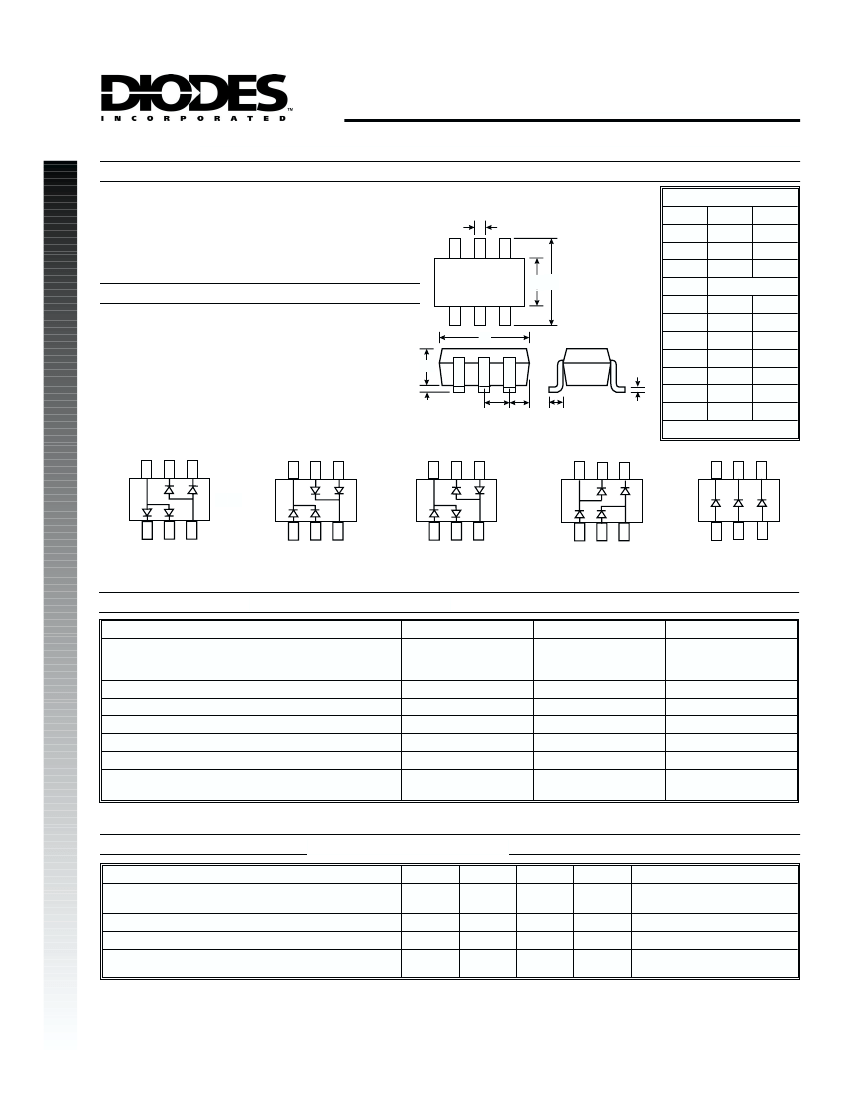

BAS40TW /DW-04 /DW-05 /
DW-06 /BRW
SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAYS
NEW PRODUCT
Features
·
·
·
·
Low Forward Voltage Drop
Fast Switching
Ultra-Small Surface Mount Package
PN Junction Guard Ring for Transient and
ESD Protection
SOT-363
A
Dim
A
Marking
Indicates
B C
Orientation
B
C
D
E
G
Min
0.10
1.15
2.00
0.30
1.80
1.80
¾
0.90
0.25
0.10
Max
0.30
1.35
2.20
0.40
2.20
2.20
0.10
1.00
0.40
0.25
Mechanical Data
·
·
·
·
Case: SOT-363, Molded Plastic
Terminals: Solderable per MIL-STD-202,
Method 208
Polarity: See Diagrams Below
Weight: 0.006 grams (approx.)
KXX
H
K
0.65 Nominal
H
M
J
K
L
M
J
D
F
L
All Dimensions in mm
AC
1
A
1
C
2
C
2
C
1
A
2
A
2
C
2
A
2
AC
1
C
1
C
2
C
1
C
2
C
3
C
1
C
1
A
2
A
1
A
1
C
2
A
1
C
1
AC
2
A
1
A
2
AC
2
A
1
A
2
A
3
BAS40DW-06
Marking: K46
BAS40DW-05
Marking: K45
BAS40DW-04
Marking: K44
BAS40BRW
Marking: K47
BAS40TW
Marking: K43
Maximum Ratings
@ T
A
= 25°C unless otherwise specified
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
@ t < 1.0s
I
FSM
P
d
R
qJA
T
j
,
T
STG
Value
40
28
200
600
200
625
-55 to +125
-65 to +125
Unit
V
V
mA
mA
mW
K/W
°C
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 1)
Non-Repetitive Peak Forward Surge Current
Power Dissipation (Note 1)
Thermal Resistance Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
Electrical Characteristics
Characteristic
Maximum Forward Voltage
Maximum Peak Reverse Current
Junction Capacitance
Reverse Recovery Time
Notes:
@ T
A
= 25°C unless otherwise specified
Symbol
V
FM
I
RM
C
j
t
rr
Min
¾
¾
¾
¾
Max
380
1000
200
5.0
5.0
Unit
mV
mV
nA
pF
ns
Test Condition
I
F
= 1.0mA, t
p
< 300ms
I
F
= 40mA, t
p
< 300ms
V
R
= 30V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100W
1. Valid Provided that terminals are kept at ambient temperature.
DS30156 Rev. D-1
1 of 1
BAS40TW /DW-04 /DW-05 /DW-06 /BRW
