Features
omponents
20736 Marilla
Street Chatsworth
!"#
$
% !"#
BAT54WT
thru
BAT54SWT
200mWatt, 30Volt
Schottky Barrier Diode
SOT-323
A
D
•
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
Low Forward Voltage
Surface Mount SOT-323 Package
Capable of 200mWatts of Power Dissipation
Lead Free Finish/Rohs Compliant ("P"Suffix designates
RoHS Compliant. See ordering information)
Halogen
free available upon request by adding suffix "-HF"
Part
Number
BAT54WT
BAT54AWT
BAT54CWT
BAT54SWT
Device
Marking
KL5
KL6
KL7
KL8
Type
Single
Dual
Dual
Dual
Pin
Configuration
Figure 1
Figure 2
Figure 3
Figure 4
B
C
F
E
Maximum Ratings
Continuous Reverse Voltage
Forward Current
Repetitive Peak Forward Current
Non-Repetitive Peak Forward Current t<1s
Total Power Dissipation @ T
A
= 25°C
Storage Temperature Range
Junction Temperature
Ratings
Forward Voltage at
I
F
= 0.1mA
I
F
= 1mA
I
F
= 10mA
I
F
= 30mA
I
F
= 100mA
Reverse Current
Reverse Breakdown
Voltage
Capacitance
Symbol
Max.
V
R
I
F
I
FRM
I
FSM
P
D
T
stg
T
j
30V
200mA
300mA
600mA
200mW
-55°C to 125°C
-55°C to 125°C
Notes
G
H
J
K
DIMENSIONS
Electrical Characteristics @ 25
°C
Unless Otherwise Specified
240mV
320mV
400mV
500mV
1000mV
2 uA
>30V
V
F
DIM
A
B
C
D
E
F
G
H
J
K
INCHES
MIN
MAX
.071
.087
.045
.053
.083
.096
.026 Nominal
.047
.055
.012
.016
.000
.004
.035
.039
.004
.010
.006
.016
MM
MIN
MAX
1.80
2.20
1.15
1.35
2.10
2.45
0.65Nominal
1.20
1.40
.30
.40
.000
.100
.90
1.00
.100
.250
.15
.40
NOTE
Suggested Solder
Pad Layout
0.70
I
R
V
(BR)
V
R
= 25V
0.90
C
J
10pF
Reverse Recovery
Time
Thermal Resistance,
Junction to Ambient
t
rr
5nS
Measured at
1.0MHz, V
R
=1.0V
I
F
=I
R
=10mA;
I
(REC)
= 1mA
0.65
0.65
1.90
R
θJA
500K/W
Revision:
D
www.mccsemi.com
1 of 3
2013/09/24
BAT54WT thru BAT54SWT
MCC
Micro Commercial Components
100
T
A
= 125ºC
TM
I
F
, INSTANTANEOUS
FORWARD CURRENT (A)
1
0.1
10
T
A
= 75ºC
1
T
A
= 125ºC
0.01
T
A
= 75ºC
T
A
= 25ºC
T
A
= 25ºC
T
A
= 0ºC
0.1
T
A
= 0ºC
0.001
0.01
T
A
= -40ºC
0.0001
0
0.2
0.4
0.6
0.8
1.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

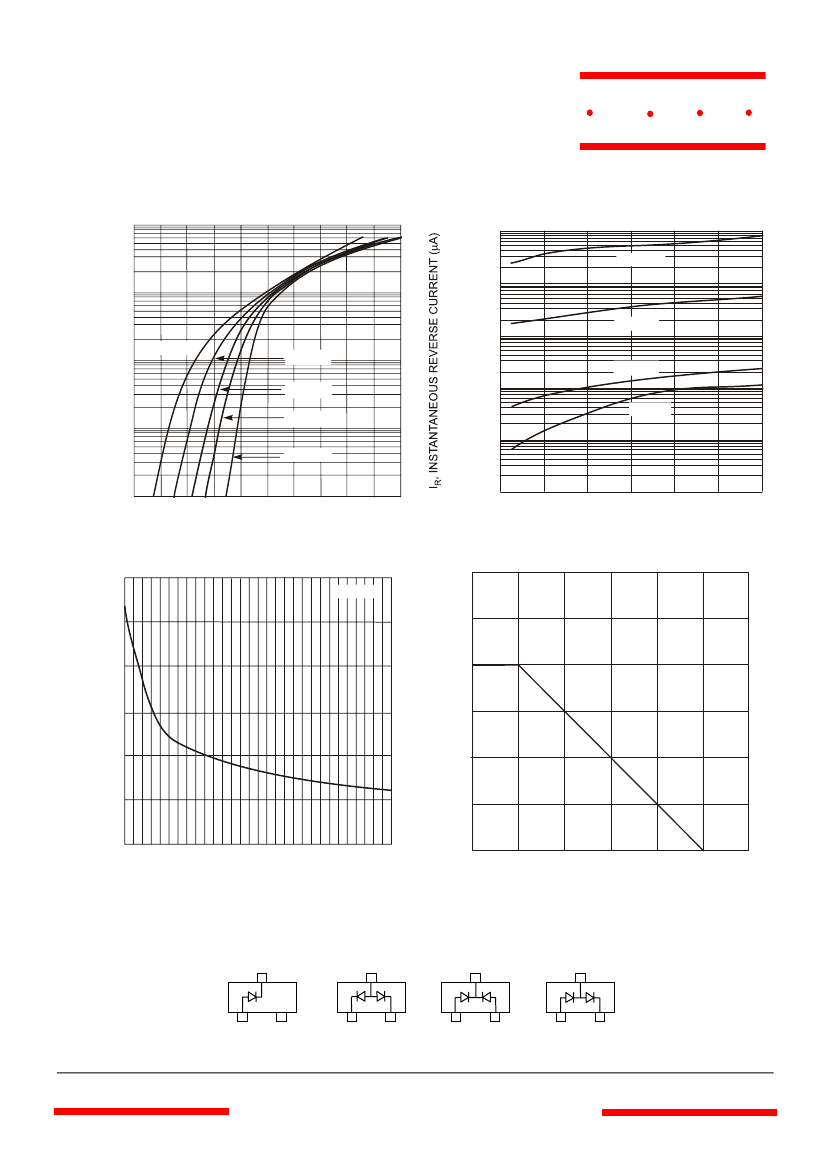

Fig. 1 Forward Characteristics
12
f = 1.0MHz
0.001
0
5
10
15
20
25
30
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
300
P
d
,
POWER DISSIPATION (mW)
0
5
10
15
20
25
30
10
C
T
, TOTAL CAPACITANCE (pF)
250
8
200
6
150
4
100
2
50
0
0
0
25
50
75
100
125
150
V
R
, REVERSE VOLTAGE (V)
Fig. 3 Typical Capacitance vs. Reverse Voltage
Pin Configuration - Top View
T
A
,
AMBIENT TEMPERATURE (°C)
Fig.
4 Power Derating Curve
Figure 1
Figure 2
Figure 3
Figure 4
Revision:
D
www.mccsemi.com
2 of 3
2013/09/24
MCC
Micro Commercial Components
TM
Ordering Information :
Device
Part Number-TP
Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF
Packing
Tape&Reel:
3Kpcs/Reel
