DZ23C2V7–DZ23C51
Vishay Telefunken
300 mW Dual Surface Mount Zener Diodes
Features
D
D
D
D
D

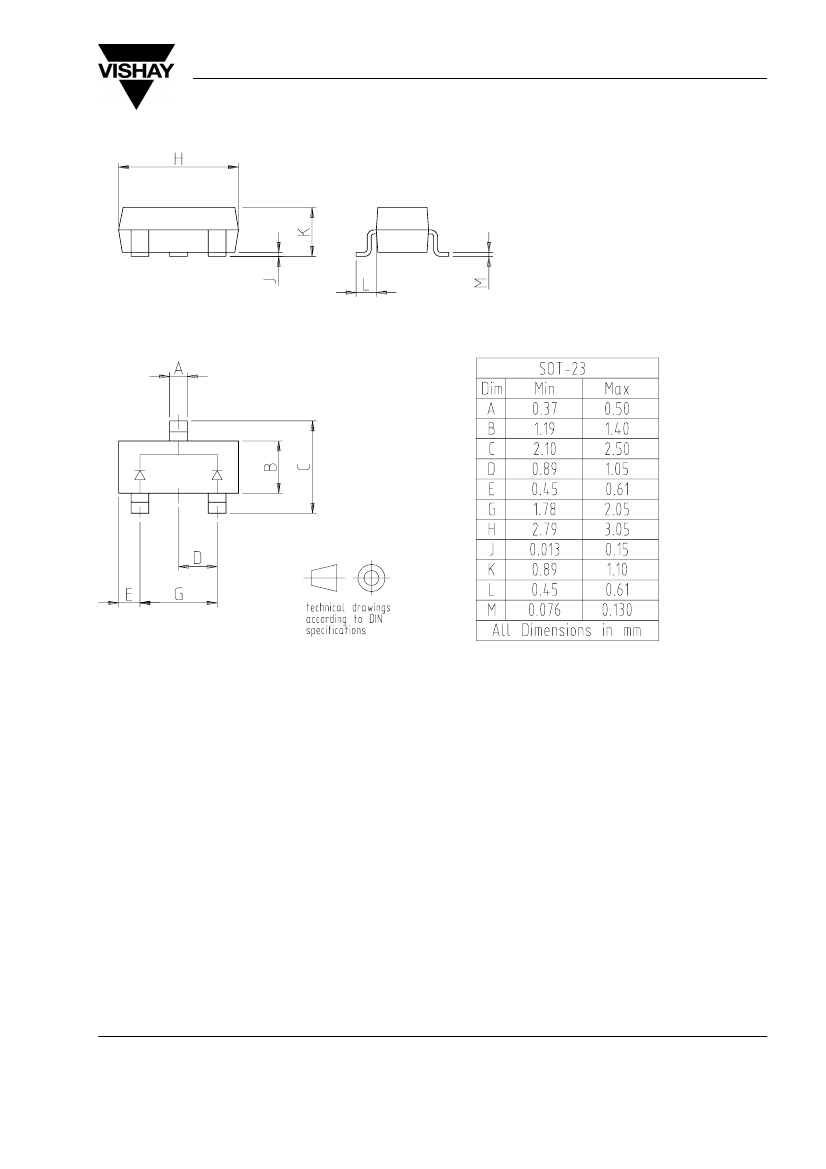

SOT–23 surface mount package
300 mW power dissipation rating
Ideally suited for automatic insertion
D
V
Z
for both diodes in one case is
≤
5%
Common anode style available see AZ series
94 8550
Order Instruction
Type
DZ23C2V7
Ordering Code
DZ23C2V7–GS08
Remarks
Tape and Reel
Absolute Maximum Ratings
T
j
= 25
_
C
Parameter
Power dissipation
Junction and storage temperature range
Test Conditions
on fiberglass substrate
Type
Symbol
P
d
T
j
=T
stg
Value
300
–65...+150
Unit
mW
°
C
Maximum Thermal Resistance
T
j
= 25
_
C
Parameter
Junction ambient
Test Conditions
on fiberglass substrate
Symbol
R
thJA
Value
420
Unit
K/W
Document Number 85592
Rev. A2, 12-Mar-01
www.vishay.com
1 (4)
DZ23C2V7–DZ23C51
Vishay Telefunken
Ozone Depleting Substances Policy Statement
It is the policy of
Vishay Semiconductor GmbH
to
1. Meet all present and future national and international statutory requirements.
2. Regularly and continuously improve the performance of our products, processes, distribution and operating
systems
with respect to their impact on the health and safety of our employees and the public, as well as their impact on
the environment.
It is particular concern to control or eliminate releases of those substances into the atmosphere which are known as
ozone depleting substances ( ODSs ).
The Montreal Protocol ( 1987 ) and its London Amendments ( 1990 ) intend to severely restrict the use of ODSs and
forbid their use within the next ten years. Various national and international initiatives are pressing for an earlier ban
on these substances.
Vishay Semiconductor GmbH
has been able to use its policy of continuous improvements to eliminate the use of
ODSs listed in the following documents.
1. Annex A, B and list of transitional substances of the Montreal Protocol and the London Amendments respectively
2 . Class I and II ozone depleting substances in the Clean Air Act Amendments of 1990 by the Environmental
Protection Agency ( EPA ) in the USA
3. Council Decision 88/540/EEC and 91/690/EEC Annex A, B and C ( transitional substances ) respectively.
Vishay Semiconductor GmbH
can certify that our semiconductors are not manufactured with ozone depleting
substances and do not contain such substances.
We reserve the right to make changes to improve technical design and may do so without further notice.
Parameters can vary in different applications. All operating parameters must be validated for each customer application
by the customer. Should the buyer use Vishay-Telefunken products for any unintended or unauthorized application, the
buyer shall indemnify Vishay-Telefunken against all claims, costs, damages, and expenses, arising out of, directly or
indirectly, any claim of personal damage, injury or death associated with such unintended or unauthorized use.
Vishay Semiconductor GmbH, P.O.B. 3535, D-74025 Heilbronn, Germany
Telephone: 49 ( 0 ) 7131 67 2831, Fax number: 49 ( 0 ) 7131 67 2423
www.vishay.com
4 (4)
Document Number 85592
Rev. A2, 12-Mar-01
