BAS40-T1S datasheet, PDF - EEWORLD Datasheet

BAS40-T1S: DescriptionMixer Diode, Silicon; Categorydiode; File Size56KB，4 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

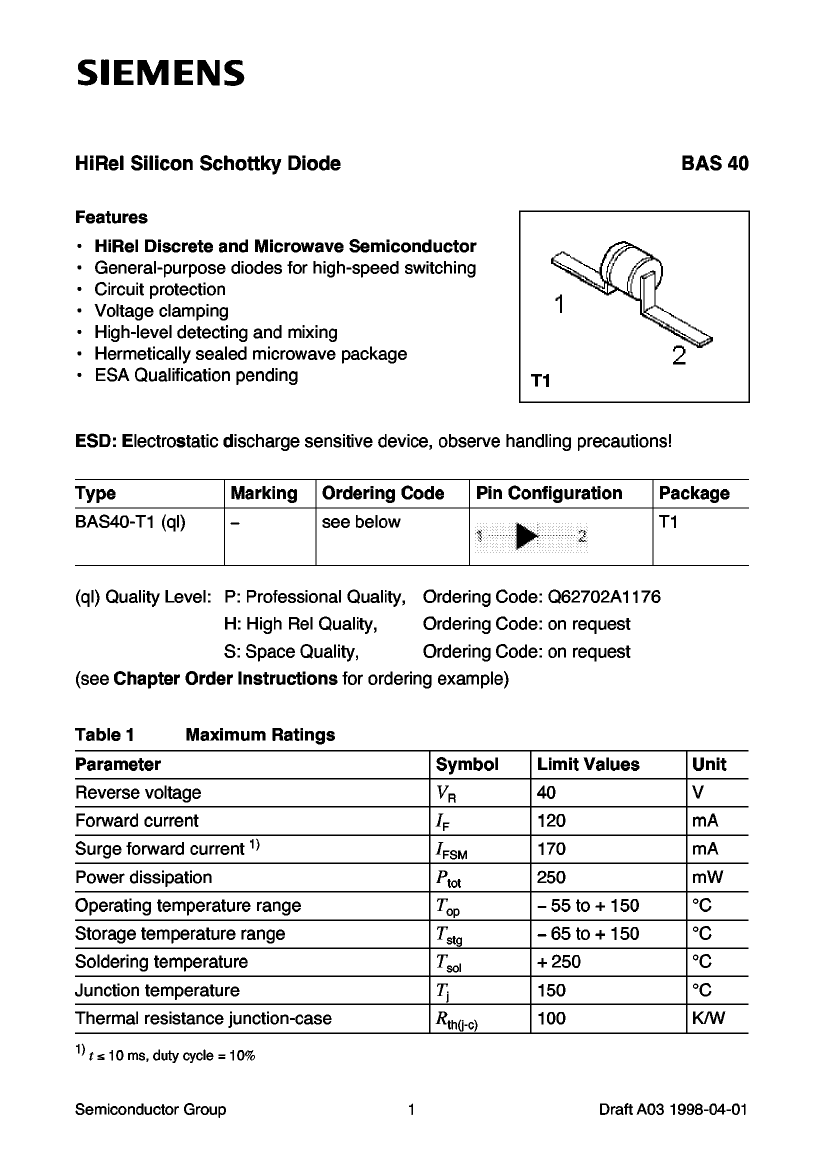

BAS40-T1S Overview

Mixer Diode, Silicon

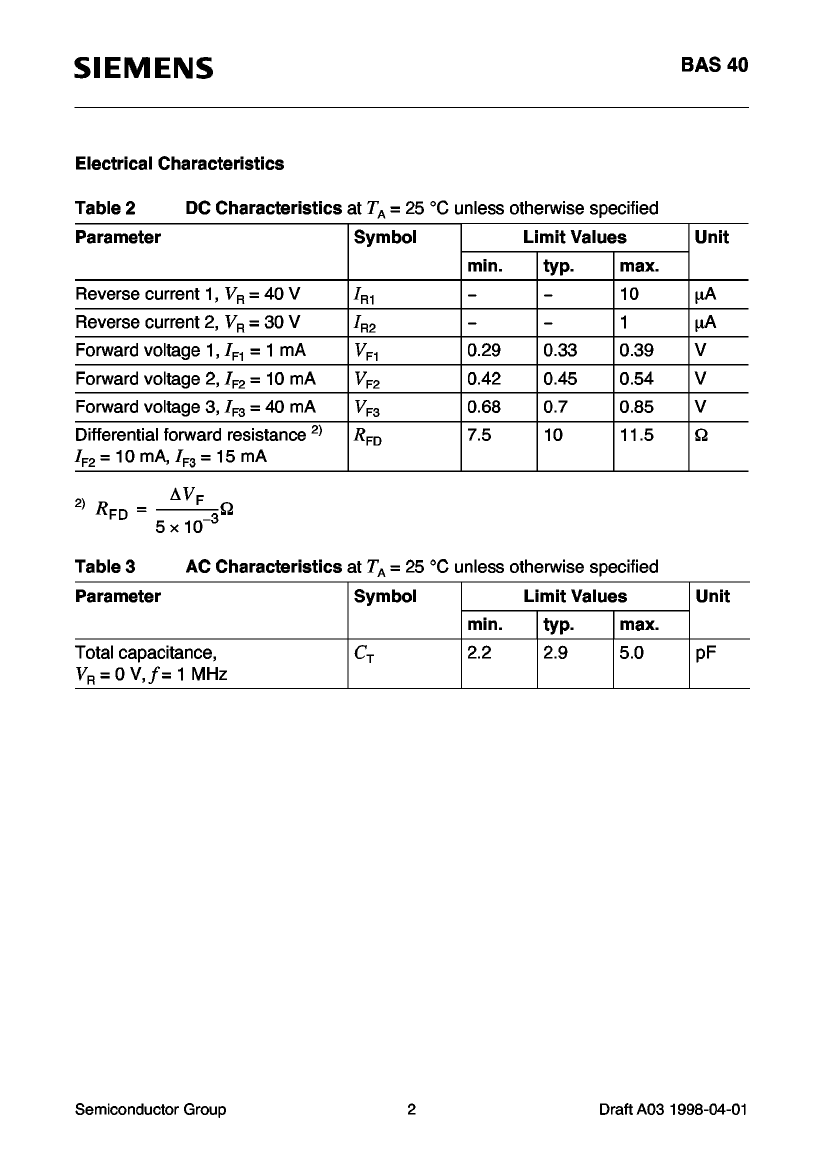

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	O-CXMW-G2
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	HIGH RELIABILITY
Configuration	SINGLE
Maximum diode capacitance	5 pF
Diode component materials	SILICON
Diode type	MIXER DIODE
JESD-30 code	O-CXMW-G2
Number of components	1
Number of terminals	2
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	MICROWAVE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	UNSPECIFIED
Base Number Matches	1

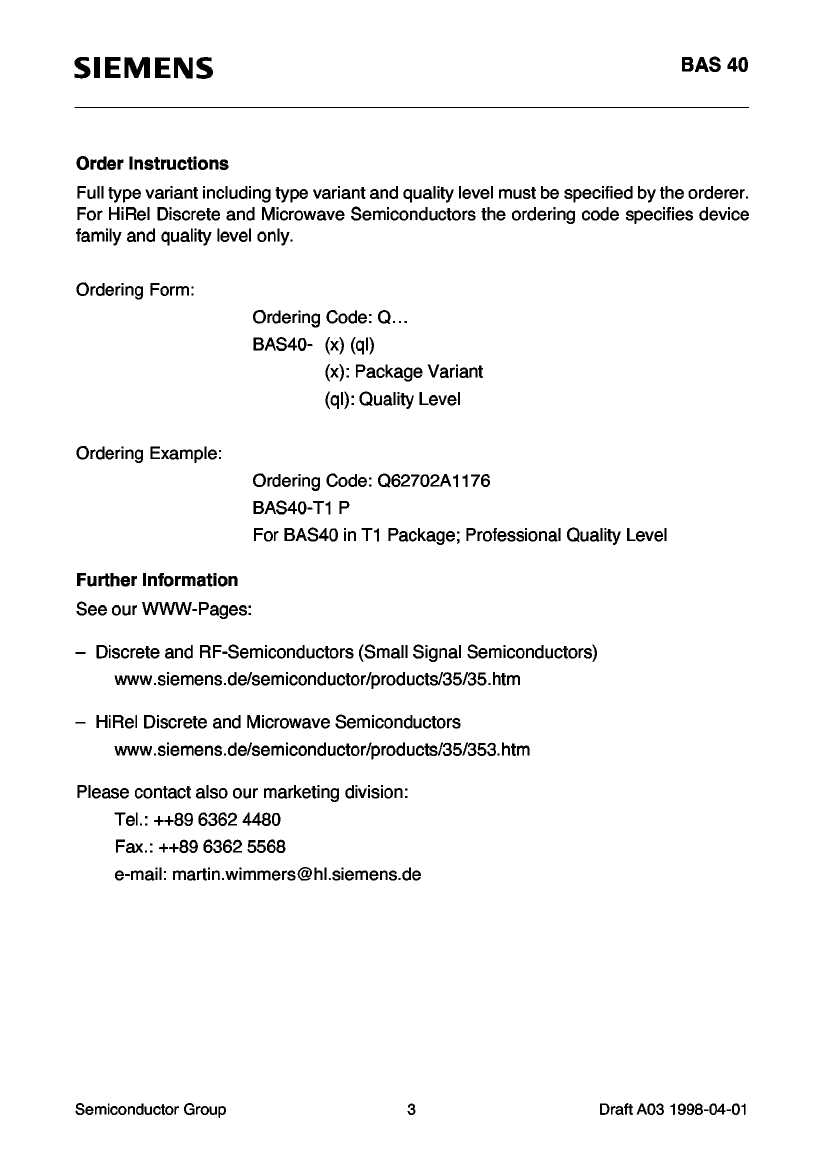

	BAS40-T1S	BAS40-T1H	BAS40-T1P
Description	Mixer Diode, Silicon	Mixer Diode, Silicon	Mixer Diode, Silicon
Maker	SIEMENS	SIEMENS	SIEMENS
package instruction	O-CXMW-G2	O-CXMW-G2	O-CXMW-G2
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Configuration	SINGLE	SINGLE	SINGLE
Maximum diode capacitance	5 pF	5 pF	5 pF
Diode component materials	SILICON	SILICON	SILICON
Diode type	MIXER DIODE	MIXER DIODE	MIXER DIODE
JESD-30 code	O-CXMW-G2	O-CXMW-G2	O-CXMW-G2
Number of components	1	1	1
Number of terminals	2	2	2
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND	ROUND
Package form	MICROWAVE	MICROWAVE	MICROWAVE
Maximum power dissipation	0.25 W	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Base Number Matches	1	1	1
