D1F40-4073 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > diode> Rectifier diode> D1F40-4073

Preview

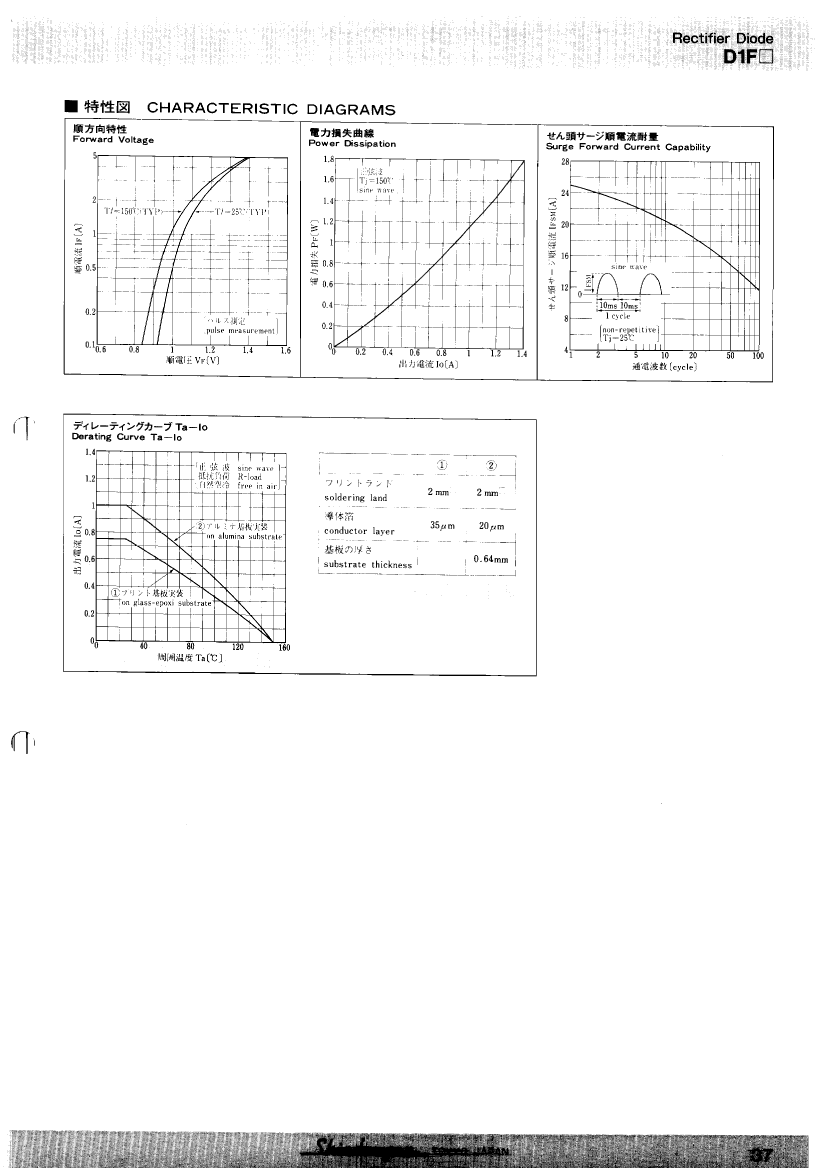

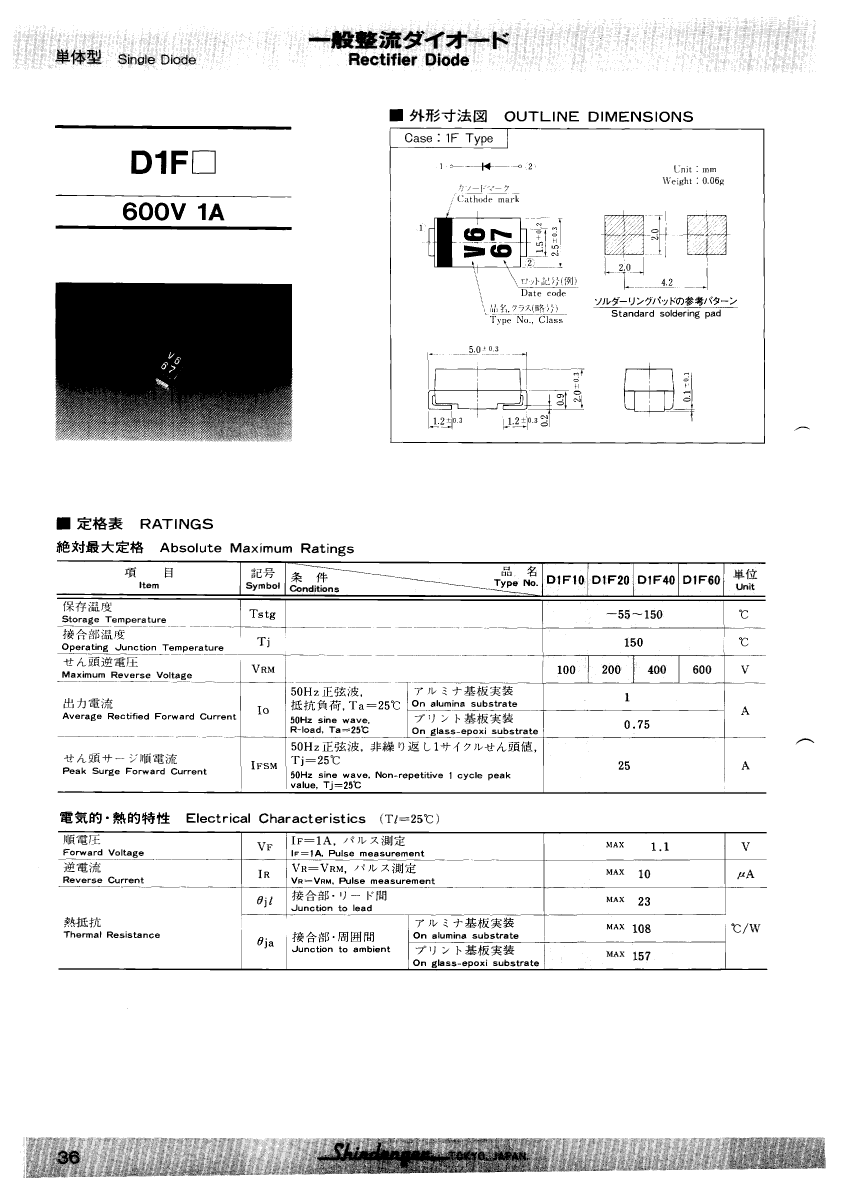

D1F40-4073: DescriptionRectifier Diode, 1 Element, 0.75A, Silicon, 1F, 2 PIN; Categorydiode Rectifier diode; File Size279KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

D1F40-4073 Overview

Rectifier Diode, 1 Element, 0.75A, Silicon, 1F, 2 PIN

D1F40-4073 Parametric

Parameter Name	Attribute value
Maker	SHINDENGEN
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-C2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	0.75 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

D1F40-4073 Related Products

	D1F40-4073	D1F10-4103	D1F40-4103	D1F10-4063	D1F10-4073	D1F40-4063
Description	Rectifier Diode, 1 Element, 0.75A, Silicon, 1F, 2 PIN	Rectifier Diode, 1 Element, 0.75A, Silicon, 1F, 2 PIN	Rectifier Diode, 1 Element, 0.75A, Silicon, 1F, 2 PIN	Rectifier Diode, 1 Element, 0.75A, Silicon, 1F, 2 PIN	Rectifier Diode, 1 Element, 0.75A, Silicon, 1F, 2 PIN	Rectifier Diode, 1 Element, 0.75A, Silicon, 1F, 2 PIN
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Contacts	2	2	2	2	2	2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	0.75 A	0.75 A	0.75 A	0.75 A	0.75 A	0.75 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	-	-
