Digital Attenuator

31.0 dB, 5-Bit, TTL Driver, DC-2.0 GHz

Features

•

Attenuation: 1 dB steps to 31 dB

•

Temperature Stability: ± 0.18 dB from –55°C to

+85°C Typical

•

Low DC Power Consumption

•

Hermetic Surface Mount Package

•

Integral TTL Driver

•

50 Ohm Nominal Impedance

•

Lead-Free CR-12 Package

•

260°C Reflow Compatible

AT-263-PIN

V5

Functional Schematic

Description

M/A-COM’s AT-263-PIN is a GaAs FET 5-bit digital

attenuator with a 1 dB minimum step size and 31 dB

total attenuation. This attenuator and integral TTL

driver is in a hermetically sealed ceramic 16-lead

surface mount package. The AT-263-PIN is ideally

suited for use where accuracy, fast switching, very

low power consumption and low intermodulation

products are required. Typical applications include

dynamic range setting in precision receiver circuits

and other gain/leveling control circuits. Environ-

mental screening is available. Contact the factory

for information.

Pin Configuration

Pin No.

1

2

3

4

5

6

Function

RF1

GND

RF2

Pin No.

9

10

11

12

13

14

15

16

Function

C5

+5V

-5V

C4

C3

C2

C1

GND

Ordering Information

Part Number

AT-263-PIN

AT-263TR

AT-263-TB

7

8

Package

Bulk Packaging

1000 piece reel

Sample Test Board

The metal bottom of the case must be connected to RF and DC

ground.

Note: Reference Application Note M513 for reel size

information.

Note: Die quantity varies.

* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.

1

M/A-COM Inc. and its affiliates reserve the right to make changes to the

product(s) or information contained herein without notice. M/A-COM makes

no warranty, representation or guarantee regarding the suitability of its

products for any particular purpose, nor does M/A-COM assume any liability

whatsoever arising out of the use or application of any product(s) or

information.

•

North America

Tel: 800.366.2266 / Fax: 978.366.2266

•

Europe

Tel: 44.1908.574.200 / Fax: 44.1908.574.300

•

Asia/Pacific

Tel: 81.44.844.8296 / Fax: 81.44.844.8298

Visit www.macom.com for additional data sheets and product information.

RoHS

Compliant

Digital Attenuator

31.0 dB, 5-Bit, TTL Driver, DC-2.0 GHz

Electrical Specifications: (From –55°C to +85°C)

1

Parameter

Reference Insertion Loss

AT-263-PIN

V5

Test Conditions

—

Frequency

DC - 0.5 GHz

DC - 1.0 GHz

DC - 2.0 GHz

DC - 1.0 GHz

DC - 2.0 GHz

—

0.05 GHz

0.5 - 2.0 GHz

0.05 GHz

0.5 - 2.0 GHz

0.05 GHz

0.5 - 2.0 GHz

—

Units

dB

Min

—

Typ

—

Max

2.4

2.8

3.0

Attenuation Accuracy

2

Any Single Bit

Any Combination of Bits

—

10% to 90%

50% Control to 90/10% RF

In-Band (peak-peak)

Input Power

For two-tone Input Power

Up to +5 dBm

For two-tone Input Power

Up to +5 dBm

—

Vcc = 4.5 to 5.5V

Vctl = 0 to 0.8V, or Vcc –

2.1V to Vcc

Vee = -5.0 to -8.0V

Logic 0 (TTL)

Logic 1 (TTL)

0 to 0.8V

2.0 to 5.0V

± (0.25 +3% of atten setting in dB) dB

± (0.25 +3% of atten setting in dB) dB or ± 0.4 dB,

whichever is greater

Ratio

ns

mV

dBm

V

mA

—

4.5

-8.0

—

9

40

30

+20

+28

+40

+48

+45

+68

5.0

—

1.6:1

—

5.5

-5.0

5.0

VSWR

Trise, Tfall

Ton, Toff

Transients

1 dB Compression

Input IP3

Input IP2

Vcc

Vee

Icc

Iee

Vctl

Input Leakage Current (Low)

Input Leakage Current (High)

—

mA

V

A

—

0.0

2.0

—

1.0

0.8

5.0

1.0

1. All specifications apply when operated with bias voltages of +5V for Vcc and –5.0V for Vee.

2. This attenuator is guaranteed monotonic.

2

M/A-COM Inc. and its affiliates reserve the right to make changes to the

product(s) or information contained herein without notice. M/A-COM makes

no warranty, representation or guarantee regarding the suitability of its

products for any particular purpose, nor does M/A-COM assume any liability

whatsoever arising out of the use or application of any product(s) or

information.

•

North America

Tel: 800.366.2266 / Fax: 978.366.2266

•

Europe

Tel: 44.1908.574.200 / Fax: 44.1908.574.300

•

Asia/Pacific

Tel: 81.44.844.8296 / Fax: 81.44.844.8298

Visit www.macom.com for additional data sheets and product information.

RoHS

Compliant

Digital Attenuator

31.0 dB, 5-Bit, TTL Driver, DC-2.0 GHz

AT-263-PIN

V5

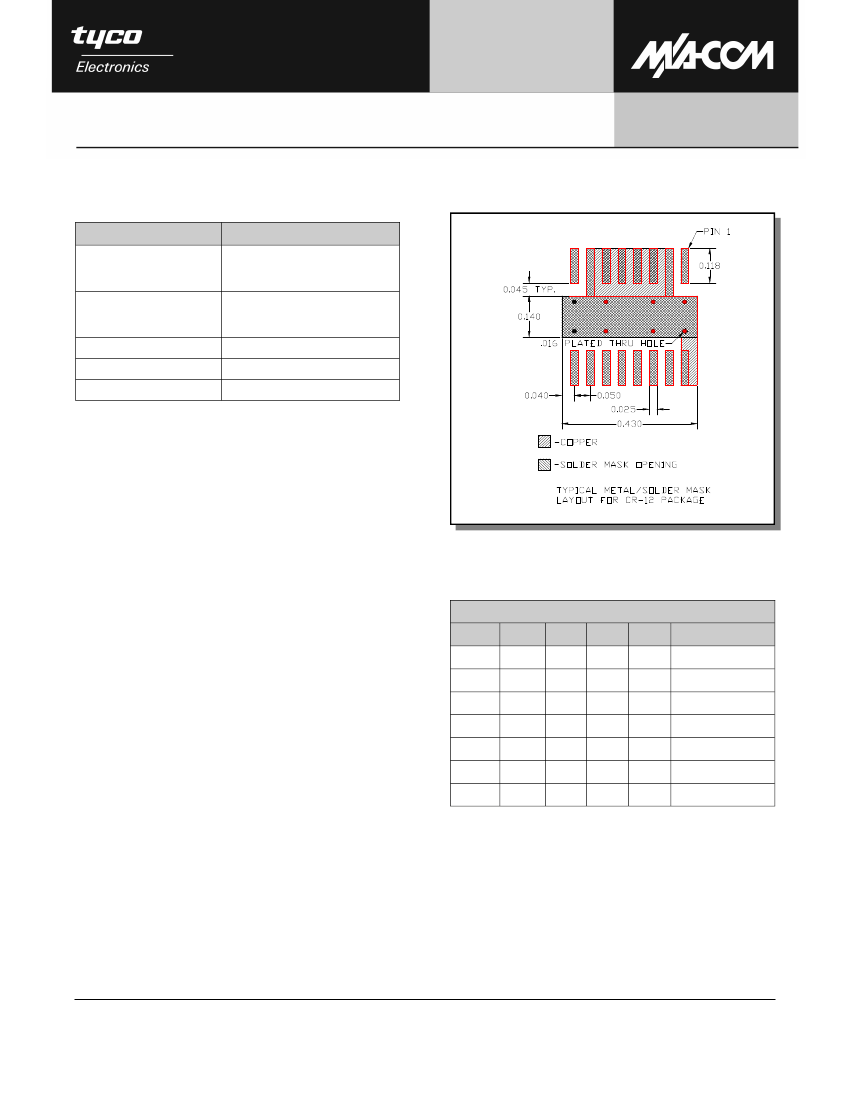

Recommended PCB Configuration

Absolute Maximum Ratings

3,4

Parameter

Max Input Power

0.05 GHz

0.5 - 2.0 GHz

Supply Voltages

Vcc

Vee

Control Voltage

5

Operating Temperature

Storage Temperature

3.

4.

5.

Absolute Maximum

+27 dBm

+34 dBm

+5.5V

-8.5V

-0.5V to Vcc +0.5V

-55°C to +125°C

-65°C to +150°C

Exceeding any one or combination of these limits may cause

permanent damage to this device.

M/A-COM does not recommend sustained operation near

these survivability limits.

Standard CMOS TTL interface, latch-up will occur if logic

signal is applied prior to power supply.

Handling Procedures

Please observe the following precautions to avoid

damage:

Truth Table (Digital Attenuator)

Control Inputs

C5

0

1

Static Sensitivity

Gallium Arsenide Integrated Circuits are sensitive

to electrostatic discharge (ESD) and can be

damaged by static electricity. Proper ESD control

techniques should be used when handling these

devices.

C4

0

1

0

1

C3

0

1

0

1

C2

0

1

0

1

C1

0

1

0

1

Attenuation

Reference

1 dB

2 dB

4 dB

8 dB

16 dB

31 dB

0 = TTL Low; 1 = TTL High

3

M/A-COM Inc. and its affiliates reserve the right to make changes to the

product(s) or information contained herein without notice. M/A-COM makes

no warranty, representation or guarantee regarding the suitability of its

products for any particular purpose, nor does M/A-COM assume any liability

whatsoever arising out of the use or application of any product(s) or

information.

•

North America

Tel: 800.366.2266 / Fax: 978.366.2266

•

Europe

Tel: 44.1908.574.200 / Fax: 44.1908.574.300

•

Asia/Pacific

Tel: 81.44.844.8296 / Fax: 81.44.844.8298

Visit www.macom.com for additional data sheets and product information.

RoHS

Compliant

Digital Attenuator

31.0 dB, 5-Bit, TTL Driver, DC-2.0 GHz

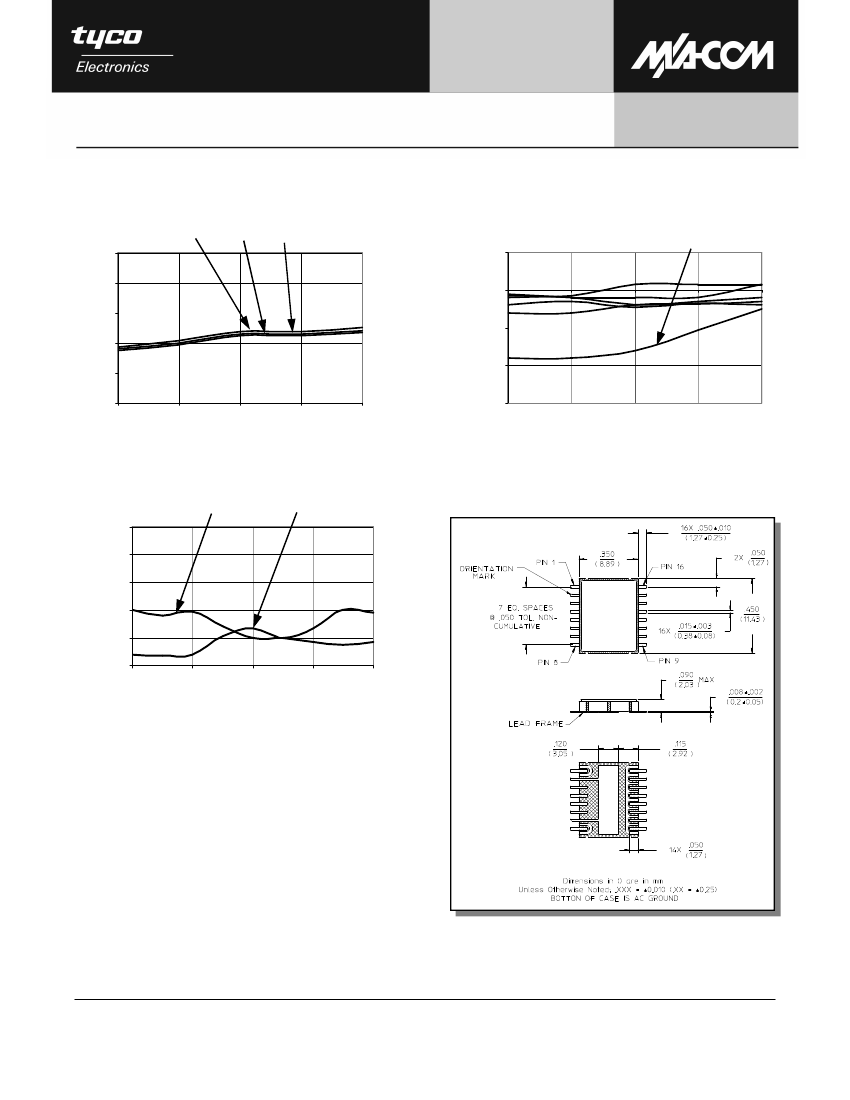

Typical Performance Curves
