VM0851603F040C2B: DescriptionSnap Acting/Limit Switch, SPST, On-(off), Momentary, 10.8966mm, Quick Connect Terminal, Straight Lever Actuator, Panel Mount; Categoryswitch; File Size204KB，3 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

VM0851603F040C2B Overview

Snap Acting/Limit Switch, SPST, On-(off), Momentary, 10.8966mm, Quick Connect Terminal, Straight Lever Actuator, Panel Mount

VM0851603F040C2B Parametric

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compliant
Is Samacsys	N
Actuator angle
Actuator material	POLYBUTYLENE TEREPHTHALATE
Actuator stroke	10.8966 mm
Actuator type	STRAIGHT LEVER
Other features	UL APPROVAL
body width	10.3124 mm
Body length or diameter	27.7876 mm
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Contact function	ON-(OFF)
Contact resistance	0.02 mΩ
contact time	SNAP ACTION
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1000VRMS V
Electrical life	100000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	SILVER
Insulation resistance	100000000 Ω
Manufacturer's serial number	VM
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal material	COPPER ALLOY
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

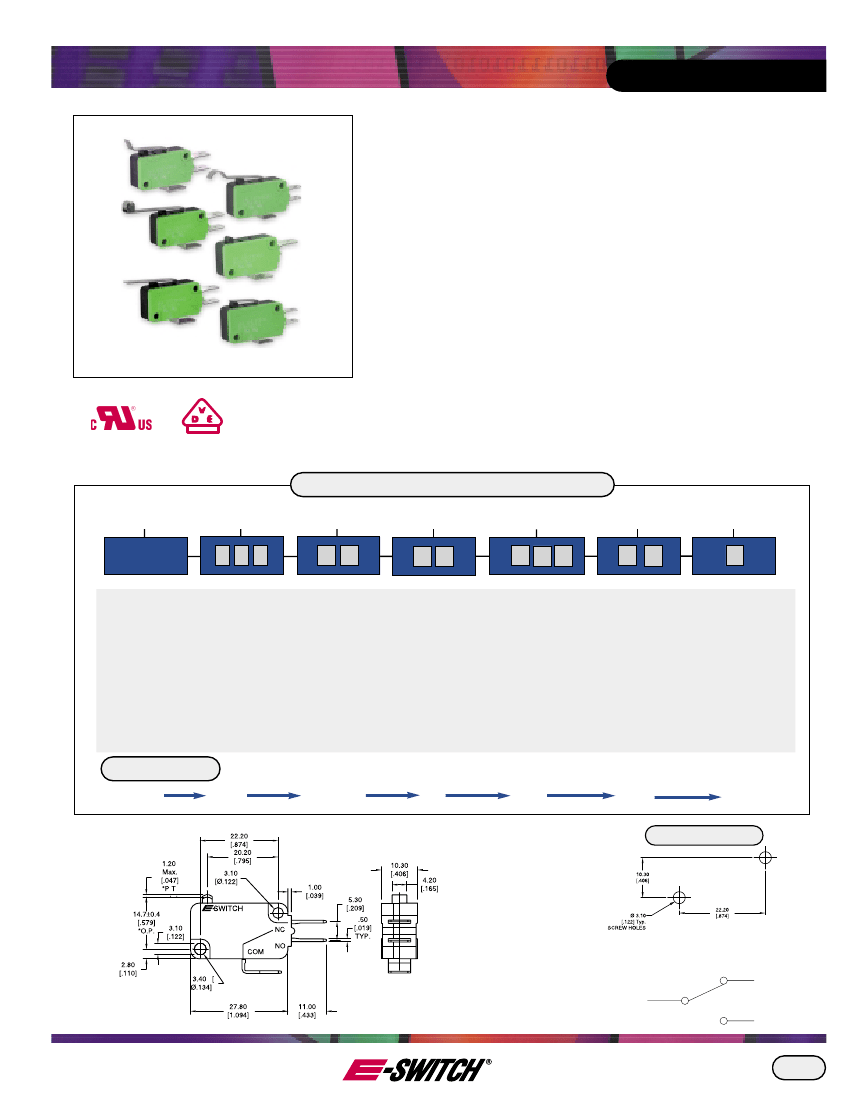

S E R I E S

VM

SWITCHES

SNAP ACTION SWITCH

SPECIFICATIONS

Contact Rating:

Gold .4VA max. @ 20 VDC or VAC Max.

.1 Amps @ 48 VDC

3 Amps @ 125/250 VAC-UL, CUL, VDE

6 Amps @ 125/250 VAC-UL, CUL, VDE

10 Amps @ 125/250 VAC-UL, CUL, VDE

16 Amps @ 125/250 VAC-UL, CUL, VDE

100,000 cycles minimum

5,000,000 cycles typical

100 MΩ min.

1,000 V RMS @ sea level.

-25° C to 85° C (std)

-25° C to 125° C (consult factory)

See Chart

Electrical Life:

Mechanical Life:

Insulation Resistance:

Dielectric Strength:

Operating Temperature:

Operating Force:

MATERIALS

Switch Housing:

Actuator Button:

Contacts:

Terminals:

Spring:

High Temperature PBT (UL94 V0)

Silver (std) or Gold

Copper Alloy

Phosphor Bronze

HOW TO ORDER

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

Series

Operating Temp. Current Rating

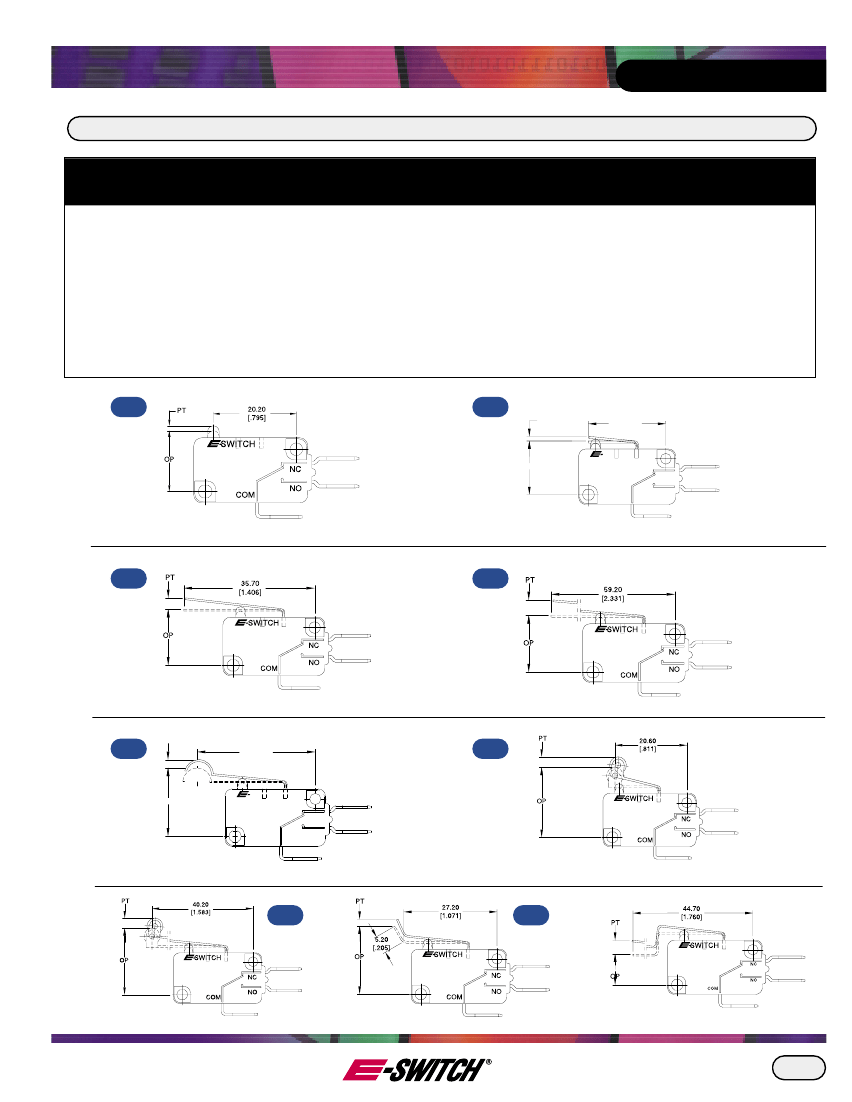

Actuator

Operating Force

Termination

Circuit

VM

085=85C

*125=125C

Q1=0.1A

R1=Gold

03=3A

06=6A

10=10A

16=16A

See Chart

F

See Chart

A=SPDT

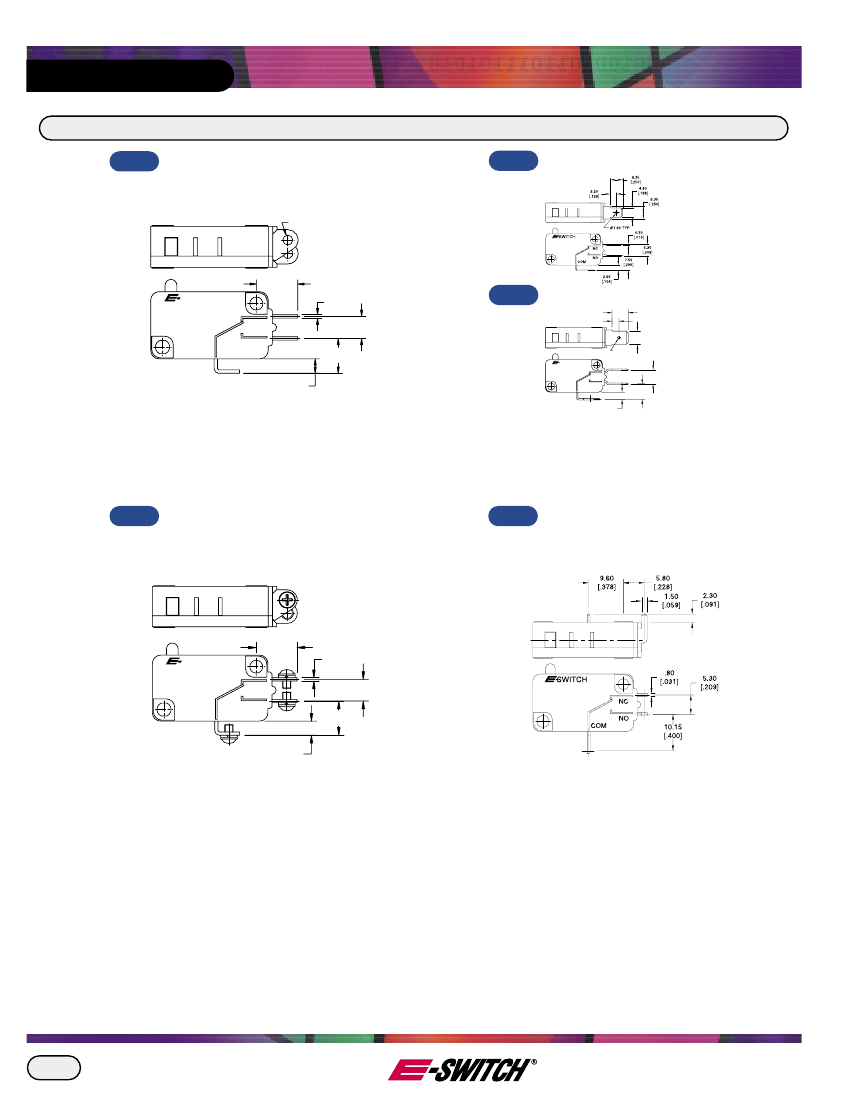

S1=Solder Lug

B=SPST NC

B1=Screw

C=SPST NO

Terminals

C1=0187”

Quick Connect

C2=0.250”

Quick Connect

V1-Right Angle PCB Pin

*Contact E-Switch

EXAMPLE

VM

125

10

03

F050

C2

A

P.C. MOUNTING

Schematic

NC

COM

NO

Phone: 763-504-3525

Fax: 763-531-8235

www.e -switch.com
