LC5733HQIP64A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Microcontrollers and processors> LC5733HQIP64A

LC5733HQIP64A: DescriptionMicrocontroller, 4-Bit, MROM, CMOS, PQFP64, QIP-64; CategoryMicrocontrollers and processors; File Size606KB，27 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

LC5733HQIP64A Overview

Microcontroller, 4-Bit, MROM, CMOS, PQFP64, QIP-64

LC5733HQIP64A Parametric

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	QFP
package instruction	QFP,
Contacts	64
Reach Compliance Code	unknown
Is Samacsys	N
Has ADC	NO
Address bus width
bit size	4
maximum clock frequency	0.032768 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G64
length	14 mm
Number of I/O lines	17
Number of terminals	64
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
ROM programmability	MROM
Maximum supply voltage	6 V
Minimum supply voltage	2.2 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

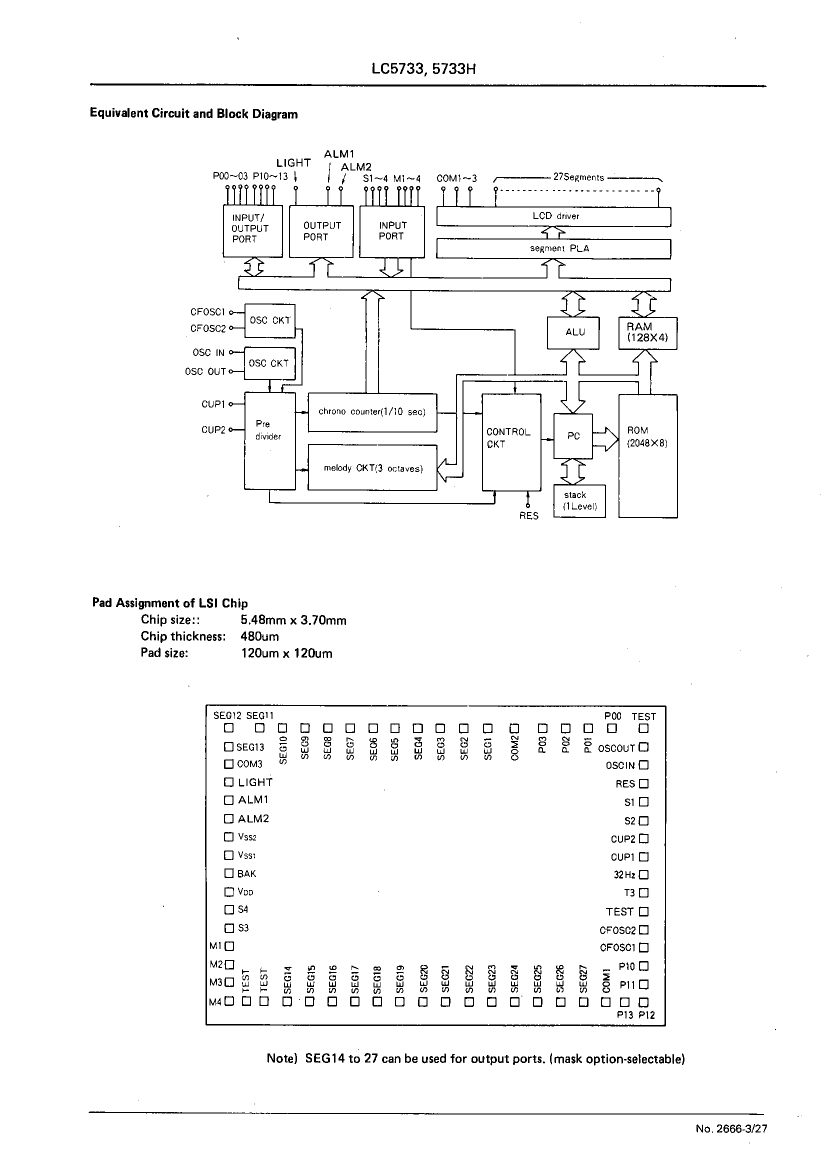

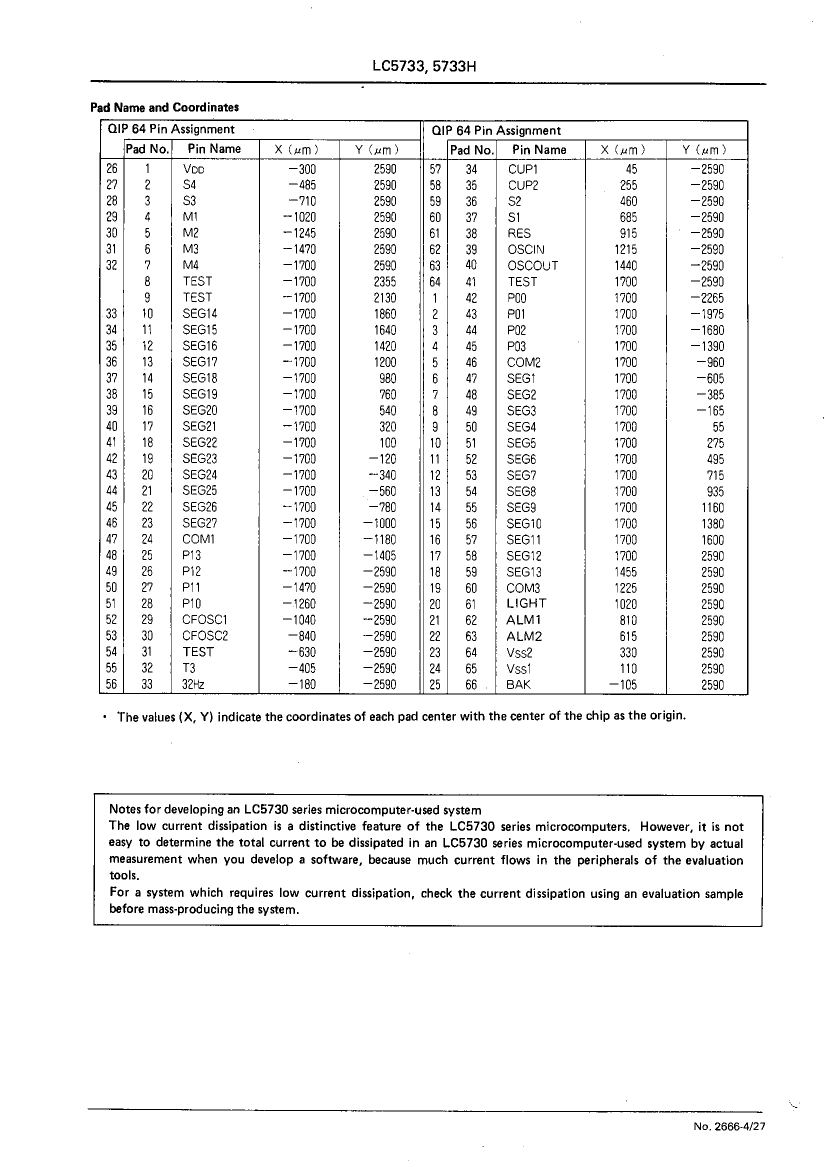

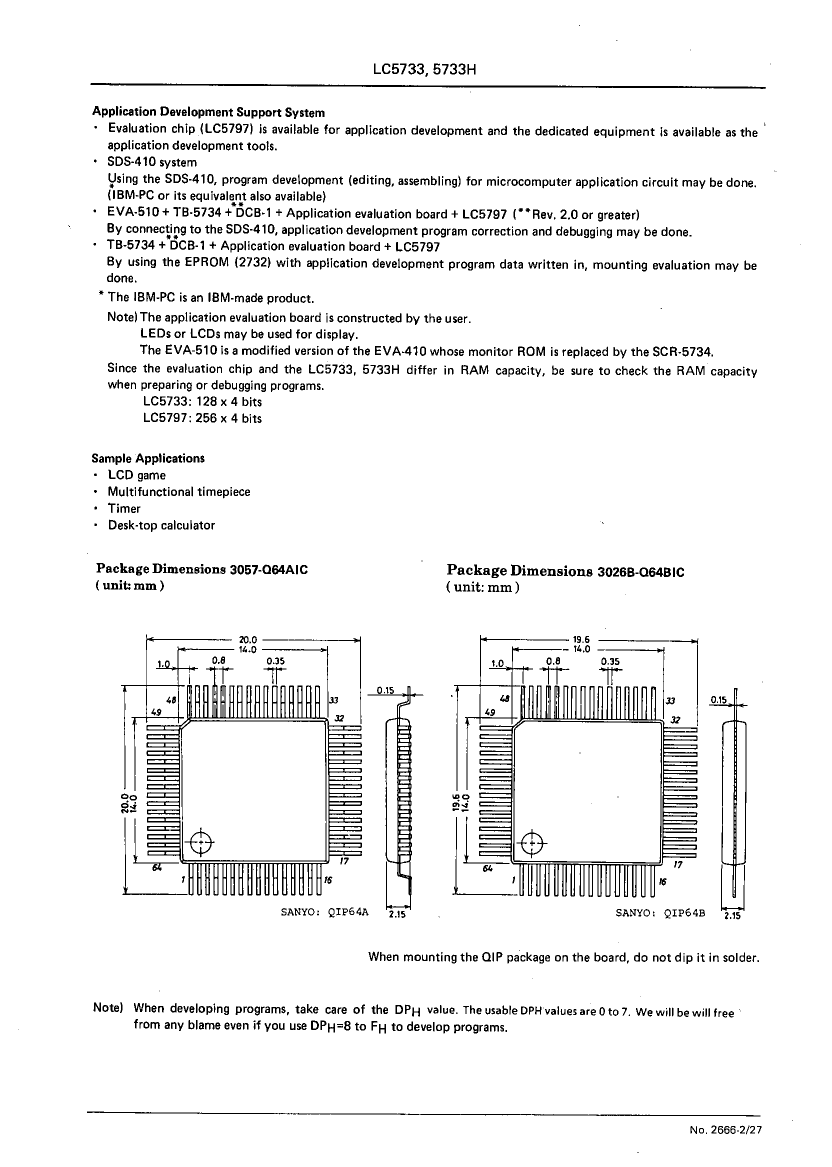

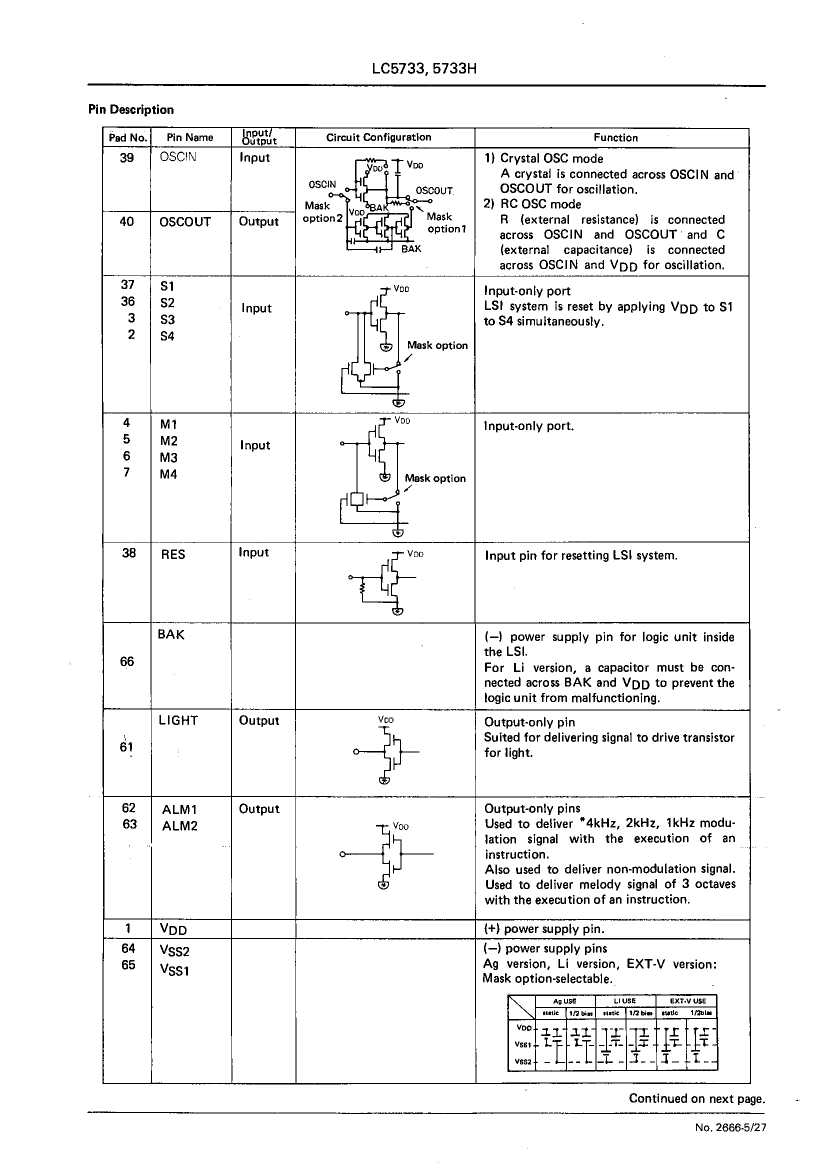

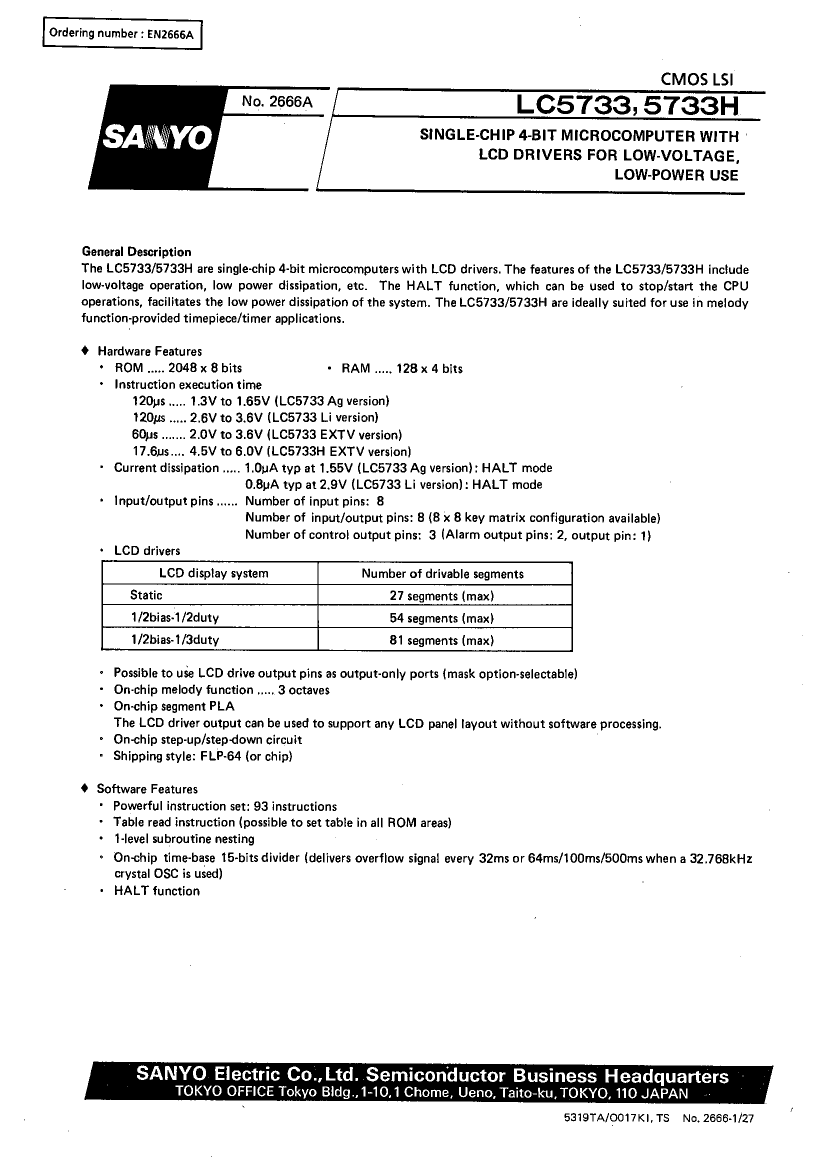

Preview

Download Datasheet

View All

LC5733HQIP64A Related Products

	LC5733HQIP64A	LC5733CHIP	LC5733HCHIP	LC5733QIP64B	LC5733QIP64A	LC5733HQIP64B
Description	Microcontroller, 4-Bit, MROM, CMOS, PQFP64, QIP-64	Microcontroller, 4-Bit, MROM, CMOS	Microcontroller, 4-Bit, MROM, CMOS	Microcontroller, 4-Bit, MROM, CMOS, PQFP64, QIP-64	Microcontroller, 4-Bit, MROM, CMOS, PQFP64, QIP-64	Microcontroller, 4-Bit, MROM, CMOS, PQFP64, QIP-64
Maker	SANYO	SANYO	SANYO	SANYO	SANYO	SANYO
package instruction	QFP,	DIE,	DIE,	QFF,	QFP,	QFF,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Has ADC	NO	NO	NO	NO	NO	NO
bit size	4	4	4	4	4	4
maximum clock frequency	0.032768 MHz	0.032768 MHz	0.032768 MHz	0.032768 MHz	0.032768 MHz	0.032768 MHz
DAC channel	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO
JESD-30 code	S-PQFP-G64	X-XUUC-N66	X-XUUC-N66	S-PQFP-F64	S-PQFP-G64	S-PQFP-F64
Number of I/O lines	17	17	17	17	17	17
Number of terminals	64	66	66	64	64	64
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
PWM channel	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	DIE	DIE	QFF	QFP	QFF
Package shape	SQUARE	UNSPECIFIED	UNSPECIFIED	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	UNCASED CHIP	UNCASED CHIP	FLATPACK	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM	MROM	MROM	MROM
Maximum supply voltage	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage	2.2 V	2.2 V	2.2 V	2.2 V	2.2 V	2.2 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	GULL WING	NO LEAD	NO LEAD	FLAT	GULL WING	FLAT
Terminal location	QUAD	UPPER	UPPER	QUAD	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Parts packaging code	QFP	-	-	QFP	QFP	QFP
Contacts	64	-	-	64	64	64
length	14 mm	-	-	14 mm	14 mm	14 mm
Terminal pitch	0.8 mm	-	-	0.8 mm	0.8 mm	0.8 mm
width	14 mm	-	-	14 mm	14 mm	14 mm
