HL02U24D12Z datasheet, PDF - EEWORLD Datasheet

HL02U24D12Z: DescriptionDC-DC Unregulated Power Supply Module, 2 Output, 2W, Hybrid,; CategoryThe power supply circuit; File Size155KB，4 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric View All

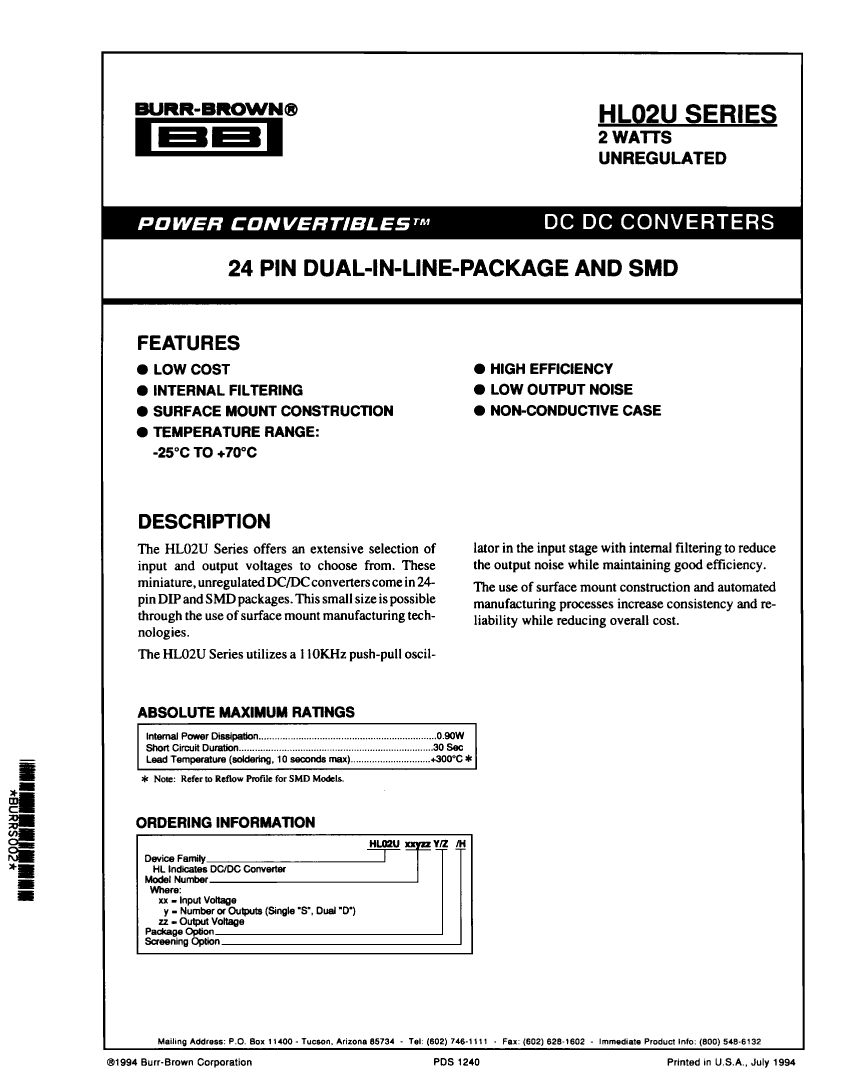

HL02U24D12Z Overview

DC-DC Unregulated Power Supply Module, 2 Output, 2W, Hybrid,

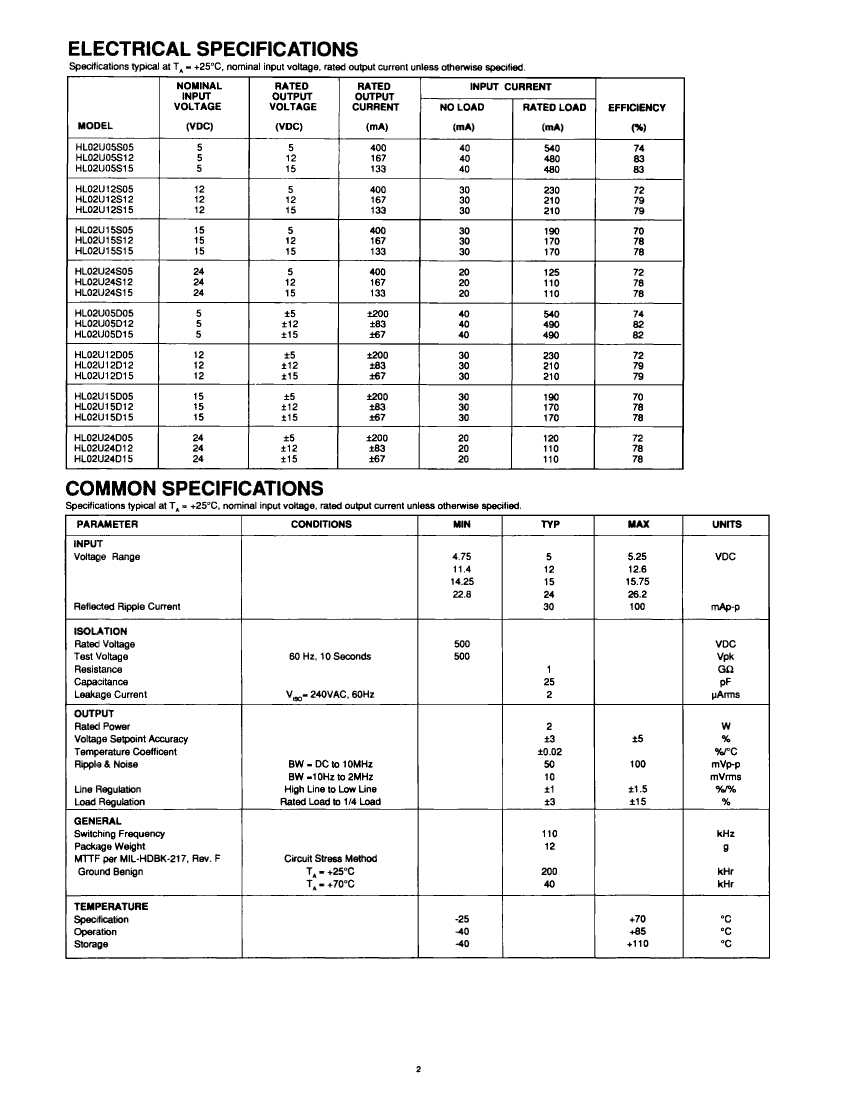

Parameter Name	Attribute value
Maker	Burr-Brown
Reach Compliance Code	unknown
Is Samacsys	N
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE

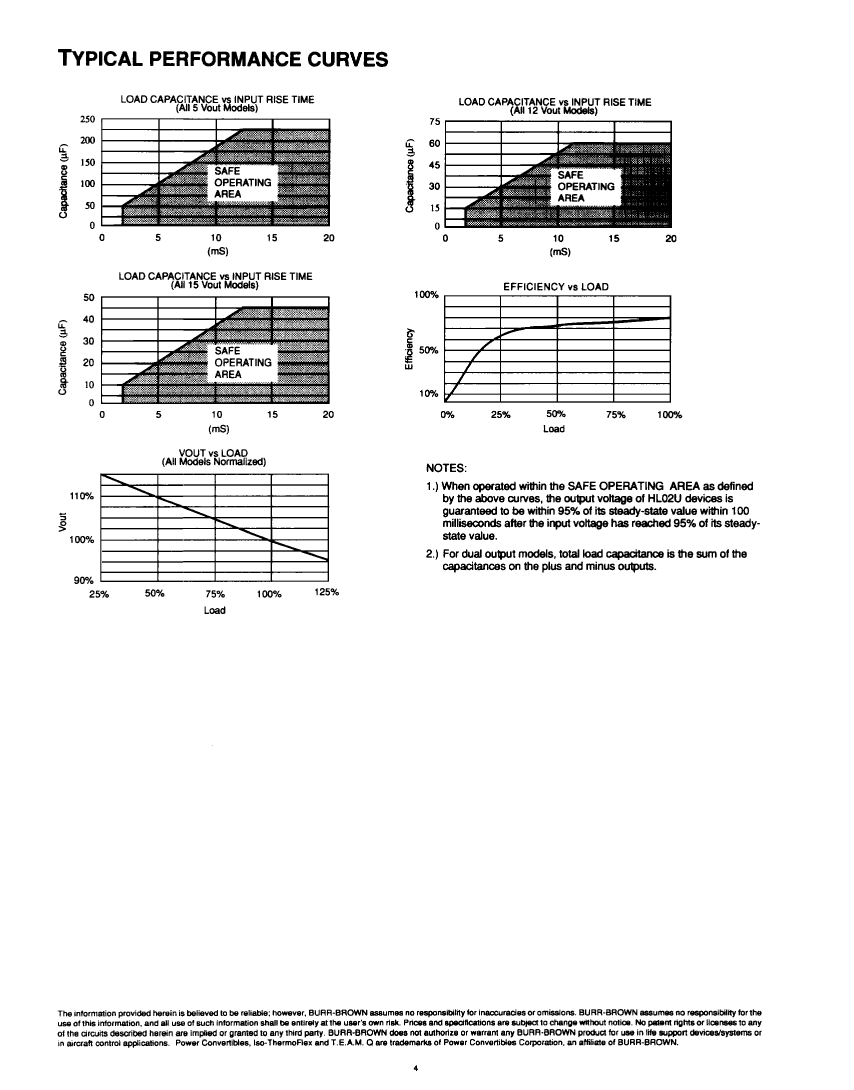

Efficiency (main output)	78%
Maximum input voltage	25.2 V
Minimum input voltage	22.8 V
Nominal input voltage	24 V
JESD-30 code	R-PDSO-G13
Maximum grid adjustment rate	7.5%
Maximum load regulation	15%
Number of functions	1
Output times	2
Number of terminals	13
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	12.6 V
Minimum output voltage	11.4 V
Nominal output voltage	12 V

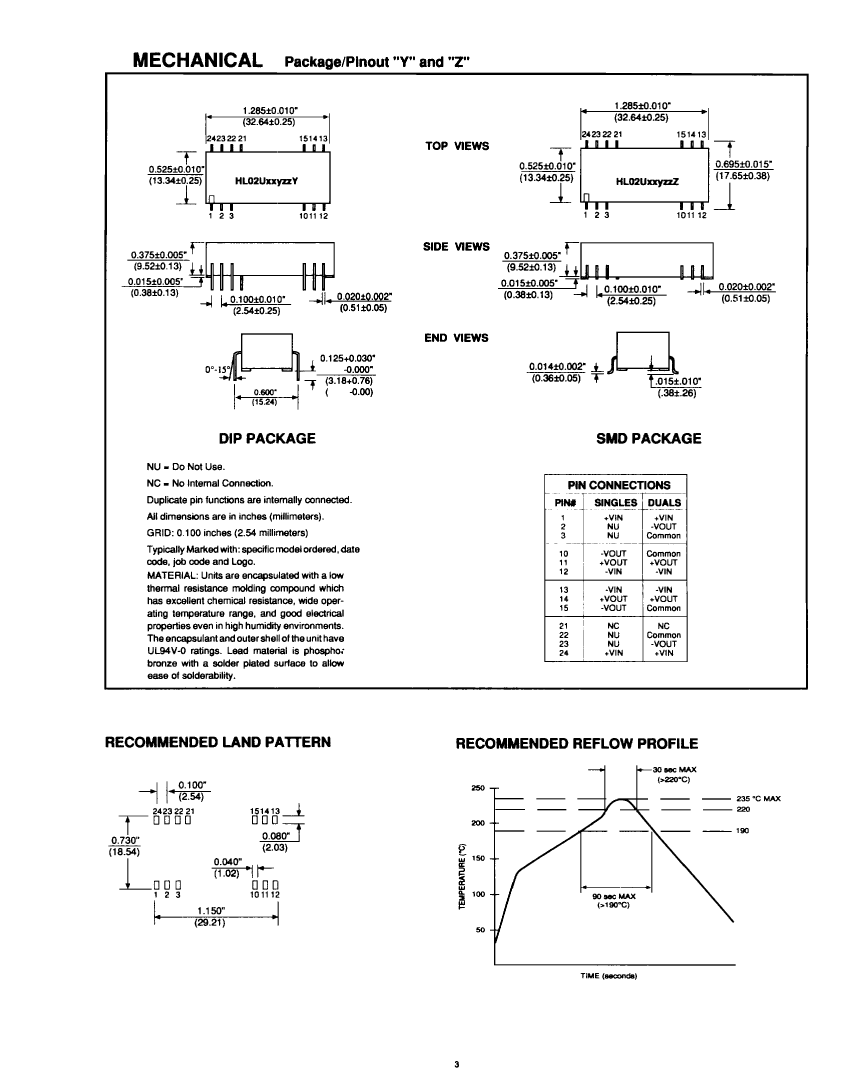

Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Maximum total power output	2 W
Fine-tuning/adjustable output	NO
Base Number Matches	1
